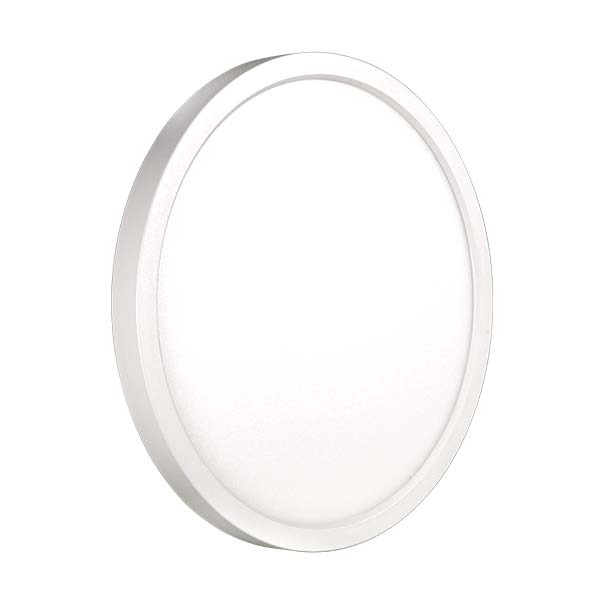

SELECTABLE SURFACE MOUNT LED DOWNLIGHT

NICOR introduces our 11” & 15” DSEv3 Surface Mount Downlight that offers a slim profile with 5CCT selectability. With 1500 and 2000+ lumens and with an optional pendant mount kit, the DSEv3 11” & 15” offers a clean aesthetic and excellent performance, in any area of the home.



* Except 5000K

Specifications

  • Precision engineered optical stack creates uniform light distribution that maximizes lumen output

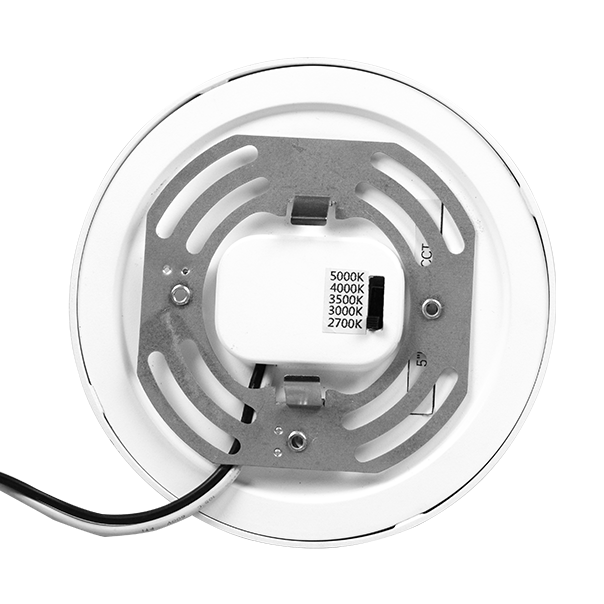

  • Offered with 5CCT selection of 2700K/3000K/3500K/4000K/5000K
  • Utilizes high performing LEDs with a greater than 90 CRI and an R9 greater than 50
  • Input voltage of 120VAC, 50/60Hz
  • Dimmable to less than 5% with compatible TRIAC or ELV dimmers
  • Operating temperature of -4°F to 104°F (-20°C to 40°C)
  • Matte White

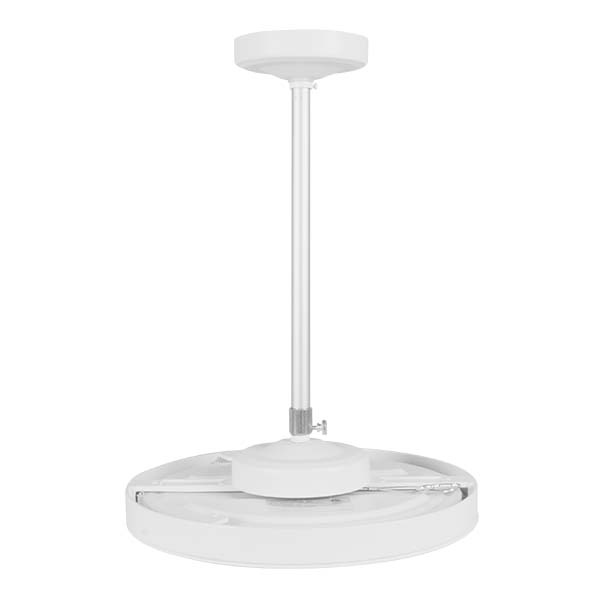

  • Pendant mount option available
DSE113 - 11" Round Trim
2700K
Warm
3000K
Warm White
3500K
Warm Neutral
4000K
Neutral
5000K
Cool

1523
Lumens

1552
Lumens

1569
Lumens

1601
Lumens

1588
Lumens

15.9
Input Watts

15.9
Input Watts

15.9
Input Watts

15.9
Input Watts

15.9
Input Watts

95.8
lm/W

97.6
lm/W

98.7
lm/W

100.7
lm/W

99.9
lm/W

90
CRI

90
CRI

90
CRI

90
CRI

90
CRI

IES Download

IES Download

IES Download

IES Download

IES Download

Part Numbers:

 SelectDSE113120SRDWH
DSE153 - 15" Round Trim
2700K
Warm
3000K
Warm White
3500K
Warm Neutral
4000K
Neutral
5000K
Cool

2020
Lumens

2058
Lumens

2081
Lumens

2123
Lumens

2107
Lumens

19.1
Input Watts

19.1
Input Watts

19.1
Input Watts

19.1
Input Watts

19.1
Input Watts

105.8
lm/W

107.8
lm/W

108.9
lm/W

111.2
lm/W

110.3
lm/W

90
CRI

90
CRI

90
CRI

90
CRI

90
CRI

IES Download

IES Download

IES Download

IES Download

IES Download

Part Numbers:

 SelectDSE153120SRDWH
DSE113 - 11" Round Trim
2700K
Warm
3000K
Warm White
3500K
Warm Neutral
4000K
Neutral
5000K
Cool

1523
Lumens

1552
Lumens

1569
Lumens

1601
Lumens

1588
Lumens

15.9
Input Watts

15.9
Input Watts

15.9
Input Watts

15.9
Input Watts

15.9
Input Watts

95.8
lm/W

97.6
lm/W

98.7
lm/W

100.7
lm/W

99.9
lm/W

90
CRI

90
CRI

90
CRI

90
CRI

90
CRI

IES Download

IES Download

IES Download

IES Download

IES Download

Part Number:

 Select: DSE113120SRDWH

DSE153 - 15" Round Trim
2700K
Warm
3000K
Warm White
3500K
Warm Neutral
4000K
Neutral
5000K
Cool

2020
Lumens

2058
Lumens

2081
Lumens

2123
Lumens

2107
Lumens

19.1
Input Watts

19.1
Input Watts

19.1
Input Watts

19.1
Input Watts

19.1
Input Watts

105.8
lm/W

107.8
lm/W

108.9
lm/W

111.2
lm/W

110.3
lm/W

90
CRI

90
CRI

90
CRI

90
CRI

90
CRI

IES Download

IES Download

IES Download

IES Download

IES Download

Part Number:

 Select: DSE153120SRDWH
