DSEv3-11-15 Series
DSEv3 Selectable LED Surface Mount Downlight
Product description

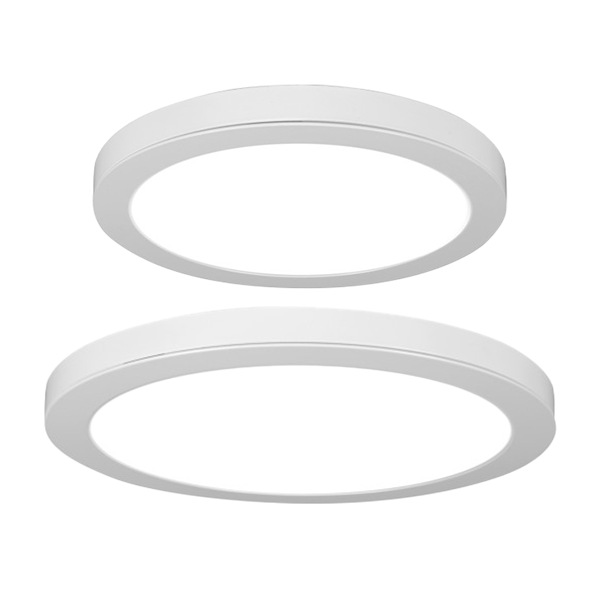

NICOR introduces our 11” & 15” DSEv3 Surface Mount Downlight that offers a slim profile with 5CCT selectability. With 1500 and 2000+ lumens and with an optional pendant mount kit, the DSEv3 11” & 15” offers a clean aesthetic and excellent performance, in any area of the home.
- Five selectable color temperatures (2700K/3000K/3500K/4000K/5000K)
- High-efficacy, uniform edge-lit illumination with 90+ CRI
- Slim, driverless steel design for long life
- Mounts to 4" junction boxes or drywall; pendant/suspended options
- Dims smoothly to <5% with TRIAC/ELV dimmers
Ordering information
Downloads
Specifications
-
Lifespan>90,000
Listings & certifications
Listings & Certifications
- cETLus Intertek Listed
- Title 24
- JA8
- NFPA 70 Compliant
- NEC 410.16 (A)(3)
- NEC 410.16 (C)(5)
- RoHS Compliant
- FCC Class B
- Wet-Location (ETL 1598)
Other Certifications
- Testing performed in accordance with IESNA standards
- Compliant with NFPA 70, NEC Section 410.16 (A)(3) and 410.16 (C)(5) for closet use
- Meets FCC Part 15, Subpart B, Class B standards for conducted and radiated emissions
Features
Construction
- Steel housing and backplate
- Steel mounting frame
- Driverless design minimizes installation depth
- CCT Selection switch on back of fixture
Optical System
- Precision engineered optical stack creates uniform light distribution that maximizes lumen output
- Offered with 5CCT selection of 2700K/3000K/3500K/4000K/5000K
- Utilizes high performing LEDs with a greater than 90 CRI and an R9 greater than 50
Electrical
- Input voltage of 120VAC, 50/60Hz
- Dimmable to less than 5% with compatible TRIAC or ELV dimmers
- Operating temperature of -4°F to 104°F (-20°C to 40°C)
Installations
- Mounts to most 4” junction boxes or direct to drywall with mounting frame
- Mounting frame can be aircraft cable suspended (not included)
- Frame mounts to surface and fixture twist-locks into place
- Pendant mount option available
Full Listings
- cETLus 1598 Listed for wet locations
- ENERGYSTAR listed
- CA Title 24/JA8 Compliant
- Compliant with NFPA® 70, NEC® Section 410.16 (A)(3) and 410.16 (C)(5) for closet use
- RoHS Compliant
- Meets FCC Part 15, Subpart B, Class B standards for conducted and radiated emissions per ANSI C63.4:2014
- TM-21 Reported L70(9k) life >90,000 hrs
- LM-79, LM-80 testing performed in accordance with IESNA standards
Warranty
- 5-year limited system warranty standard
- Warranty does not cover product failure due to an overvoltage event (power surge)
- For installations where power surge may be possible, NICOR recommends installing additional surge protection at the electrical distribution panel
