SELECTABLE SURFACE MOUNT LED DOWNLIGHT

The DSEv3 Selectable Surface Mount Downlight offers a slim profile in both round and square apertures and five CCT selectability. The edge-lit technology uses a reflective light guide that disperses light through a diffused lens, making it a practical solution with high performance. Available in a variety of diameters, the DSEv3 brings a flexible option with a clean aesthetic and excellent performance to any area of the home.

 *

* Except 5000K

Categories: Tags:

Specifications

  • Driverless, slim design minimizes installation height requirement
  • Surface mounts to most 4” junction boxes using included mounting plate

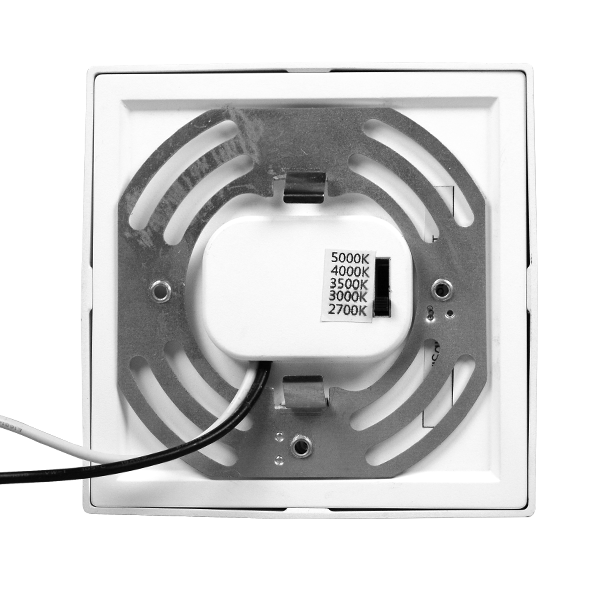

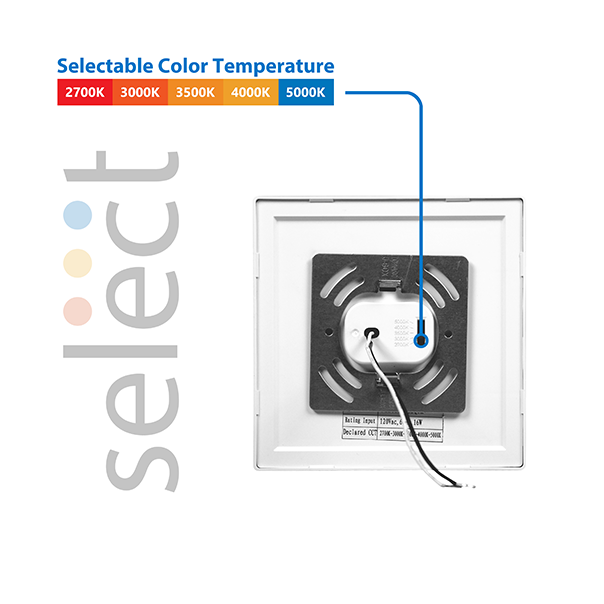

  • CCT Selection switch accessible on the back of the fixture: choose between 2700K, 3000K, 3500K, 4000K, or 5000K
  • Available in round or square options
  • Dimmable to less than 5% with compatible TRIAC dimmers
  • Utilizes high performing LEDs with a greater than 90 CRI and an R9 greater than 50
  • Energy Star and Wet Location Rated
  • 5-year Limited Warranty
  • Current available accessory trim cover option (others coming soon):
    • Black - Round

Downloads

– Downlight Brochure
– Sell Sheet

– Spec Sheet
– Installation Instructions

DSE53 - 5" Round Trim
2700K
Warm		3000K
Warm White		3500K
Warm Neutral		4000K
Neutral		5000K
Cool

615
Lumens

627
Lumens

633
Lumens

646
Lumens

641
Lumens

10.4
Input Watts

10.4
Input Watts

10.4
Input Watts

10.4
Input Watts

10.4
Input Watts

59.1
lm/W

60.3
lm/W

60.9
lm/W

62.1
lm/W

61.6
lm/W

94
CRI

94
CRI

94
CRI

94
CRI

94
CRI

IES Download

IES Download

IES Download

IES Download

IES Download

Part Numbers:

 Select:DSE53120SRDWH
DSE83 - 8" Round Trim
2700K
Warm		3000K
Warm White		3500K
Warm Neutral		4000K
Neutral		5000K
Cool

948
Lumens

966
Lumens

976
Lumens

996
Lumens

989
Lumens

15.6
Input Watts

15.6
Input Watts

15.6
Input Watts

15.6
Input Watts

15.6
Input Watts

60.8
lm/W

61.9
lm/W

62.6
lm/W

63.8
lm/W

63.4
lm/W

92
CRI

92
CRI

92
CRI

92
CRI

92
CRI

IES Download

IES Download

IES Download

IES Download

IES Download

Part Numbers:

 Select: DSE83120SRDWH
DSE93 - 9" Round Trim
2700K
Warm		3000K
Warm White		3500K
Warm Neutral		4000K
Neutral		5000K
Cool

1261
Lumens

1285
Lumens

1298
Lumens

1325
Lumens

1315
Lumens

18.1
Input Watts

18.1
Input Watts

18.1
Input Watts

18.1
Input Watts

18.1
Input Watts

69.7
lm/W

71.0
lm/W

71.7
lm/W

73.2
lm/W

72.7
lm/W

92
CRI

92
CRI

92
CRI

92
CRI

92
CRI

IES Download

IES Download

IES Download

IES Download

IES Download

Part Numbers:

 Select: DSE93120SRDWH
DSE43 - 4" Square Trim
2700K
Warm		3000K
Warm White		3500K
Warm Neutral		4000K
Neutral		5000K
Cool

617
Lumens

629
Lumens

635
Lumens

648
Lumens

643
Lumens

10.7
Input Watts

10.7
Input Watts

10.7
Input Watts

10.7
Input Watts

10.7
Input Watts

57.7
lm/W

58.8
lm/W

59.3
lm/W

60.6
lm/W

60.1
lm/W

92
CRI

92
CRI

92
CRI

92
CRI

92
CRI

IES Download

IES Download

IES Download

IES Download

IES Download

Part Numbers:

 Select: DSE43120SSQWH
DSE63 - 6" Square Trim
2700K
Warm		3000K
Warm White		3500K
Warm Neutral		4000K
Neutral		5000K
Cool

944
Lumens

962
Lumens

972
Lumens

992
Lumens

984
Lumens

15.6
Input Watts

15.6
Input Watts

15.6
Input Watts

15.6
Input Watts

15.6
Input Watts

60.5
lm/W

61.7
lm/W

62.3
lm/W

63.6
lm/W

63.1
lm/W

90
CRI

90
CRI

90
CRI

90
CRI

90
CRI

IES Download

IES Download

IES Download

IES Download

IES Download

Part Numbers:

 Select: DSE63120SSQWH
DSE93 - 9" Square Trim
2700K
Warm		3000K
Warm White		3500K
Warm Neutral		4000K
Neutral		5000K
Cool

1219
Lumens

1243
Lumens

1255
Lumens

1281
Lumens

1271
Lumens

18.6
Input Watts

18.6
Input Watts

18.6
Input Watts

18.6
Input Watts

18.6
Input Watts

65.5
lm/W

66.8
lm/W

67.5
lm/W

68.9
lm/W

68.3
lm/W

92
CRI

92
CRI

92
CRI

92
CRI

92
CRI

IES Download

IES Download

IES Download

IES Download

IES Download

Part Numbers:

 Select: DSE93120SSQWH
