DSEv3 Series

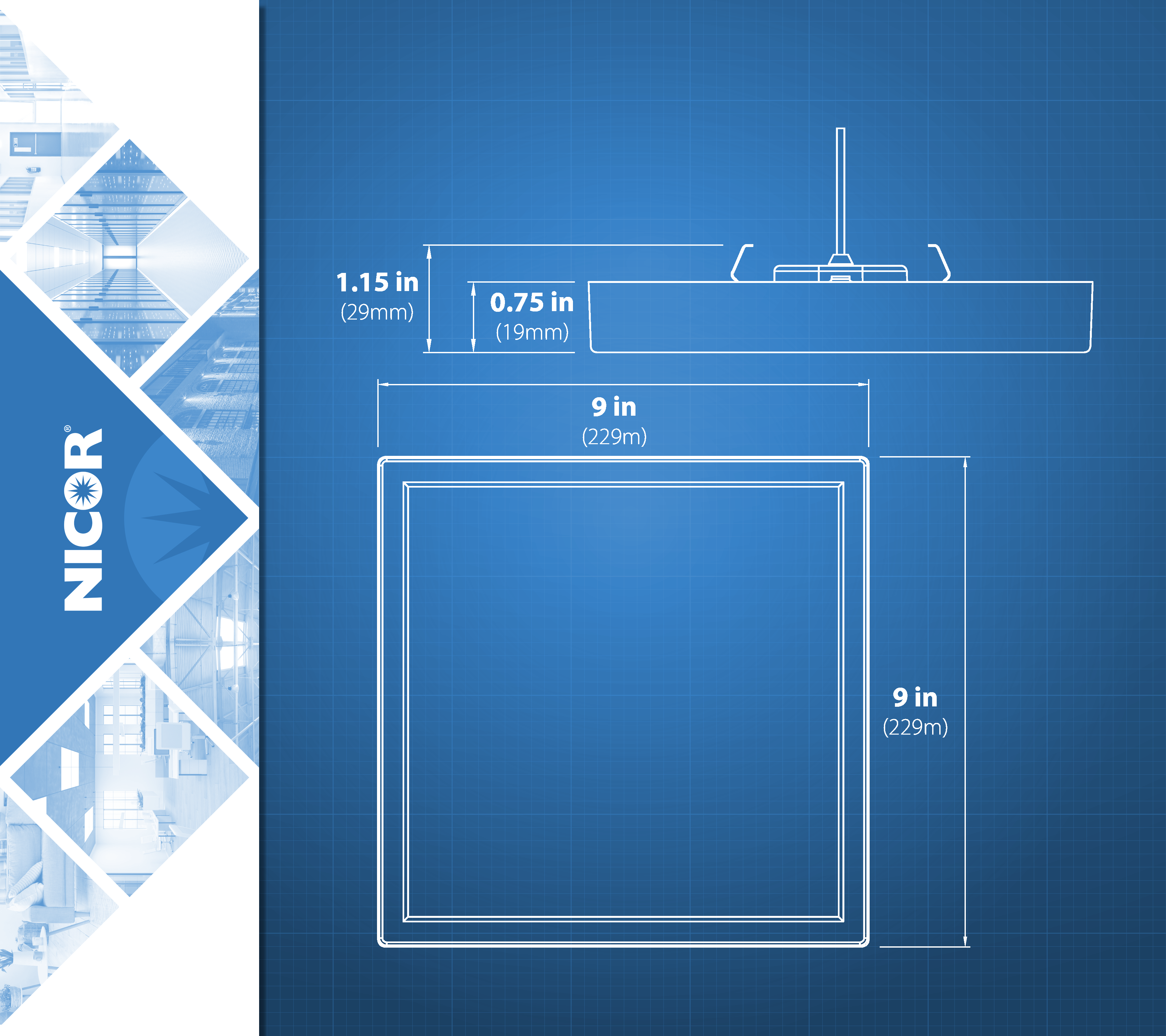

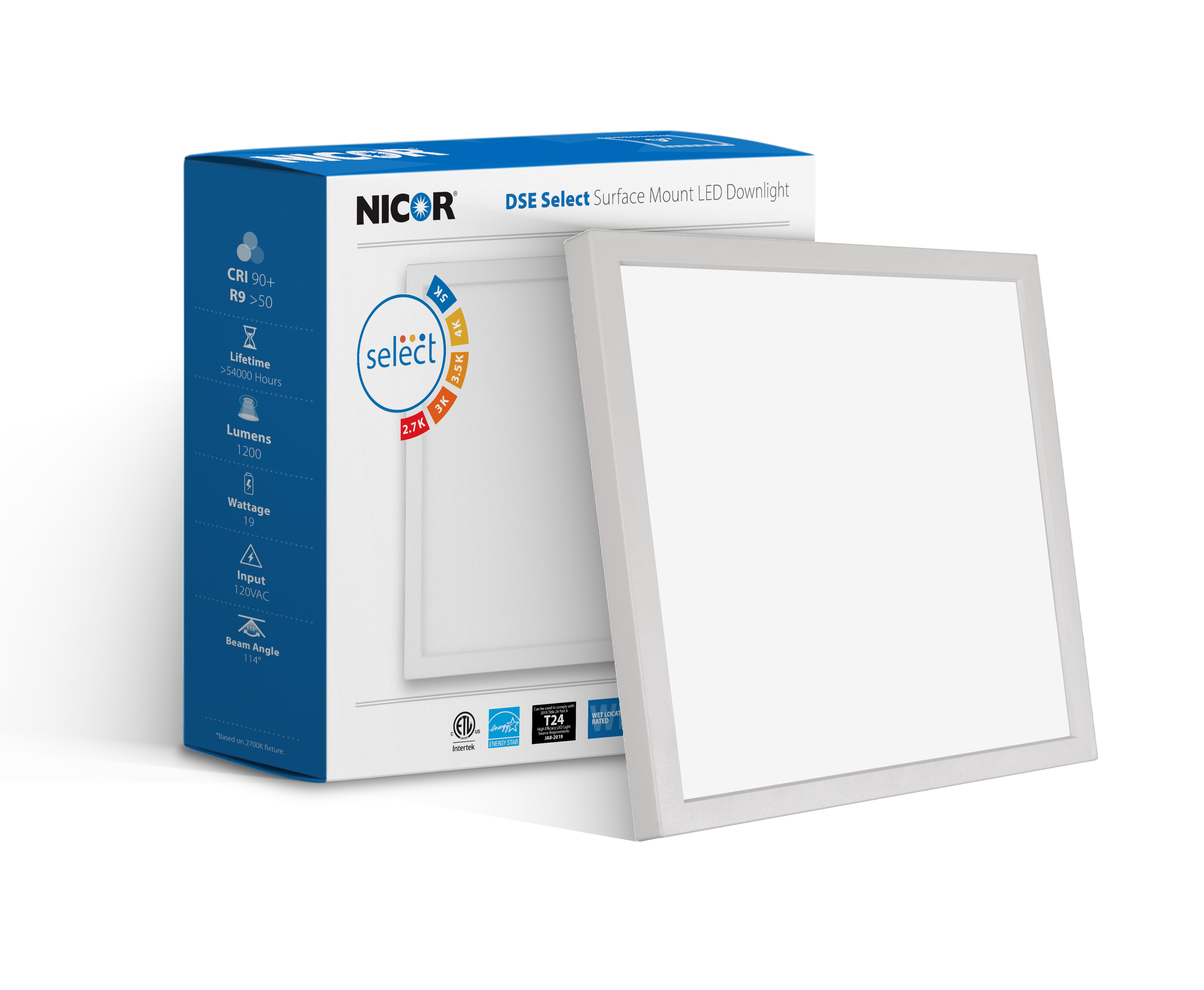

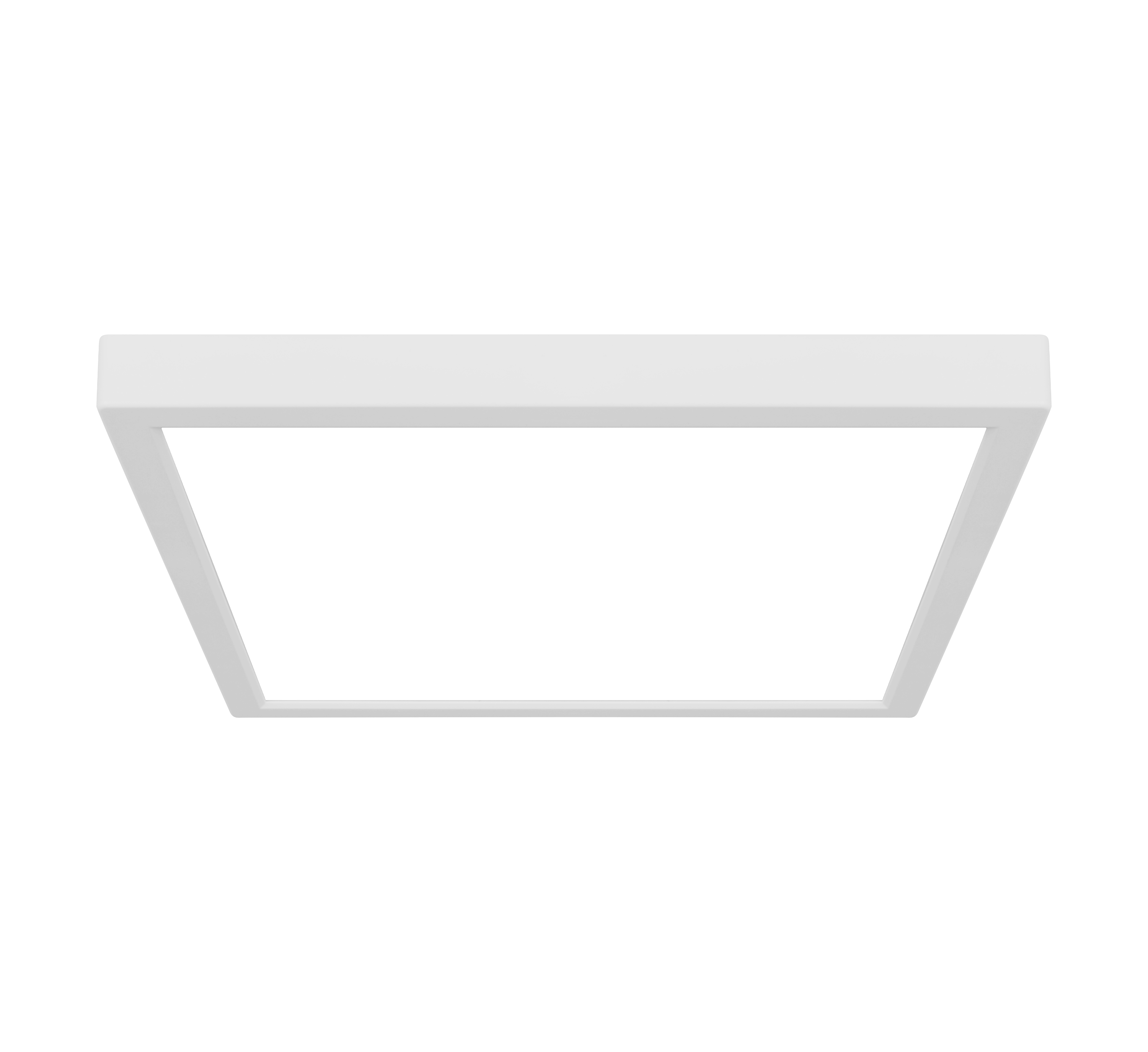

DSE 9-inch White Square Selectable LED Surface Mount Downlight
Product description
The DSEv3 Selectable Surface Mount Downlight offers a slim profile in both round and square apertures with CCT selectability. The edge-lit technology uses a reflective light guide panel that disperses light through a diffused lens, making it a practical and economical solution with high performance.…
The DSEv3 Selectable Surface Mount Downlight offers a slim profile in both round and square apertures with CCT selectability. The edge-lit technology uses a reflective light guide panel that disperses light through a diffused lens, making it a practical and economical solution with high performance. Available in a variety of diameters, the DSEv3 brings flexible option with a clean aesthetic and excellent performance to any area of the home.
- Five selectable color temperatures (2700K/3000K/3500K/4000K/5000K)
- Uniform, glare-free edge-lit illumination with >90 CRI and >50 R9
- Meets new ENERGY STAR (Downlights 1.0) requirements
- Dimmable <5% with compatible TRIAC/ELV dimmers

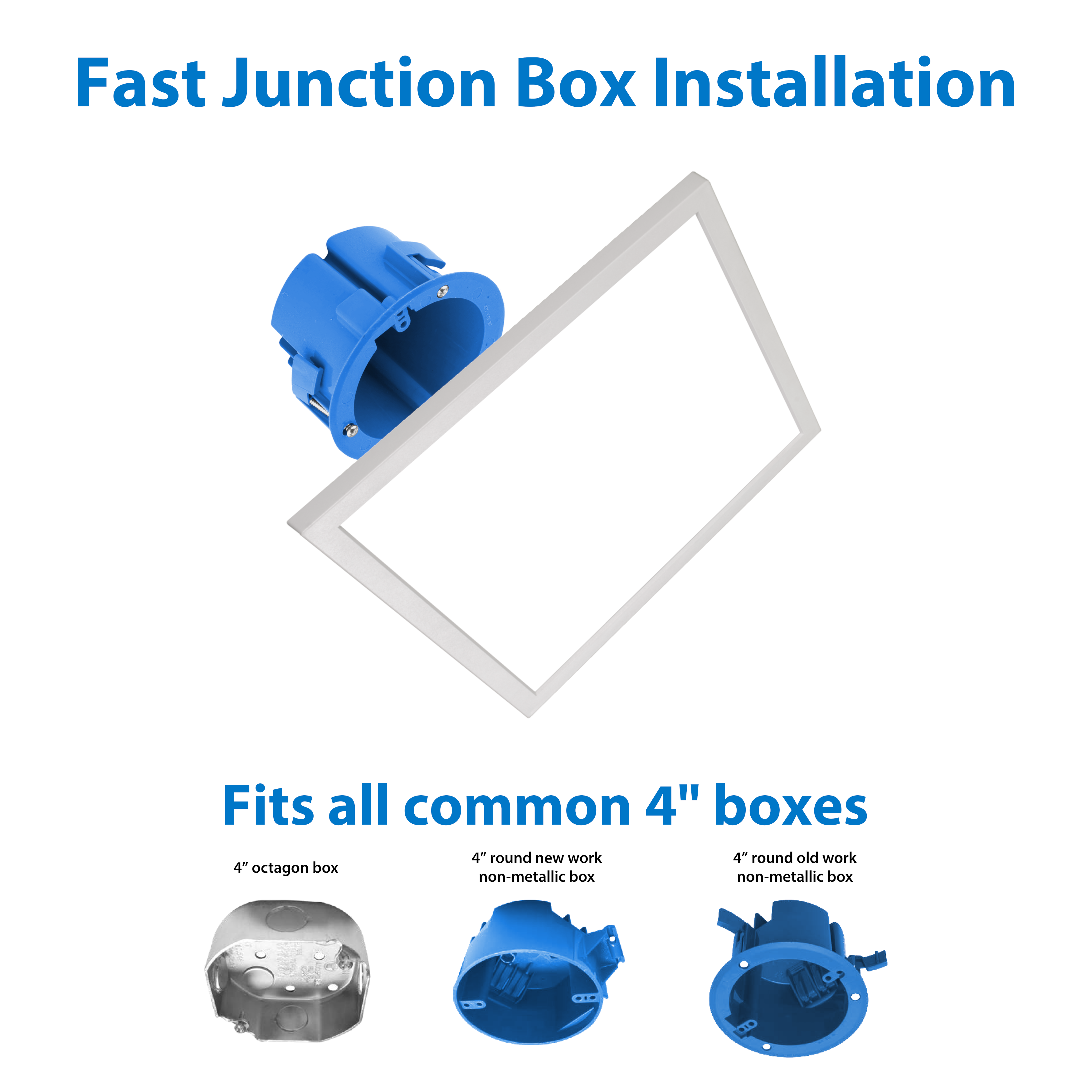

- Easily mounts to 4" junction boxes
- LED lumen maintenance: L70(9k)>54,000 hours
Color Options:
Ordering information
Downloads
Specifications
-
Lifespan>54,000 -

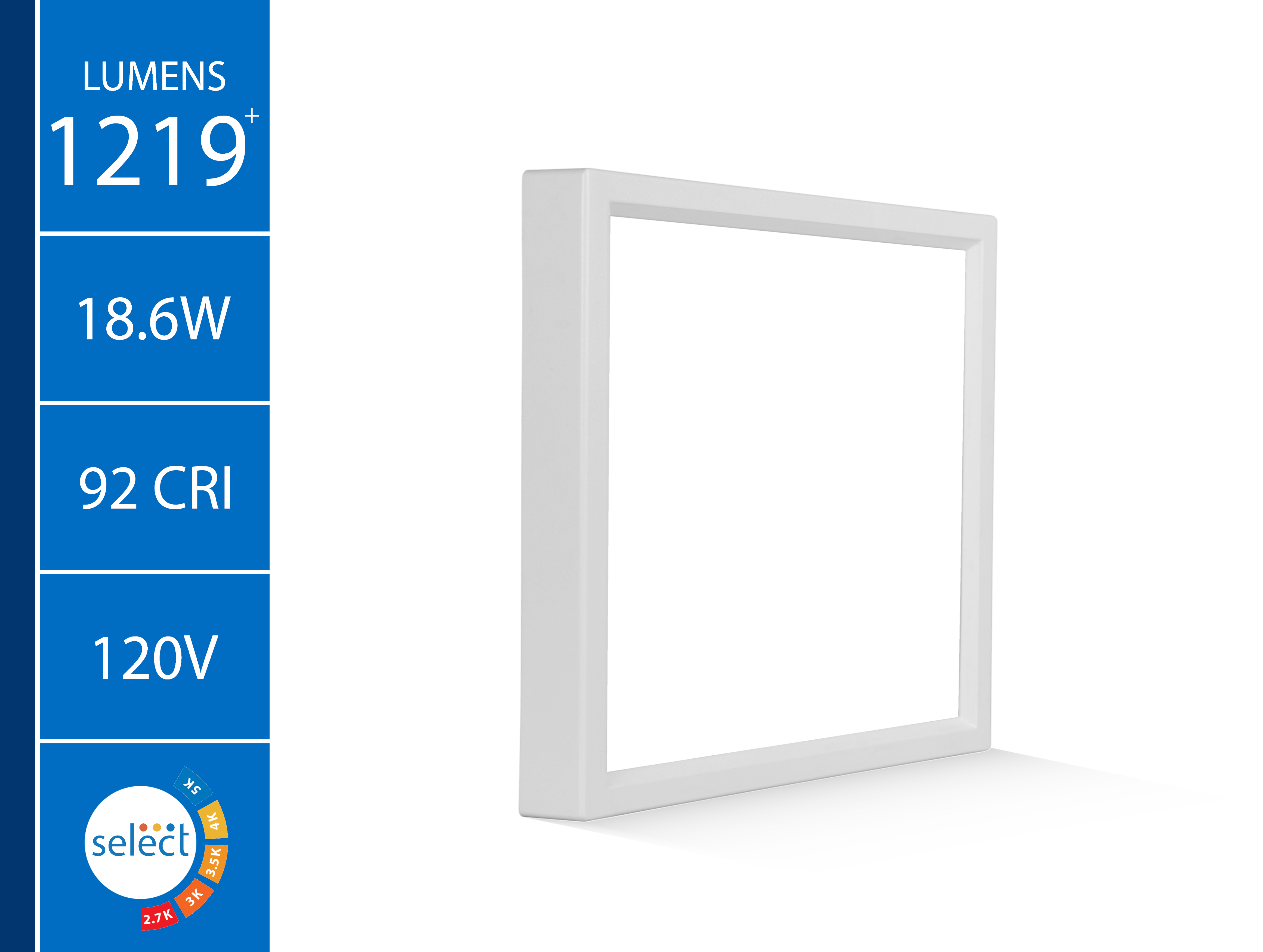

Lumens1219 - 1281 lm
-
Wattage18.6

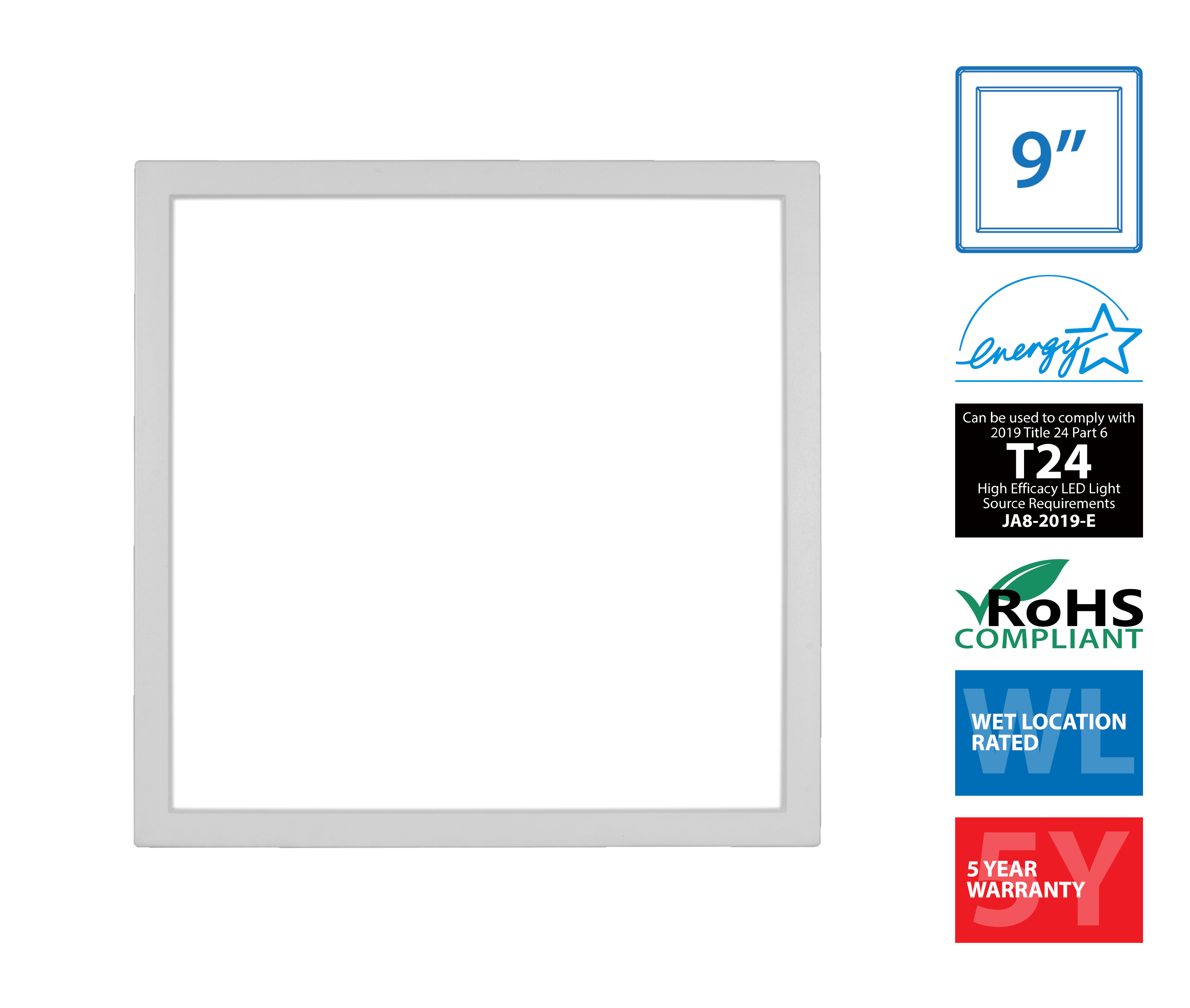

Listings & certifications
Listings & Certifications
- cETLus Intertek Listed
- ENERGY STAR Certified
- TAA Compliant
- Title 24
- JA8
- NFPA 70 Compliant
- NEC 410.16 (A)(3)
- NEC 410.16 (C)(5)
- RoHS Compliant
- FCC Class B
- Wet-Location (ETL 1598)
Other Certifications
- Testing performed in accordance with IESNA standards
- Compliant with NFPA 70, NEC Section 410.16 (A)(3) and 410.16 (C)(5) for closet use
- Meets FCC Part 15, Subpart B, Class B standards for conducted and radiated emissions per ANSI C63.4:2014
Features
Construction
- Aluminum backplate with integral mounting tabs (on 4-9”)
- Steel mounting frame (on 11 & 15”)
- Injection molded polymer trim

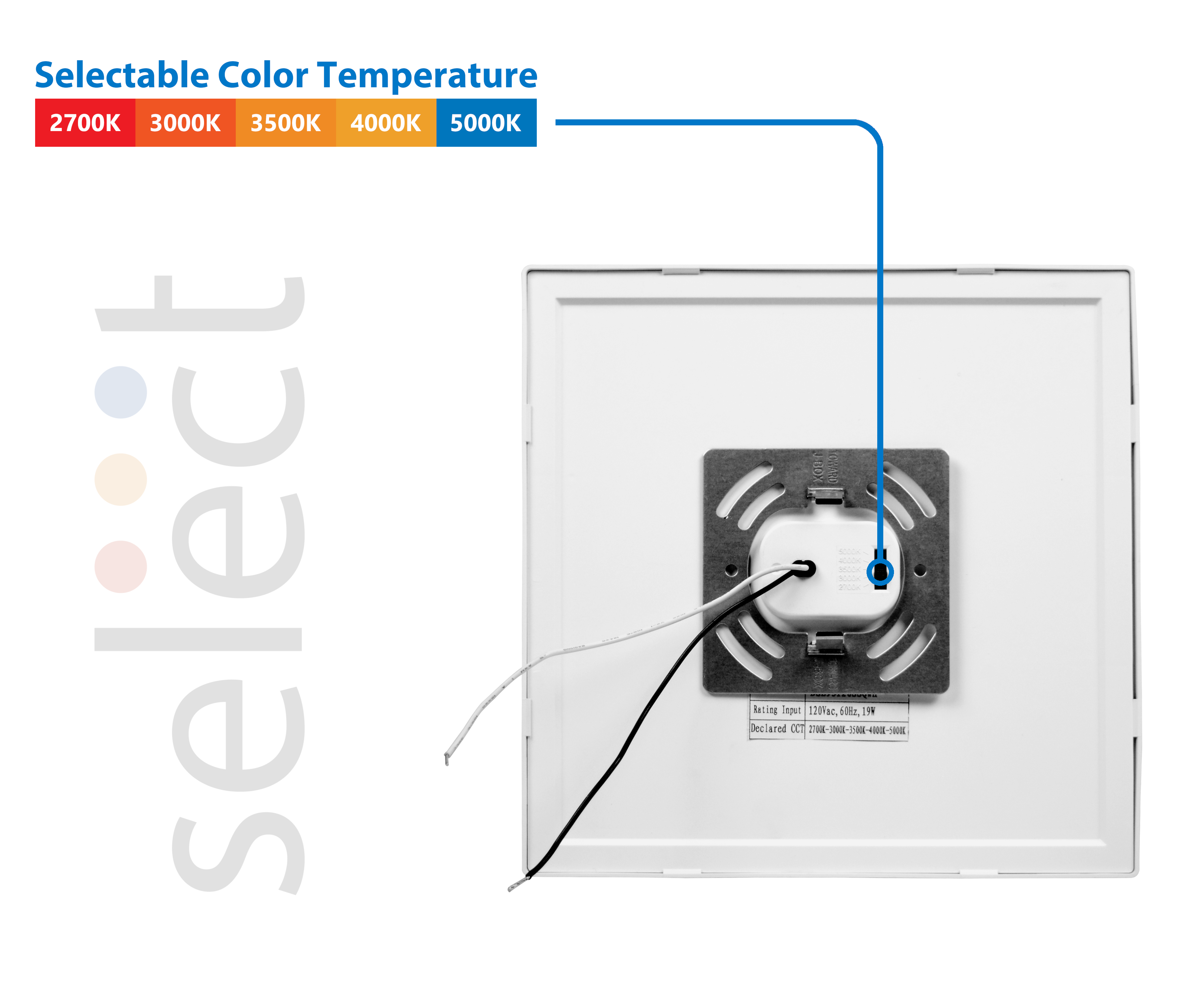

- CCT Selection switch on back of fixture
- Available in round (5-15”) or square (4-9”) configurations
- Matte White finish
- Accessory color trims available in Black, Nickel and Oil-Rubbed Bronze (on 4-9”)
Optical System
- Precision engineered optical stack creates uniform light distribution that maximizes lumen output
- Dual emitter array enables CCT selection of 2700K, 3000K, 3500K, 4000K, or 5000K
- Utilizes high performing LEDs with a greater than 90 CRI and an R9 greater than 50
Electrical
- Input voltage of 120VAC, 50/60Hz
- Dimmable to less than 5% with compatible TRIAC or ELV dimmers
- Operating temperature of -4°F to 104°F (-20°C to 40°C)
Installations
- Driverless design minimizes installation height

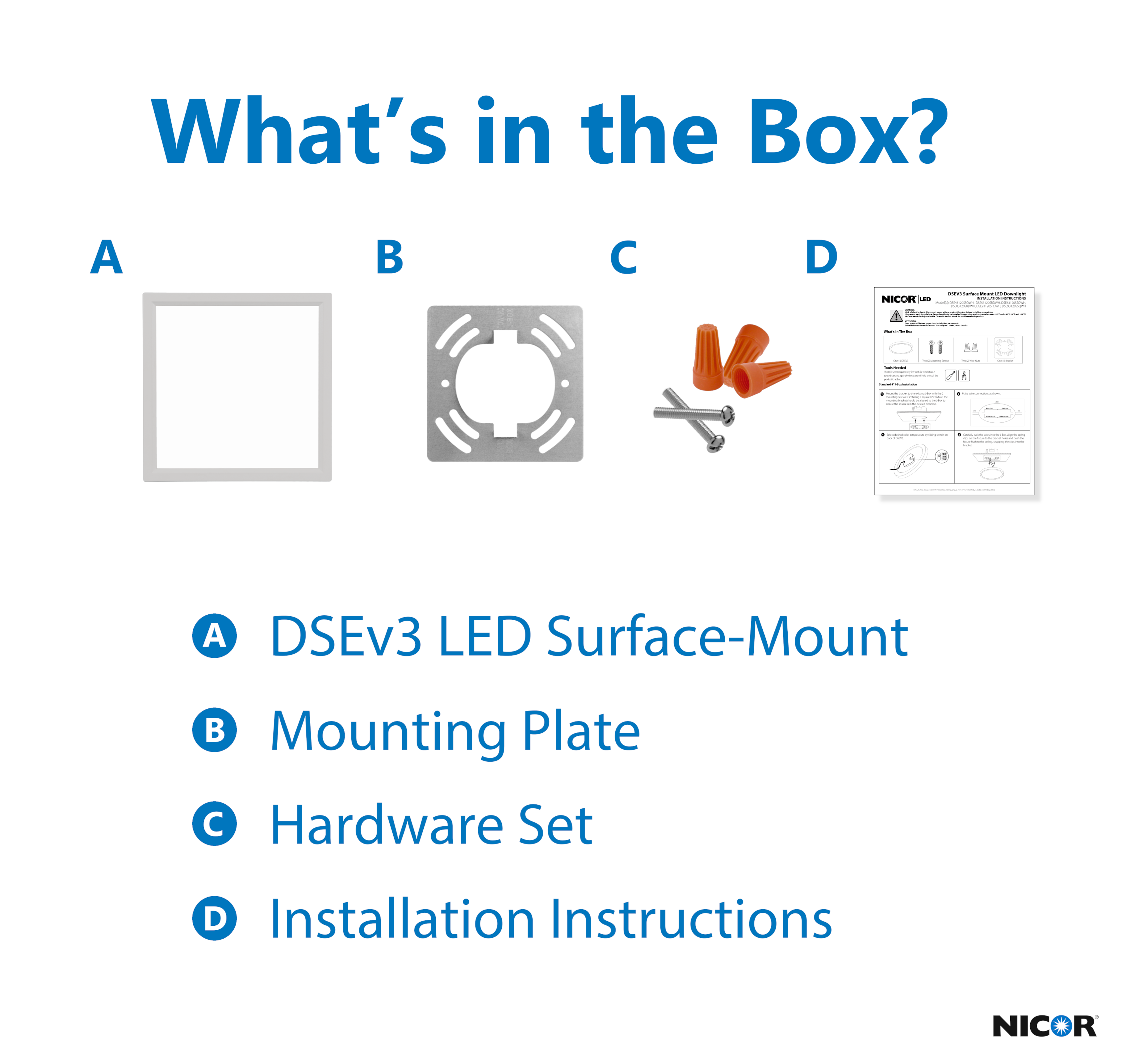

- All sizes surface mount to most 4” junction boxes using included mounting
- Pendant mount option available on 11” and 15” models
- Mounting plate includes features to allow fixture alignment for square fixtures
Full Listings
- cETLus 1598 Listed for wet locations
- ENERGYSTAR listed (Only DSE53120SRDWH, DSE83120SRDWH, and DSE93120SRDWH)
- CA Title 24 (JA8) Compliant
- Compliant with NFPA® 70, NEC® Section 410.16 (A)(3) and 410.16 (C)(5) for closet use
- RoHS Compliant
- Meets FCC Part 15, Subpart B, Class B standards for conducted and radiated emissions per ANSI C63.4:2014
- LED lumen maintenance: L70(9k)>54,000 hrs
- LM-79, LM-80 testing performed in accordance with IESNA standards
Warranty
- 5-year limited system warranty standard
- Warranty does not cover product failure due to an overvoltage event (power surge)
- For installations where power surge may be possible, NICOR recommends installing additional surge protection at the electrical distribution panel
