DSK8v2 Series

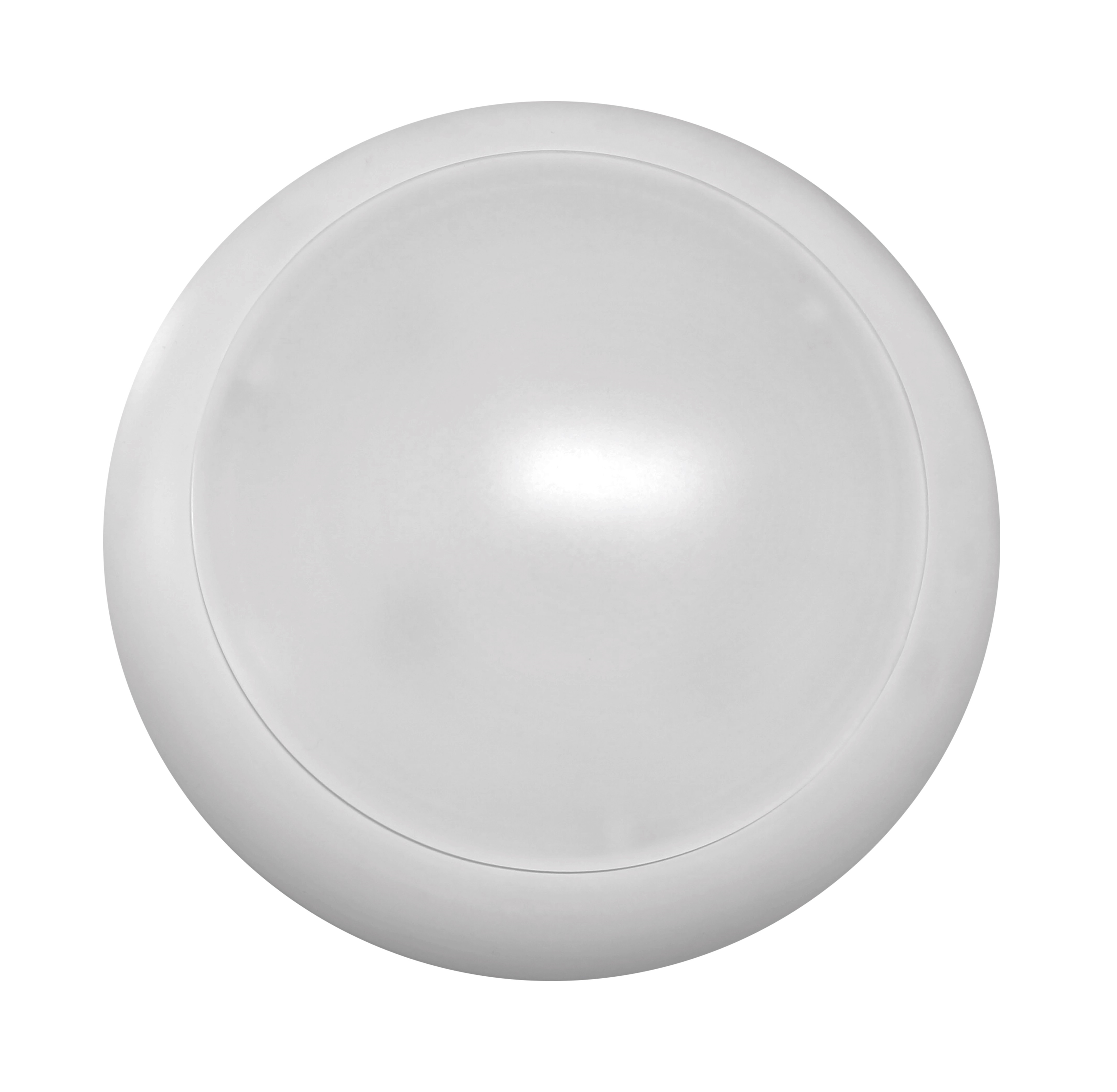

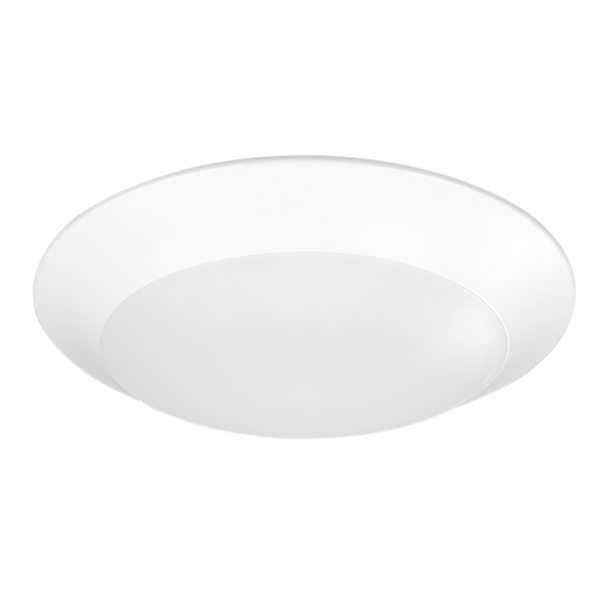

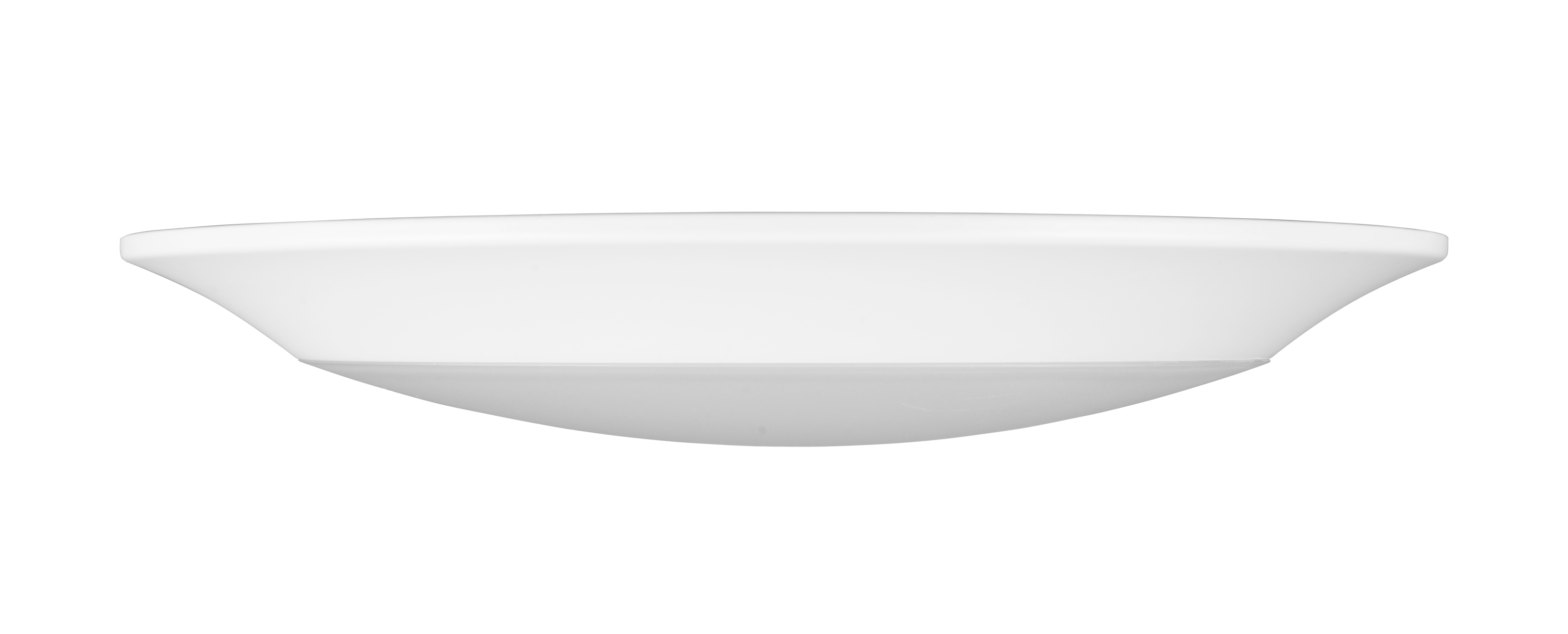

DSKv2 8-inch Driverless Surface Mount LED Downlight
Product description
The DSK Driverless Surface Mount LED Downlight is our thinnest installation solution designed to fit the tightest of spaces. The driverless technology allows this fixture to fasten to most any 4” pancake, non-metallic, or 4/O junction box eliminating the need for recessed housing. Simply remove the …
The DSK Driverless Surface Mount LED Downlight is our thinnest installation solution designed to fit the tightest of spaces. The driverless technology allows this fixture to fasten to most any 4” pancake, non-metallic, or 4/O junction box eliminating the need for recessed housing. Simply remove the twist lock diffuser and set your included captive screws.
- Twist lock diffuser allow for easy removal during installation
- Polystyrene diffuser and high reflectivity cover maximizes light output while reducing glare, creating uniform light distribution
- Input voltage of 120VAC
- Utilizes high performing LEDs with a greater than 90 CRI and an R9 greater than 50
- Keyhole mounting slots allow for quick installation to junction boxes
Color Options:
Ordering information
Downloads
Specifications
-
Lifespan>54,000
Listings & certifications
Listings & Certifications
- cETLus Intertek Listed
- NFPA 70 Compliant
- NEC 410.16 (A)(3)
- NEC 410.16 (C)(5)
- Wet-Location
Other Certifications
- Testing performed in accordance with IESNA standards
Features
Construction

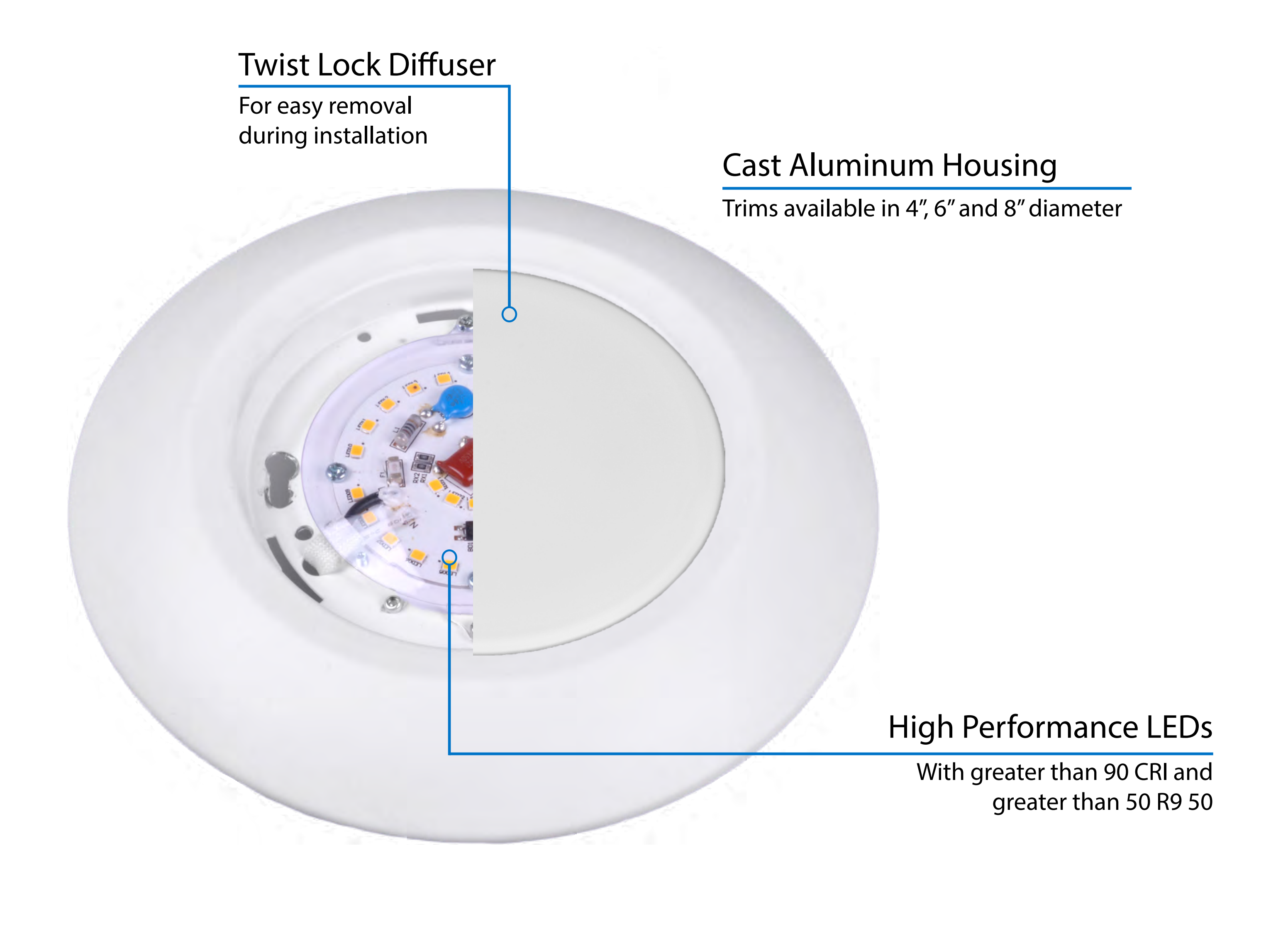

- Twist lock diffuser allow for easy removal during installation
- Spun aluminum housing
- Matte white powder coat finish
Optical System
- Polystyrene diffuser and high reflectivity cover maximizes light output while reducing glare, creating uniform light distribution
Electrical
- Input voltage of 120VAC
- Utilizes high performing LEDs with a greater than 90 CRI and an R9 greater than 50
- Dimmable to less than 10% with specific TRIAC dimmers
- Operating temperature of 0° to 120°F (-18°C to 49°C)
- TM-21 Reported L70(6K) hours >54,000
- LM-79, LM-80 testing performed in accordance with IESNA standards
Installations
- Easy installation in any 4” pancake, 4” non-metallic or 4/O junction box

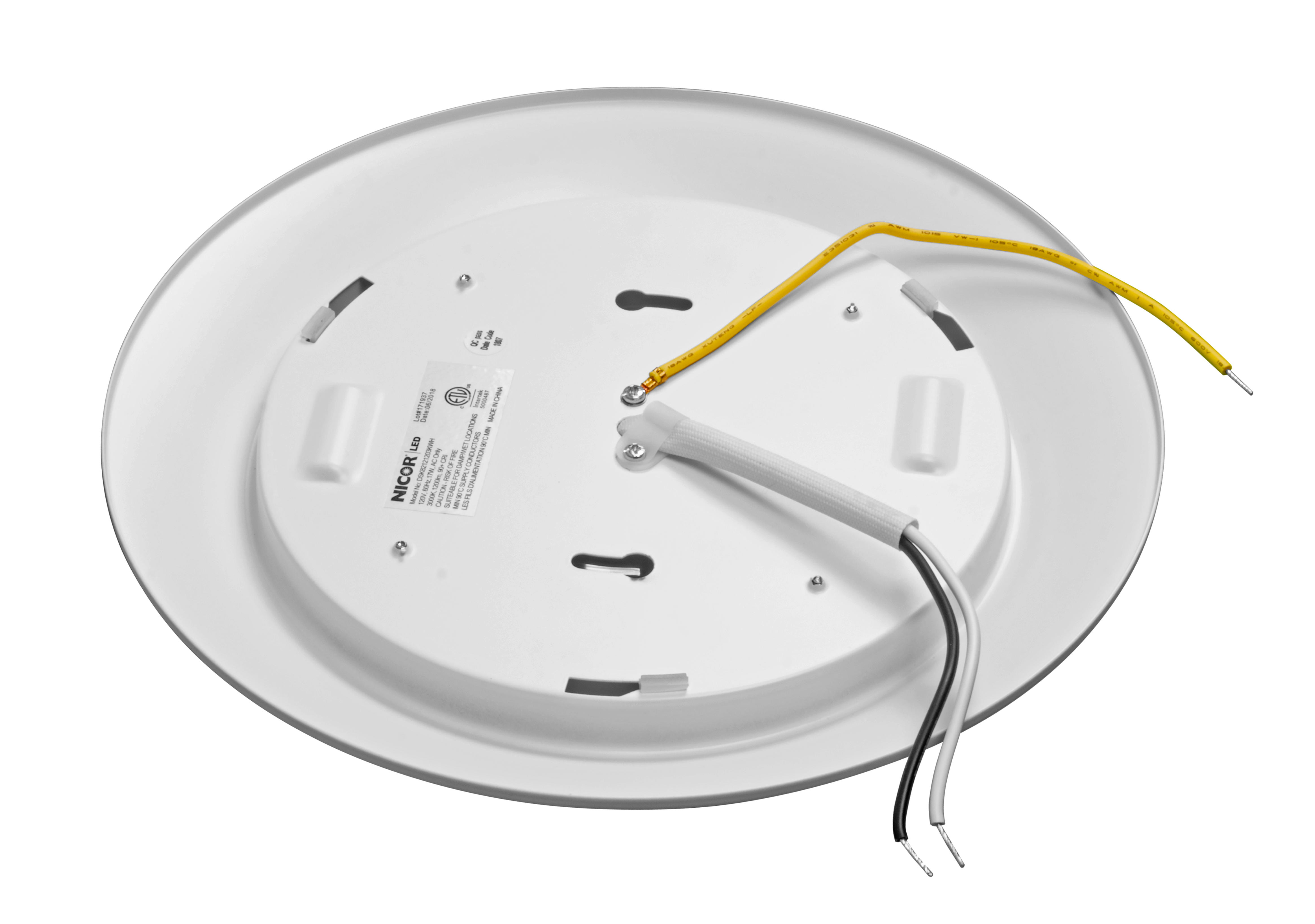

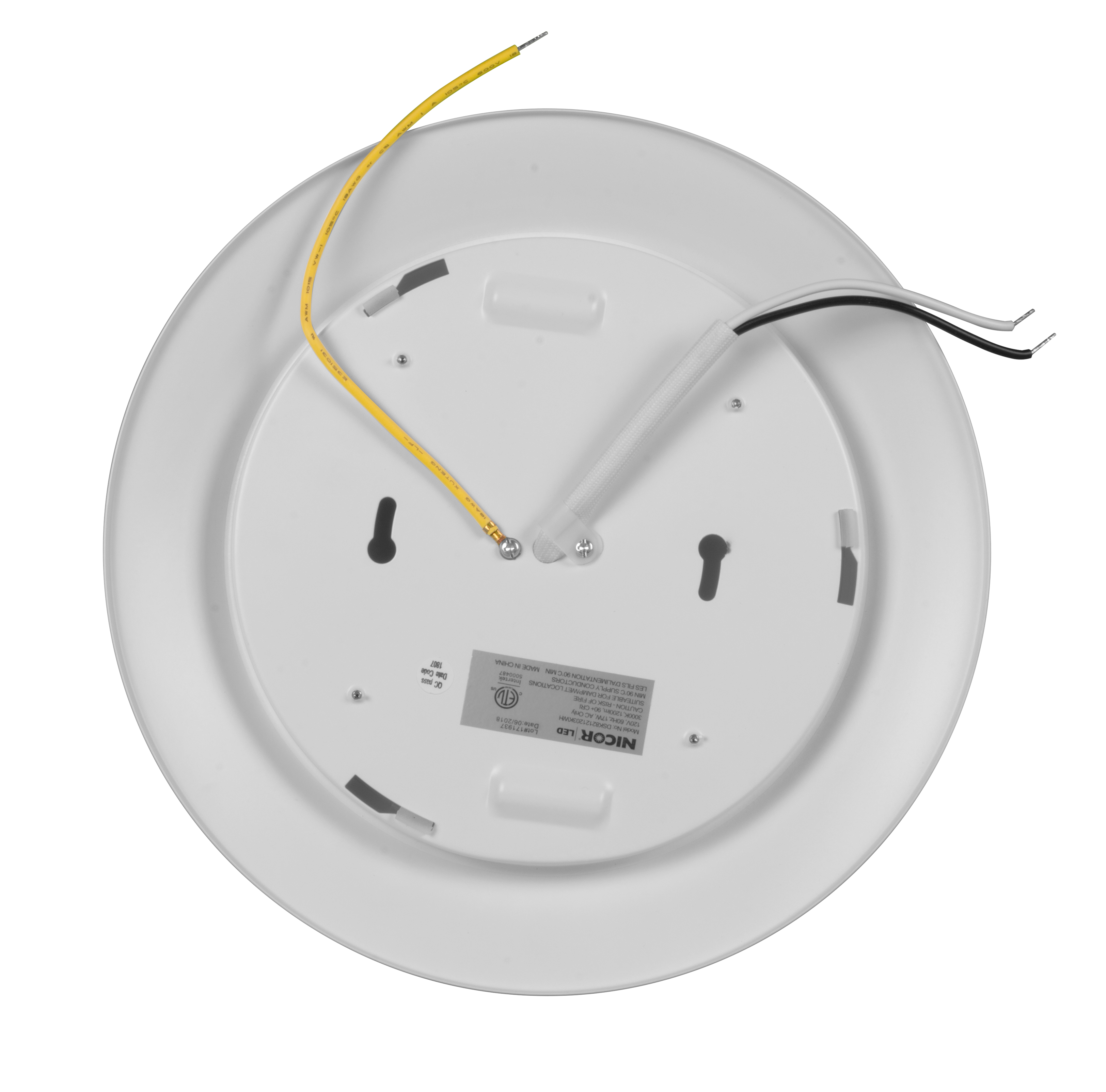

- Keyhole mounting slots allow for quick installation to junction boxes
- Suitable for wet locations
- For installations where power surge may be possible, NICOR recommends installing additional surge protection at the electrical distribution panel
- Compliant with NFPA® 70, NEC® Section 410.16 (A)(3) and 410.16 (C)(5)
Warranty
- 5-year limited system warranty standard
- Warranty does not cover product failure due to an overvoltage event (power surge)
