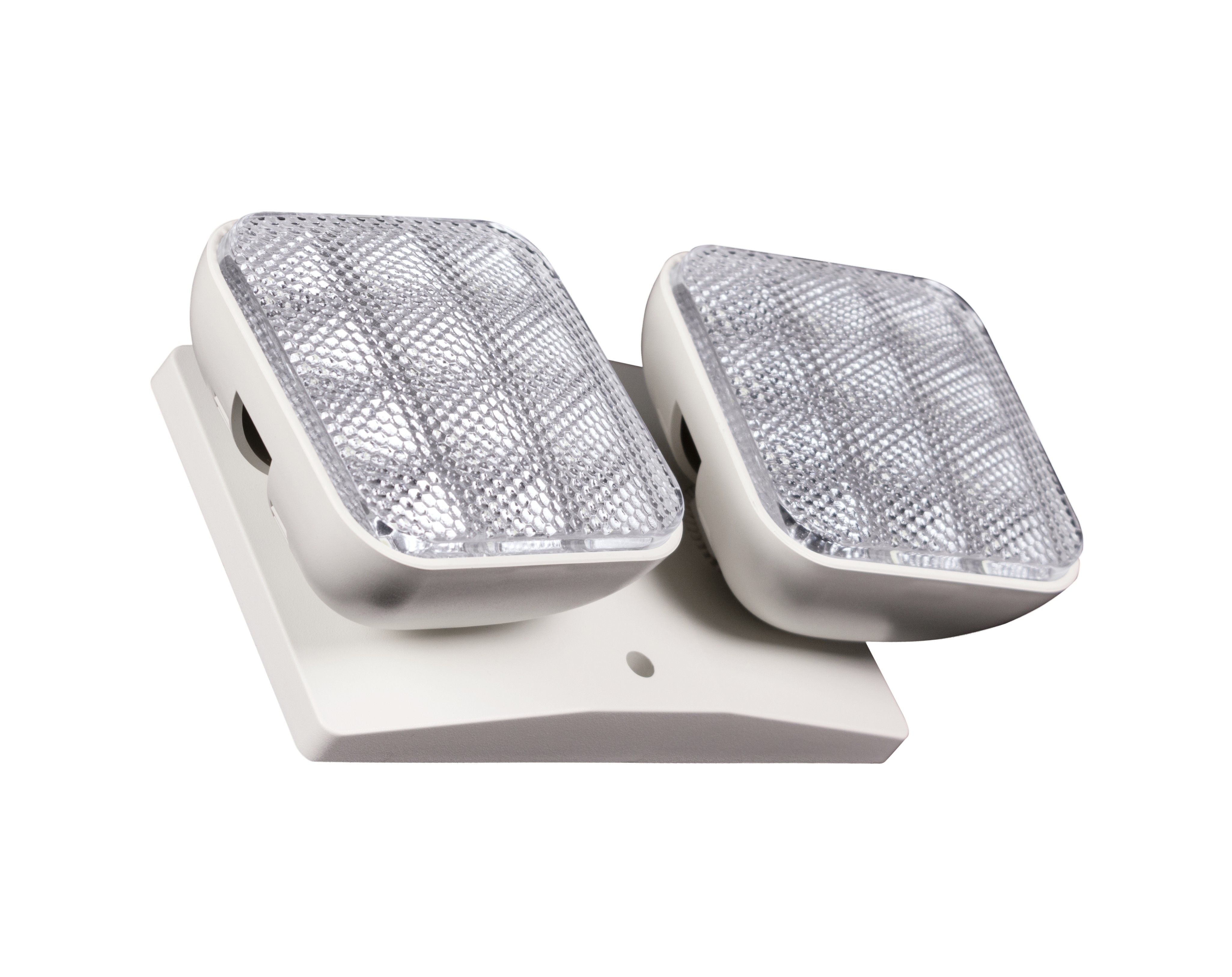

ECL120RH Series
ECL1v2 Double Head LED Emergency Remote Light Fixture
Product description
The ECL12 Series damp location rated LED Remote lamps are designed to work with our ECL1v2 Emergency/Exit Combo. This sleek, contemporary design offers fully adjustable heads that complement any environment. Available in single or double head options.
- Injection molded thermoplastic ABS housing
- White and Black finishes available
- UL-94V-0 flame rating - Flame Retardant
- LED indicator light & push-button test switch
- 90 Min capacity on emergency mode
Color Options:
Ordering information
Downloads
Specifications
-
Lumens202 -
Wattage2.92
Listings & certifications
Listings & Certifications

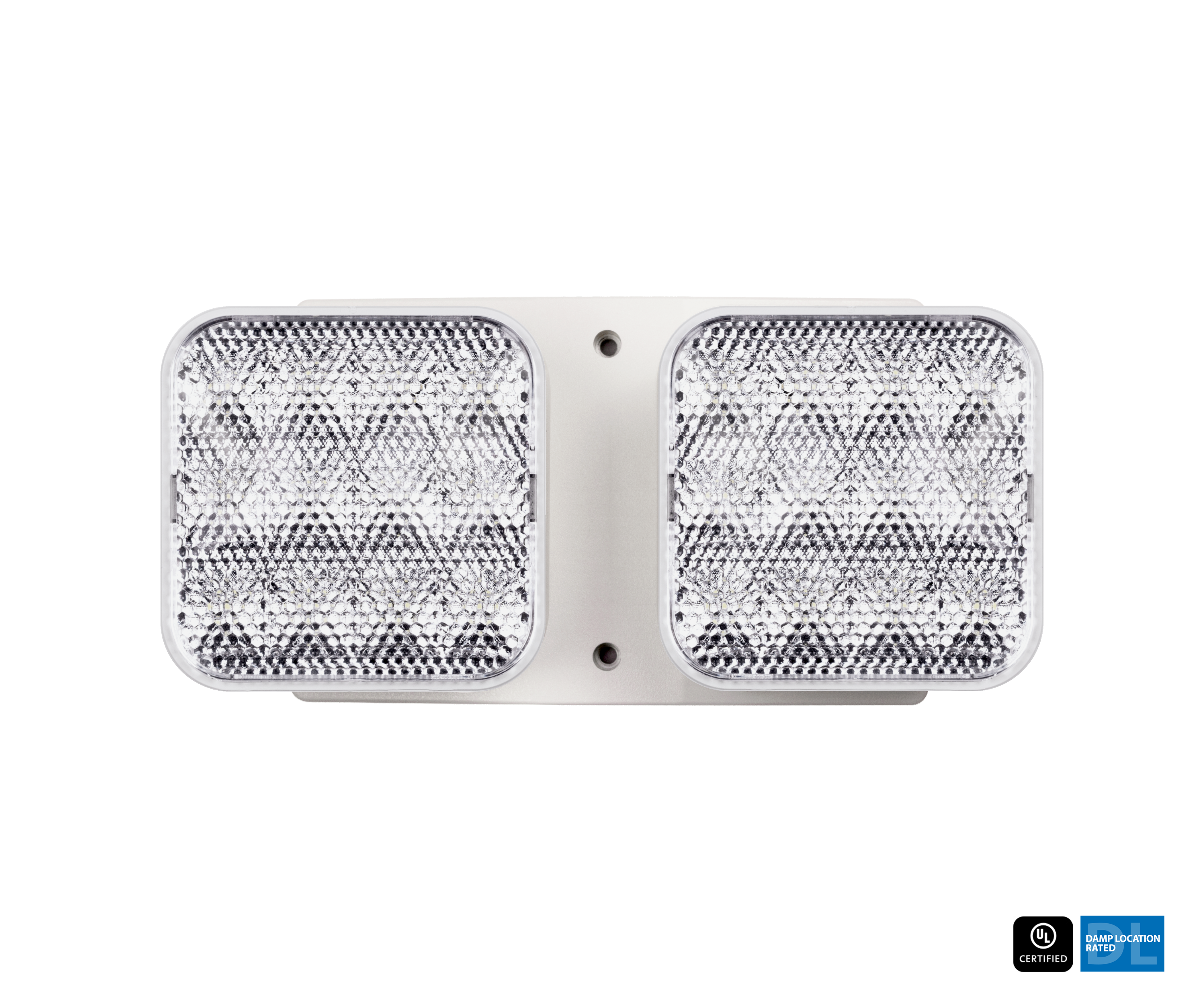

- UL Certified
- UL 94 V-0 (Flame Resistance)
- Damp-Location
Features
Construction
- White Housing

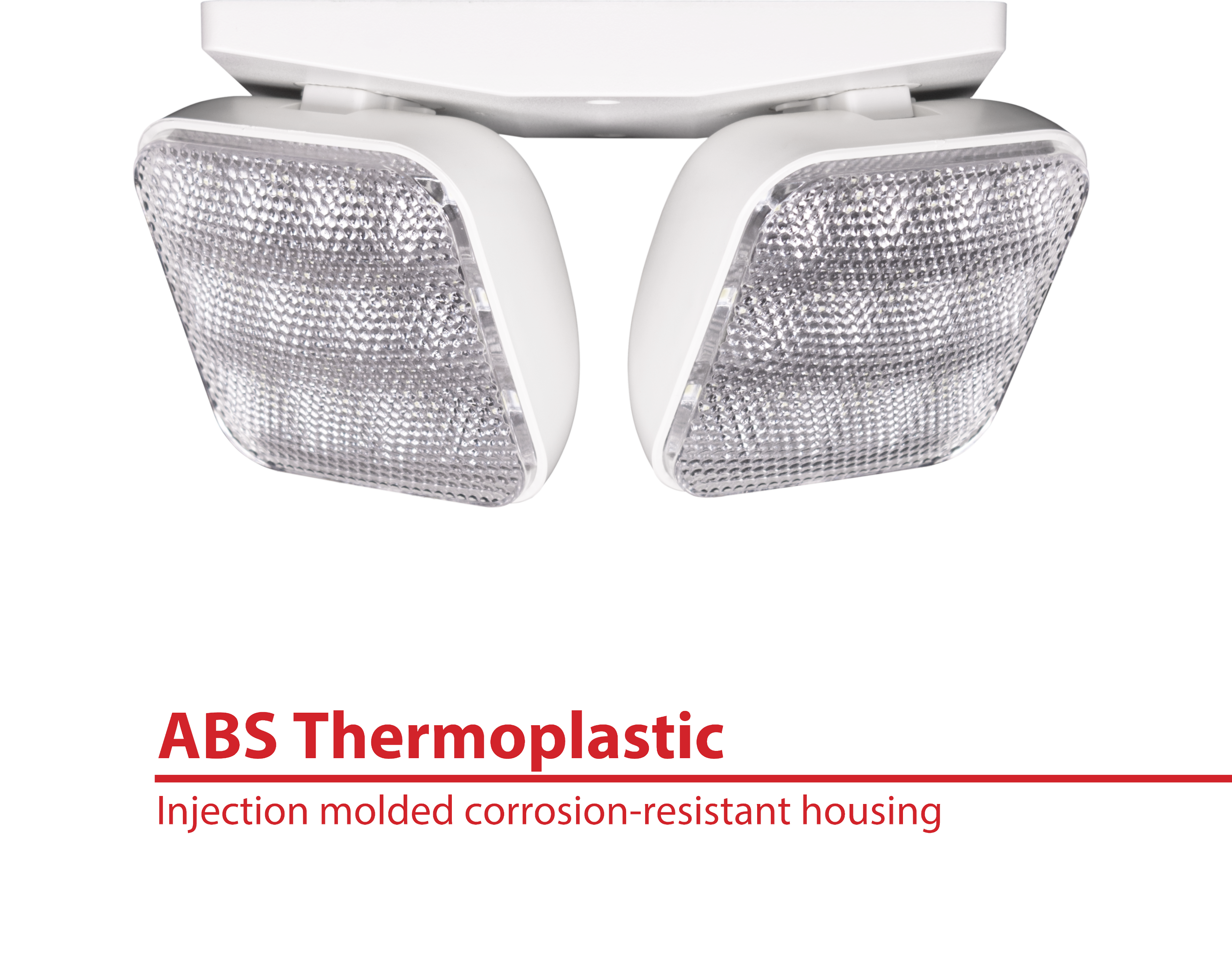

- Injection molded thermoplastic ABS housing
- UL-94v-0 Flame rating - Flame Retardant

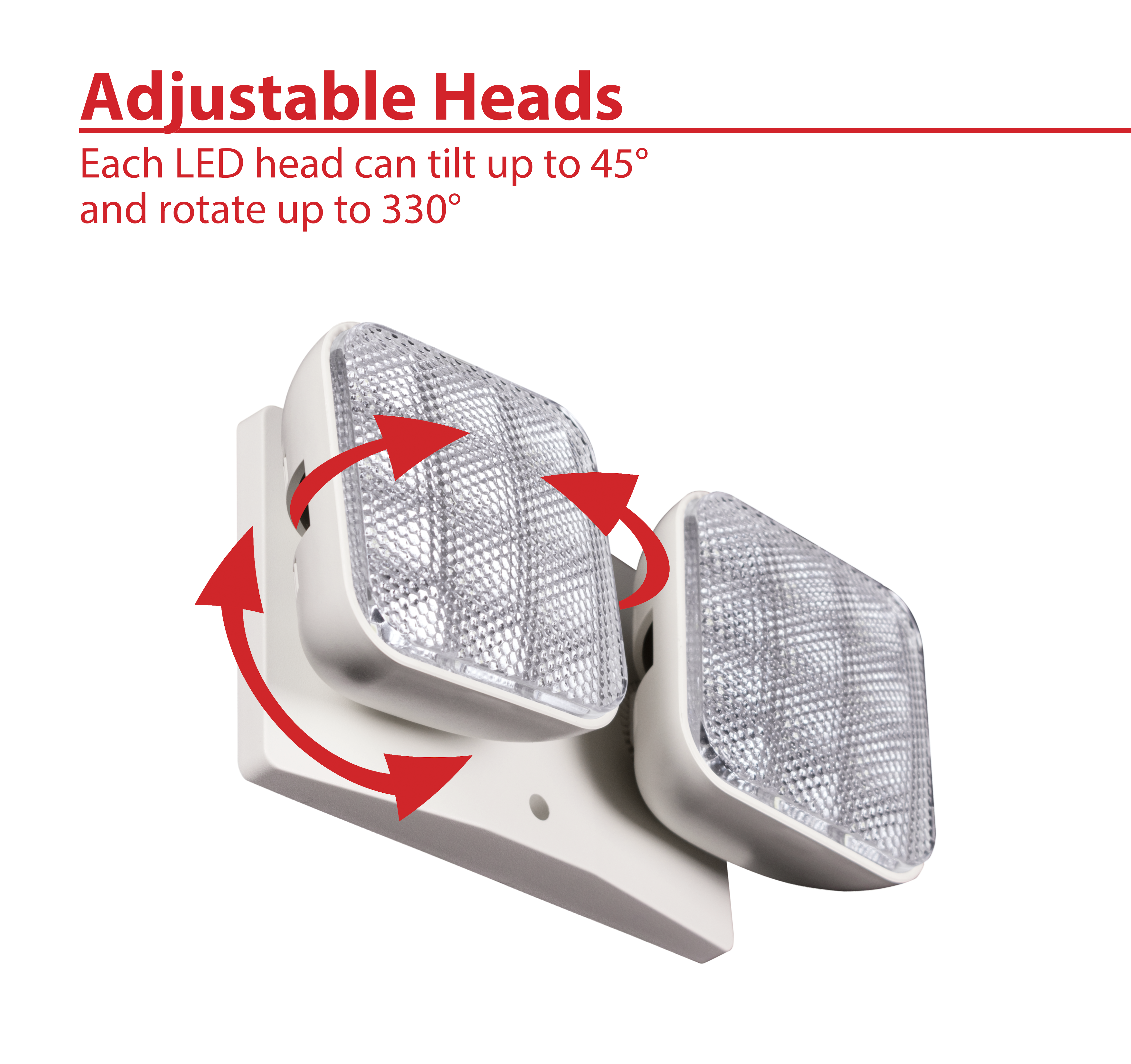

- Adjustable heads for aiming light where required
- Head tilt: ±45°
- Head rotation: 330°
Electrical

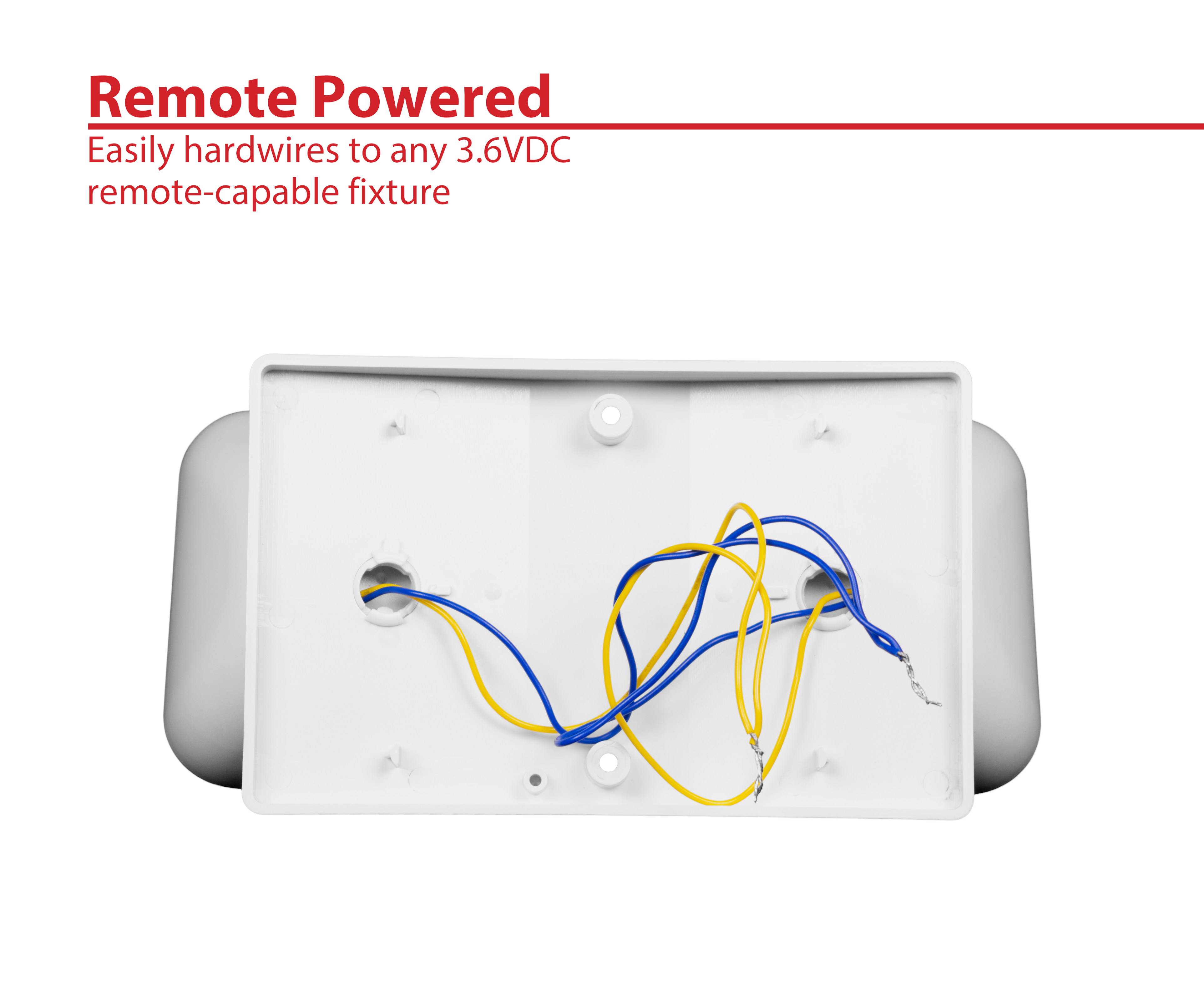

- 3.6VDC remote imput voltage
- 1.46 Watts per LED head
Warranty
- 1-year limited system warranty standard
