ECL120RHWP Series

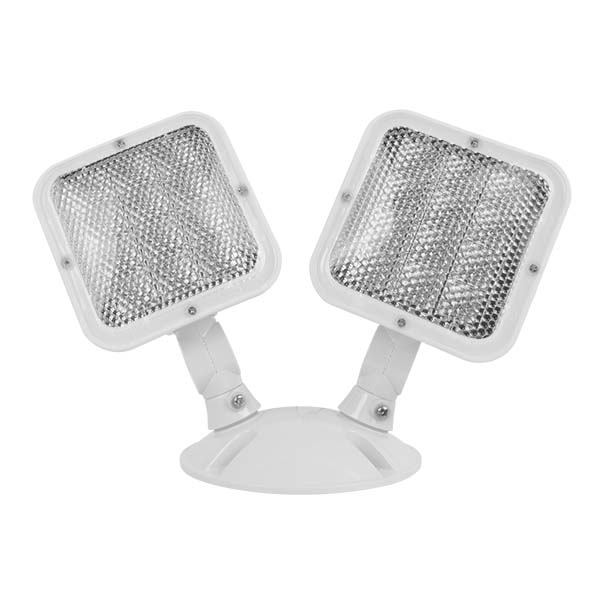

ECL1v2 White Double Head Wet Location LED Emergency Remote Light Fixture
Product description
The ECL12 Series wet location rated LED Remote lamps are designed to work with our ECL1v2 Emergency/Exit Combo. This sleek, contemporary design offers fully adjustable heads that complement any environment. Available in single or double head options.
- Injection molded thermoplastic ABS housing
- White and Black finishes available
- Field Selectable Red and Green LED light and lettering
- 120/277V dual voltage operation
- LED indicator light & push-button test switch
Color Options:
Ordering information
Downloads
Specifications
-
Lumens202 -
Wattage2.92
Listings & certifications
Listings & Certifications
- UL Certified
- UL 94 V-0 (Flame Resistance)
- Wet-Location
Features
Construction
- White Housing
- Weather resistant injection molded thermoplastic ABS housing with powder coated die-cast aluminum base
- UL-94v-0 Flame rating - Flame Retardant
- Adjustable heads for aiming light where required
- Head tilt: ±70°
- Head rotation: 360°
Electrical
- 3.6VDC remote imput voltage
- 1.46 Watts per LED head
Warranty
- 1-year limited system warranty standard
