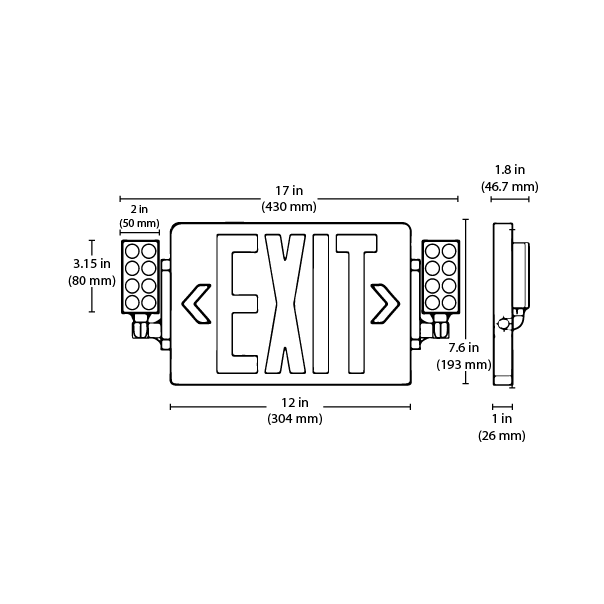

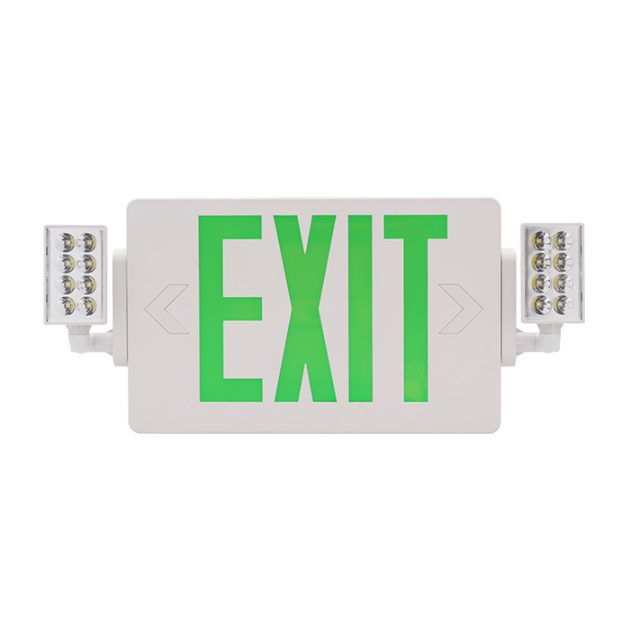

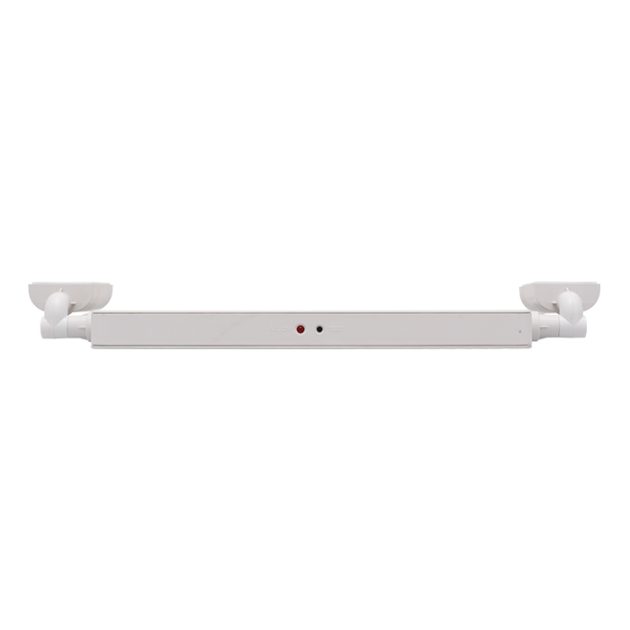

The NICOR ECL2 Series presents a very slim design, only 1” deep! This UL924 code compliant solution for exit and emergency requirements offers high output and adjustable LED heads to deliver direct illumination for path of egress. The evenly illuminated exit sign is available with red or green stencils. The ECL2 Series offers flexible installation for surface ceiling or wall mount options along with field removable chevrons for universal configuration based on your application’s directional needs. Supplied with two faces for single or double face installation.


  • Adjustable heads for aiming light where required
    • Head tilt: 330°
    • Head rotation: 200°
  • Operating temperature rating of 5°F to 104°F (-15°C – 40°C)
  • Maintenance-free NiCad battery provides 90-minute emergency operation, recharges in 24 hours
  • 120/277VAC Dual voltage operation, 60Hz input
  • 3.3W Power Draw
  • Fully-illuminated 6” letter height with ¾” stroke
  • LED indicator light & self-test push button switch
  • LED light engine provides consistently bright, even EXIT legend illumination with red or green LEDs


Part Numbers:

ECL21UNVWHG - Green Text
ECL21UNVWHR - Red Text
