EDC Series Single-Gang Electronic Door Chime Kit
The patent-pending Electronic Door Chime (EDC) is a doorbell chime kit that can be installed in new construction homes or retrofitted in existing homes. It uniquely features a door chime that fits in most non-metallic single-gang junction boxes and combines both line and low voltage in one unit. The…
The patent-pending Electronic Door Chime (EDC) is a doorbell chime kit that can be installed in new construction homes or retrofitted in existing homes. It uniquely features a door chime that fits in most non-metallic single-gang junction boxes and combines both line and low voltage in one unit. The EDC comes with a selection of tones and volumes, a paintable faceplate for a seamless look, and a lighted doorbell button to make your doorbell easily visible at night.
- Five selectable chime tones and volumes
- Small button on faceplate for melody and volume selection
- Combines line voltage and low voltage in a single unit
- Daisy chain up to 4 units (each chime requires individual 120VAC input)

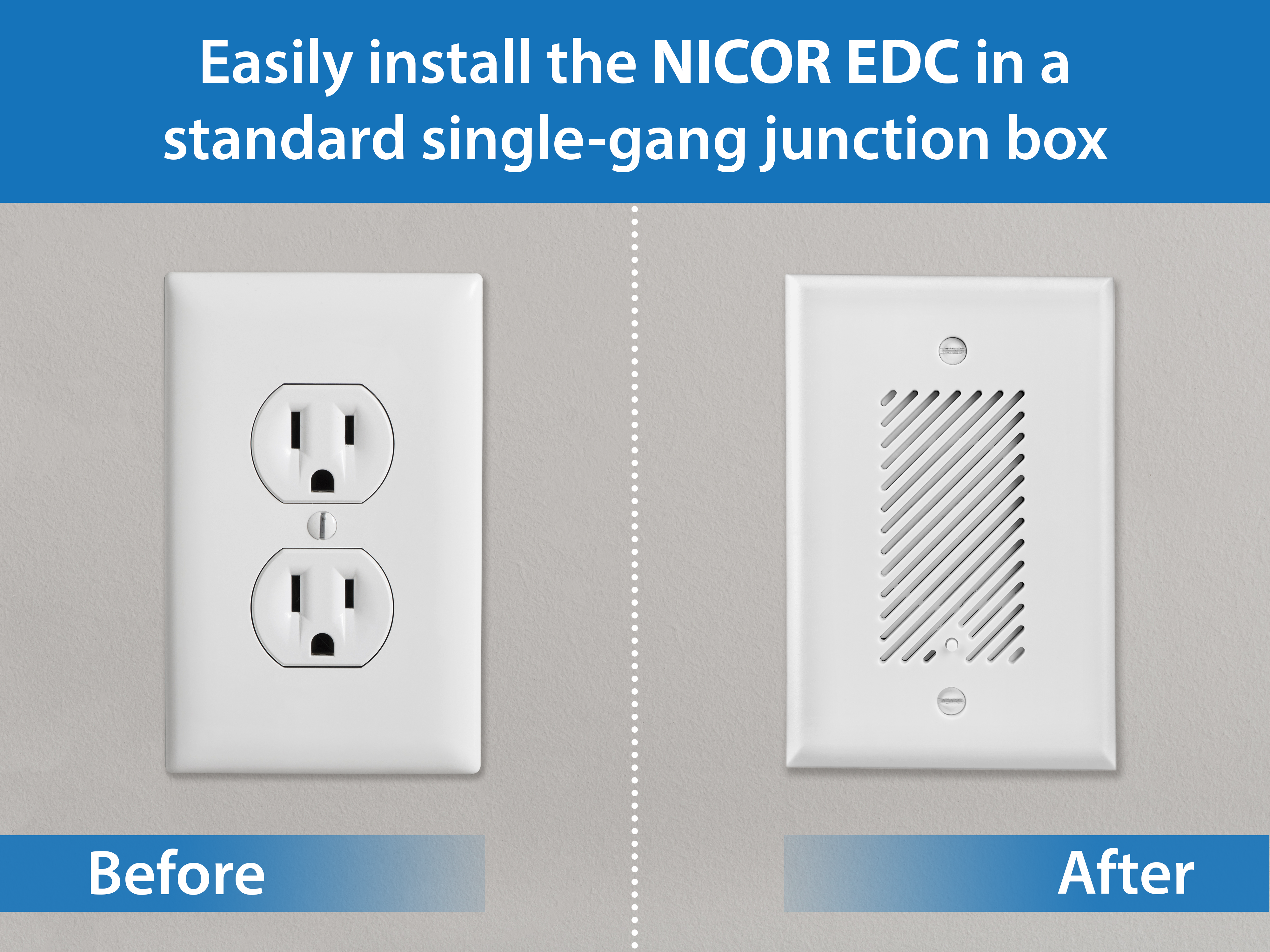

- Installs quickly into most non-metallic single-gang junction boxes

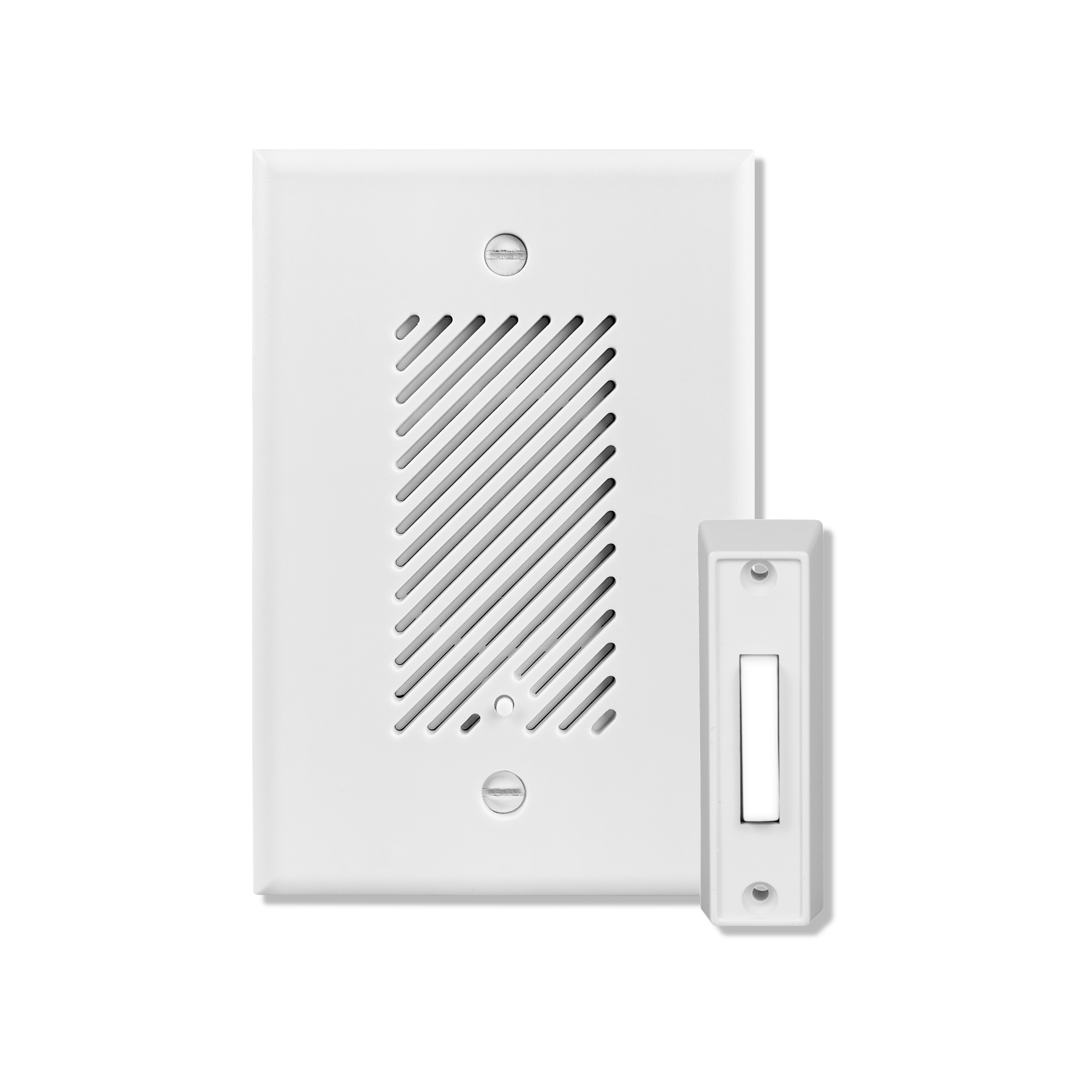

- Includes one lighted doorbell button and paintable faceplate
Color Options:
Ordering information
Downloads
Specifications
-
Wattage2
Listings & certifications
- UL Certified
- Patent Pending
- FCC Class B
- Line Voltage/Low Voltage divider included to meet NEC and UL requirements
Features
Construction

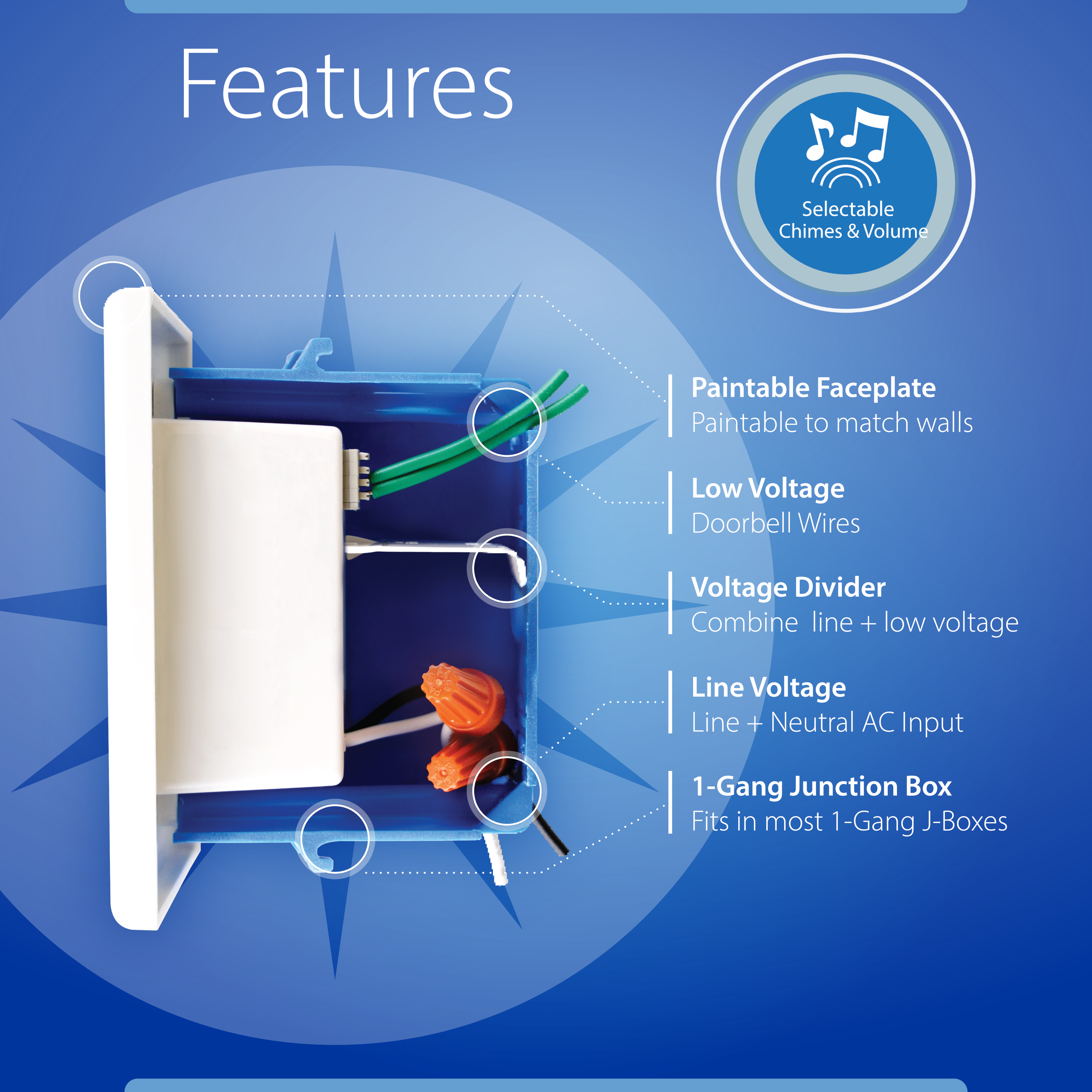

- Combines line voltage and low voltage in a single unit
- Small button on faceplate for melody and volume selection
- ABS Housing and Faceplate
- Screws captured to faceplate
- Two-wire pigtail for line voltage input
- Multiple poke-in connectors for low-voltage output for front and back doorbells
- Matte White Finish
- Field-paintable faceplate
Electrical
- Integrated transformer
- Input: 120VAC/60Hz
- Output: 5VDC, Max 2W
- Digital control board with speaker
- Daisy-chain up to 4 EDC units (Each chime requires individual 120VAC input)
- Five selectable chime tones: Ding Dong, Westminster, 3-note, 5-note, 7-note
- Five selectable chime tone volumes
- Voice guided setup during selection
Installations
- Installs quickly into most non-metallic single-gang junction boxes
- Line Voltage/Low Voltage divider included to meet NEC and UL requirements
- Includes one lighted rectangle doorbell buttons
- Doorbell buttons connect with 18ga-22ga solid wire (max 100ft distance)
- For installations where higher power surge may be possible, NICOR recommends installing additional surge protection at the electrical distribution panels
Full Listings
- UL Certified
- Patent Pending
- FCC Class B
Warranty
- 1 year limited system warranty standard
- Warranty does not cover product failure due to an overvoltage event (power surge)
