EMB Series

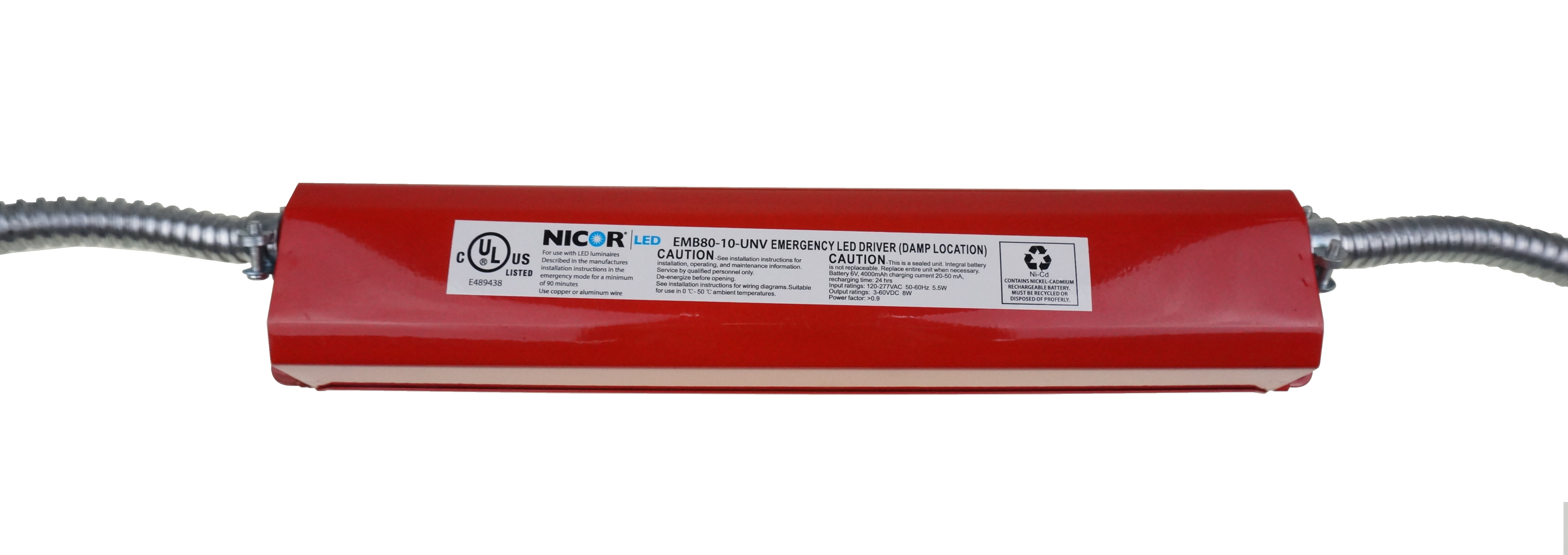

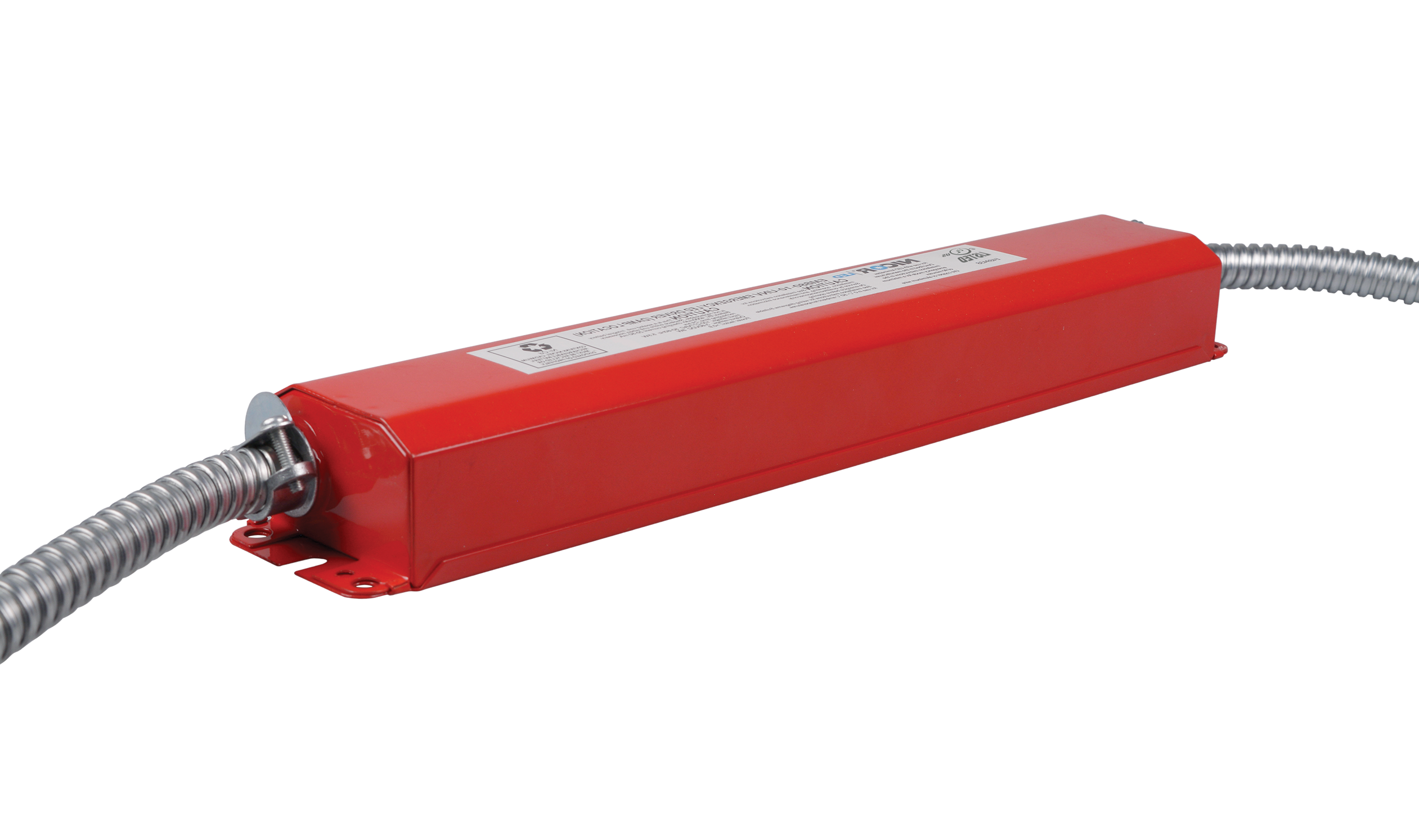

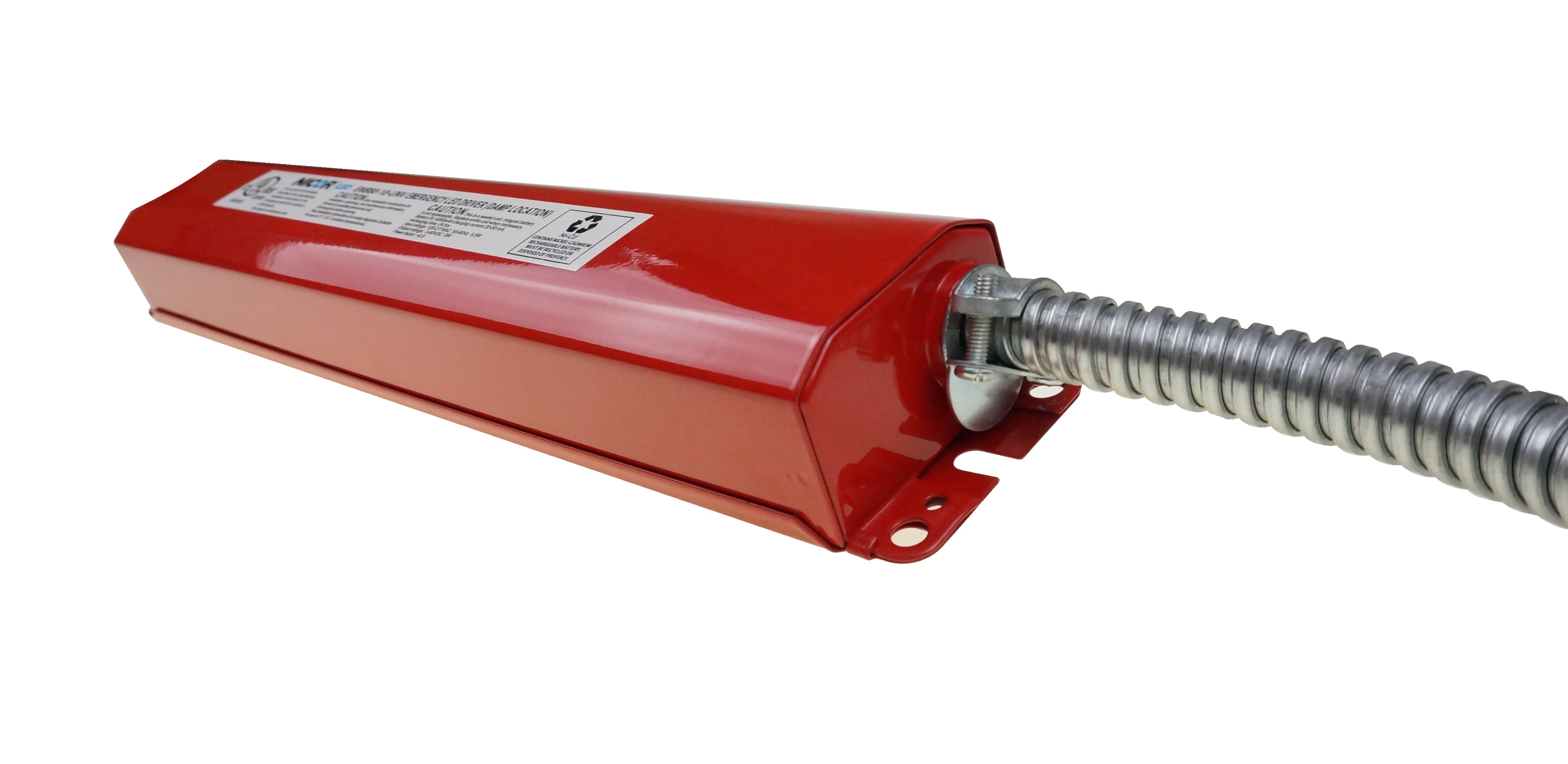

EMB Series 8.5W Universal LED Emergency Battery Backup Driver
Product description
The EMB80 is an LED emergency driver for factory or field installations that enables normal and emergency operation of a LED fixture. During a power failure, the EMB80 activates emergency mode to maintain 8.5 watts of output power to the fixture for a minimum of 90 minutes without light degradation.…
The EMB80 is an LED emergency driver for factory or field installations that enables normal and emergency operation of a LED fixture. During a power failure, the EMB80 activates emergency mode to maintain 8.5 watts of output power to the fixture for a minimum of 90 minutes without light degradation. The EMB80 contains a battery, charger, and converter circuit in a single housing. Also includes a test button and button installation faceplate.
- Heavy duty steel case
- Long life high temperature Ni-Cad battery
- For use with switched or unswitched fixtures
- Single piece test switch/charge indicator included
- Constant power design provides consistent lumen output for >90 minutes
Color Options:
Ordering information
Downloads
Specifications
-
Wattage8.5
Features
Construction

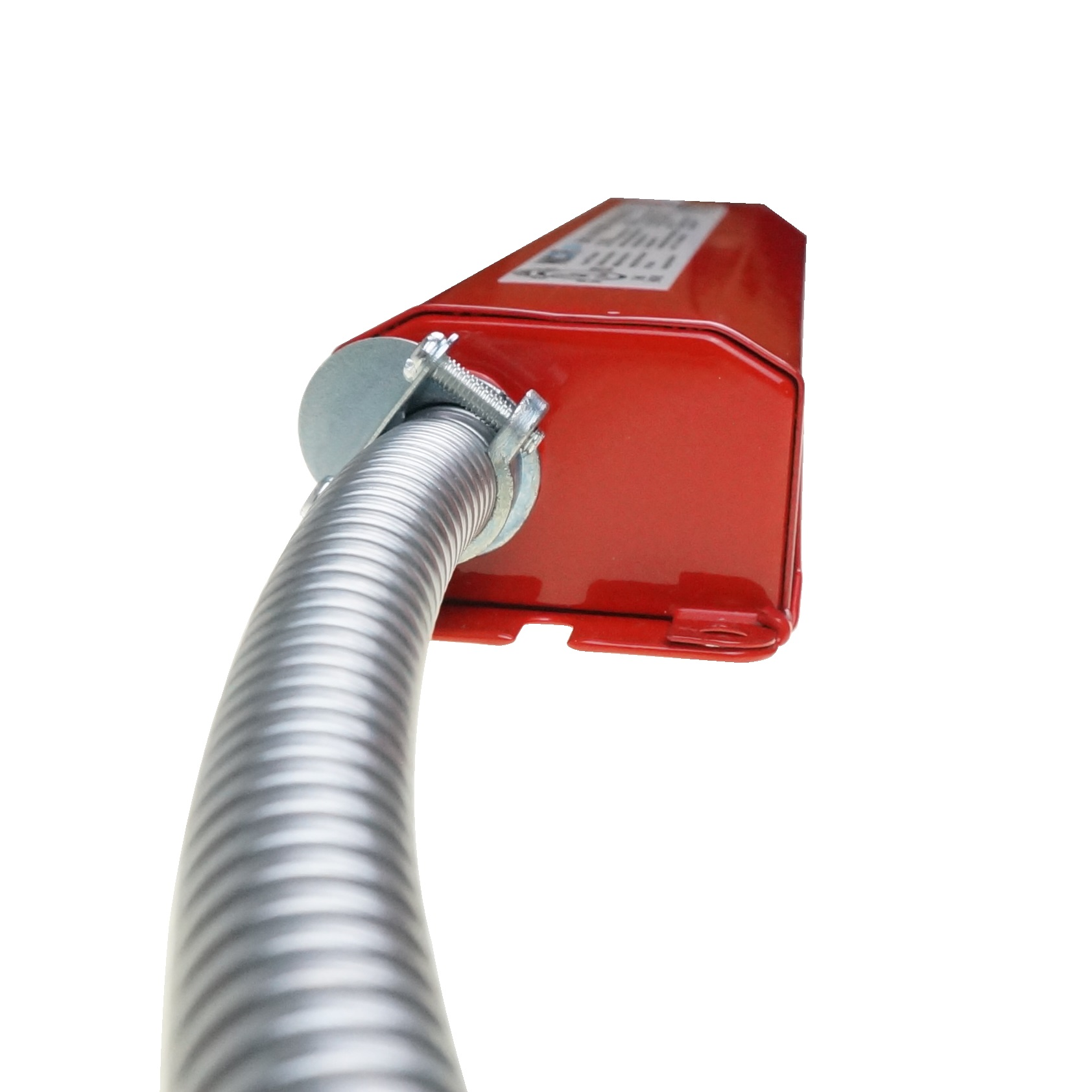

- Heavy duty steel case
- Red powder coat finish

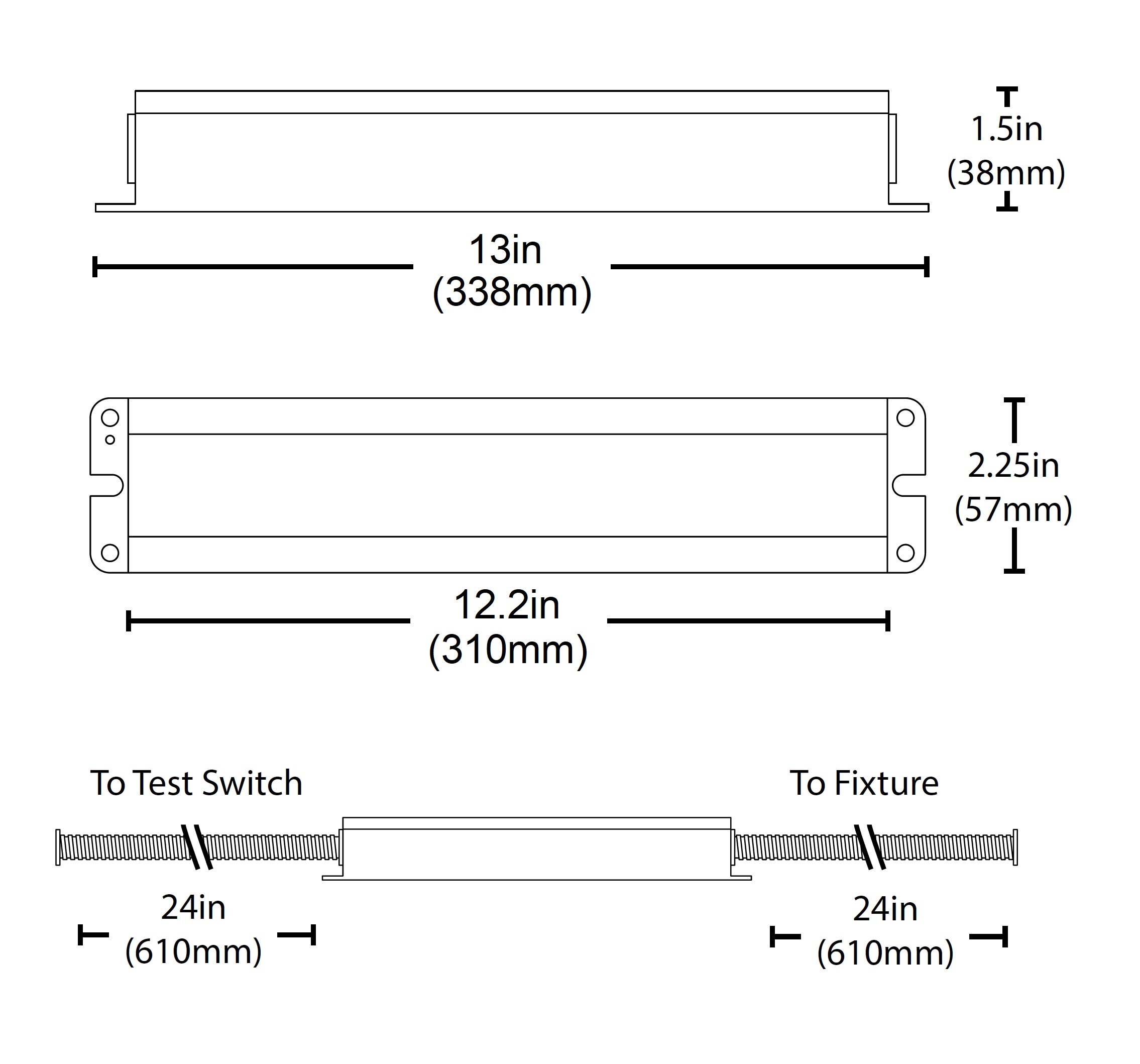

- 24” flexible conduit leads
Electrical
- Long life high temperature Ni-Cad battery
- Single piece test switch/charge indicator included
- Constant power design provides consistent lumen output for >90 minutes
- Self sensing output voltage adjusts for various products such as troffers, downlights, strips, etc.
- 24 hour recharge time

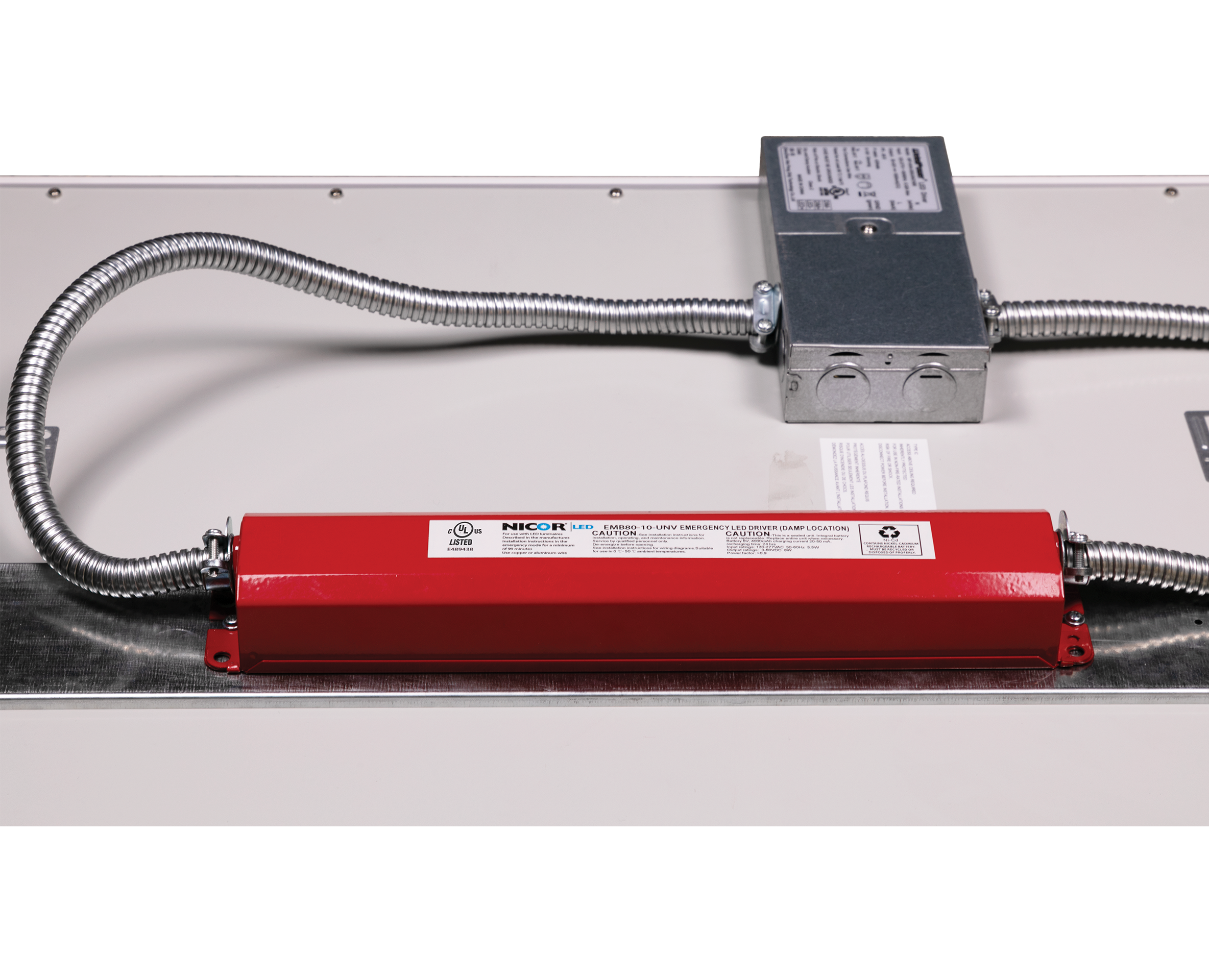

Installations
- For use with switched or unswitched fixtures
- Rated for plenum, damp location, and type IC luminaires
- UL Classified for factory and field installation
Warranty
- 5-year limited system warranty standard
