EML1 Series

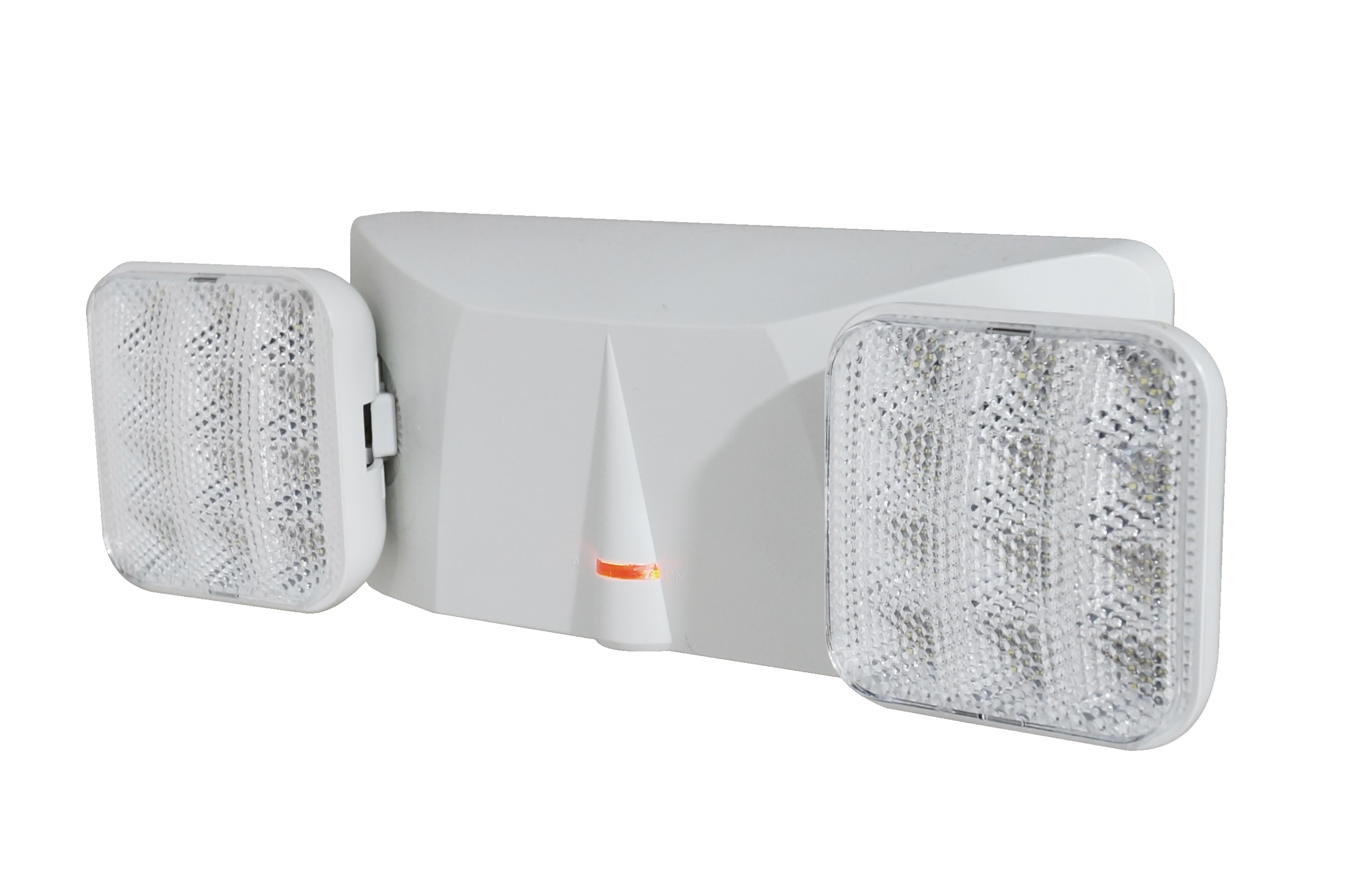

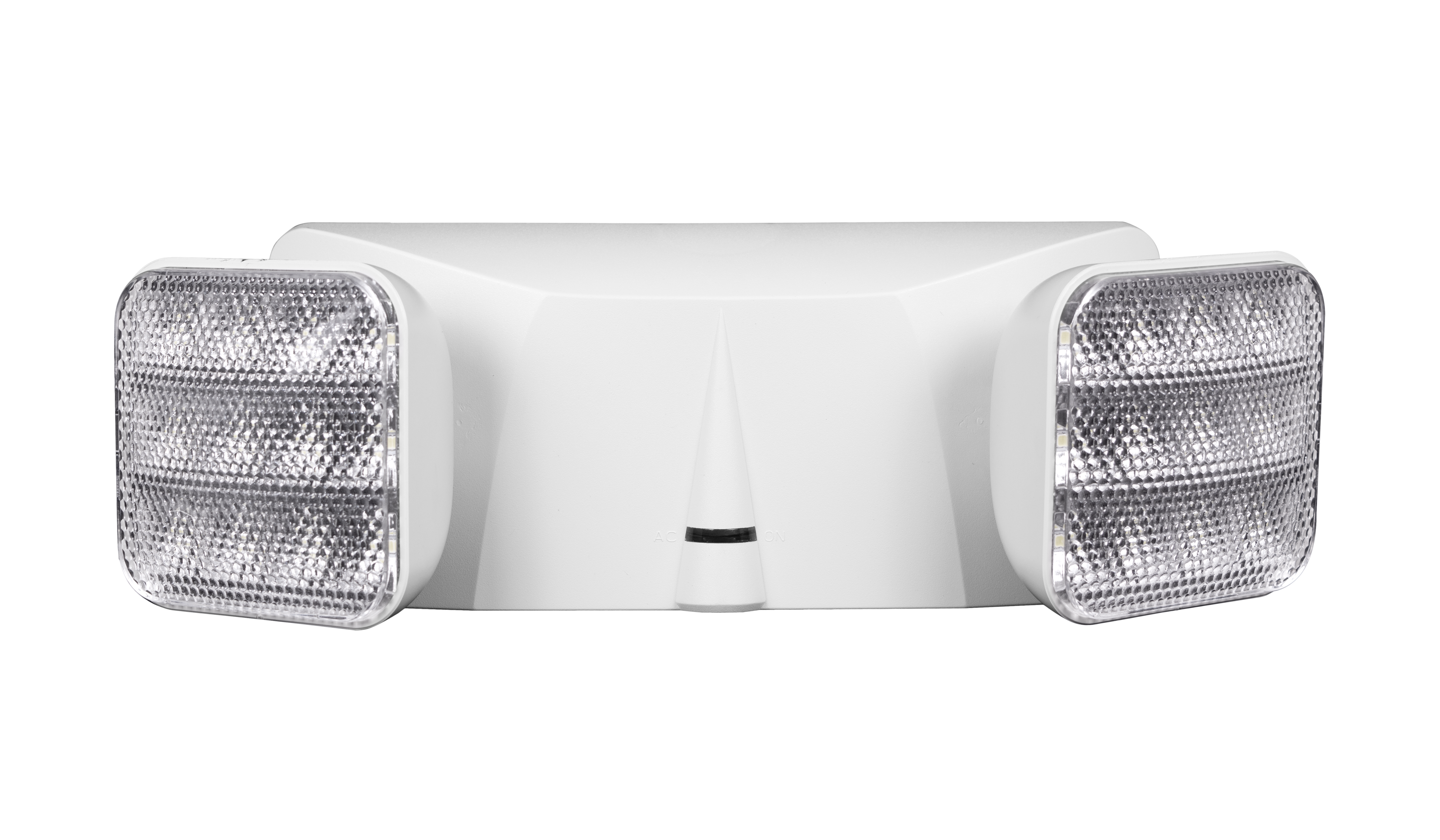

EML1 Series Adjustable LED Emergency Backup Light
Product description
- Injection molded thermoplastic ABS housing
- UL-94v-0 Flame rating - Flame Retardant
- Precision engineered Prismatic Lens
- Input power 1.15W at 120/277VAC
- Easy installation into a standard junction box or conduit
Color Options:
Ordering information
Downloads
Specifications
Listings & certifications
Listings & Certifications
- cULus Listed
- UL 94 V-0 (Flame Resistance)
- Title 20
- Damp-Location
Features
Construction
- Injection molded thermoplastic ABS housing
- UL-94v-0 Flame rating - Flame Retardant

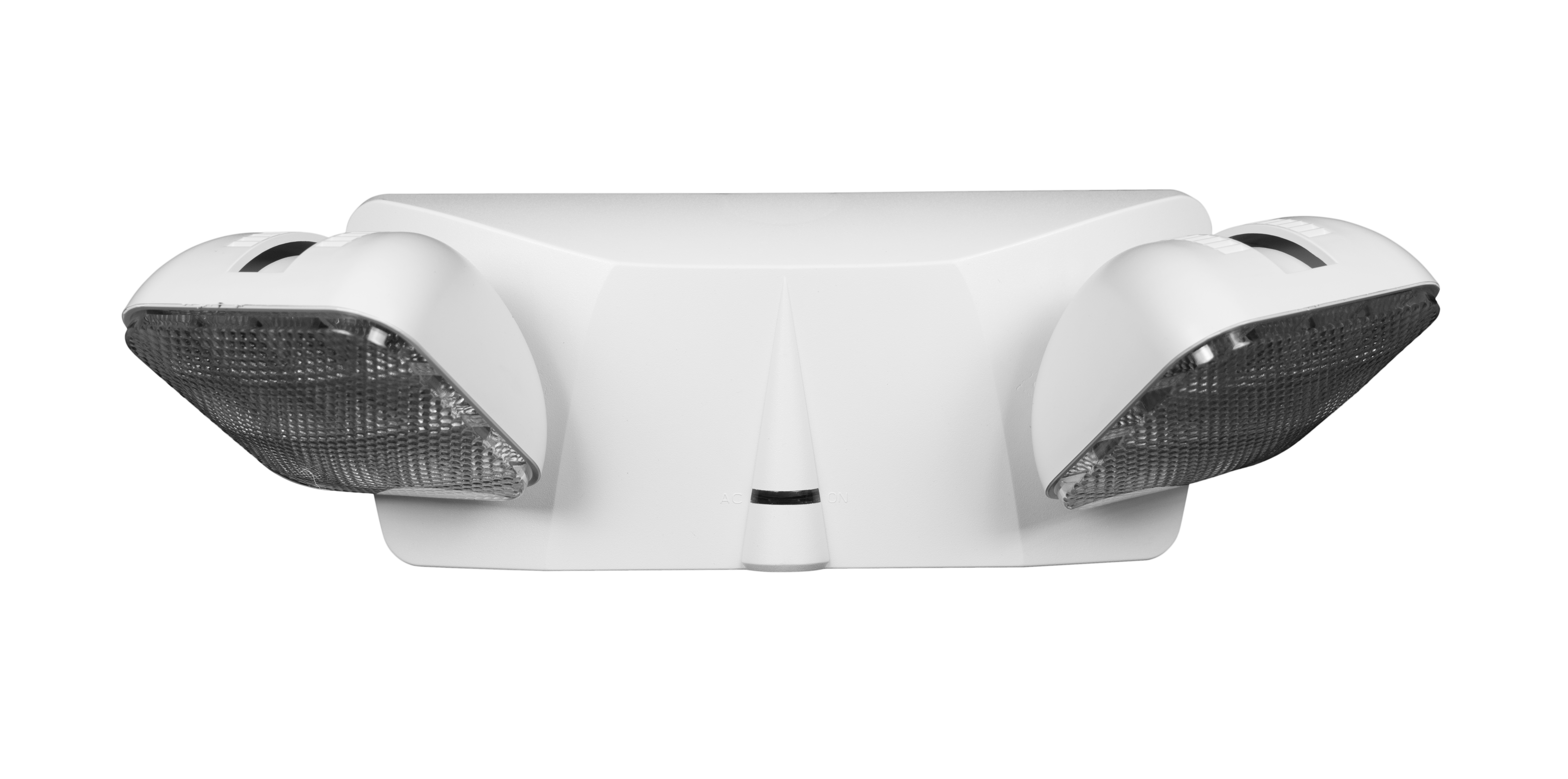

- Adjustable heads for aiming light where required

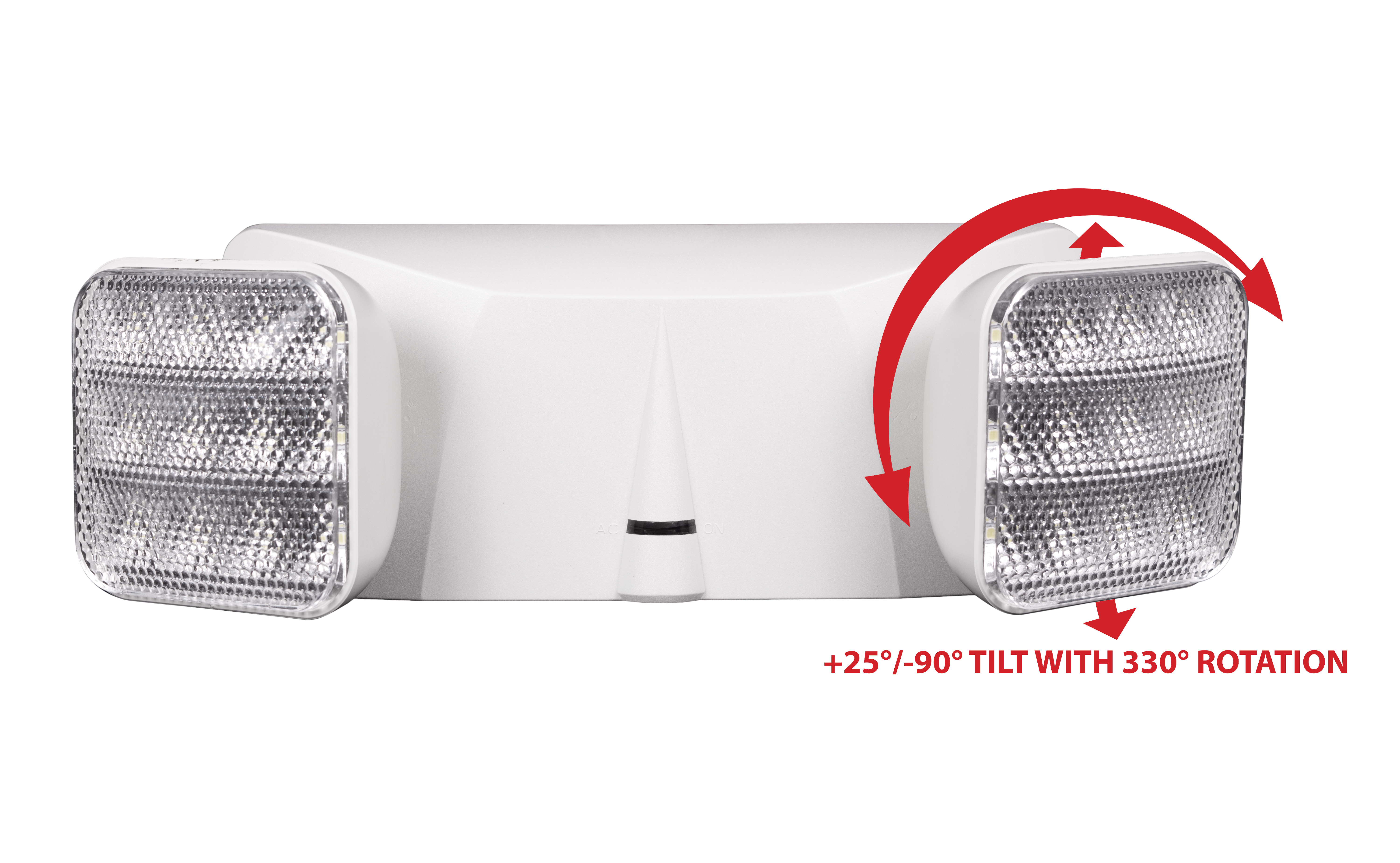

- Head tilt: +25°/-90°
- Head rotation: 330°
- Damp location rated
- Operating temperature: 32˚F - 104˚F (0˚C - 40˚C)
- White unpainted ABS Plastic
Optical System
- Precision engineered Prismatic Lens
Electrical
- Input power 1.15W at 120/277VAC
- Remote output power 2.4W at 3.6VDC
- Supports up to two (2) single or one (1) double 3.6VDC NICOR remote lamps
- 90 minute capacity (including remote lamps)
Installations
- Easy installation into a standard junction box or conduit

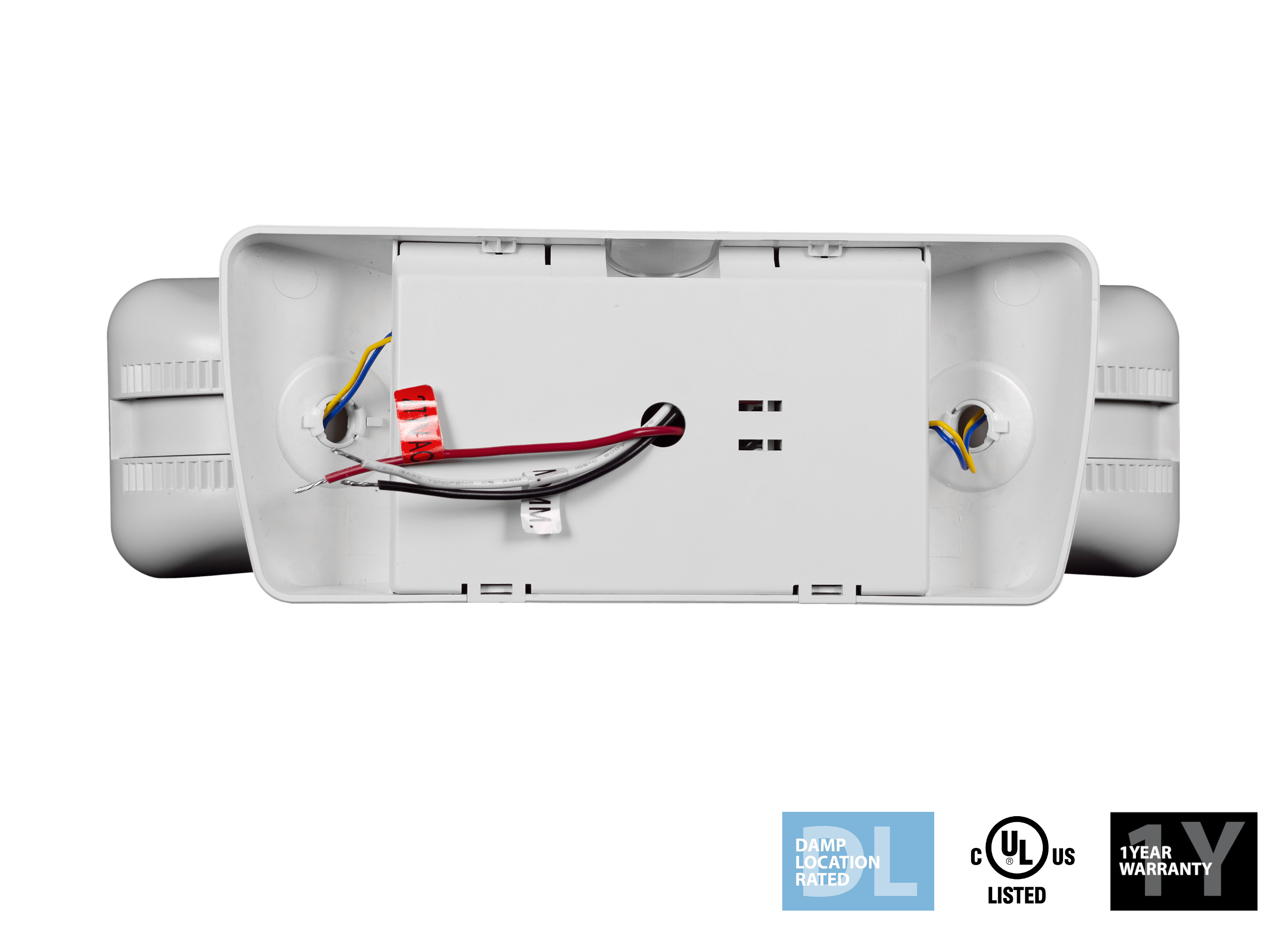

- Universal mounting plate with EZ quick connect
