EML3-SD Series
EML3 Self-Diagnostic LED Emergency Backup Light
Product description
The EML3 LED Self Diagnostic Emergency Light combines a low-profile, standard design light with the advanced technology of self-diagnostic testing. The EML3 Series is available in white and offers universal mounting, a test button with status indicator, damp location listing, and a remote capable op…
The EML3 LED Self Diagnostic Emergency Light combines a low-profile, standard design light with the advanced technology of self-diagnostic testing. The EML3 Series is available in white and offers universal mounting, a test button with status indicator, damp location listing, and a remote capable option. With fully adjustable heads, the EML3 Series complements any design application.
- Self Diagnostic feature automatically tests and reports on fixture status
- Injection molded thermoplastic ABS housing with precision engineered prismatic lens
- 6 high-brightness LEDs per head for even and consistent illumination
- White unpainted ABS Plastic
- Easy installation onto a standard junction box
Color Options:
Ordering information
Downloads
Specifications
-
Lumens203 -
Wattage2.5
Listings & certifications
Listings & Certifications
- cULus Listed
- UL 94 5VA (Flame Resistance)
- UL 924 (Emergency Lighting)
- NFPA 70 Compliant
- NFPA 101 Compliant
- Damp-Location
Features
Construction
- Injection molded thermoplastic ABS housing
- UL-94 5VA Flame rating
- Test switch and charge/status indicator
- Adjustable heads for aiming light where required

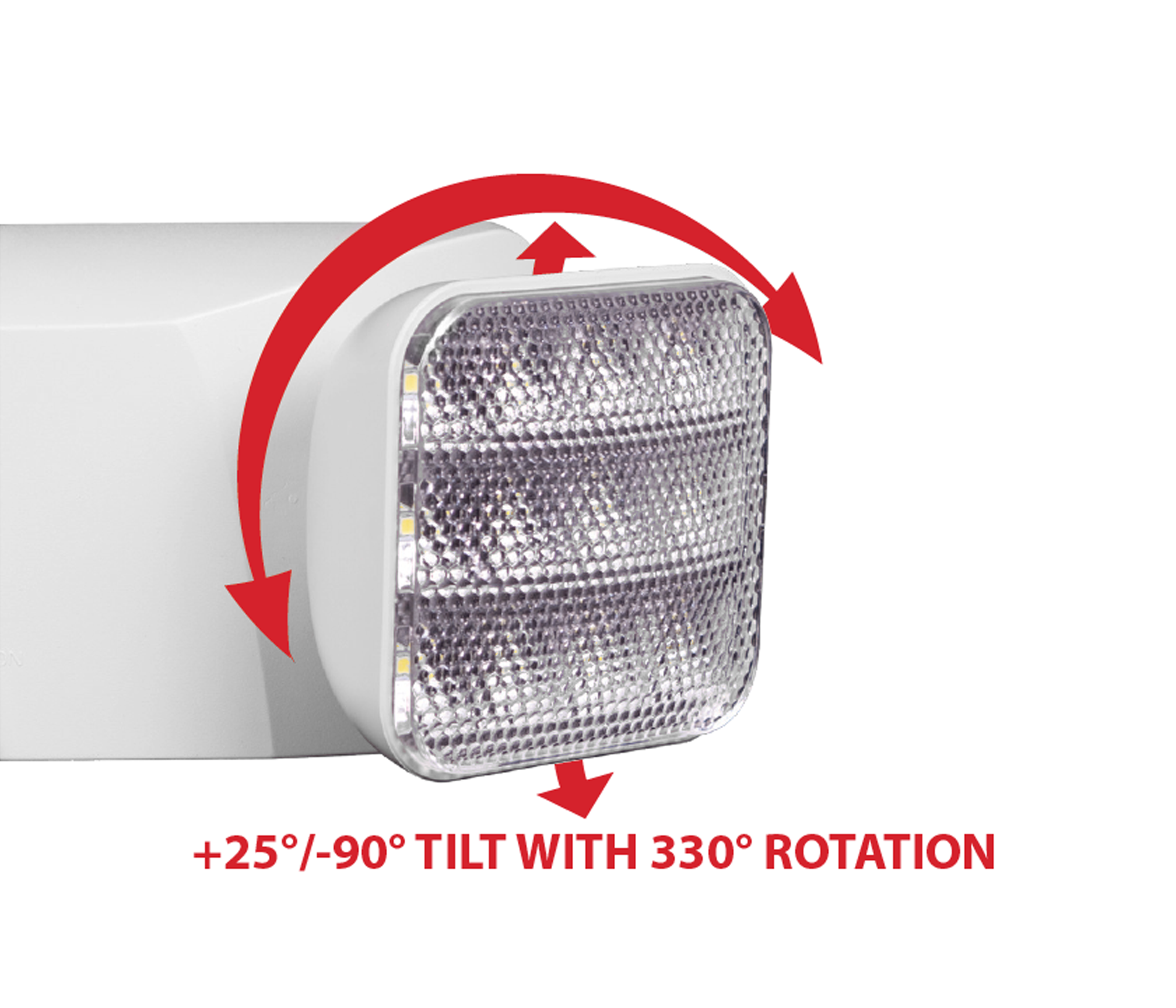

- Head tilt: +25°/-90°
- Head rotation: 330°
Optical System
- Precision engineered prismatic lens
Electrical
- Power Draw: Non-Remote: 2.5W at 120/277VAC, Remote: 3.3W at 120/277VAC
- Remote version supports up to two (2) 3.6VDC NICOR remote lamps (see compatibility chart)
- 90-minute capacity (including remote lamps)

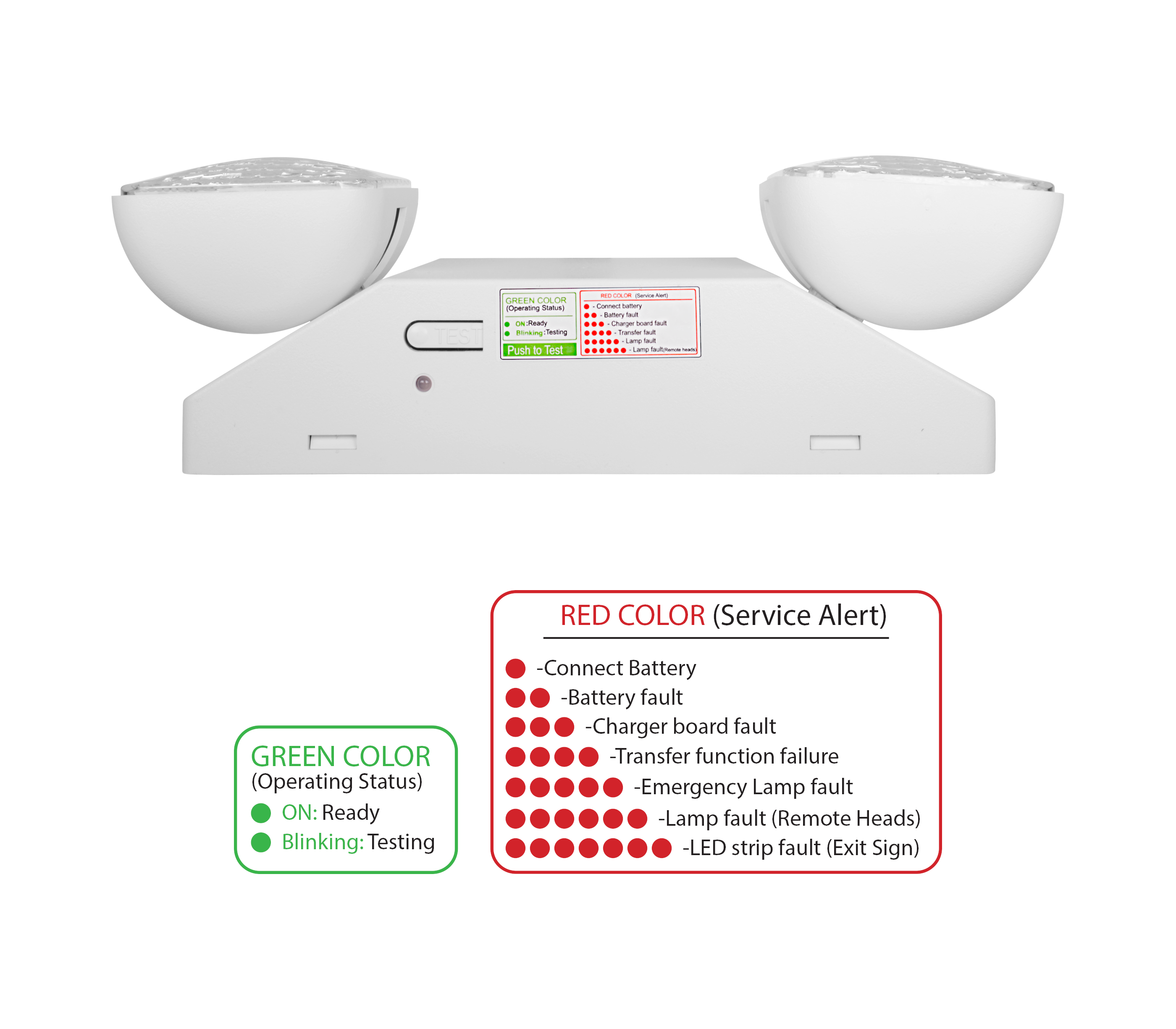

- Self-Diagnostic feature automatically tests and reports on fixture status
- Operating temperature: 50°F to 104°F (10°C to 40°C)
- 6 high-output LEDs per head for even and consistent illumination
Installations

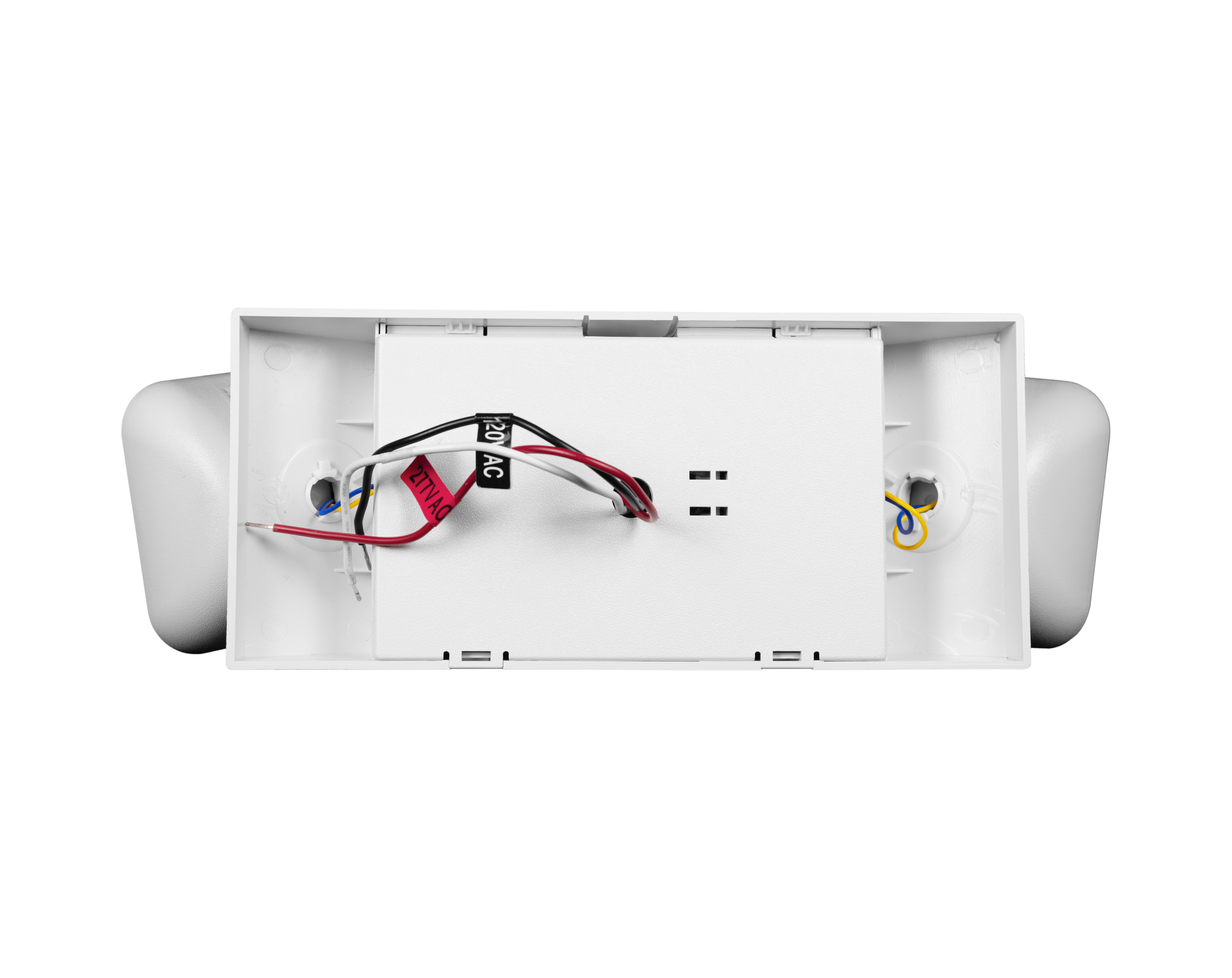

- Easy installation onto a standard junction box
- Suitable for wall mount and ceiling mount
- Universal mounting plate with EZ quick-connect
Full Listings
- UL924
- Meets NFPA 70 and 101 requirements
- Listed for damp locations
Warranty
- 1-year limited system standard
- Warranty does not cover produt failure due to an overvoltage event (power surge)
