EML3 Series

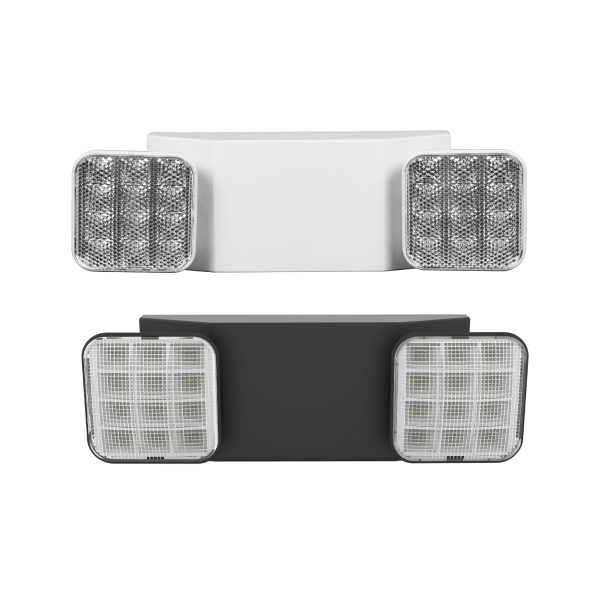

EML3 Series Adjustable LED Emergency Backup Light
Product description
The EML3 LED emergency light combines a low-profile, standard design in an affordable package. The EML3 Series is available in white and offers universal mounting, a test button with AC indicator, damp location listing, and a remote capable option. With fully adjustable heads, the EML3 Series comple…
The EML3 LED emergency light combines a low-profile, standard design in an affordable package. The EML3 Series is available in white and offers universal mounting, a test button with AC indicator, damp location listing, and a remote capable option. With fully adjustable heads, the EML3 Series complements any design application.
- Fully adjustable LED heads with +25°/-90° tilt and 330° rotation
- Compact, low-profile design with >200 lumens at 97.8Lm/W
- Durable ABS housing, flame-retardant and damp location rated
- Universal mounting plate with EZ quick connect
- Remote version supports up to two 3.6VDC NICOR remote heads
Ordering information
Downloads
Specifications
-
Lumens203 -
Wattage2.1
Listings & certifications
Listings & Certifications
- cULus Listed
- UL 94 V-0 (Flame Resistance)
- Title 20
- Damp-Location
Features
Construction
- Injection molded thermoplastic ABS housing.
- UL-94v-0 Flame rating - Flame Retardant
- Adjustable heads for aiming light where required

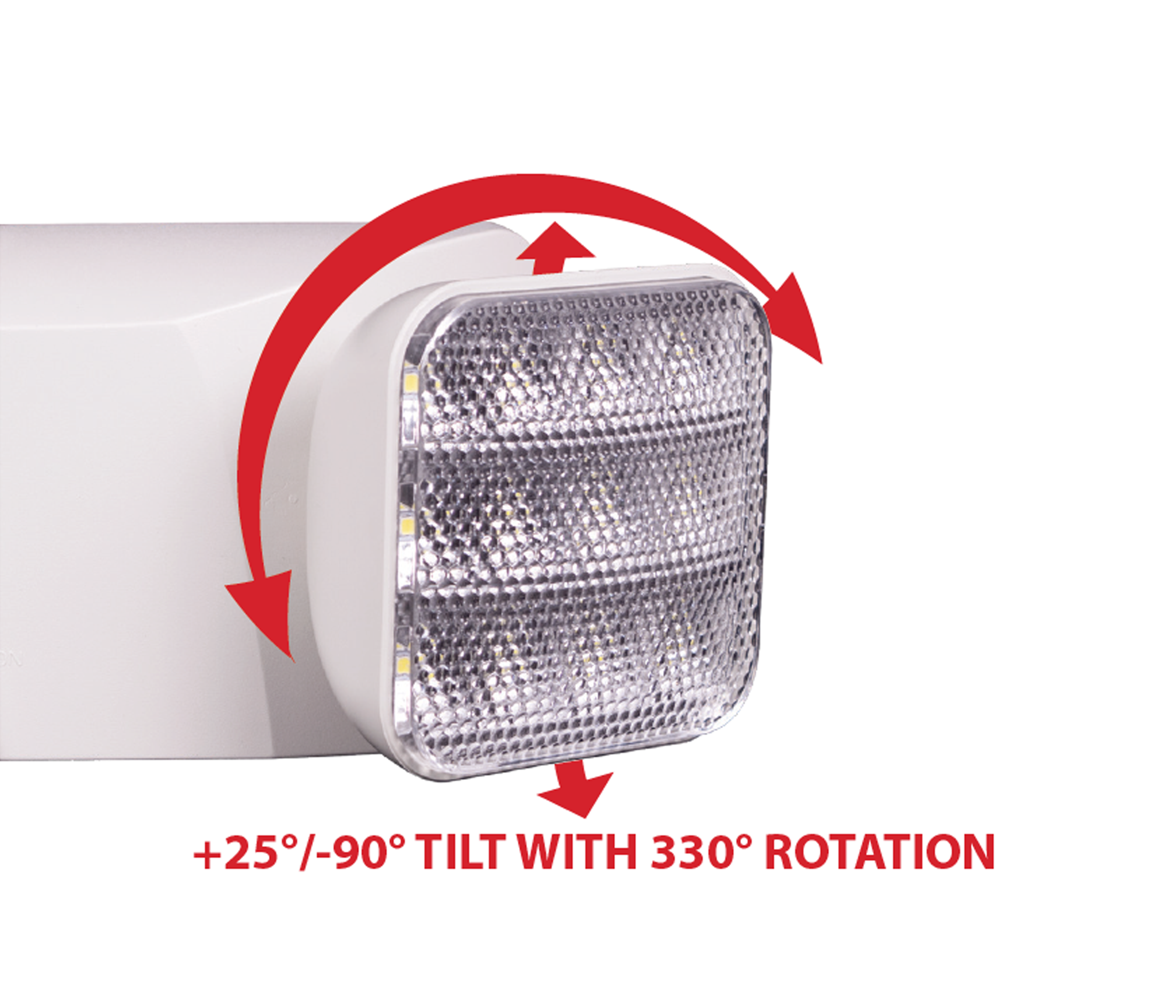

- Head tilt: +25°/-90°
- Head rotation: 330°
- Damp location rated
- Operating temperature: 32˚F - 104˚F (0˚C - 40˚C)
- White or Black ABS with textured finish
Optical System
- Precision engineered Prismatic Lens
Electrical

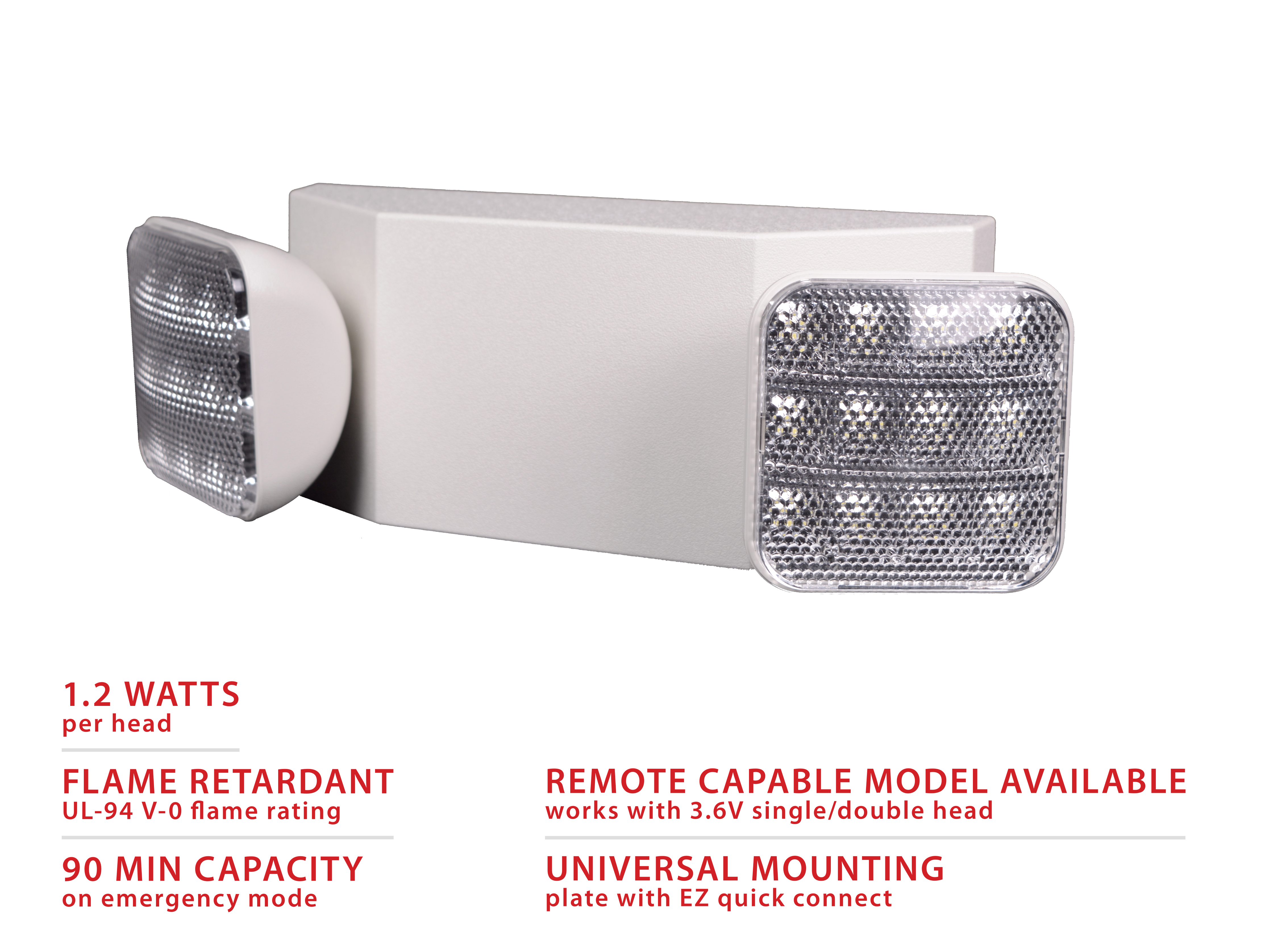

- Input power 2.1W at 120/277VAC
- Remote output power 2.4W at 3.6VDC
- Supports up to two (2) single or one (1) double 3.6VDC NICOR remote lamps
- 90 minute capacity (including remote lamps)
Installations

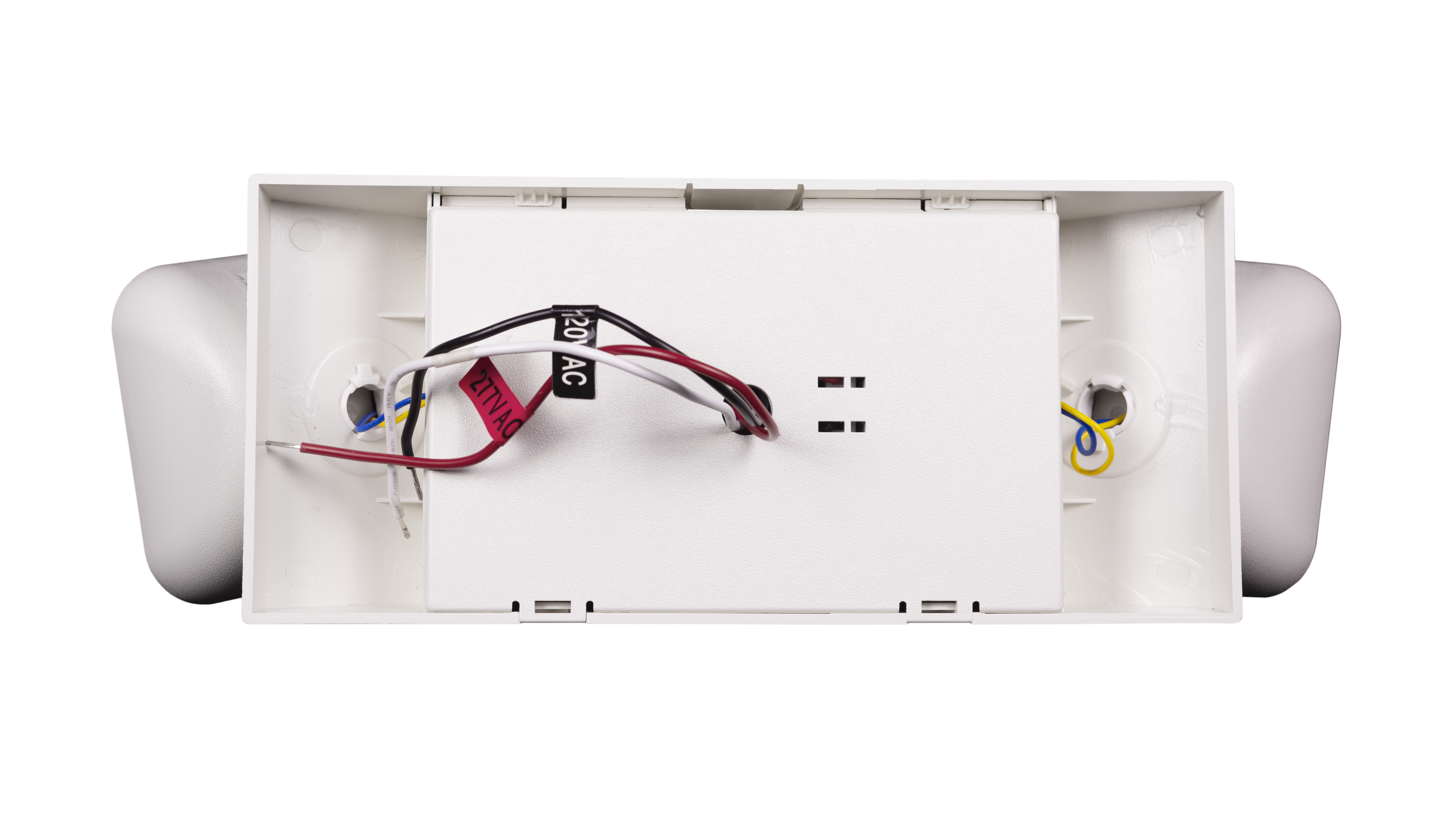

- Easy installation into a standard junction box or conduit
- Universal mounting plate with EZ quick connect
Warranty
- 1-year limited system warranty standard
