LED HIGH OUTPUT EMERGENCY LIGHT

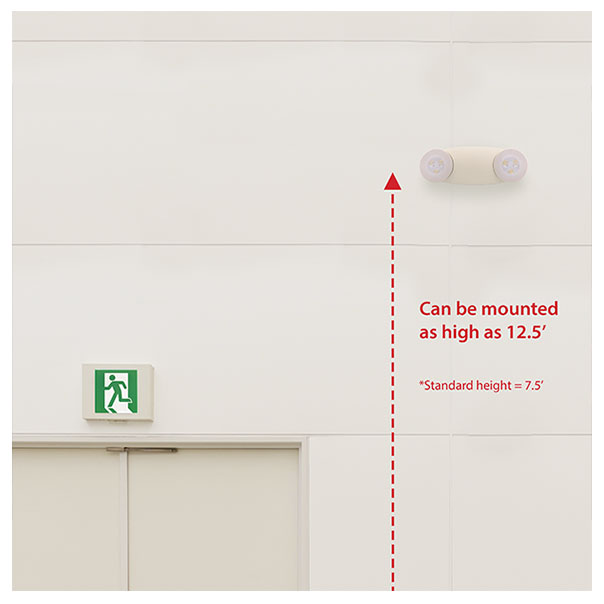

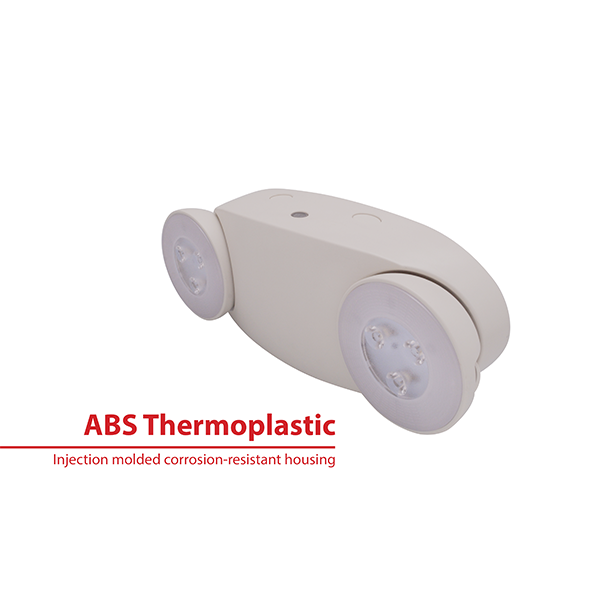

NICOR EML7 Series thermoplastic emergency lighting unit is a high output solution for higher mounting requirements. Designed with high output LEDs, the EML7 has exceptional light distribution and a maintenance-free nickel-cadmium battery for long life.

Categories: Tags:

Specifications

  • Operating temperature rating of 32°F to 104°F (0°C – 40°C)

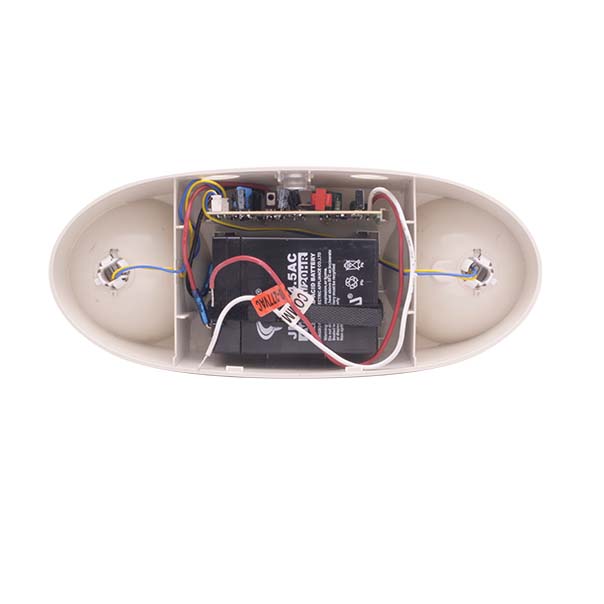

  • 6V, 4.5Ah Lead-Acid battery provides 90-minute emergency operation, recharges in 24 hours
  • 120/277VAC Dual Voltage Operation, 60Hz input

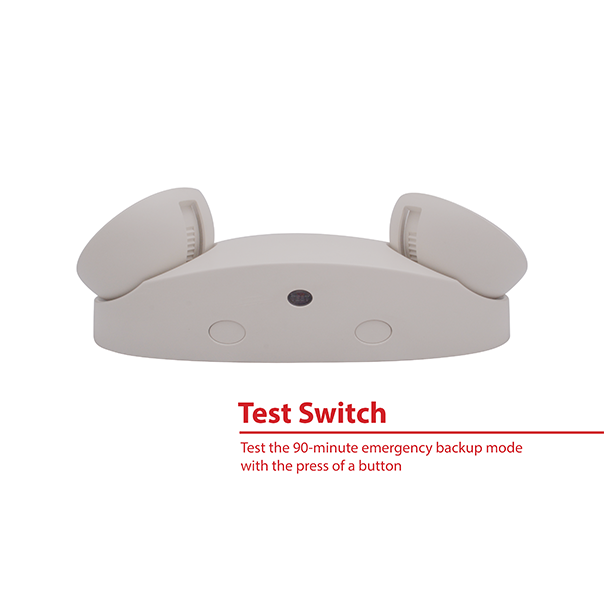

  • LED indicator light & self-test push button switch
  • Two (2) - 3pc LED lamps provide more than 700 lumens
  • Custom lensing for accurate lighting distribution and control



Part Number:

EML71UNVWH - White

Downloads

– Sell Sheet
– Spec Sheet
– Installation Instructions

– ies File (one head only)
