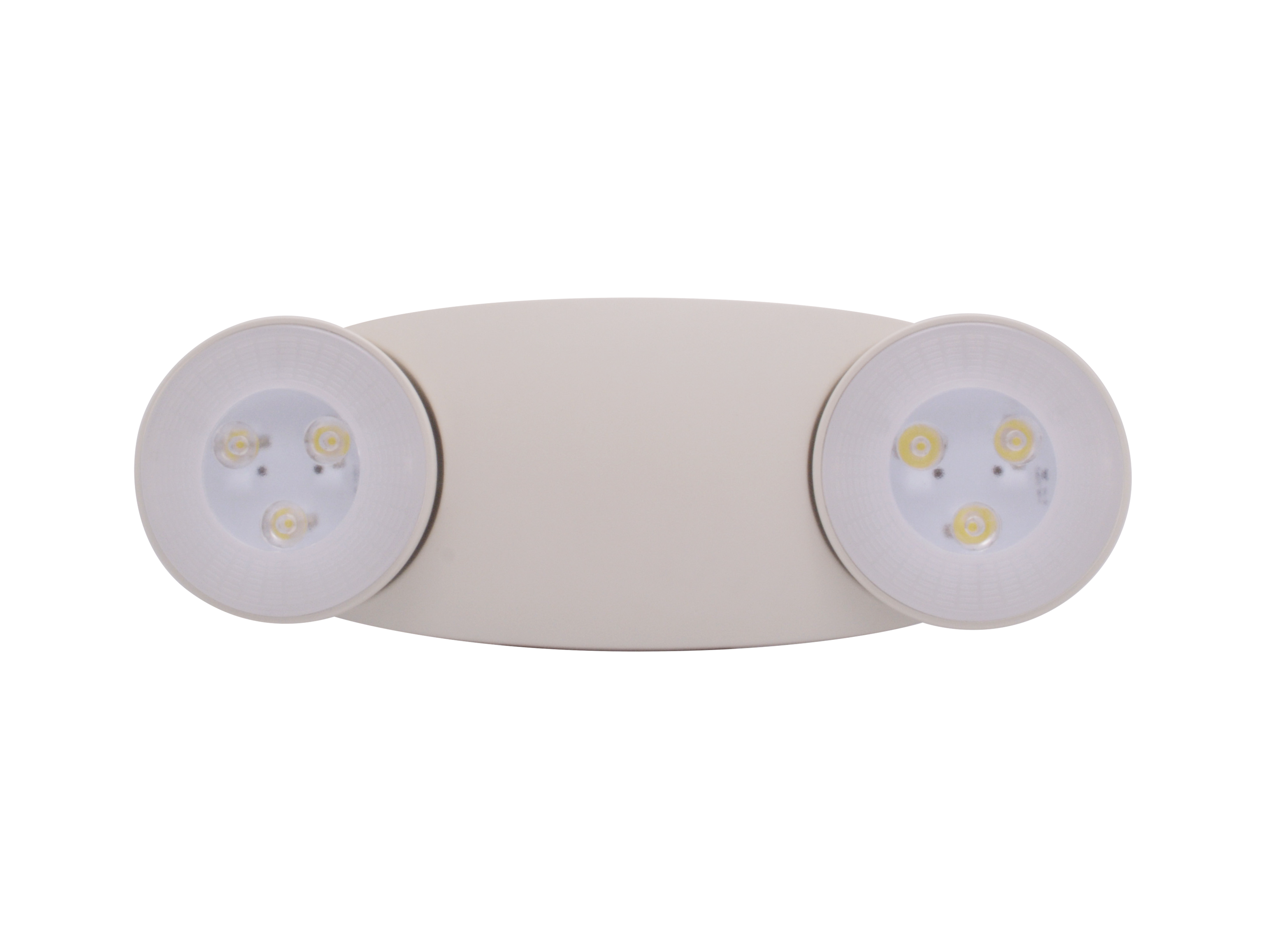

EML71UNVWH Series
EML7 High-Output LED Emergency Backup Light
Product description
NICOR EML7 Series thermoplastic emergency lighting unit is a high output solution for higher mounting requirements. Designed with high output LEDs, the EML7 has exceptional light distribution and a maintenance-free nickel-cadmium battery for long life.
- Injection molded thermoplastic ABS housing
- Custom lensing for accurate lighting distribution and control
- 2x3pc LED lamps provide more than 700 lumens
- Surface wall mounting plate with back entry knockout
- White unpainted thermoplastic housing
Color Options:
Ordering information
Downloads
Specifications
-
Lumens705 -
Wattage3.5
Listings & certifications
Listings & Certifications
- cULus Listed
- UL 924 (Emergency Lighting)
- UL 94 V-0 (Flame Resistance)
- Title 20
- Damp-Location
Features
Construction

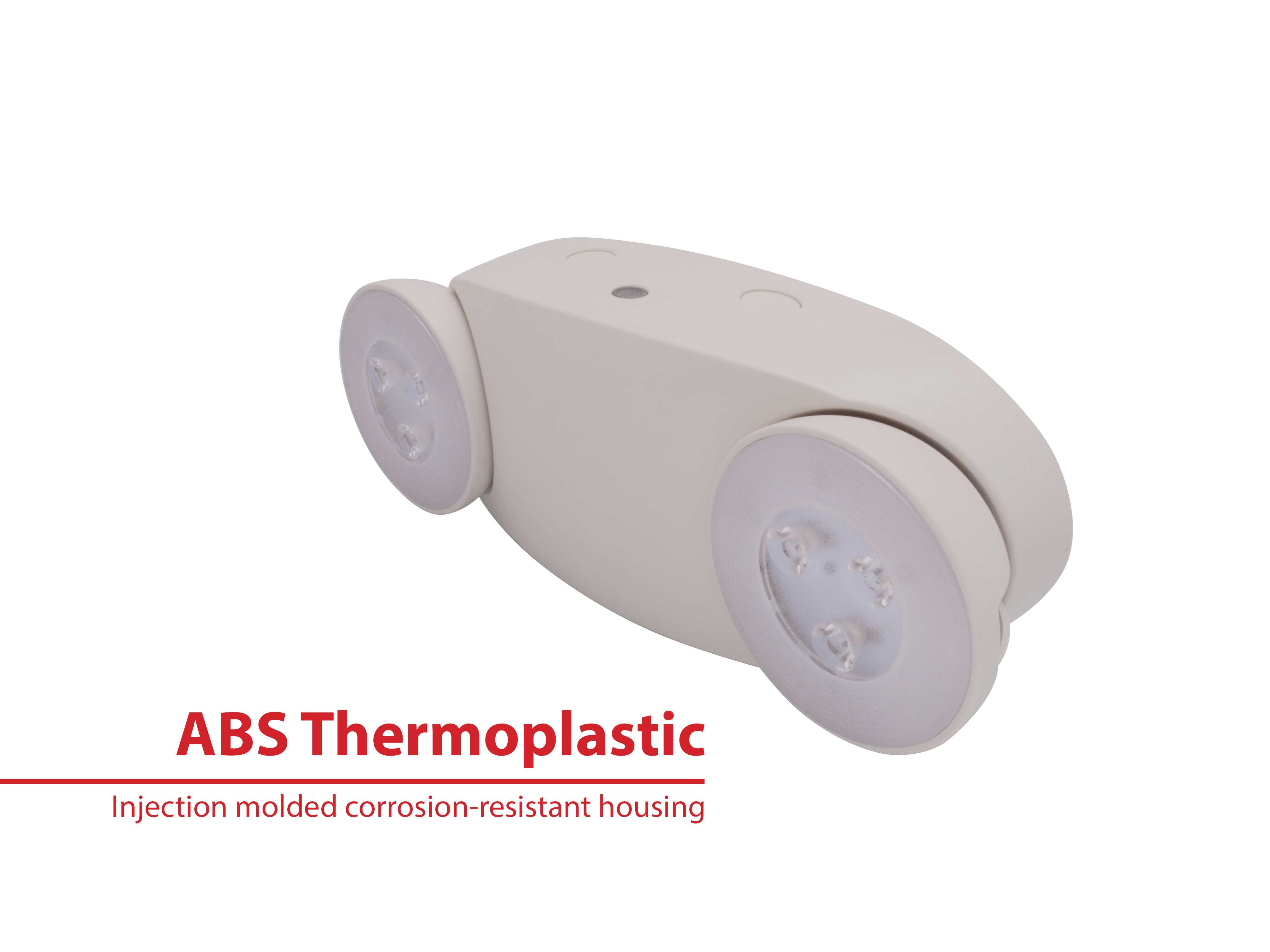

- Injection molded thermoplastic ABS housing

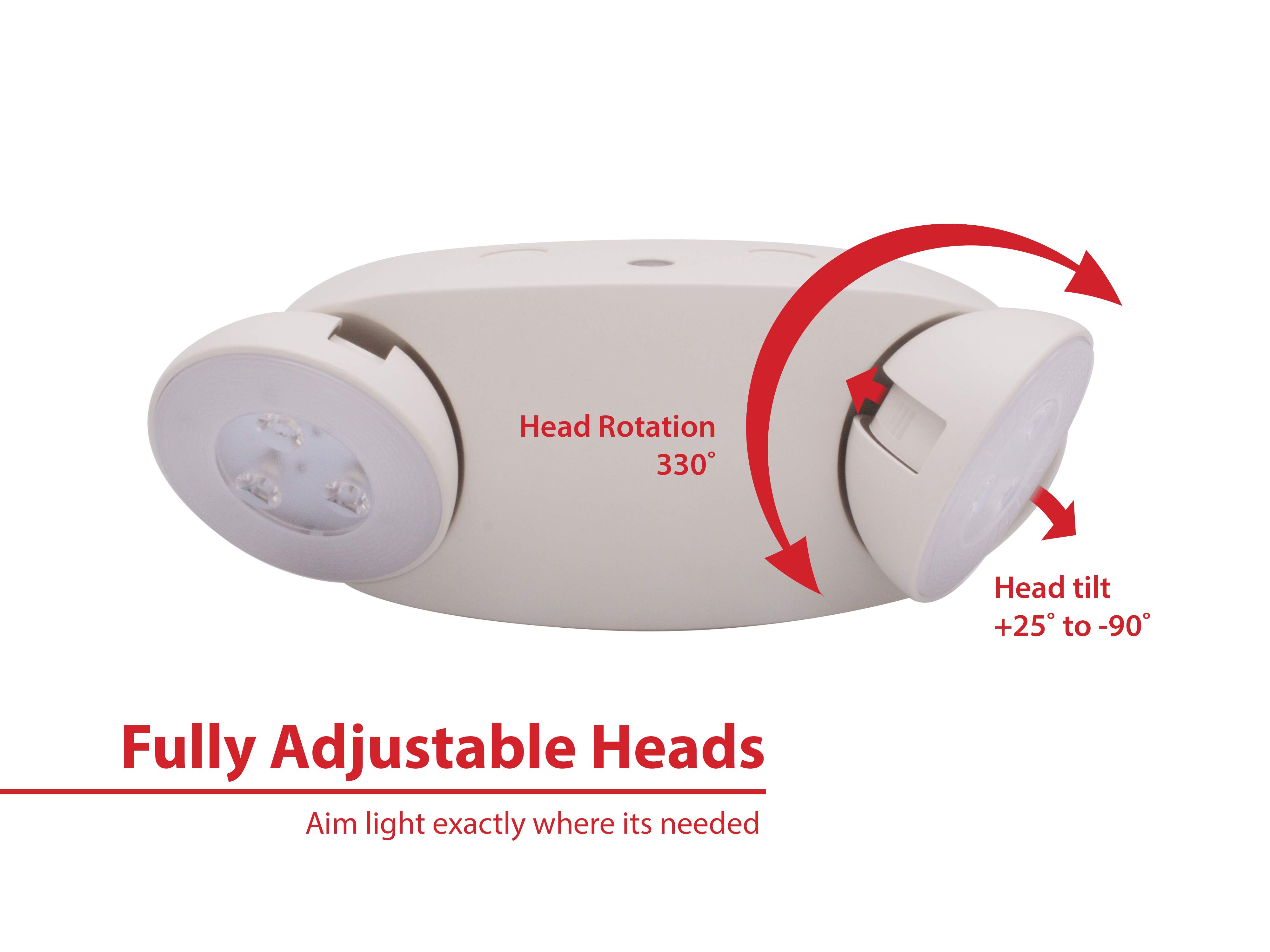

- Adjustable heads for aiming light where required
- Head tilt: +25°to -90°
- Head rotation: 330°
Optical System
- Custom lensing for accurate lighting distribution and control.
Electrical
- Operating temperature rating of 32°F to 104°F (0°C – 40°C)
- 6V, 4.5Ah Lead-Acid battery provides 90-minute emergency operation, recharges in 24 hours
- 120/277VAC Dual Voltage Operation, 60Hz input

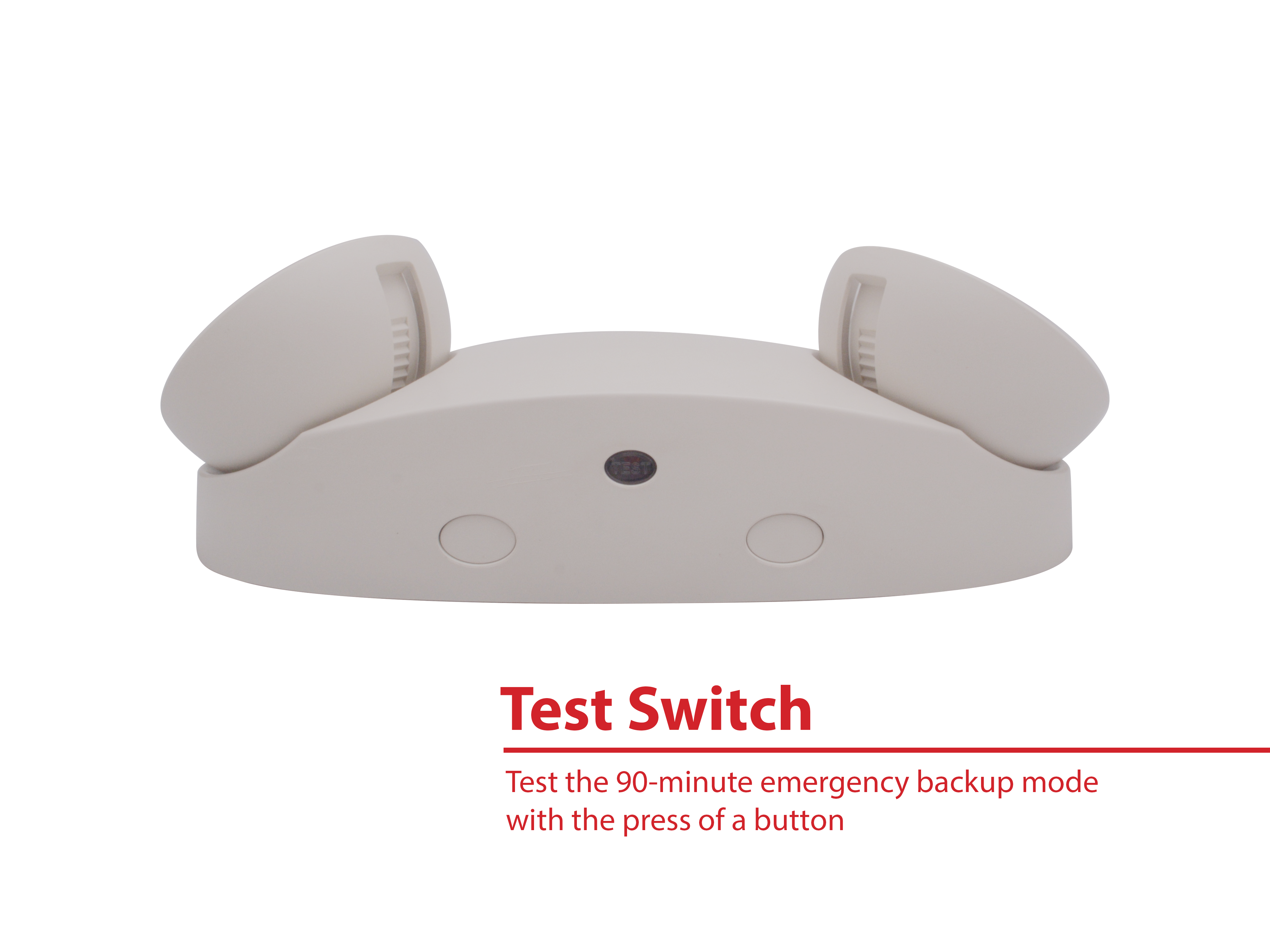

- LED indicator light & self-test push button switch
- 2x3pc LED lamps provide more than 700 lumens
Installations

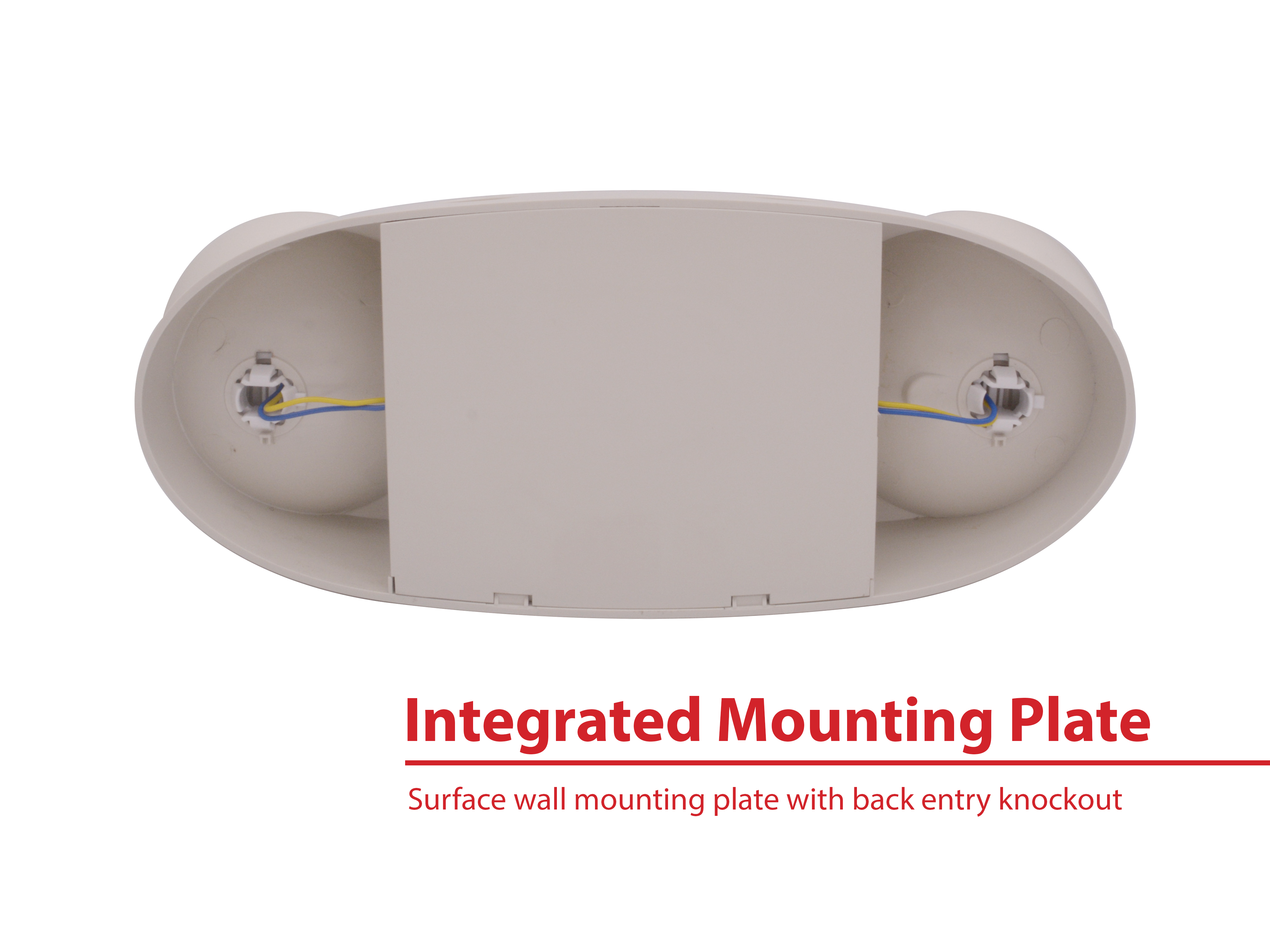

- Surface wall mounting plate with back entry knockout
Full Listings
- cULus Listed under UL 924
- UL-94-V-0 Flame rating
Warranty
- 1-year limited system warranty standard
- Warranty does not cover product failure due to an overvoltage event (power surge)
