13W Emergency Driver for Surface-Mount Fixtures
The EMSM is an LED emergency driver for field installations that enables normal and emergency operation of LED surface mount downlights. During a power failure, the EMSM activates emergency mode to maintain constant output power to the fixture for a minimum of 90 minutes without light degradation. T…

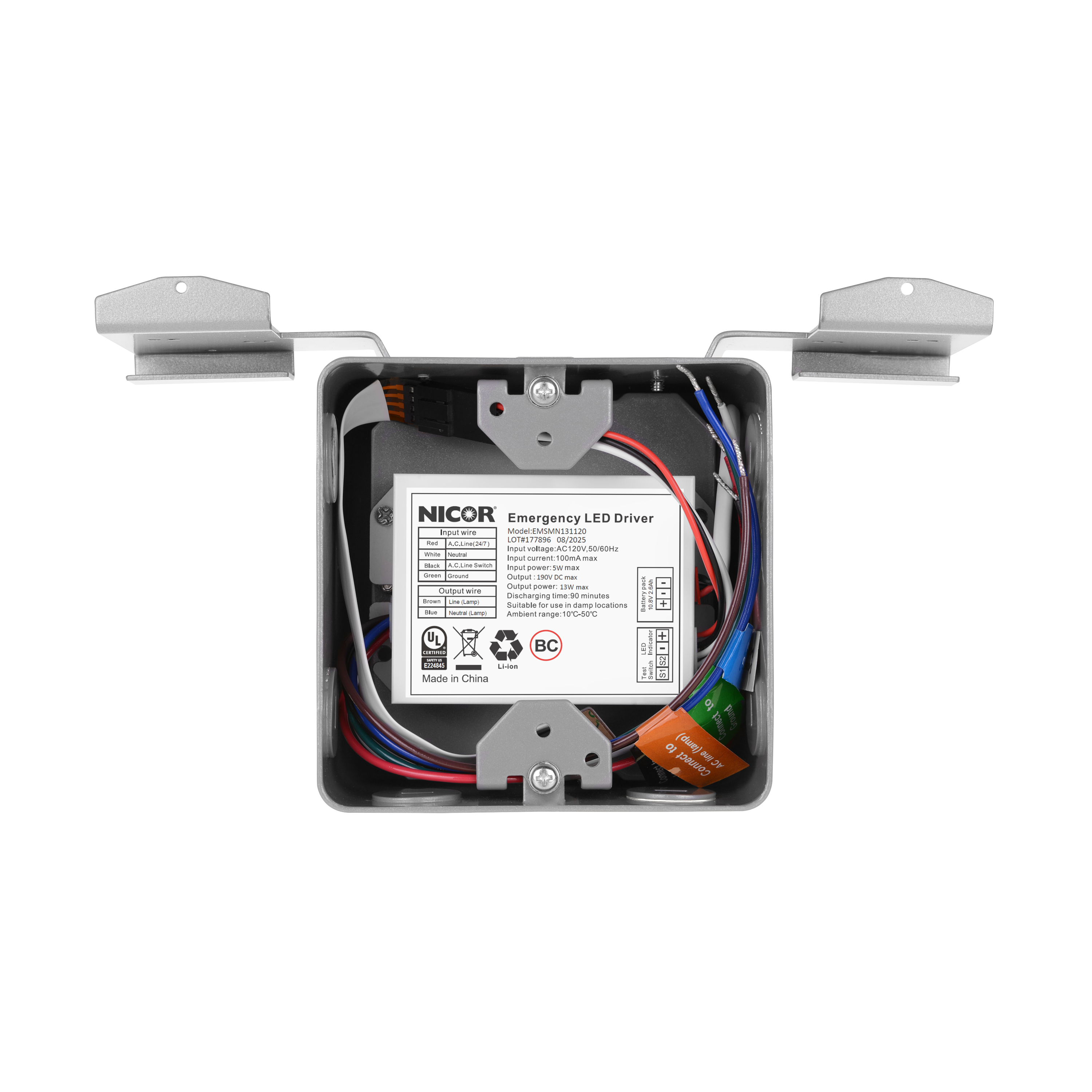

The EMSM is an LED emergency driver for field installations that enables normal and emergency operation of LED surface mount downlights. During a power failure, the EMSM activates emergency mode to maintain constant output power to the fixture for a minimum of 90 minutes without light degradation. The EMSM contains a battery, charger, and converter circuit in a single housing and includes a test button/indicator light to be adhered to the fixture or a nearby surface.
- Compatible with most 120VAC powered surface mount downlights up to 28W

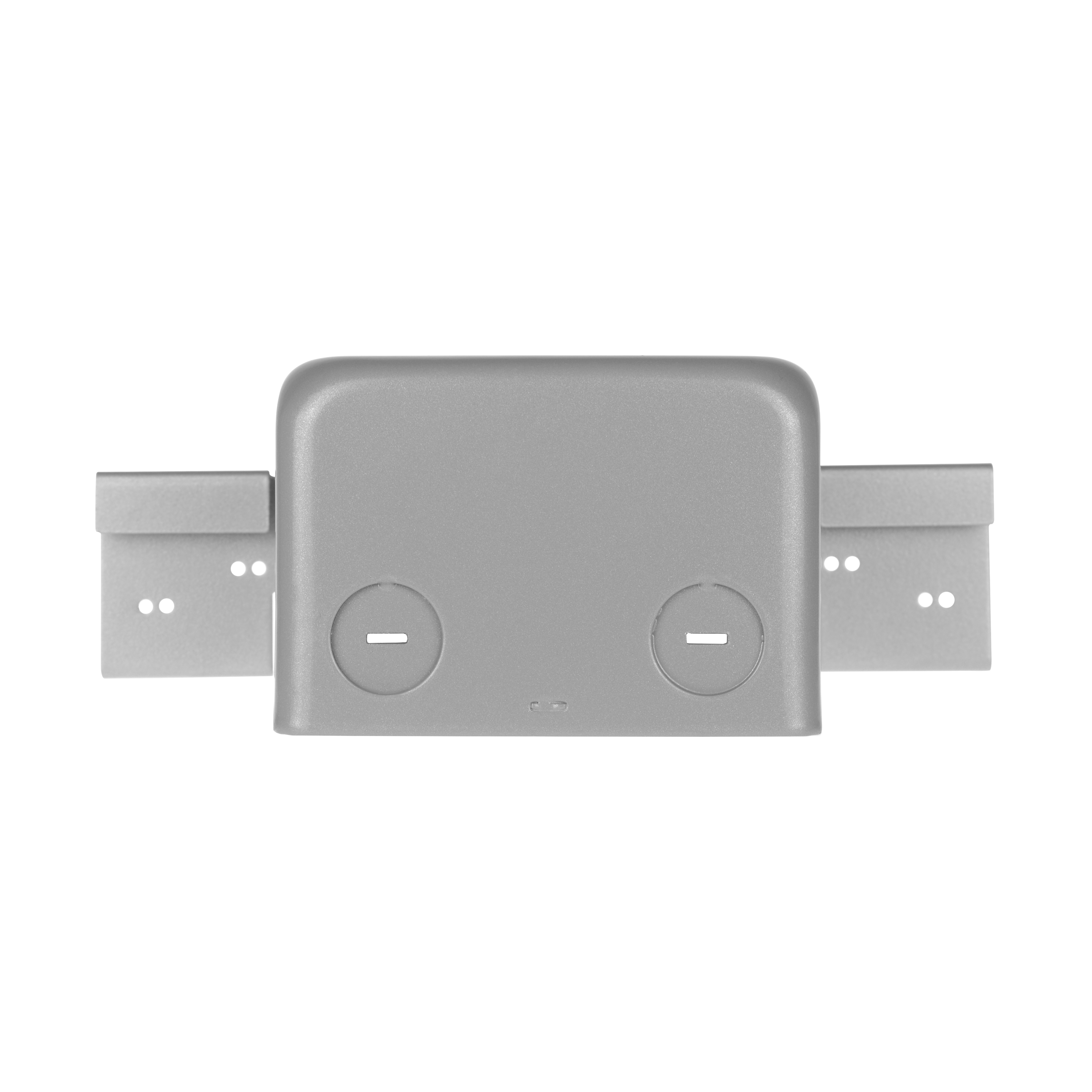

- Heavy-duty steel junction box with mounting arm

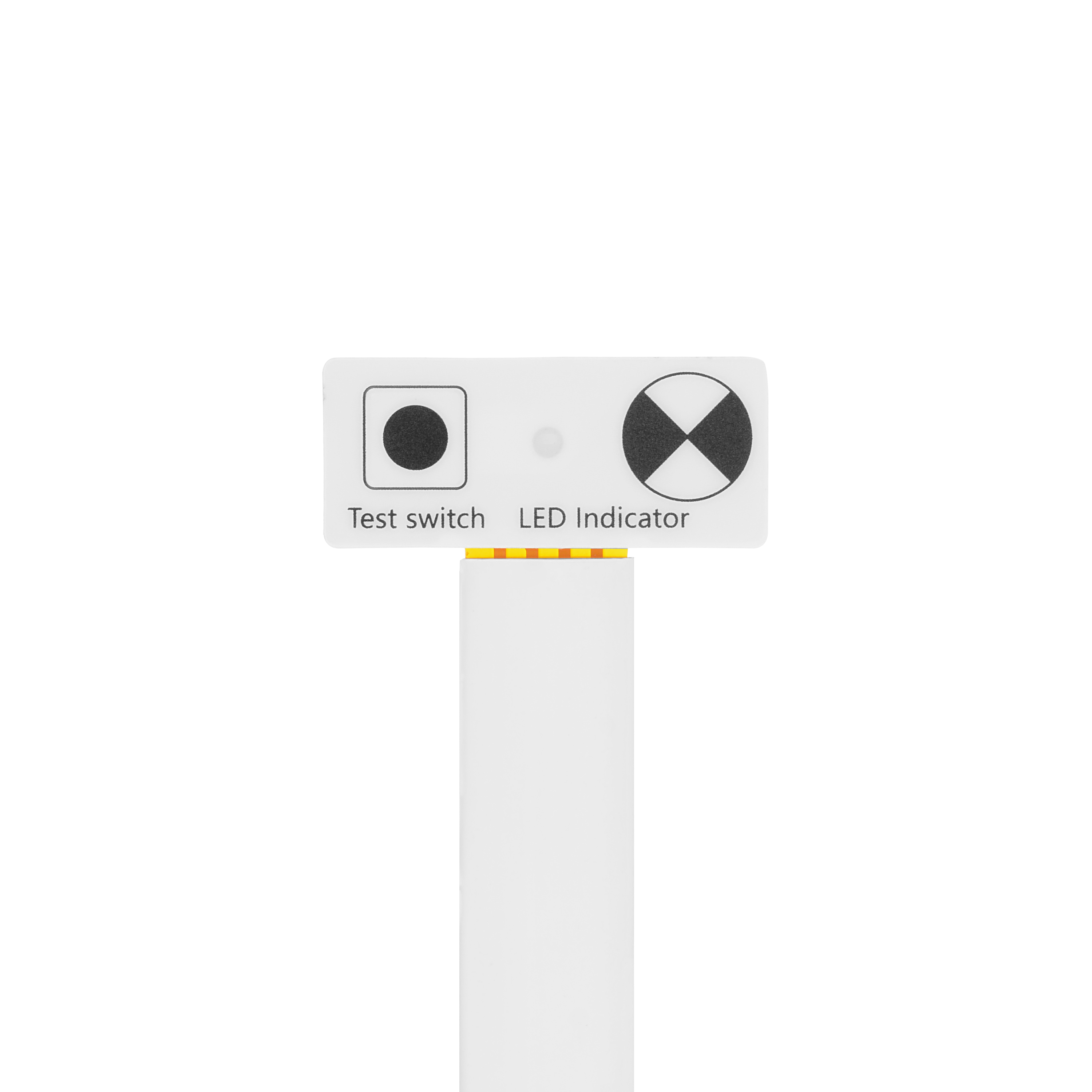

- Flexible test switch/status indicator lead with LED indicator
- Long-life, high-temperature Li-Ion battery (24-hour recharge time)
- Constant power design provides consistent lumen output for >90 minutes
Color Options:
Ordering information
Downloads
Specifications
-
WattageInput: 5W, Output: 13W
Listings & certifications
- UL Certified
- UL 924 (Emergency Lighting)
- NFPA 101 Compliant
- Title 20 (BC)
- RoHS Compliant
- Damp-Location
- Approved for use in plenum spaces
Features
Construction

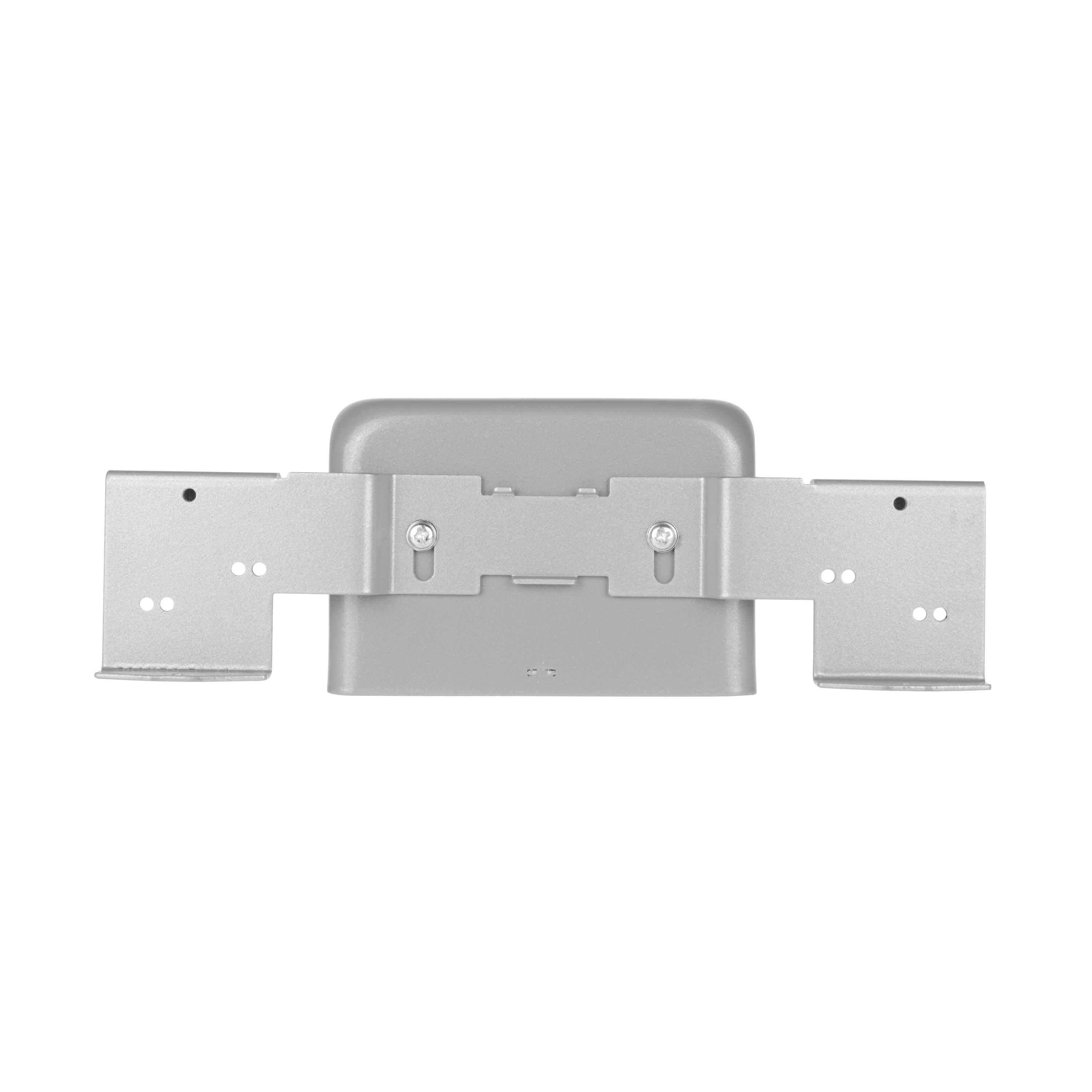

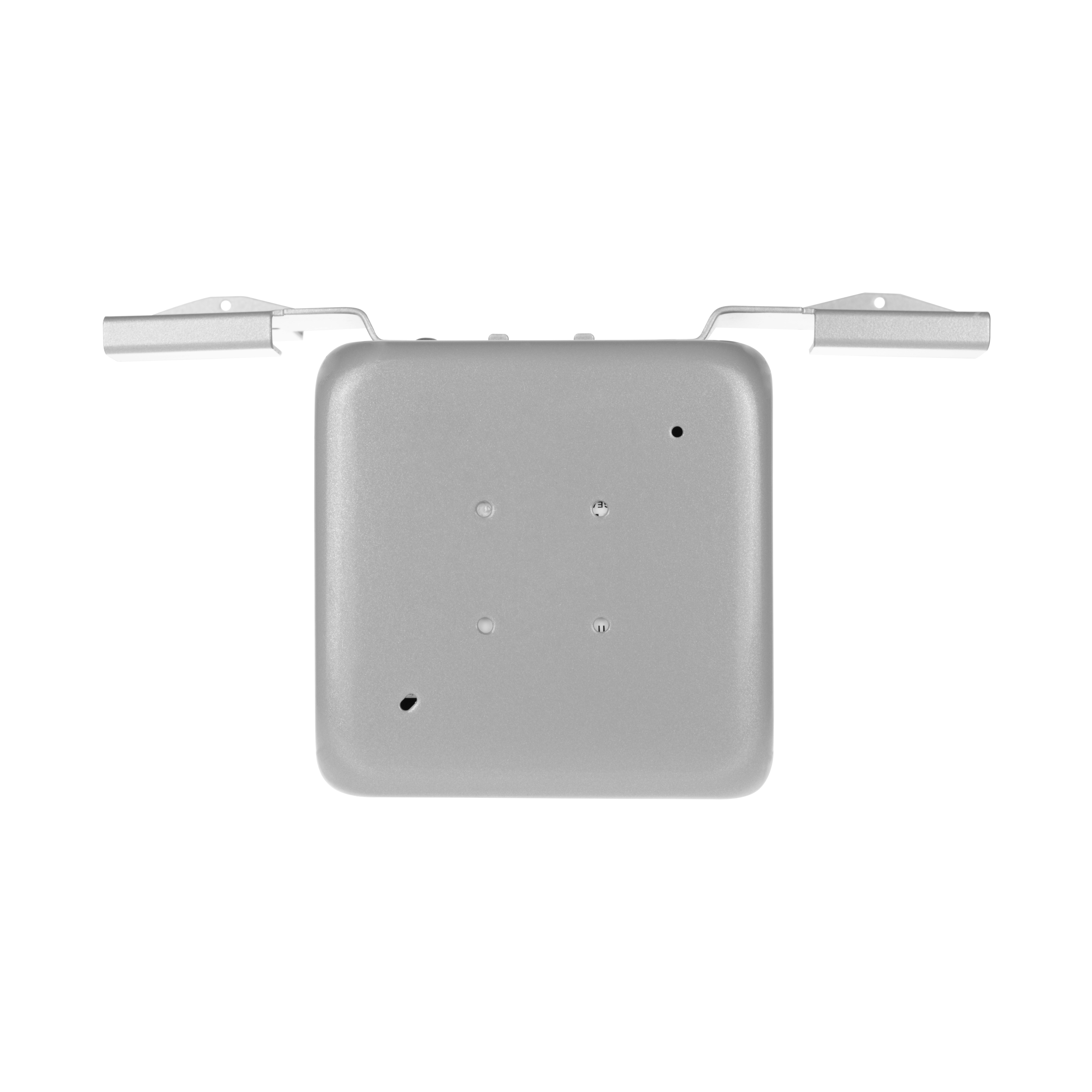

- Heavy duty steel junction box with mounting arm
- Flexible test switch/status indicator lead with LED indicator
- Six additional knockouts for through wiring installation
Electrical
- Long life high temperature Li-Ion battery
- Constant power design provides consistent lumen output for >90 minutes
- 24 hour recharge time
- Operating temperature rating of 32°F to 122°F (0°C to 50°C)
Installations
- 120VAC input

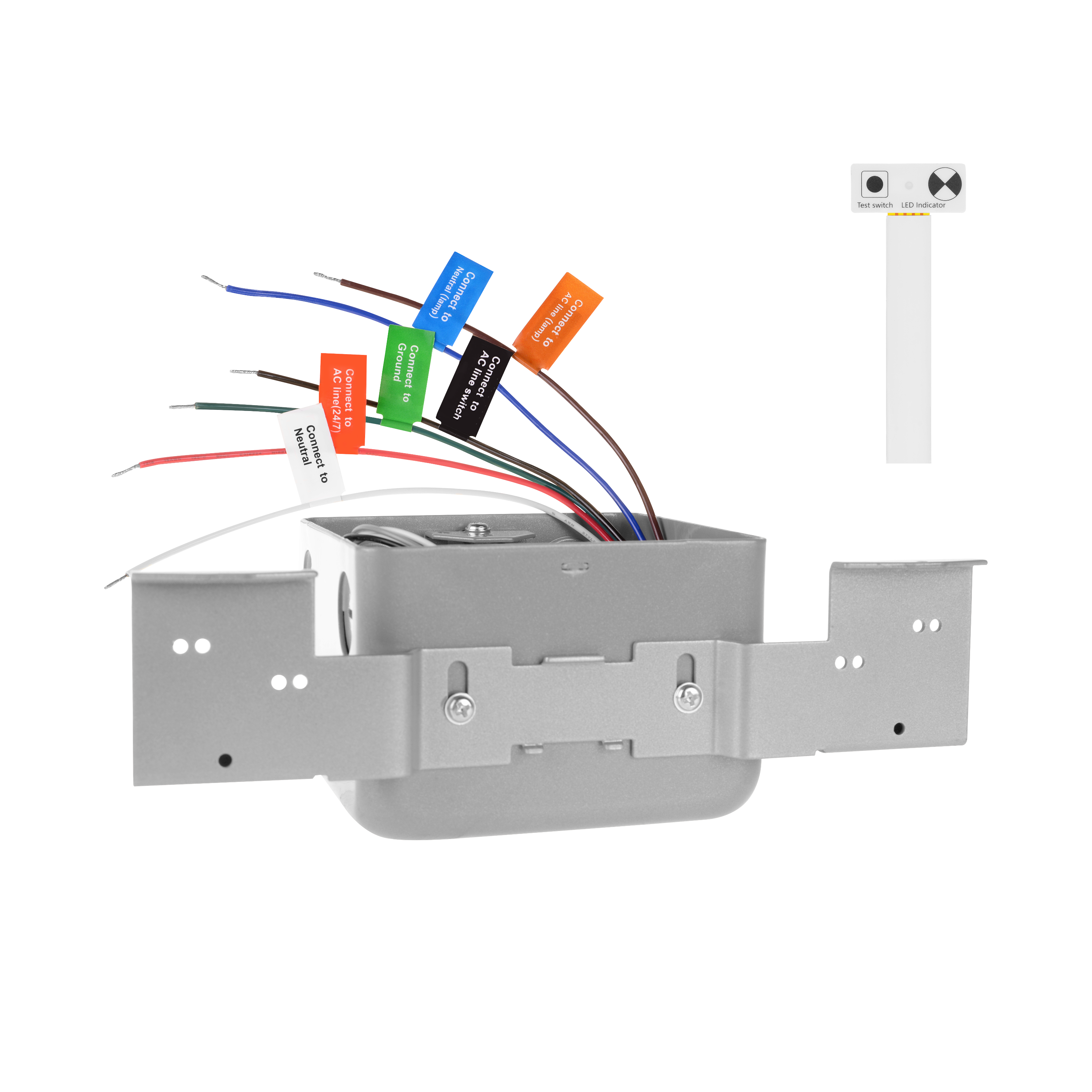

- Wires to fixture AC input leads
- Compatible with fixtures up to 28W max

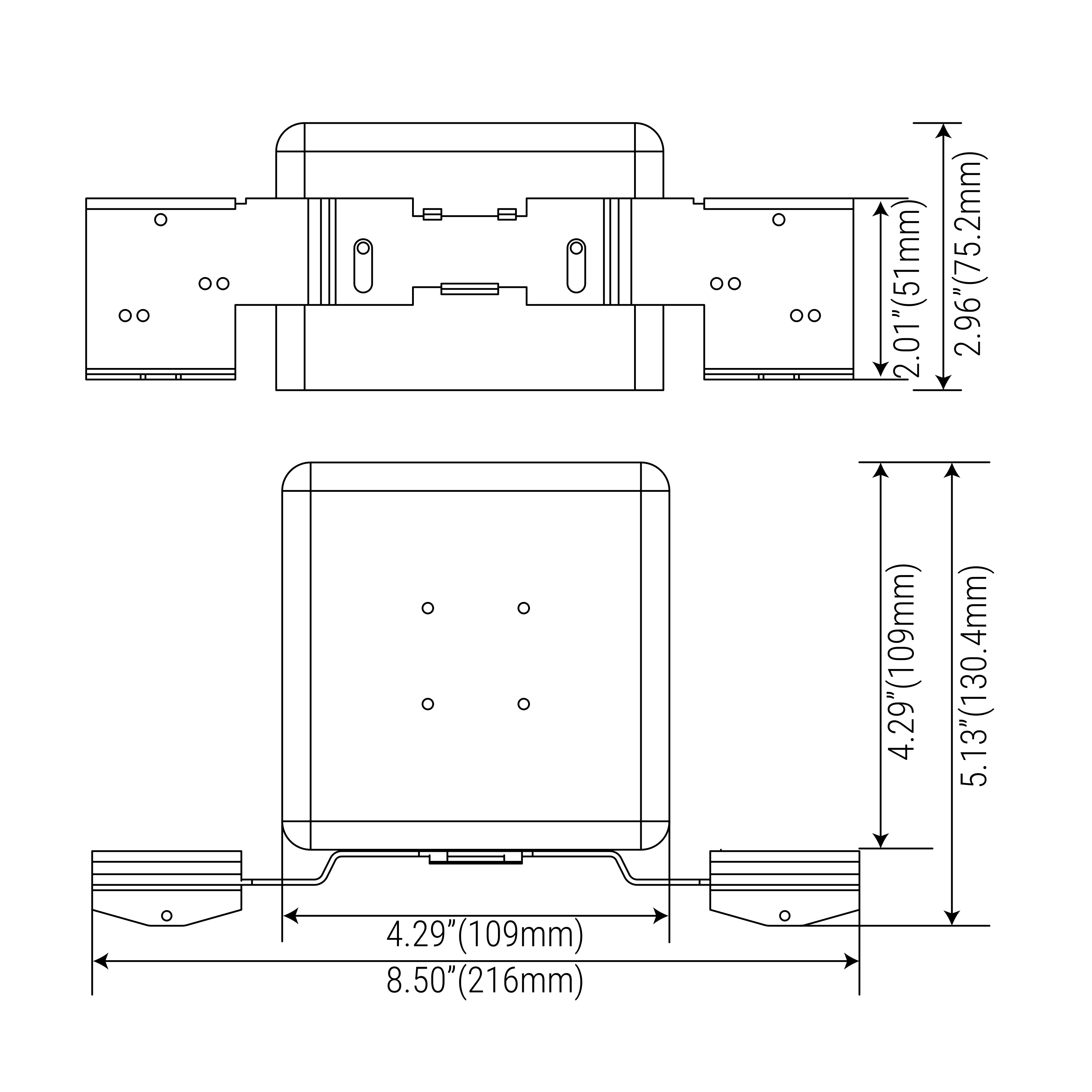

- Junction box adjustable for ceiling thicknesses of 0.5in - 1.0in
- For use with switched or unswitched fixtures (requires unswitched power source)
- For installations where power surge may be possible, NICOR recommends installing additional surge protection at the electrical distribution panel
Full Listings
- cULus 924 certified
- NFPA 101 (Life Safety Code) compliant
- CA Title 20 compliant
- Damp location rated
- Approved for use in plenum spaces
Warranty
- 5-year limited system warranty standard
