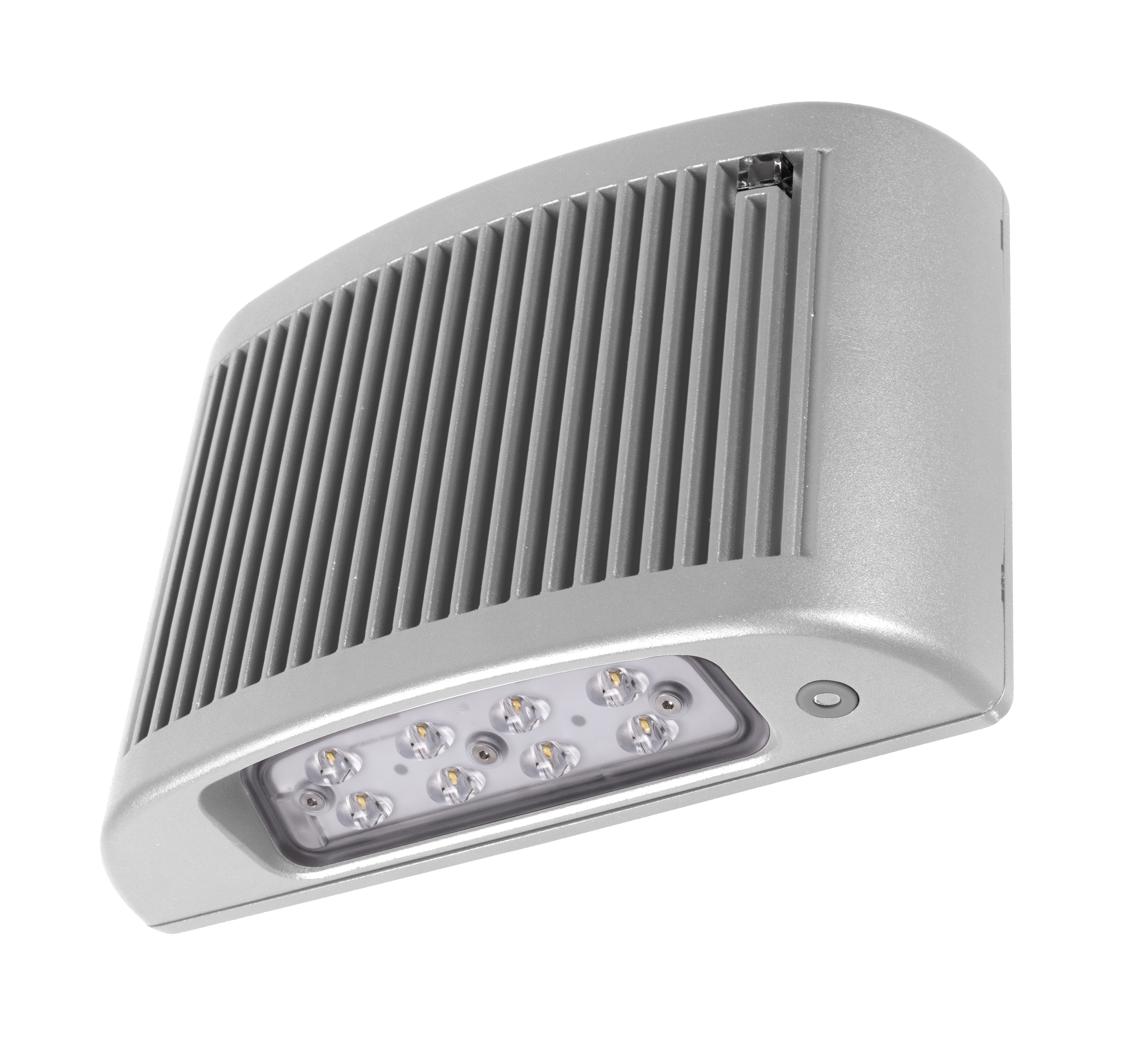

EOF Series Silver Outdoor Full Cutoff Emergency LED Wall Pack (5000K)
The LED Emergency Outdoor Full Cutoff combines 90-minute emergency lighting with a low-profile, architectural design. The EOF is designed for outdoor use, with an optional cold-weather kit for added reliability in northern climates. The EOF comes standard with a photocell and wall switch, allowing u…
The LED Emergency Outdoor Full Cutoff combines 90-minute emergency lighting with a low-profile, architectural design. The EOF is designed for outdoor use, with an optional cold-weather kit for added reliability in northern climates. The EOF comes standard with a photocell and wall switch, allowing users added energy efficiency and the ability to control the light from a switch, with an optional motion sensor adding even more energy efficiency. A non-emergency unit is available for locations not requiring battery-backup, providing a uniform look for all fixtures.
- Available as an emergency fixture, or non-emergency AC-only fixture
- Optional cold-weather models allow for usage at temperatures down to -13°F
- Durable die-cast aluminum body with separable backplate for easy installation
- Utilizes advanced LED technology with CCT of 3000K and 5000K
- Maintenance-free NiCad battery provides 90-minute emergency operation (EM models only)
Color Options:
Ordering information
Downloads
Specifications
-
Lumens1635 -
Wattage16.9
Listings & certifications
- cULus Listed
- UL 924 (Emergency Lighting)
- NFPA 70 Compliant
- NFPA 101 Compliant
- IP65 Ingress Protection
- FCC Class B
- Wet-Location
- Testing performed in accordance with IESNA standards
- Meets or exceeds requirements of NFPA 70 & NFPA 101
- Meets FCC Part 15, Subpart B, Class B standards for conducted and radiated emissions
Features
Construction
- IP65 Rated enclosure
- Durable die-cast Aluminum body
- Separable backplate for easy installation and maintenance
- Fine-textured, UV-stabilized powder coat bronze finish
Optical System
- Polycarbonate lens
- Utilizes advanced LED technology with CCT of 3000K and 5000K
- CRI 70+
Electrical
- Input voltage of 120/277VAC
- Maintenance-free NiCad battery provides 90-minute emergency operation
- LED indicator light & test button with self-testing, self-diagnostic option
- Photocell standard with wall switch control
- Motion sensor option for additional energy saving
- EM Operating Temperature: 32°F to 122°F (0°C to +50°C)
- Non-EM Operating Temperature: -13°F to +122°F (-25°C to +50°C)
- EM Cold Weather Operating Temperature: -13°F to +122°F (-25°C to +50°C)
Installations
- Fixture mounts directly to J-Boxes and walls with screws
- Wiring possible through backplate or 1/2” conduit knockout
- For installations where power surge may be possible, NICOR recommends installing additional surge protection at the electrical distribution panel
Full Listings
- LM-79, LM-80 testing performed in accordance with IESNA standards
- UL & cUL 924 Listed
- Meets or exceeds requirements of NFPA 70 & NFPA 101
- Meets FCC Part 15, Subpart B, Class B standards for conducted and radiated emissions
- TM-21 Projected L70(9k) life >72,000 hours
Warranty
- 1-year limited system warranty standard
- Warranty does not cover product failure due to an overvoltage event (power surge)
