EOT Series Bronze Emergency Outdoor Selectable LED Teardrop Wall Pack with Cold Weather and EM Backup
The LED Emergency Outdoor Tear Drop combines 90-minute emergency lighting with a low-profile, architectural design. The EOT now features CCT selectability, allowing the user to chose their desired color temperature. The EOT is designed for outdoor use, with an optional cold-weather kit for added rel…
The LED Emergency Outdoor Tear Drop combines 90-minute emergency lighting with a low-profile, architectural design. The EOT now features CCT selectability, allowing the user to chose their desired color temperature. The EOT is designed for outdoor use, with an optional cold-weather kit for added reliability in colder climates. The EOT comes standard with a photocell providing users added energy efficiency. An internal selector switch allows bypassing the photocell to control the unit from a wall switch. A non-emergency unit is available for locations not requiring battery-backup, providing a uniform look for all fixtures.
- Available in AC Only, EM backup and Cold weather Emergency backup variants
- Three selectable color temperatures (3500K/4000K/5000K)
- Integral Photocell for automatic dusk-dawn performance
- >80 CRI to improve safety and color definition in public places
- Fixture mounts directly to junction boxes and walls with screws
Color Options:
Ordering information
Downloads
Specifications
-
Lifespan>54,000 -
Lumens1740 - 1815 lm
-
Wattage13.3
Listings & certifications
- UL Certified
- DLC 5.1 Premium
- NFPA 70 Compliant
- NFPA 101 Compliant
- IP65 Ingress Protection
- FCC Class A
- Wet-Location (UL 1598)
- Emergency models meet or exceed requirements of NFPA 70 & NFPA 101
- LM-79 and LM-80 testing performed in accordance with IESNA standards
- Meets FCC Part 15, Subpart B, Class A standards for conducted and radiated emissions
Features
Construction
- Durable die-cast Aluminum body
- Separable backplate for easy installation and maintenance
- Fine-textured, UV-stabilized powder coat bronze finish
Optical System
- Polycarbonate lens
- Dual emitter array that enables CCT selection of 3500K/4000K/5000K
- >80 CRI to improve safety and color definition in public places
Electrical
- Input voltage of 120-277VAC, 50/60Hz
- Power Factor = ≥0.9
- THD = ≤20%
- AC only model operating temp rating : -40°F to 113°F (-40°C to 45°C)
- Emergency model operating temp rating : 32°F to 113°F (0°C to 45°C)

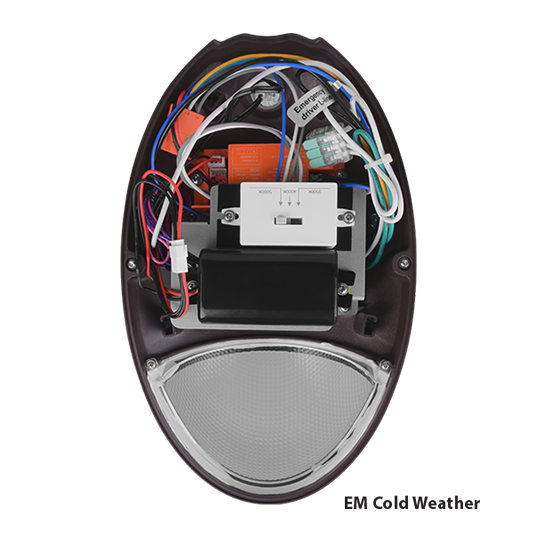

- Emergency Cold Weather model operating temp rating : -4°F to 113°F (-20°C to 45°C)
- 2.5kV surge protection standard
Installations
- Fixture mounts directly to J-Boxes and walls with screws
- Wiring possible through backplate or 1/2” conduit knockout
- For installations where power surge may be possible, NICOR recommends installing additional surge protection at the electrical distribution panel
Full Listings
- LM-79, LM-80 testing performed in accordance with IESNA standards.
- cULus 1598 Listed
- Emergency models meet or exceed requirements of NFPA 70 & NFPA 101
- IP65 Rated
- Meets FCC Part 15, Subpart B, Class A standards for conducted and radiated emissions
- TM-21 Projected L70(9k) life >54,000 hours
- DLC 5.1 Premium
Warranty
- 5-year limited system warranty standard
- Warranty does not cover product failure due to an overvoltage event (power surge)
