ERHWP Series

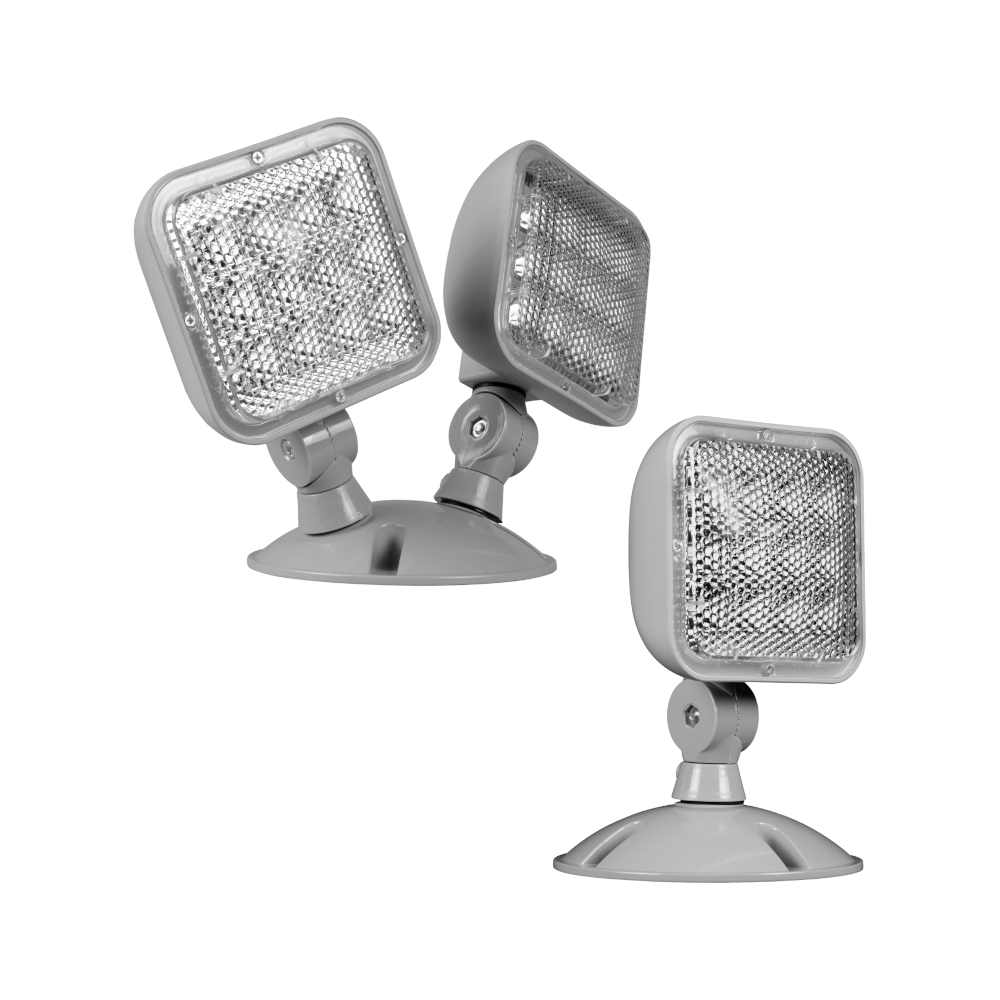

ERH Series Weather Resistant Emergency LED Remote Light Fixture
Product description
The ERHWP Series LED Weather Resistant Remote lamps are designed to work with any of NICOR’s 3.6VDC LED Exit combos and emergency lighting units with remote capability in a weather-resistant enclosure. This sleek, contemporary design offers fully adjustable heads that complement any environment. The…
The ERHWP Series LED Weather Resistant Remote lamps are designed to work with any of NICOR’s 3.6VDC LED Exit combos and emergency lighting units with remote capability in a weather-resistant enclosure. This sleek, contemporary design offers fully adjustable heads that complement any environment. The ERHWP Remote lamps are available in single or double head configurations.
- Weather-resistant remote head for indoor/outdoor emergency lighting
- Works with the NICOR EML1, EML3, and EML5 remote-capable models
- Fully adjustable heads (±70° tilt, 360° rotation)
- Efficient LED output (up to ~256 lumens dual head)
- Standard junction box mounting for quick installation
Color Options:
Ordering information
Downloads
Specifications
Listings & certifications
Listings & Certifications
- cULus Listed
- UL 94 V-0 (Flame Resistance)
- FCC Class A
- Wet-Location
Features
Construction
- Weather resistant injection molded thermoplastic ABS housing with powder coated die-cast aluminum base
- UL-94v-0 Flame rating - Flame Retardant
- Adjustable heads for aiming light where required
- Head tilt: ±70°
- Head rotation: 360°
- Gray unpainted ABS plastic
- Gray powder coated aluminum base
Optical System
- Precision engineered Prismatic Lens
Electrical
- Input voltage of 3.6VDC
- 1.3W max per head
Installations
- Easy installation into a standard junction box
Warranty
- 1-year limited system warranty standard
