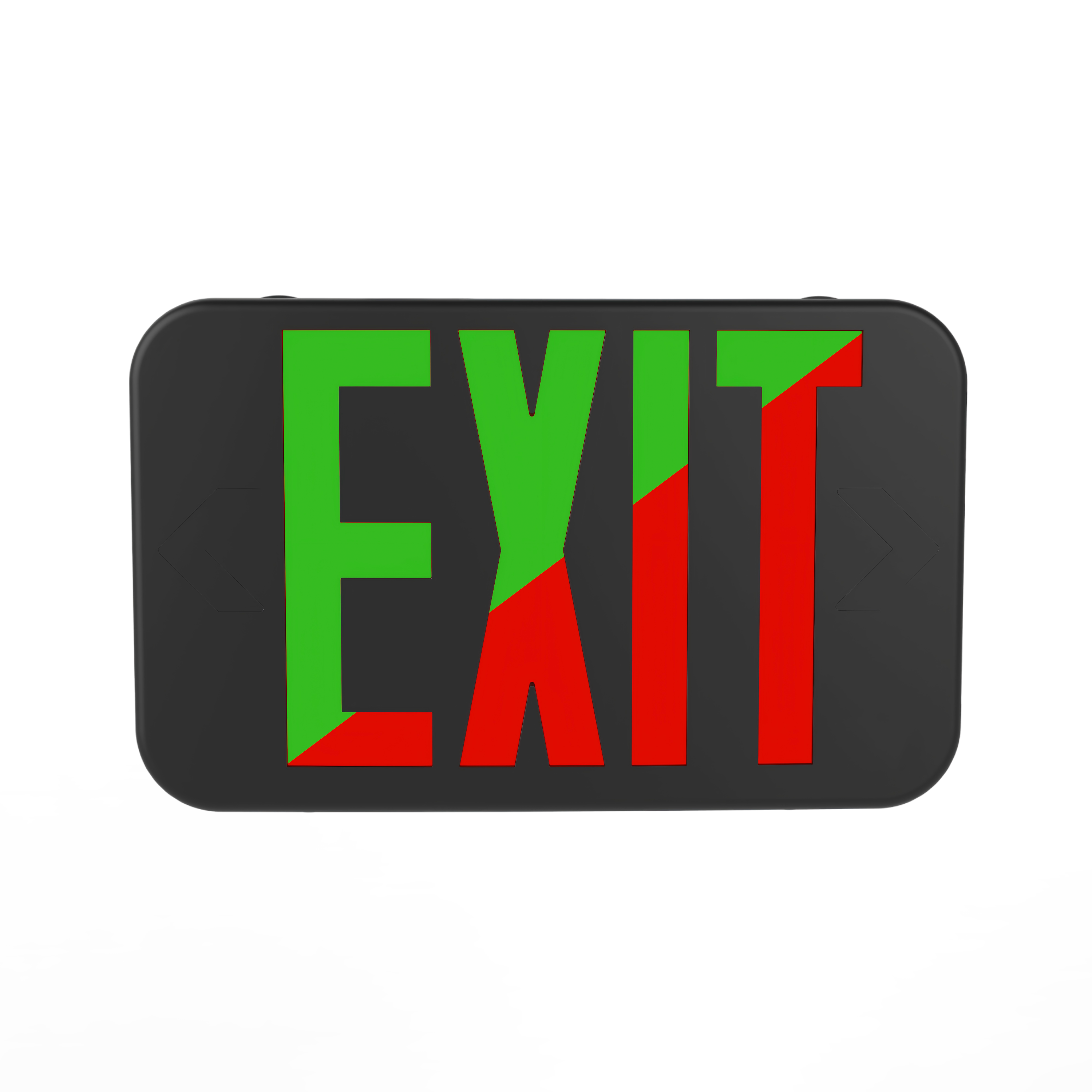

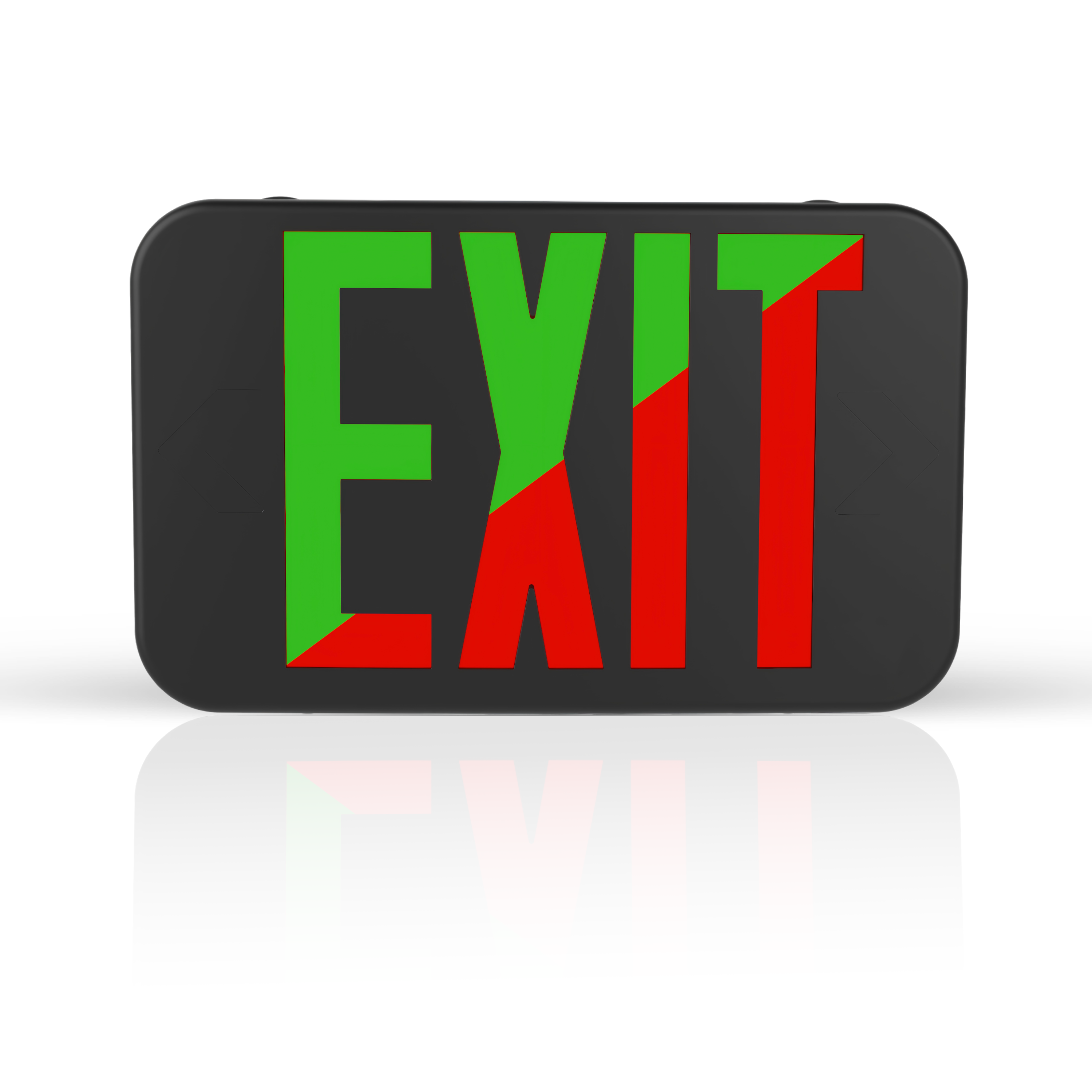

EXL1 Black LED Selectable Color Emergency Exit Sign
The EXL1-Select LED Emergency Exit Sign combines energy-efficient performance with flexible installation and reliable emergency operation. Featuring field-selectable red or green lettering, interchangeable faceplates, and a universal mounting bracket, the EXL1-Select adapts easily to a variety of co…
The EXL1-Select LED Emergency Exit Sign combines energy-efficient performance with flexible installation and reliable emergency operation. Featuring field-selectable red or green lettering, interchangeable faceplates, and a universal mounting bracket, the EXL1-Select adapts easily to a variety of commercial, retail, and multifamily applications. Available with automatic self-diagnostic testing, the fixture simplifies maintenance while providing 90-minutes of emergency illumination through its rechargeable Ni-MH battery.
- Field-selectable red or green lettering via internal toggle switch and included templates
- Self-diagnostic option automatically runs monthly and annual tests to simplify maintenance
- Ni-MH battery with low-voltage disconnect provides 90-minute emergency operation
- Low-energy 1.2W draw with dual 120-277V operation for multifamily, commercial, and retail
- cULus924 Listed, NFPA 101 compliant, and damp location rated for code-ready installs
Color Options:
Black
WhiteOrdering information
Downloads
Specifications
-
Wattage1.2
Listings & certifications
- UL Certified
- UL 924 (Emergency Lighting)
- UL 94 V-0 (Flame Resistance)

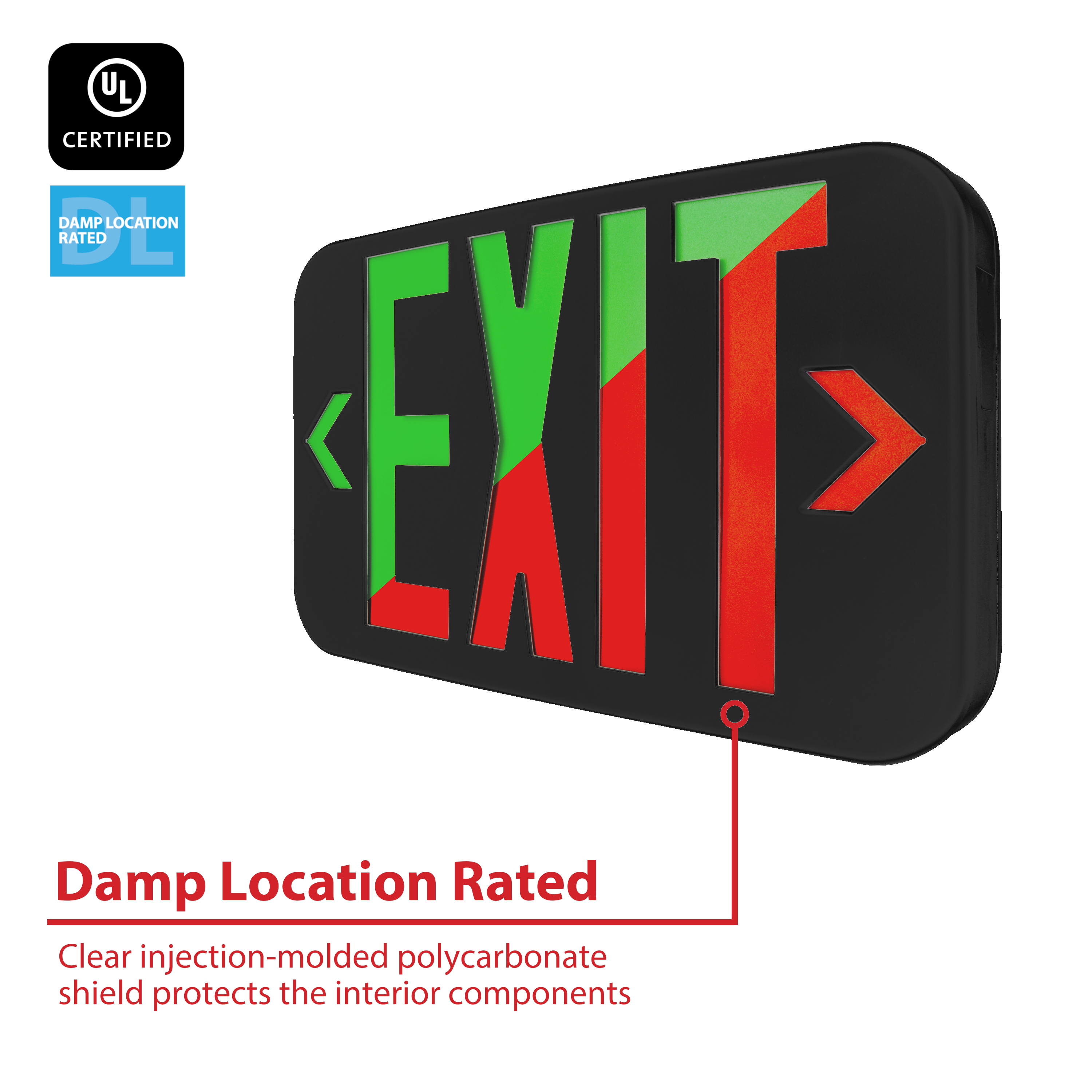

- Damp-Location
Features
Construction

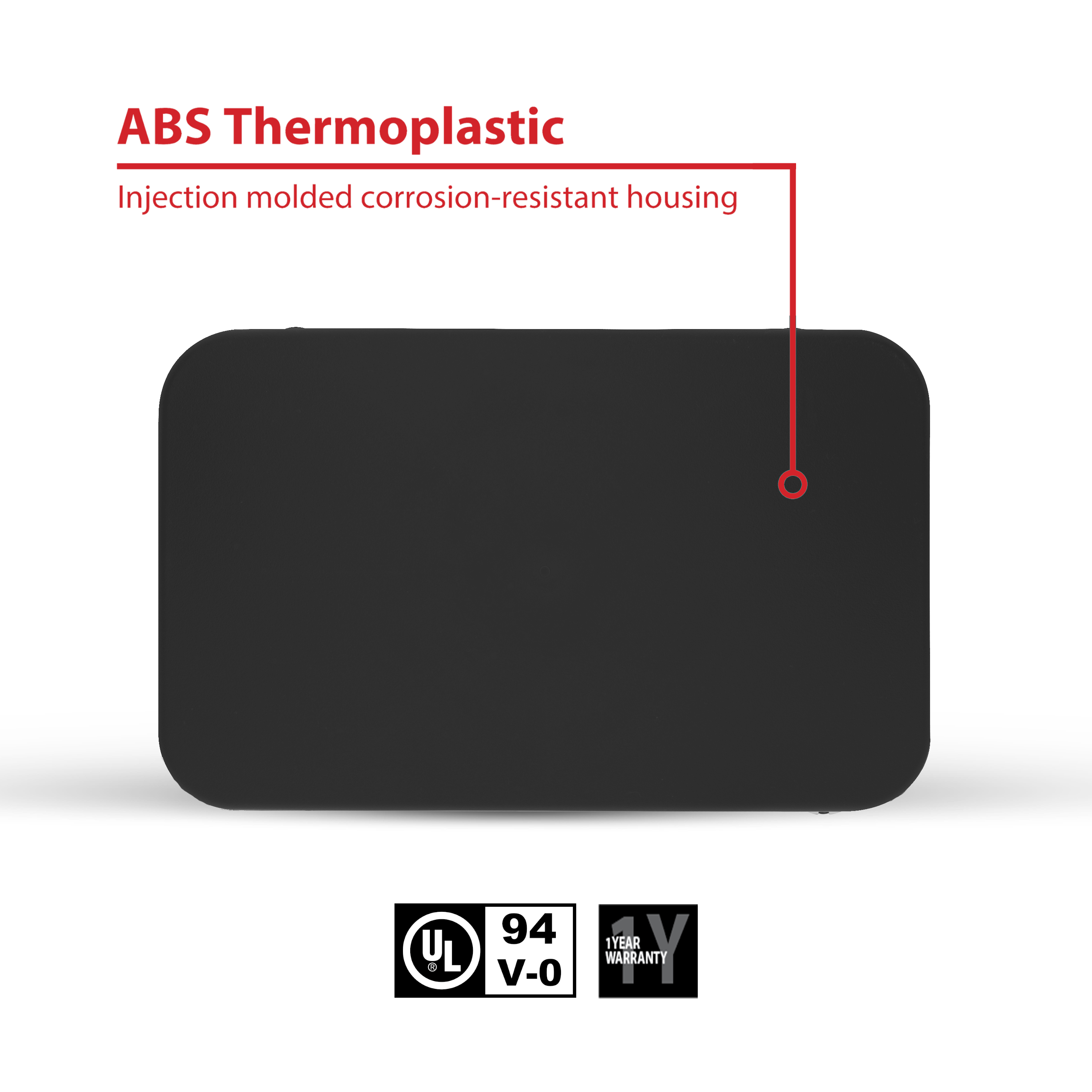

- Injection molded thermoplastic ABS housing
- White and Black finishes available
- UL-94V-0 flame rating - Flame Retardant
- Field Selectable Red and Green LED light and lettering
- 6” Letter height

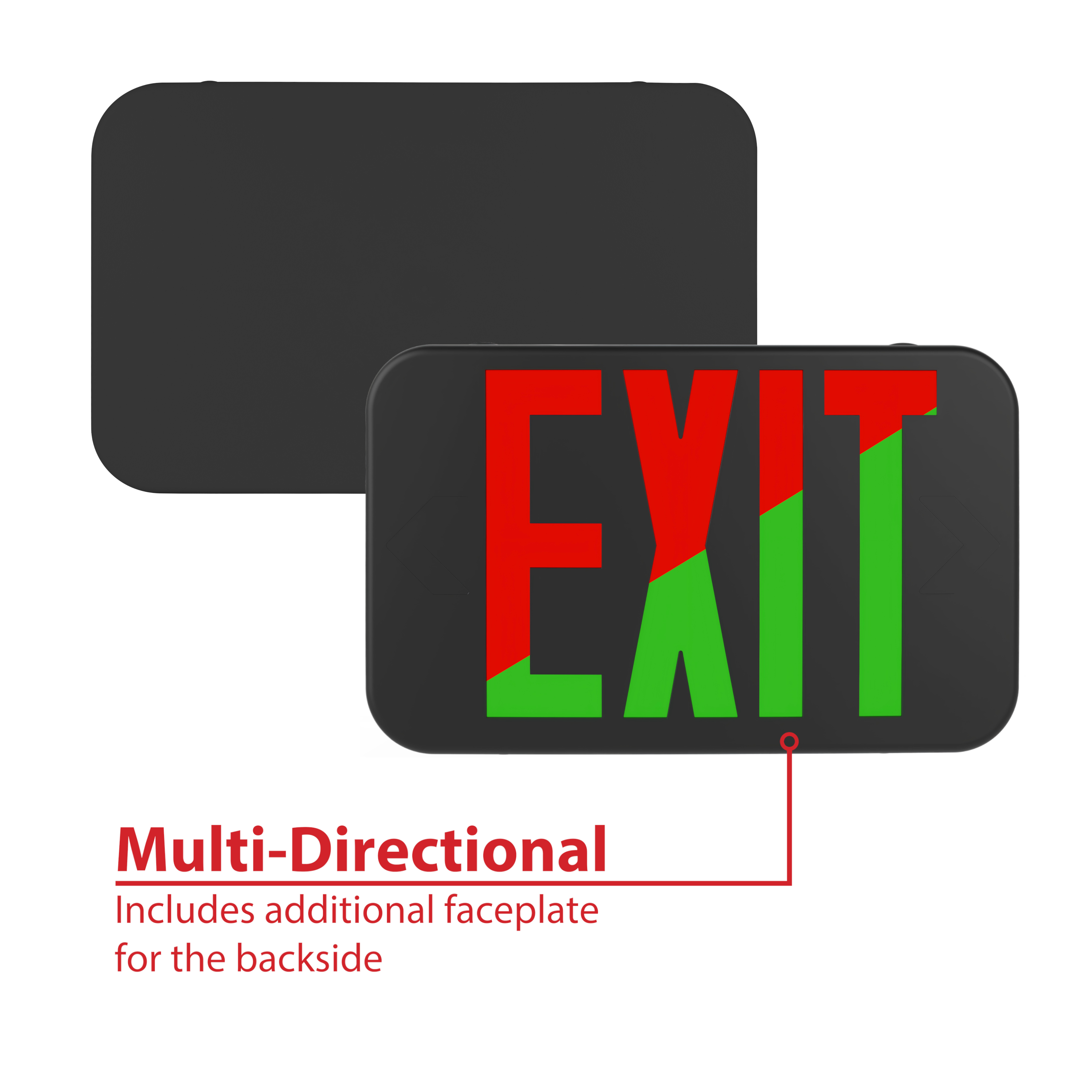

- Supplied with faceplates for single or double face configuration
Electrical
- 120-277V dual voltage operation

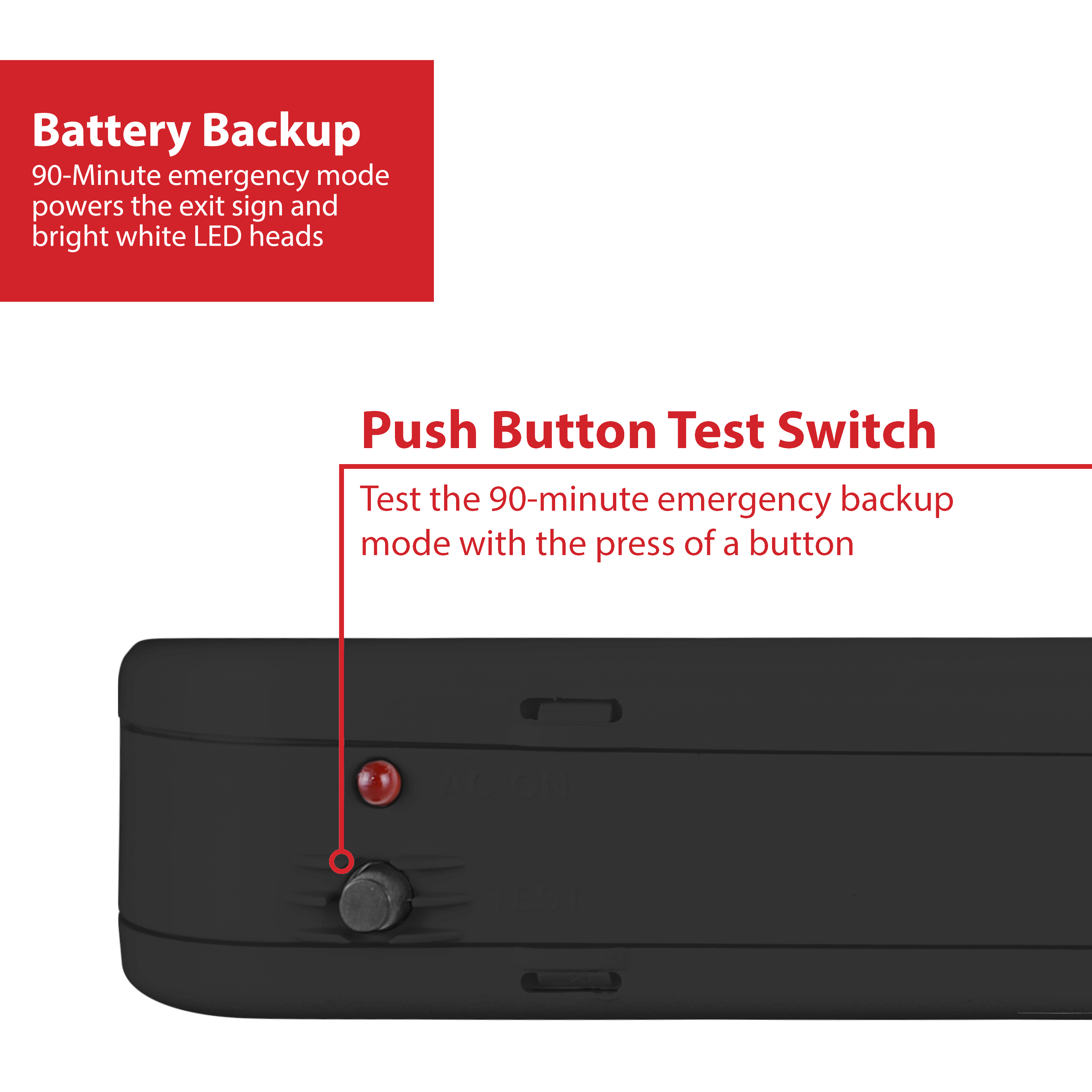

- LED indicator light & push-button test switch
- 90 Min capacity on emergency mode
- Damp location rated
- Operating temperature rating of 32°F to 104°F (0°C to 40°C)
- Self Diagnostic feature automatically tests and reports on fixture status
Installations
- Universal mounting plate with EZ quick connect
Full Listings
- cULus924 Listed (Emergency Lighting)
- UL-94V-O Flame Rating
- NFPA 101 (Life Safety Code) compliant
- NFPA 70 (National Electrical Code) compliant
- Damp-Location
Warranty
- 1-year limited system warranty standard
