SELF DIAGNOSTIC LED EDGE LIT EXIT SIGN

The EXL2-SD Series provides self diagnostic testing and reporting in a contemporary design with ease of installation and dependability in mind. This UL924 compliant sign is constructed of a sleek aluminum housing with clear single-faced or mirrored double-faced panels. High output LEDs deliver an indirect, evenly illuminated edge-lit exit sign with exceptional light distribution and maintenance-free nickel-cadmium battery for long life. The EXL2-SD Series offers flexible installation for surface ceiling, wall or end mount options along with field adjustable chevrons for universal configuration based on your application’s directional needs.

Category: Tag:

Specifications

  • LED light engine provides consistently bright, even EXIT legend illumination with red or green LEDs
  • 120/277VAC Dual Voltage Operation, 60Hz input
  • Fully-illuminated 6” letter height with ¾” stroke
  • Operating temperature rating of 50°F to 104°F (10°C to 40°C)
  • 90 minute capacity
  • Self Diagnostic feature automatically tests and reports on fixture status.



Part Numbers:

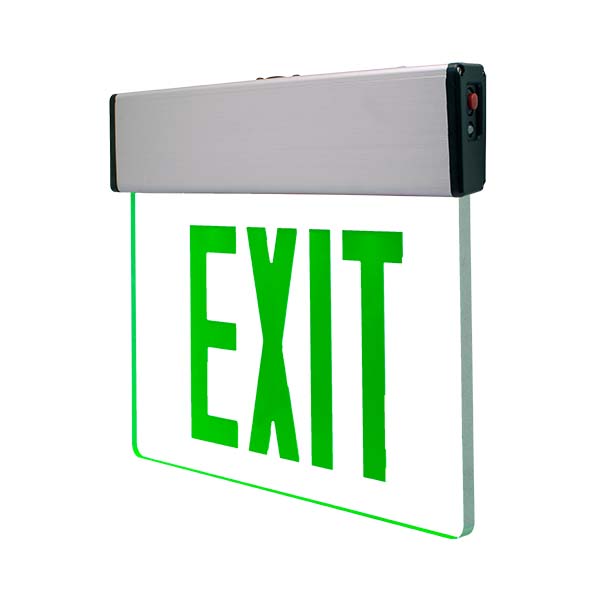

EXL210UNVALCLG1SD - Clear Back Green Text (Single Faced)
EXL210UNVALCLR1SD - Clear Back Red Text (Single Faced)
EXL210UNVALMRG2SD - Mirrored Back Green Text (Double Faced)

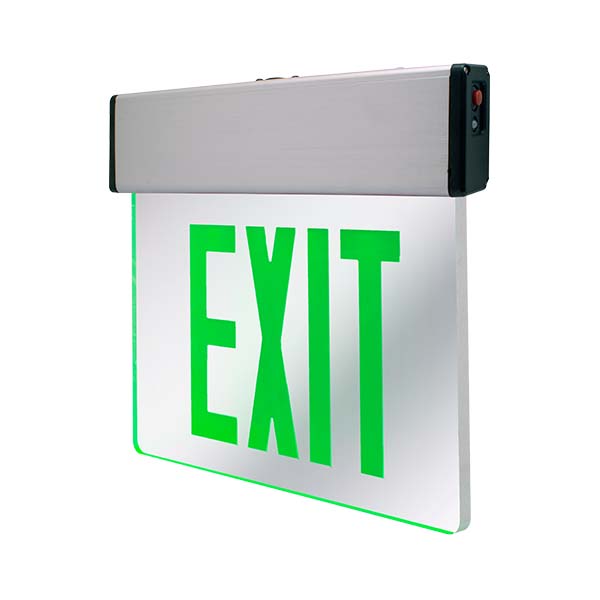

EXL210UNVALMRR2SD - Mirrored Back Red Text (Double Faced)
