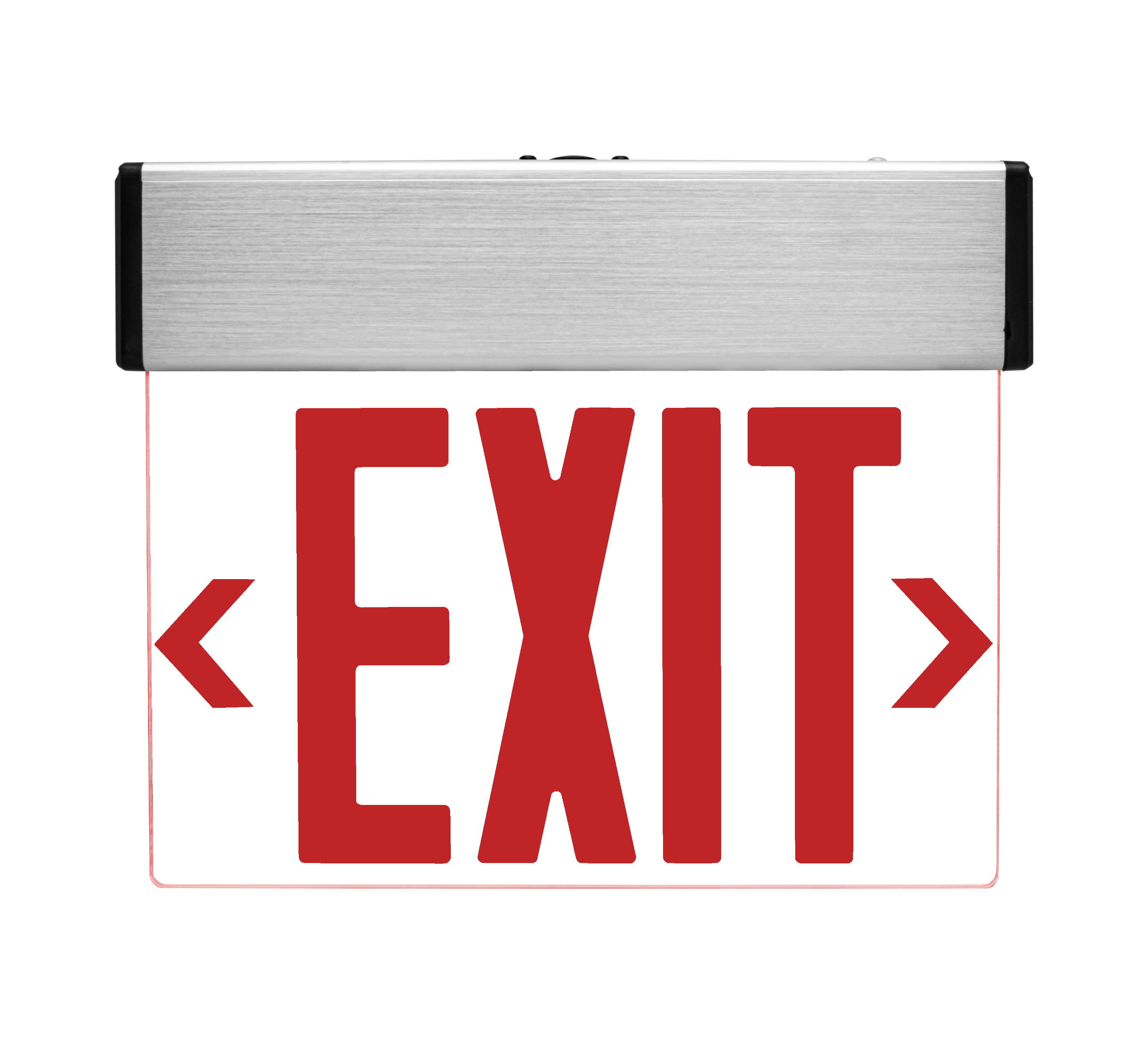

Self-Diagnostic LED Exit Sign, Clear with Red Lettering
The EXL2-SD Series provides self diagnostic testing and reporting in a contemporary design with ease of installation and dependability in mind. This UL924 compliant sign is constructed of a sleek aluminum housing with clear single-faced or mirrored double-faced panels. High output LEDs deliver an in…
The EXL2-SD Series provides self diagnostic testing and reporting in a contemporary design with ease of installation and dependability in mind. This UL924 compliant sign is constructed of a sleek aluminum housing with clear single-faced or mirrored double-faced panels. High output LEDs deliver an indirect, evenly illuminated edge-lit exit sign with exceptional light distribution and maintenance-free nickel-cadmium battery for long life. The EXL2-SD Series offers flexible installation for surface ceiling, wall or end mount options along with field adjustable chevrons for universal configuration based on your application’s directional needs.
- Self Diagnostic feature automatically tests and reports on fixture status
- Bright, even edge-lit LED illumination in red or green
- 90-minute emergency runtime with maintenance-free NiCad
- Sleek aluminum housing with clear or mirrored panels
- Versatile surface, ceiling, wall, or end mount with adjustable chevrons
- Damp rated; UL924, NFPA 70/101, and OSHA compliant
Color Options:
Ordering information
Downloads
Specifications
-
Wattage2.3
Listings & certifications
- cULus Listed
- UL 924 (Emergency Lighting)
- Title 20 (E)
- NFPA 70 Compliant
- NFPA 101 Compliant
- OSHA 1910.37 Compliant
- FCC Title 47 (15:B)
- Damp-Location
Features
Construction
- Specification grade aluminum extrusion design
- Optically clear, impact resistant acrylic panels with lettering
- Single or double faced configurations available

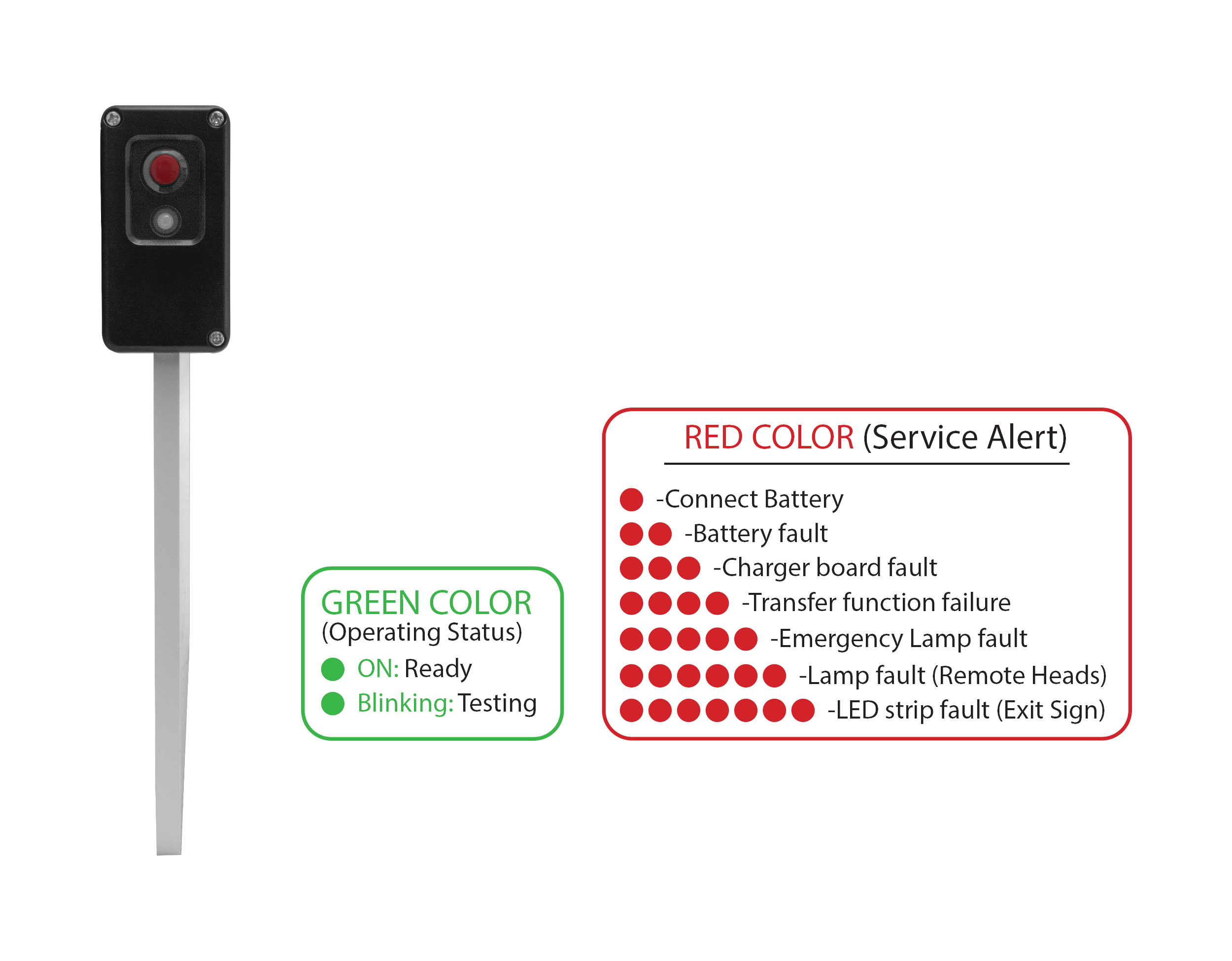

- Test switch and charge/status indicator
Optical System
- LED light engine provides consistently bright, even EXIT legend illumination with red or green LEDs
Electrical
- 120/277VAC Dual Voltage Operation, 60Hz input

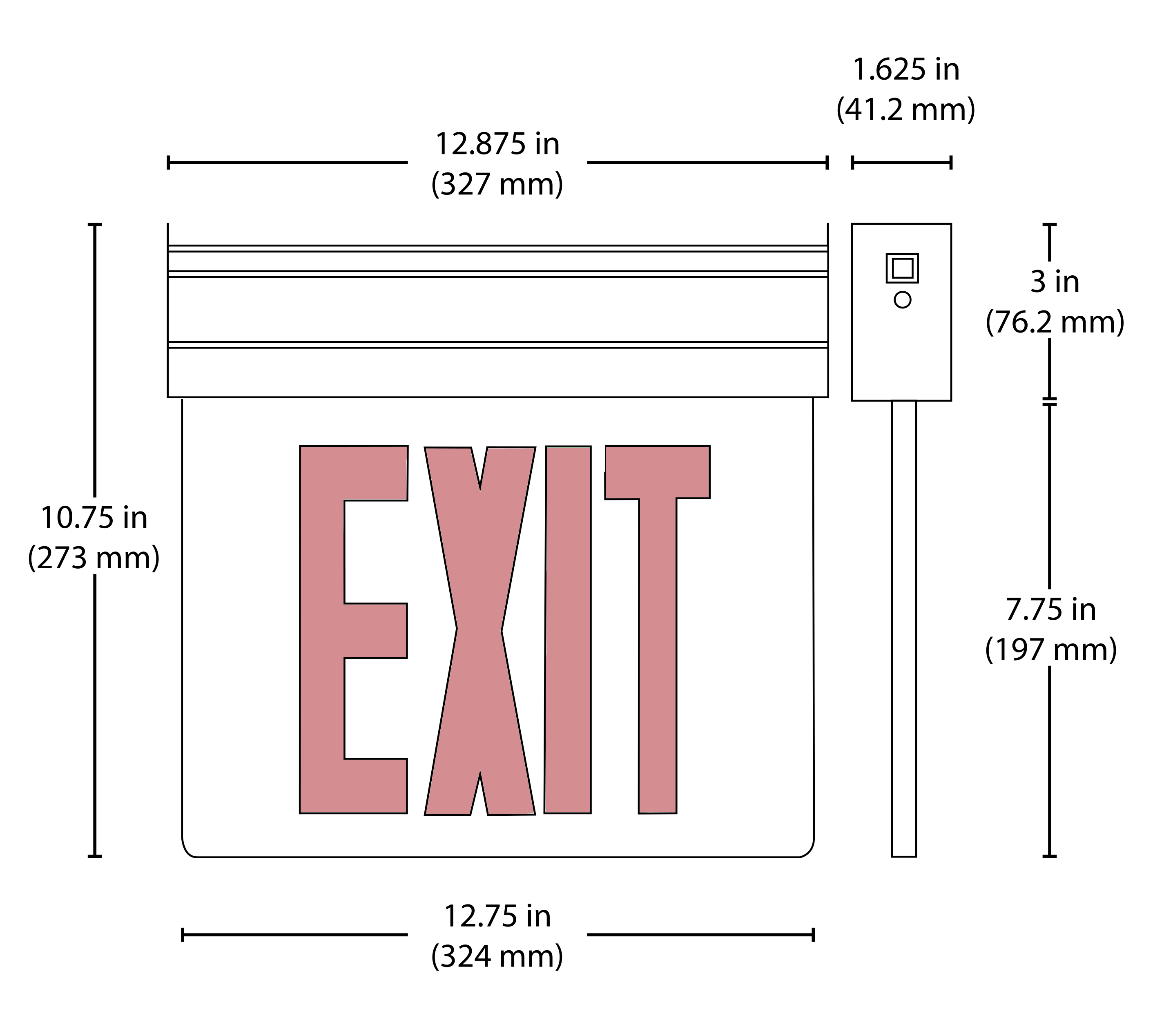

- Fully-illuminated 6” letter height with 3/4” stroke
- Operating temperature rating of 50°F to 104°F (10°C to 40°C)
- 90-minute capacity
- Self-Diagnostic feature automatically tests and reports on fixture status
Installations

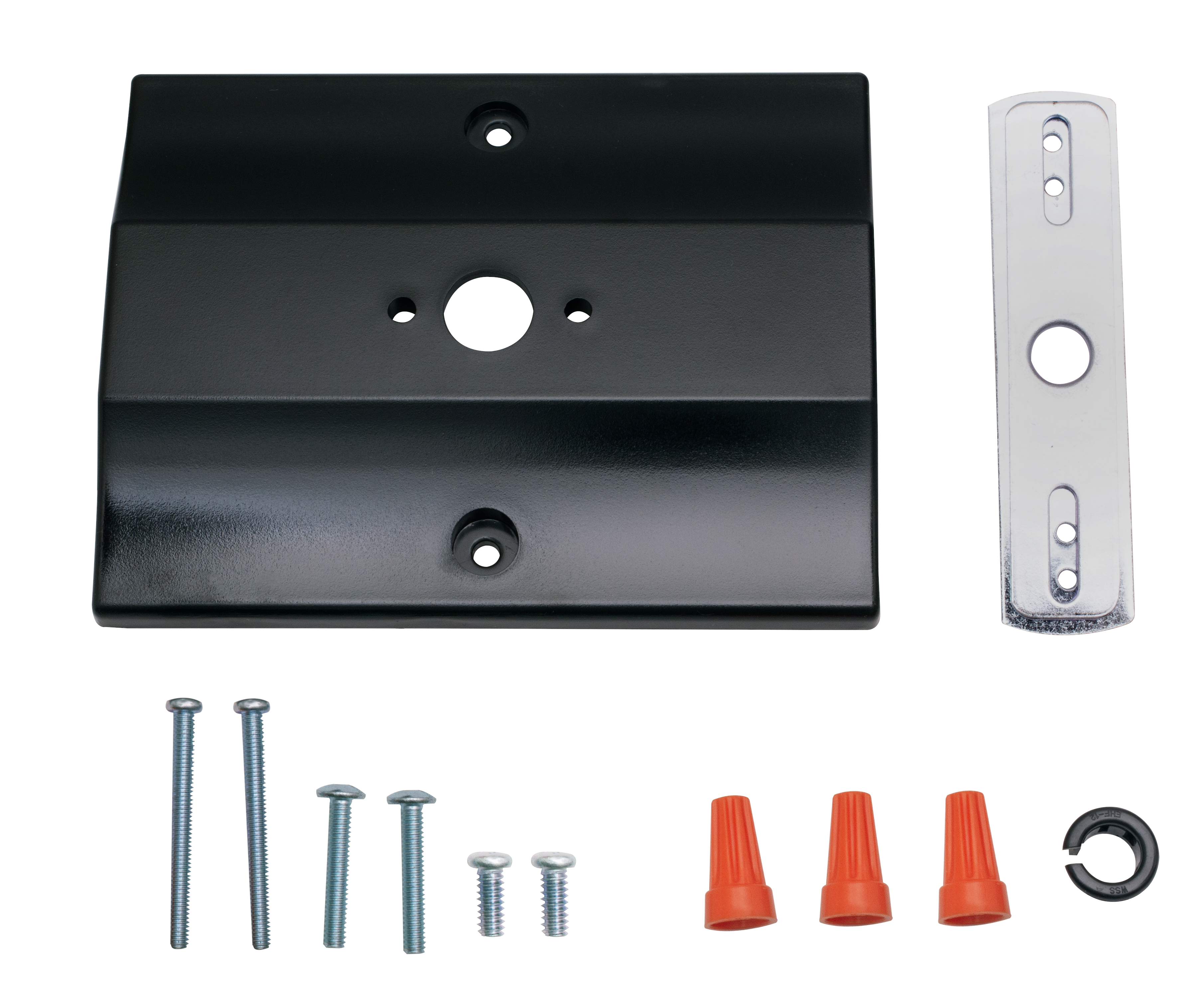

- Mounting plate allows for surface ceiling, wall or end mount options
- Field-installable, removable chevron directional indicators for all configurations
- Chevron mounting template simplifies directional application
- For installations where power surge may be possible, NICOR recommends installing additional surge protection at the electrical distribution panel
Full Listings
- Damp Location Rated
- Listed to UL924 (Emergency Lighting)
- NFPA 101 (Life Safety Code) compliant
- NFPA 70 (National Electrical Code) compliant
- OSHA 1910.37 compliant
- Meets FCC Title 47, Part 15, Subpart B
- CA Title 20 Listed
Warranty
- 1-year limited system standard
- Warranty does not cover produt failure due to an overvoltage event (power surge)
