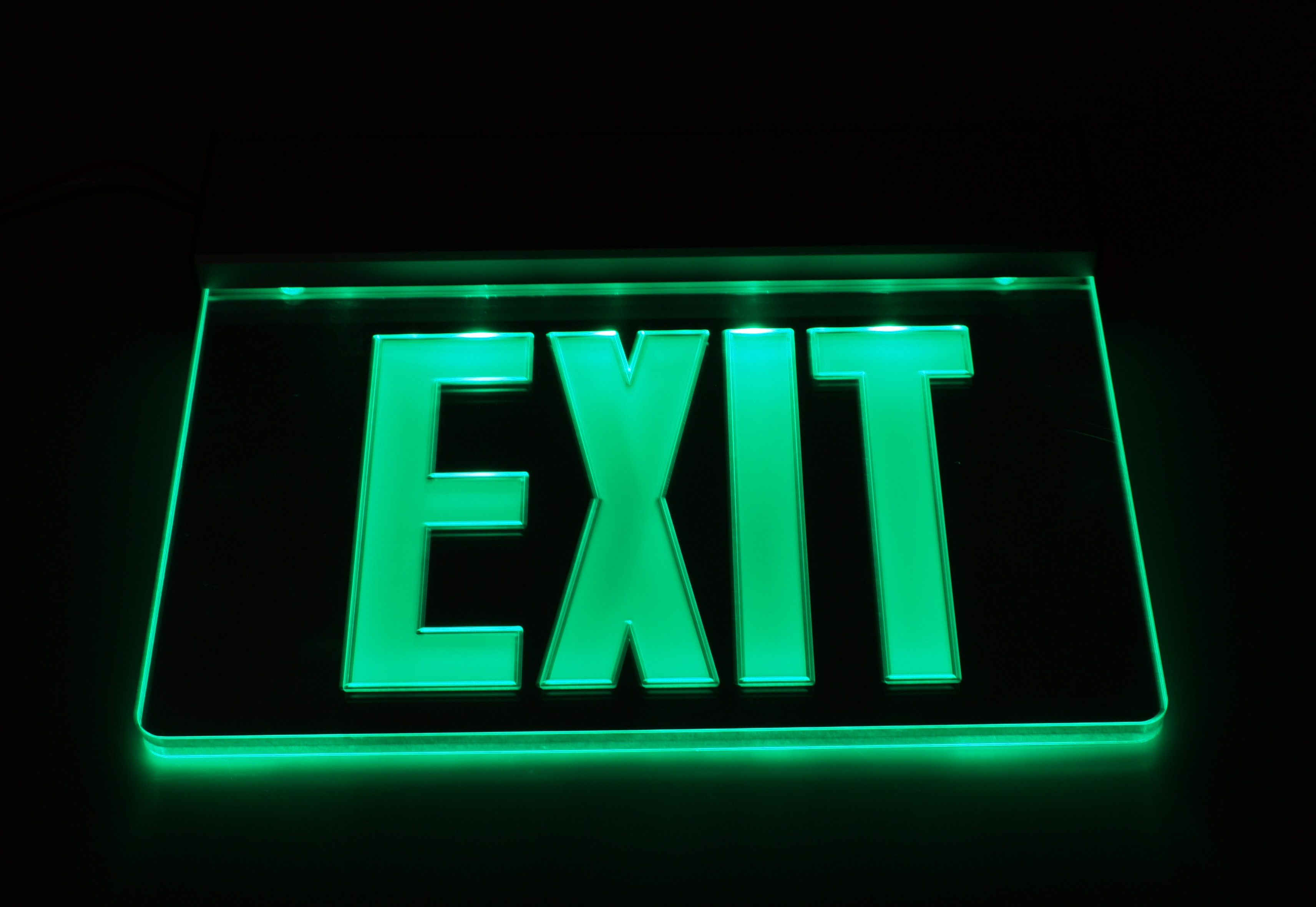

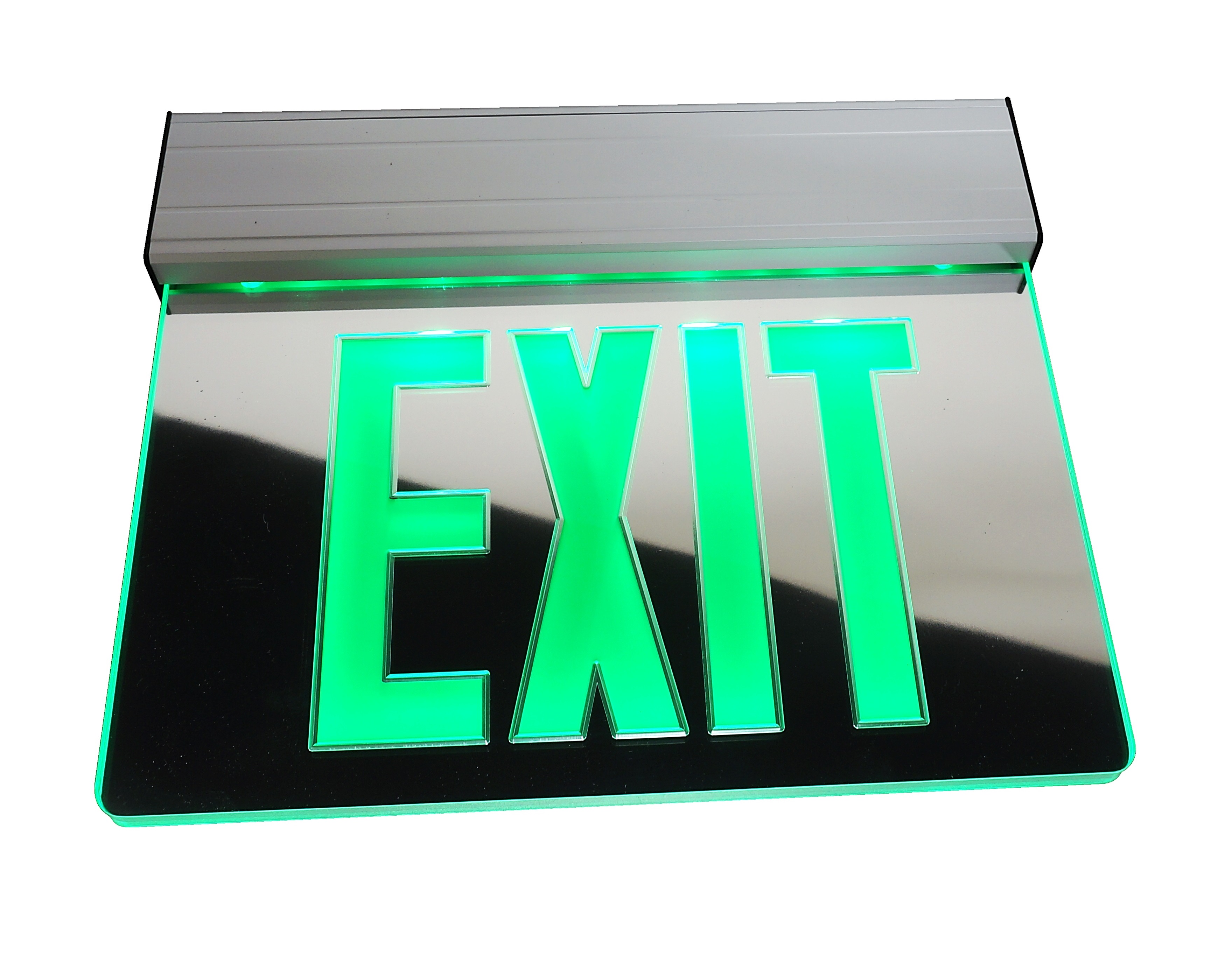

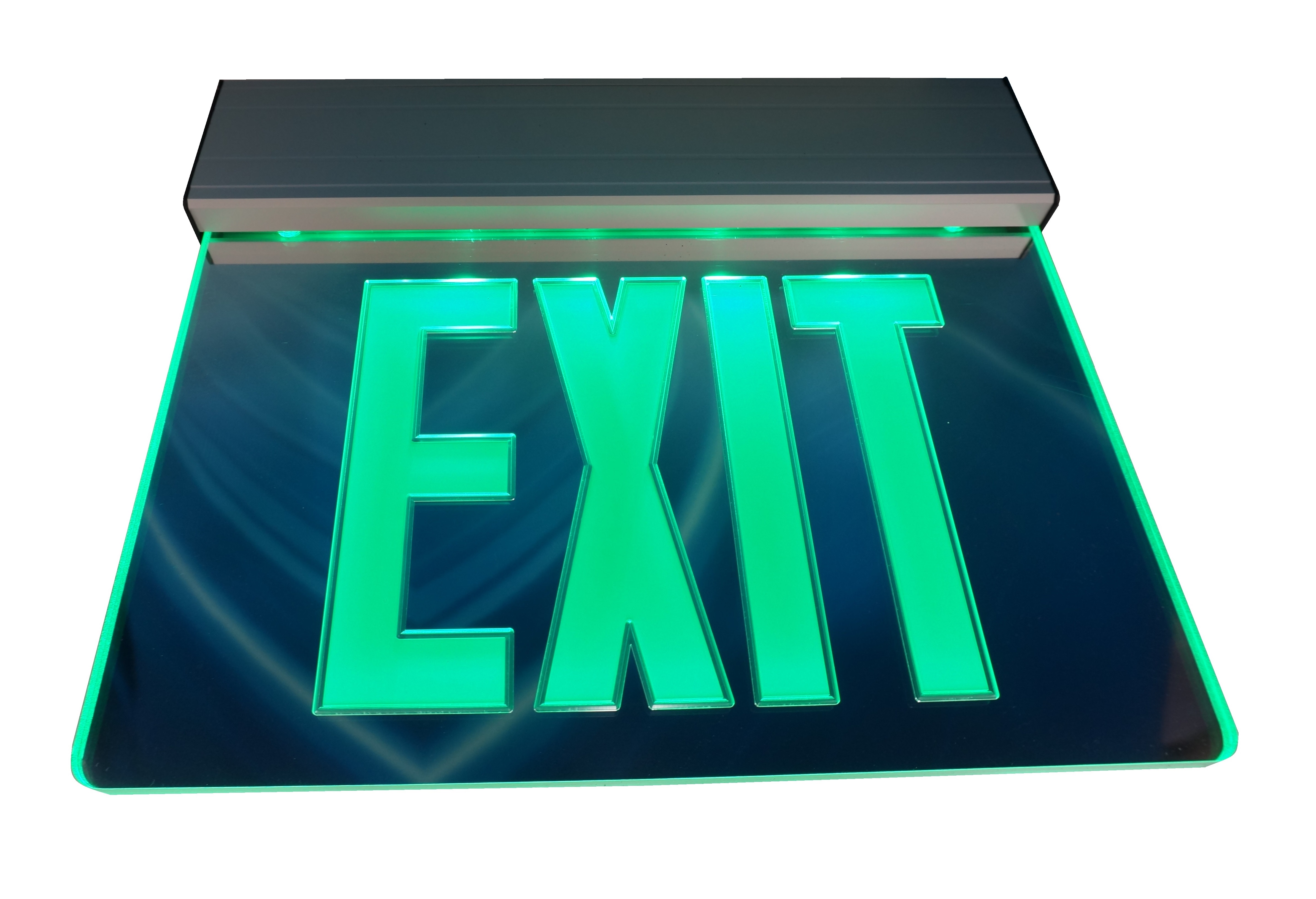

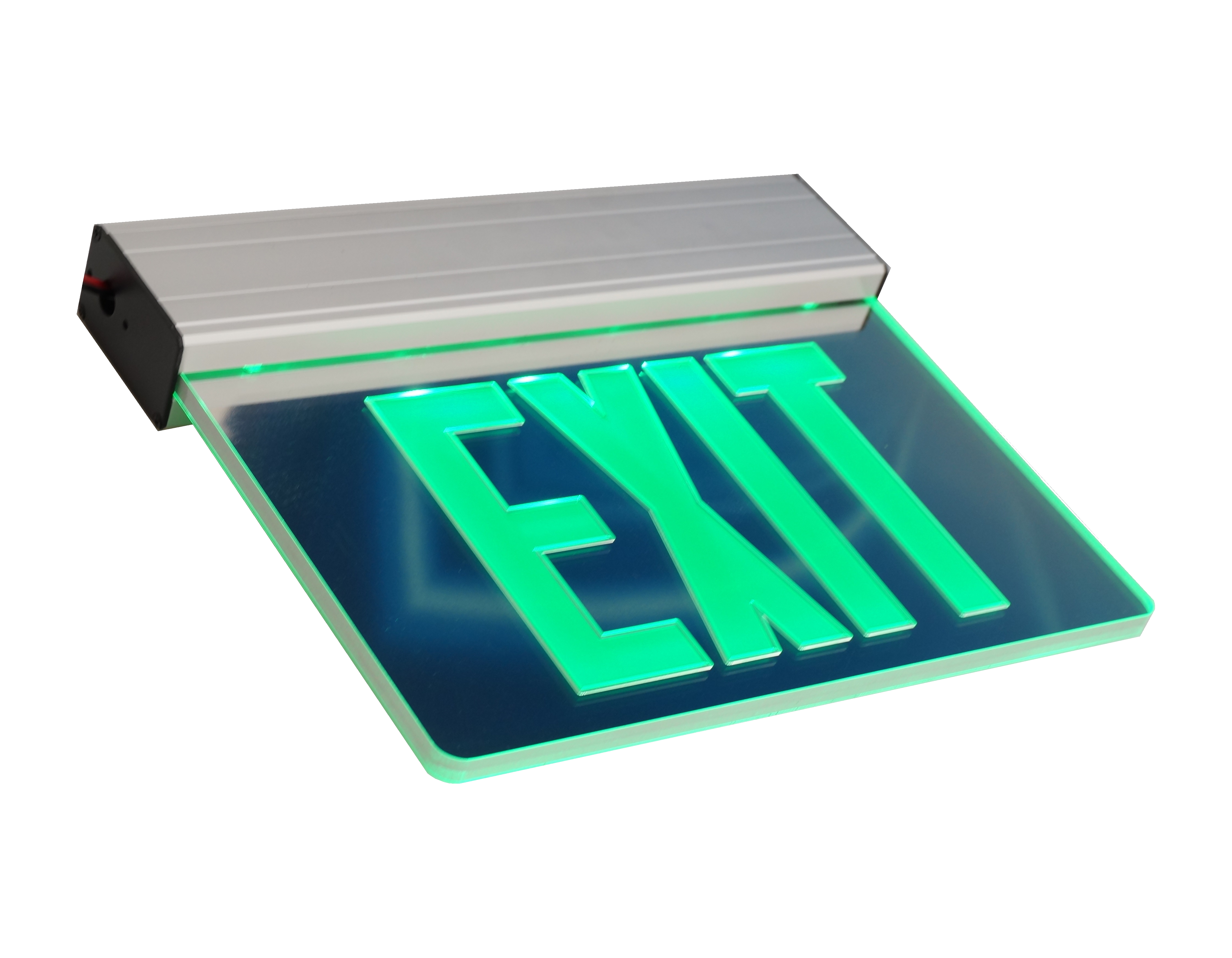

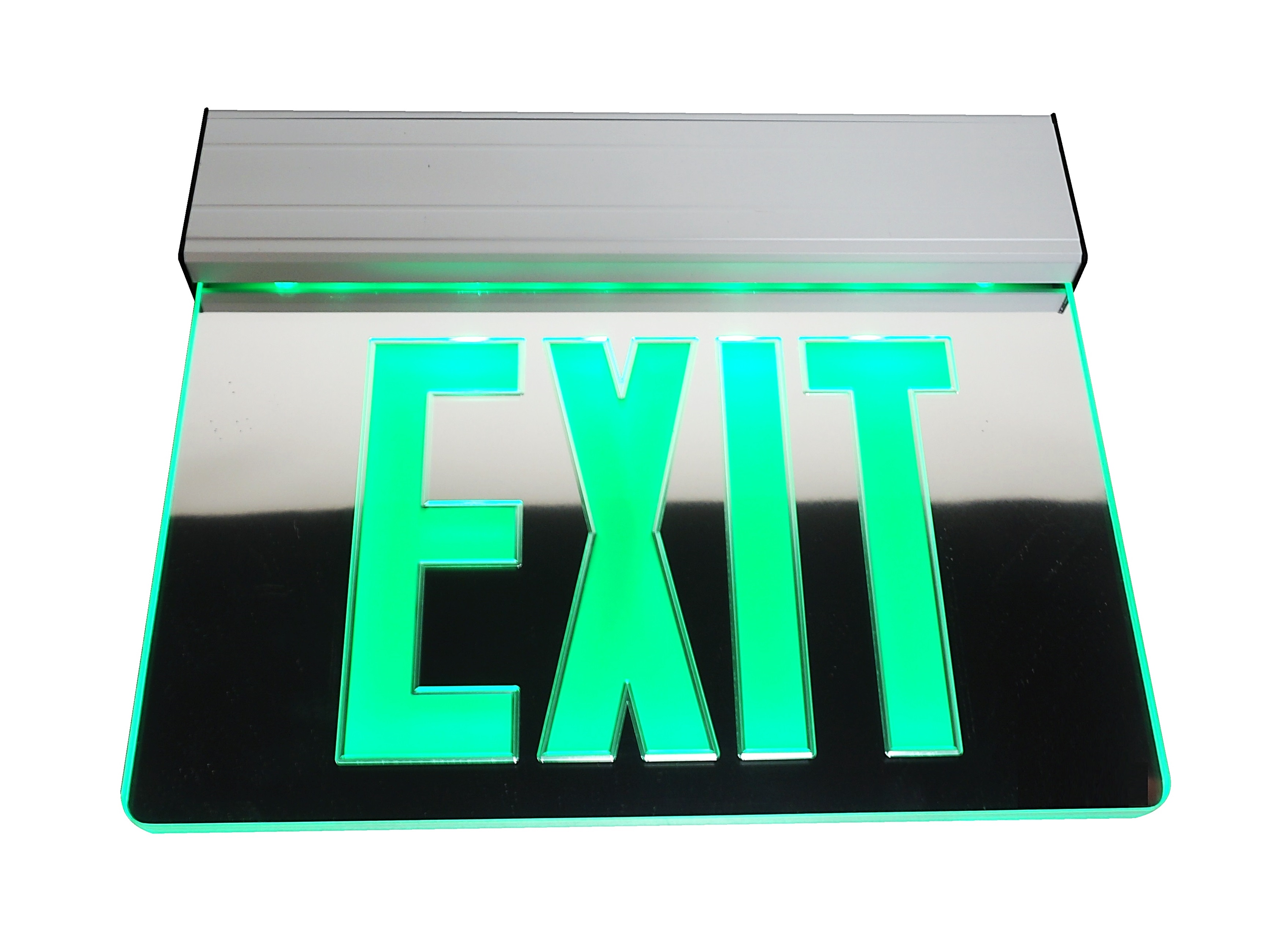

EXL2 Series Edge-Lit LED Emergency Exit Sign, Mirrored with Green Lettering
The EXL2 LED Edge Lit Exit Series presents a contemporary design with ease of installation and dependability in mind. It is constructed of impact-resistant, optically clear acrylic, with clear single-faced or mirrored double-faced panels. High output LEDs deliver an indirect, evenly illuminated edge…
The EXL2 LED Edge Lit Exit Series presents a contemporary design with ease of installation and dependability in mind. It is constructed of impact-resistant, optically clear acrylic, with clear single-faced or mirrored double-faced panels. High output LEDs deliver an indirect, evenly illuminated edge-lit exit sign with exceptional light distribution and an optional, maintenance-free nickel cadmium battery for long life. The EXL2 Series offers flexible installation for surface ceiling, wall or end mount options along with field adjustable chevrons for universal configuration based on your application’s directional needs.
- Contemporary edge-lit design with clear acrylic panels and satin aluminum housing
- Available in single-face or double-face configurations with red or green lettering
- Maintenance-free NiCad battery provides 90 minutes of emergency operation
- Flexible ceiling, wall, or end-mount installation with field-adjustable chevrons
- Dual-voltage 120/277VAC operation with UL924 emergency lighting compliance
Color Options:
Ordering information
Accessories
- EXL2GRNCHEV
Downloads
Specifications
-
Lifespan50000 -
Wattage2.3
Listings & certifications
- UL Certified
- UL 924 (Emergency Lighting)
- NFPA 70 Compliant
- NFPA 101 Compliant
- Damp-Location
Features
Construction
- Specification grade aluminum extrusion design
- Optically clear, impact resistant acrylic panels with lettering
- Single or double faced configurations available
- Satin finished aluminum housing
- Available with either clear (single faced) or mirrored backing (double face)
- Available with either green or red lettering
Electrical
- LED light engine provides consistently bright, even EXIT legend illumination with red or green LEDs
- 120/277VAC Dual Voltage operation, 60Hz input

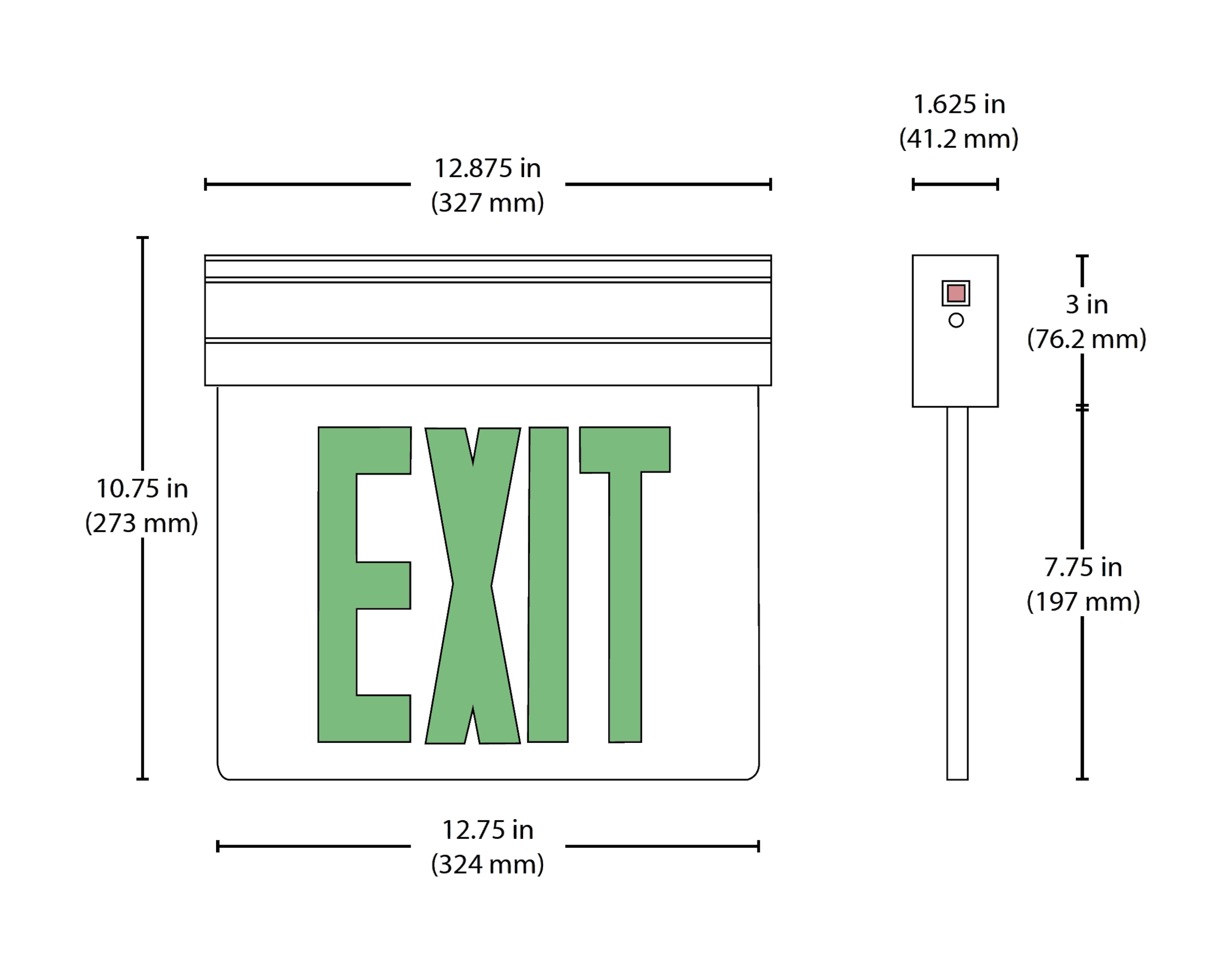

- Fully-illuminated 6” letter height with 3/4” stroke
- Damp Location Rated 0°C to 40°C (32°F to 104°F)
- Maintenance-free NiCad battery provides 90-minute emergency operation
- Low voltage disconnect eliminates deep discharge
- Brown-out, short circuit and voltage surge protection

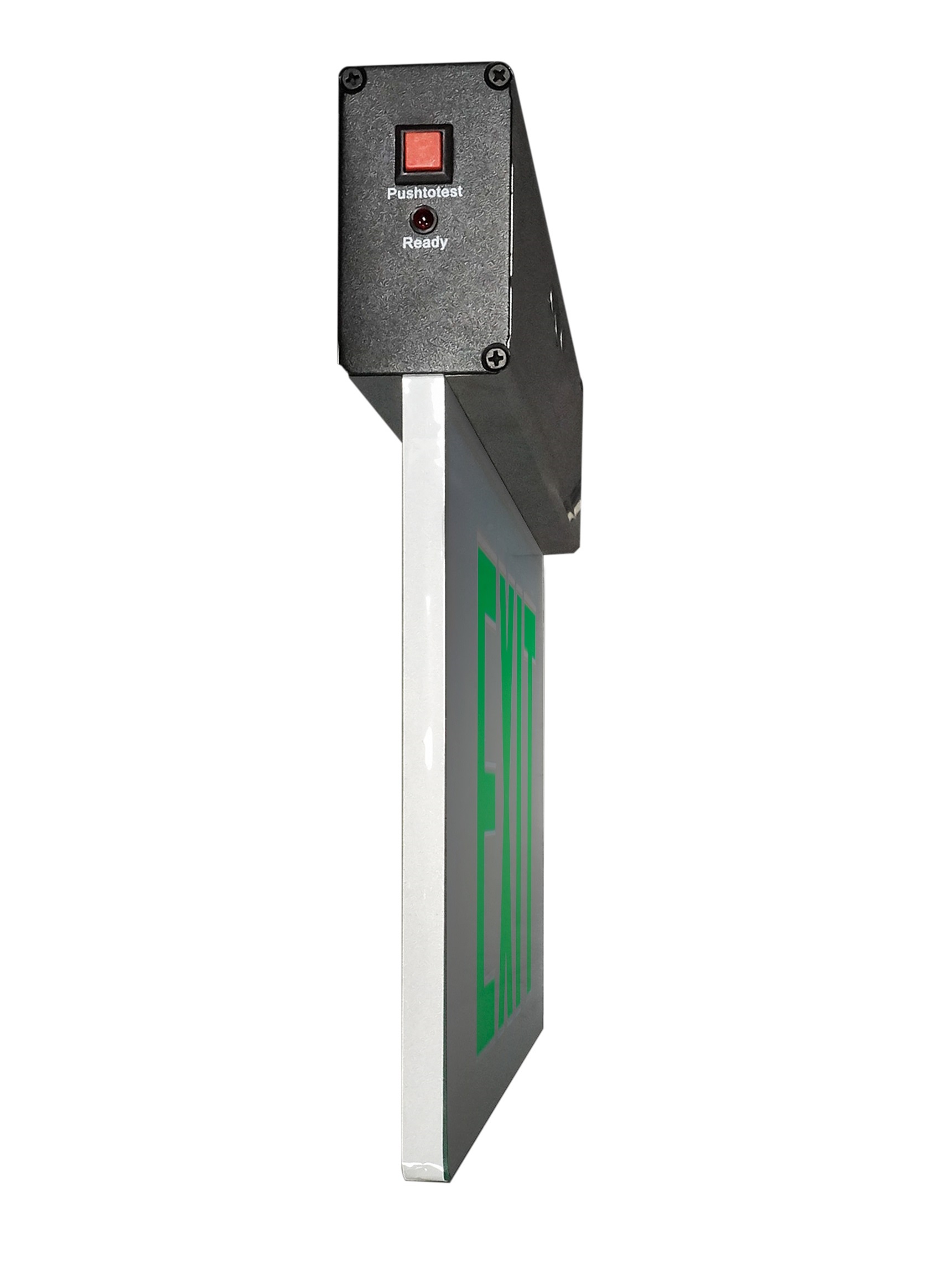

- LED indicator light & self-test push button switch
Installations
- No special tools required
- Mounting plate allows for surface ceiling, wall or end mount options
- Field-installable, removable chevron directional indicators for all configurations
- Chevron mounting template simplifies directional application
- For installations where power surge may be possible, NICOR recommends installing additional surge protection at the electrical distribution panel
Full Listings
- cULus924 Listed (Emergency Lighting)
- NFPA 101 (Life Safety Code) compliant
- NFPA 70 (National Electrical Code) compliant
Warranty
- 1-year warranty
- Warranty does not cover product failure due to an overvoltage event (power surge)
