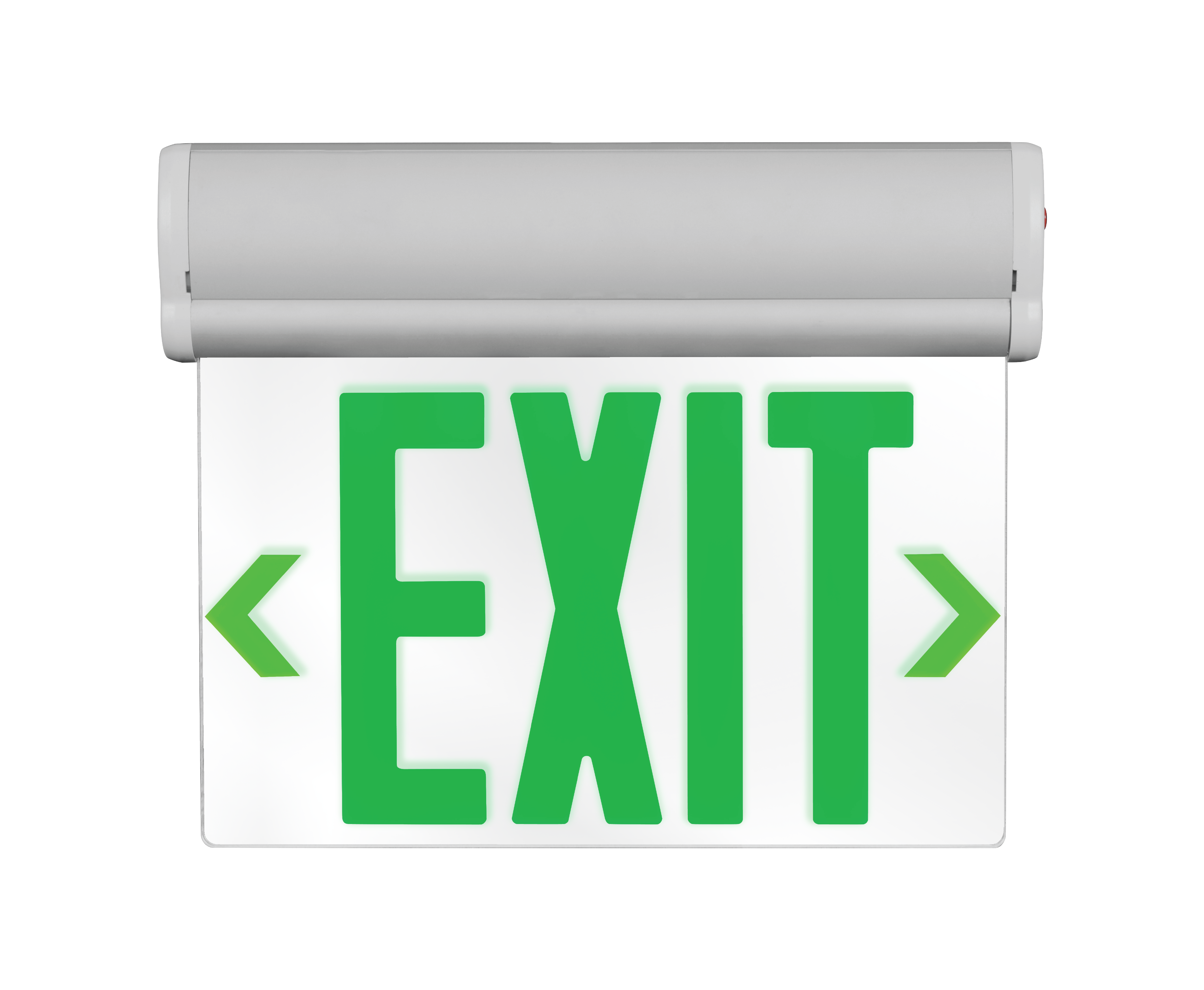

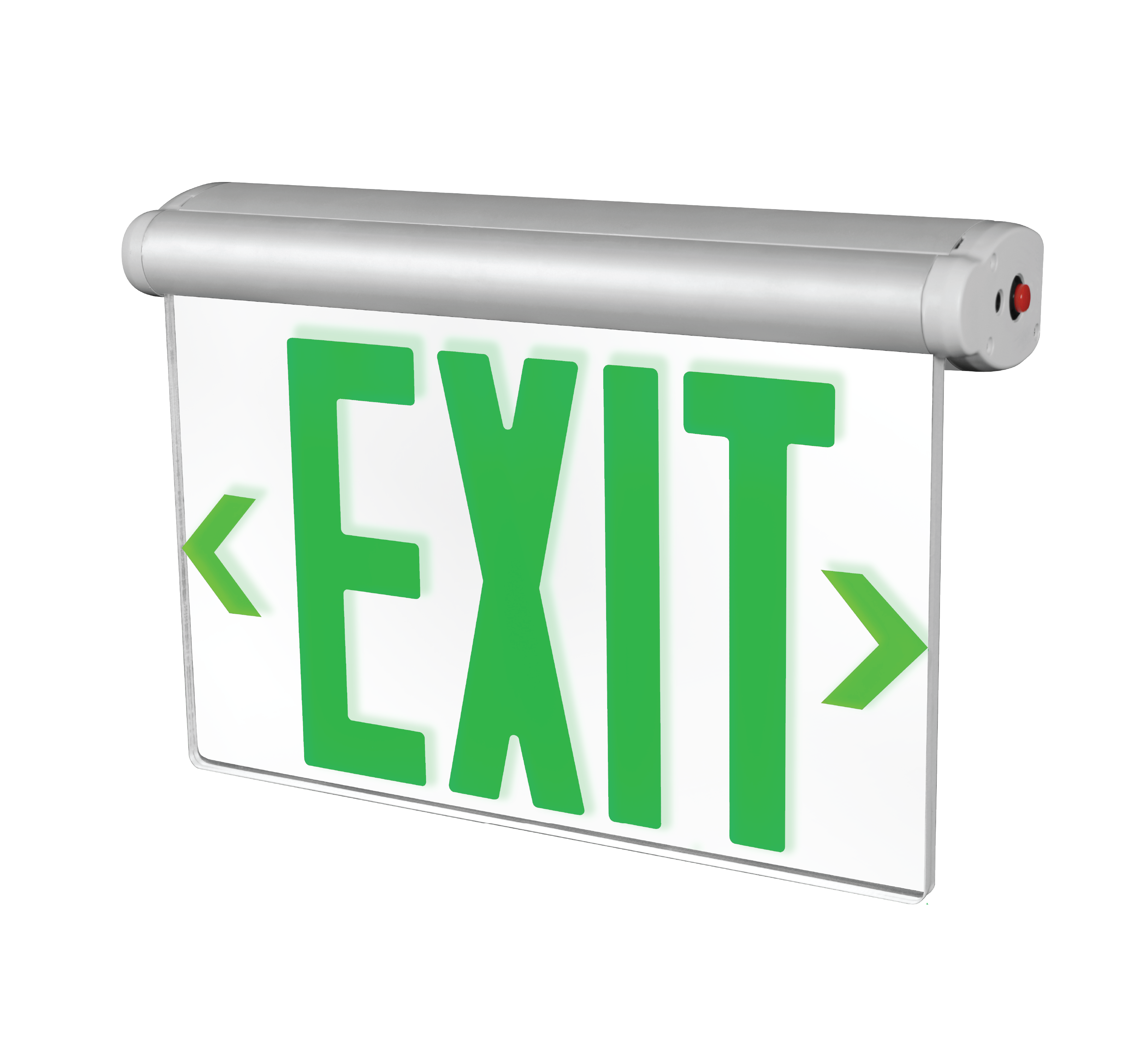

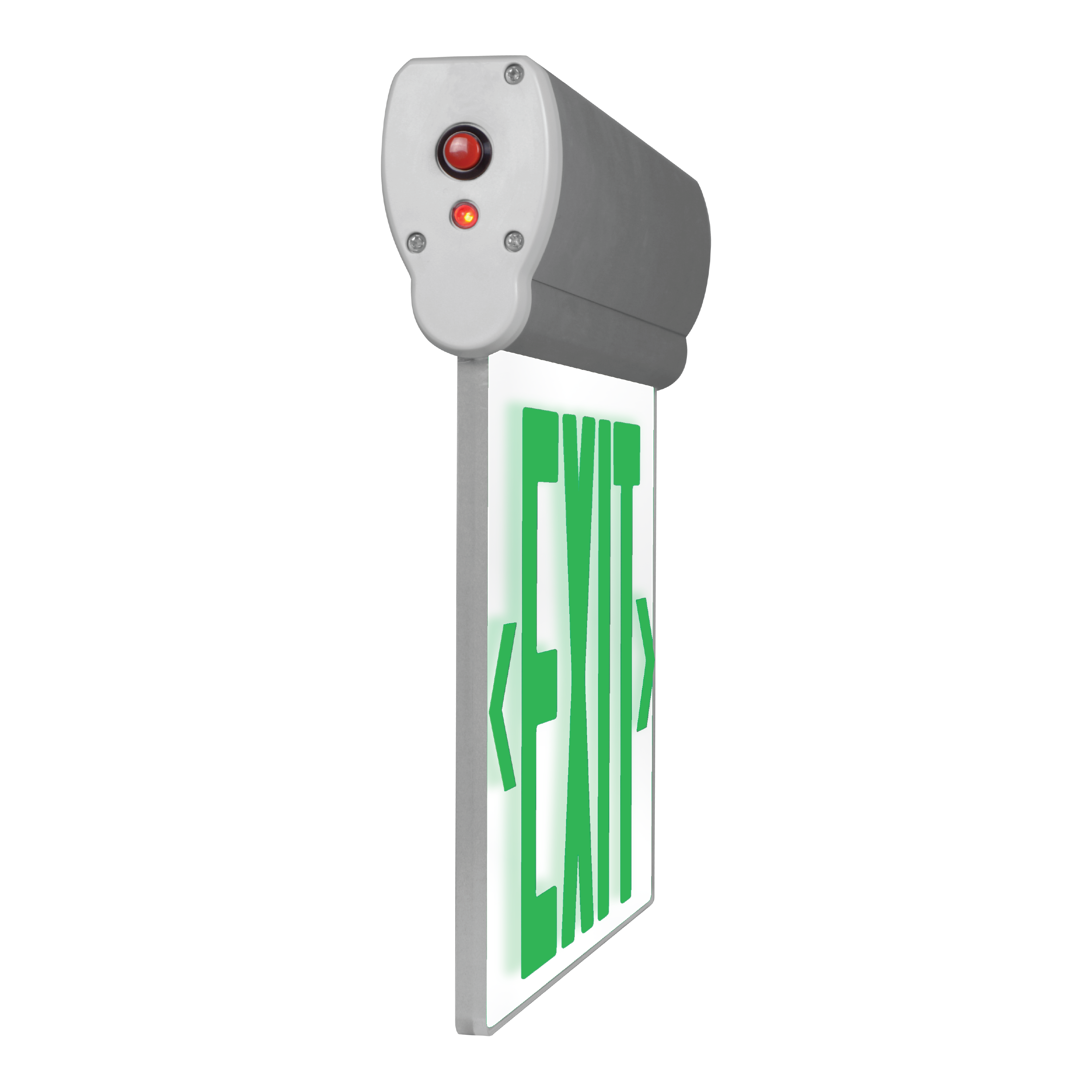

EXL220 Edge-Lit LED Emergency Exit Sign, Clear with Green Lettering
The EXL220 LED Edge Lit Exit Series features a contemporary design with ease of installation in mind. The pivoting driver case allows for wall, ceiling, stairwell, or endmount installation all in one, dependable package. Constructed of impact-resistant, optically clear acrylic, choose from clear sin…
The EXL220 LED Edge Lit Exit Series features a contemporary design with ease of installation in mind. The pivoting driver case allows for wall, ceiling, stairwell, or endmount installation all in one, dependable package. Constructed of impact-resistant, optically clear acrylic, choose from clear single-faced or mirrored double-faced panels. High output LEDs deliver an indirect, evenly illuminated edge-lit exit sign with exceptional light distribution and a maintenance-free nickel-cadmium battery for long life. The EXL220 Series offers field adjustable chevrons for universal configuration based on your application’s directional needs.
- Specification grade aluminum extrusion design
- LED light engine provides consistently bright, even EXIT legend illumination
- Mounting plate allows for J box mounting with ceiling, wall or end-mount applications
- Satin finished aluminum housing

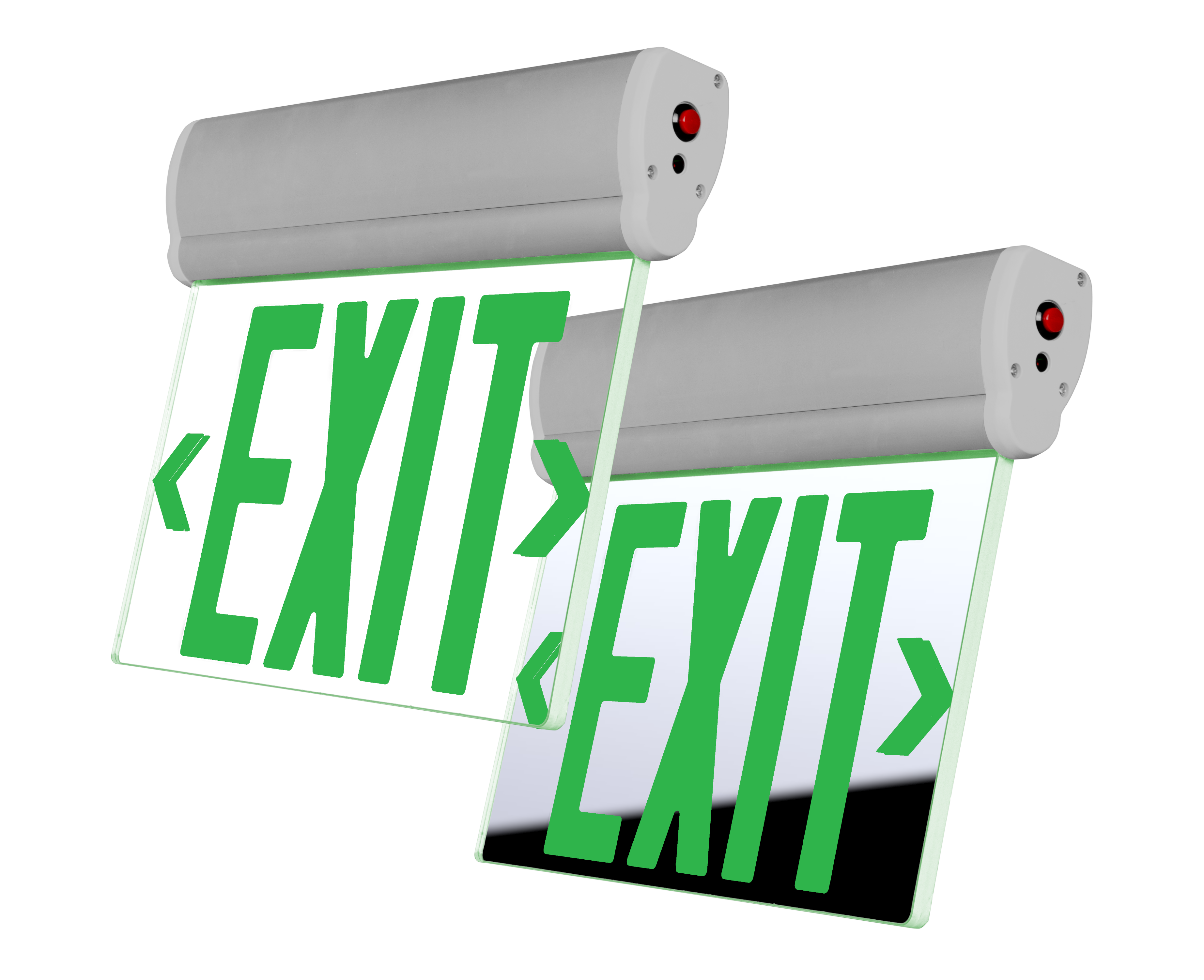

- Available with clear (single faced) or mirrored backing (double face)
Color Options:
Ordering information
Downloads
Specifications
-
Wattage2.3
Listings & certifications
- cULus Listed
- UL 924 (Emergency Lighting)
- NFPA 70 Compliant
- NFPA 101 Compliant
- FCC Class B
- Damp-Location
- Meets or exceeds requirements of NFPA 70 & NFPA 101
- Meets FCC Part 15, Subpart B, Class B standards for conducted and radiated emissions
Features
Construction
- Specification grade aluminum extrusion design

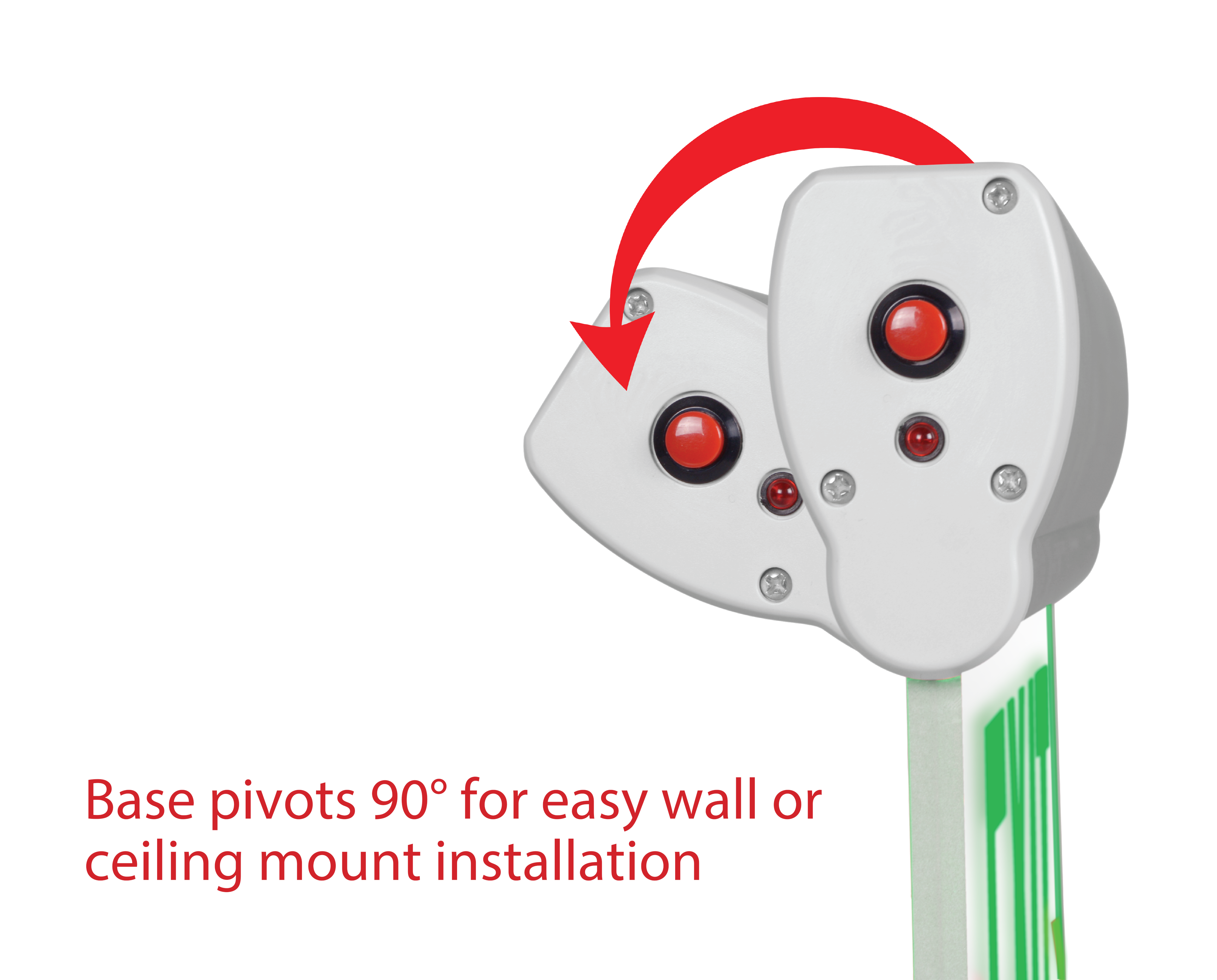

- Driver case pivots ±90° around center for wall, ceiling, and stairwell installation
- Optically clear, impact resistant acrylic panels with lettering
- Single or double faced configurations available
- Satin finished aluminum housing
- Available with clear (single faced) or mirrored backing (double face)

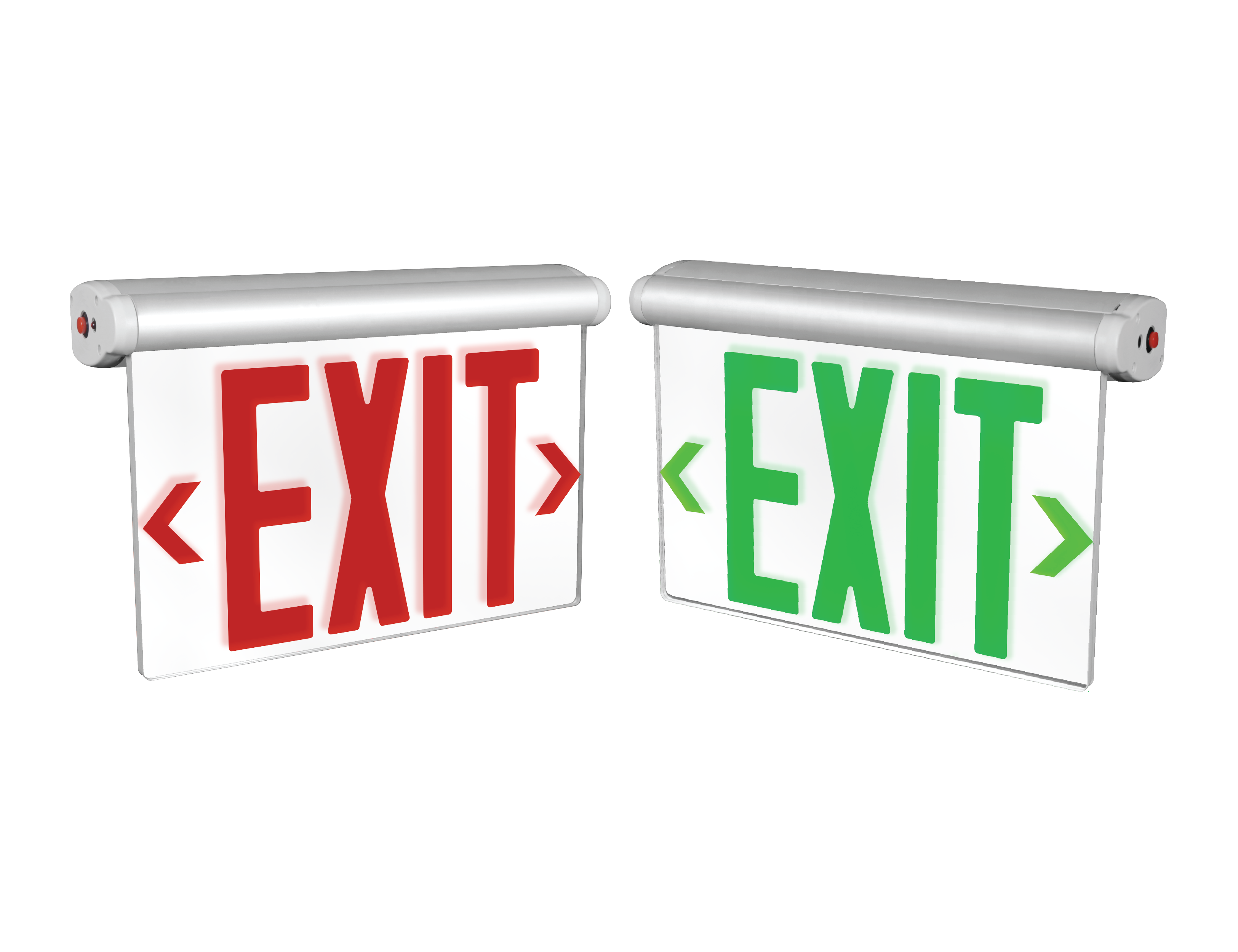

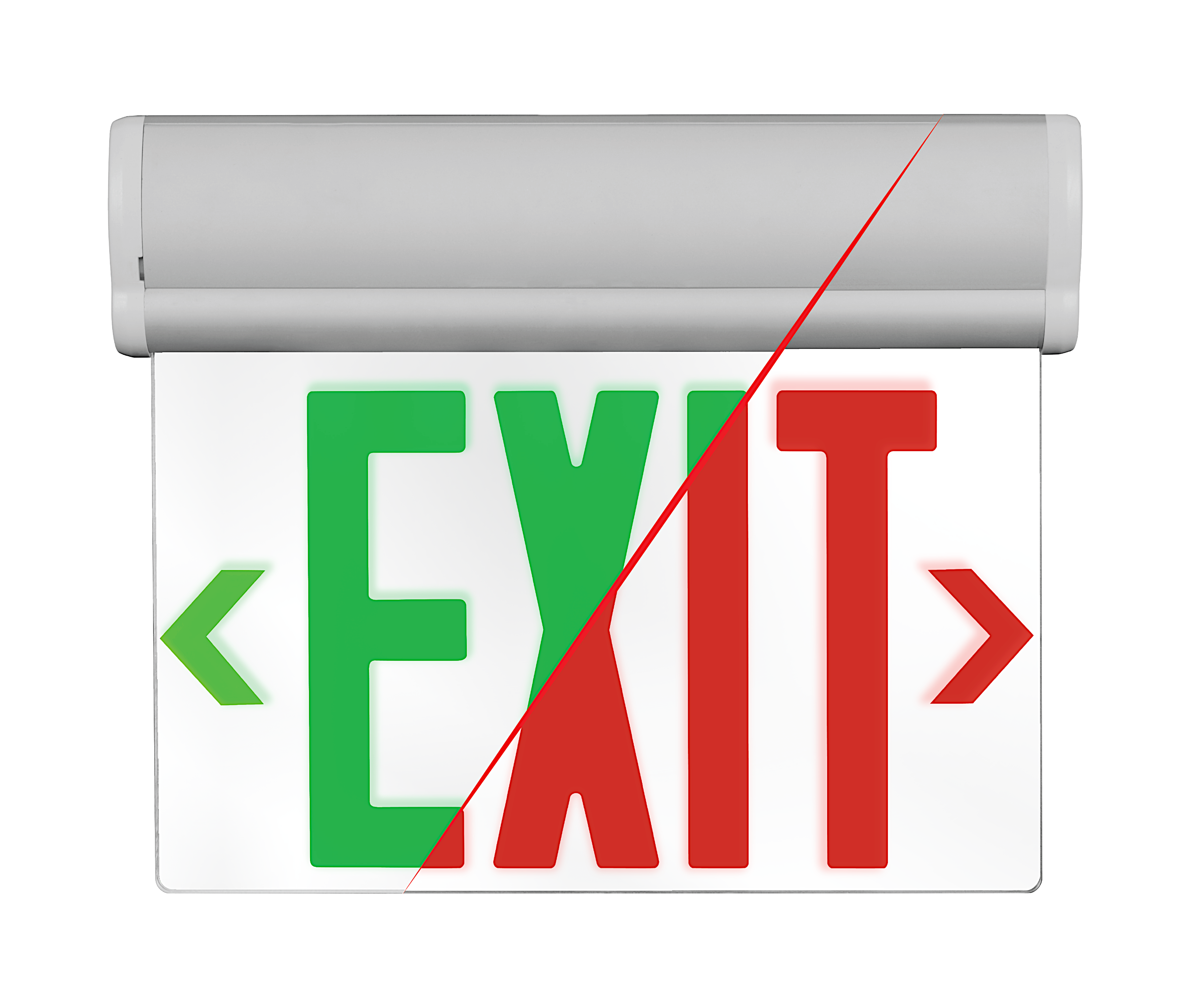

- Available with green or red lettering
Electrical
- LED light engine provides consistently bright, even EXIT legend illumination
- Maintenance-free NiCad battery provides 90-minute emergency operation
- 120/277VAC Dual Voltage Operation, 60Hz input

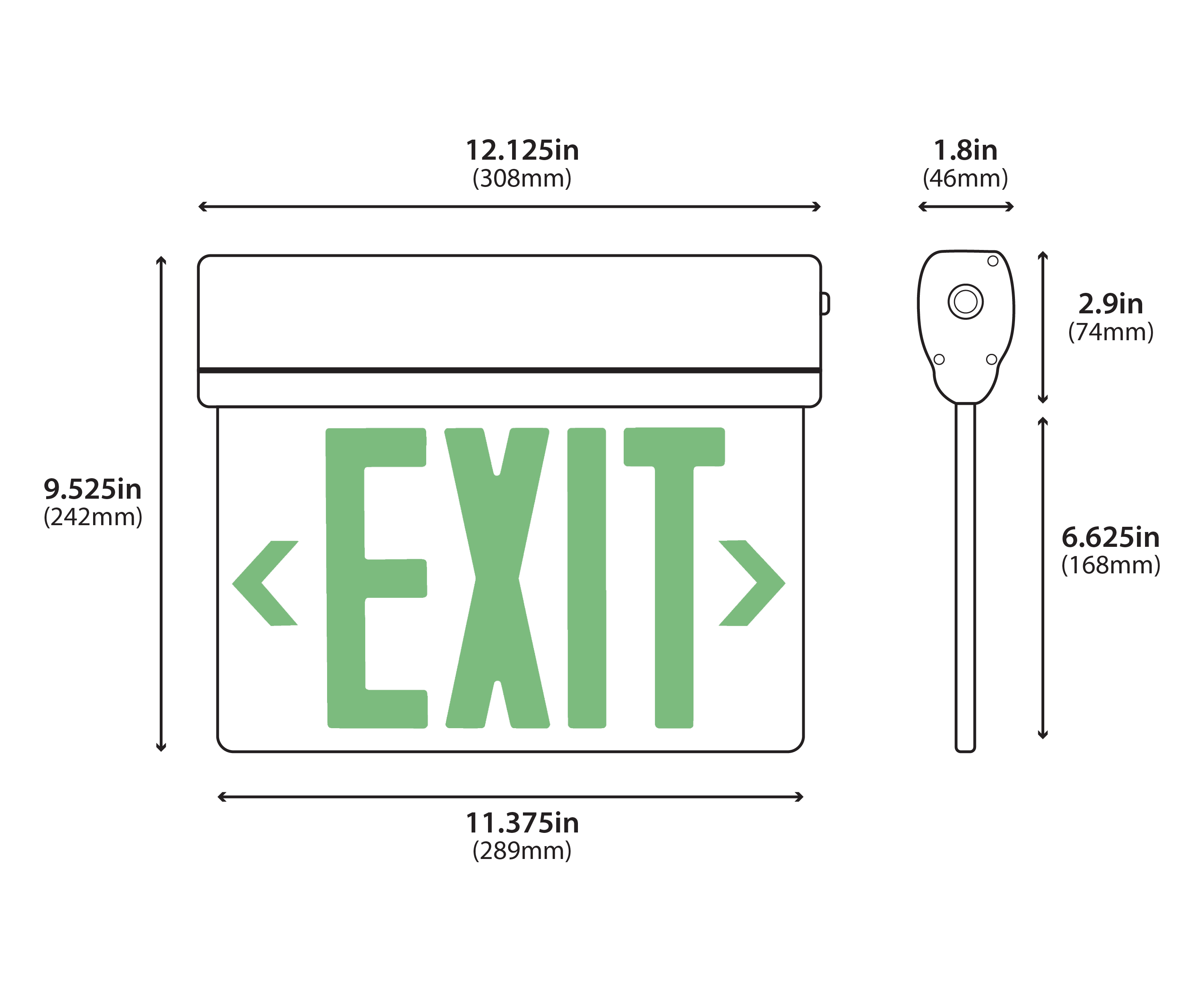

- Fully-illuminated 6” letter height with 3/4” stroke
- Low voltage disconnect eliminates deep discharge
- Brown-out, short circuit and voltage surge protection
- LED Indicator Light & Self-Test Push Button Switch
- Damp Location Rated
- Operating temperature: 32˚F - 104˚F (0˚C - 40˚C)
Installations
- Mounting plate allows for J box mounting with ceiling, wall or end-mount applications
- Field-installable, removable chevron directional indicators (with mounting template) for all configurations
- For installations where power surge may be possible, NICOR recommends installing additional surge protection at the electrical distribution panel
Full Listings
- UL & cUL 924 Listed
- Meets or exceeds requirements of NFPA 70 & NFPA 101
- Meets FCC Part 15, Subpart B, Class B standards for conducted and radiated emissions
Warranty
- 1-year limited system warranty standard
- Warranty does not cover product failrue due to an overvoltage event (power surge)
