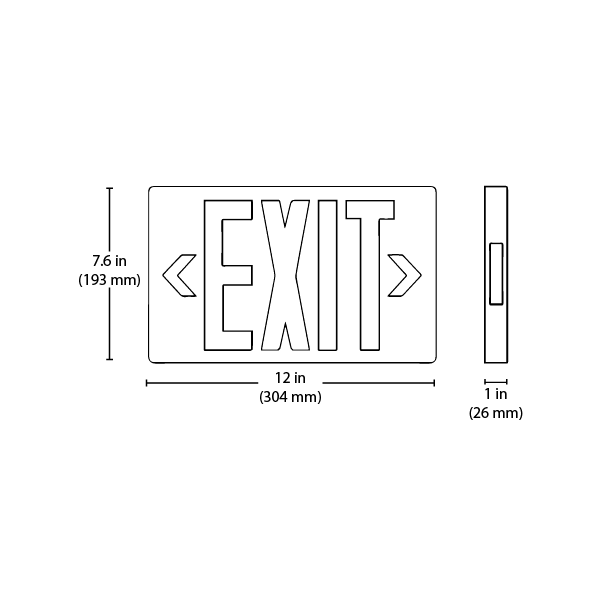

The NICOR EXL4 Series presents a very slim design, only 1” deep! This UL924 code compliant solution for exit and emergency requirements offers all code requirements in a smaller package. The evenly illuminated exit sign is available with red or green stencils. The maintenance free nickel cadmium battery provides 90 minutes of back up power. The EXL4 Series offers flexible installation for surface ceiling, wall or end mount options along with field adjustable chevrons for universal configuration based on your application’s directional needs.


  • Operating temperature rating of 5°F to 104°F (-15°C – 40°C)
  • Maintenance-free NiCad battery provides 90-minute emergency operation, recharges in 24 hours
  • 120/277VAC Dual voltage operation, 60Hz input
  • 1.6W Power Draw
  • Fully-illuminated 6” letter height with 3/4” stroke
  • LED indicator light & self-test push button switch
  • LED light engine provides consistently bright, even EXIT legend illumination with red or green LEDs


Part Numbers:

EXL41UNVWHG2 - Green Text
EXL41UNVWHR2 - Red Text
