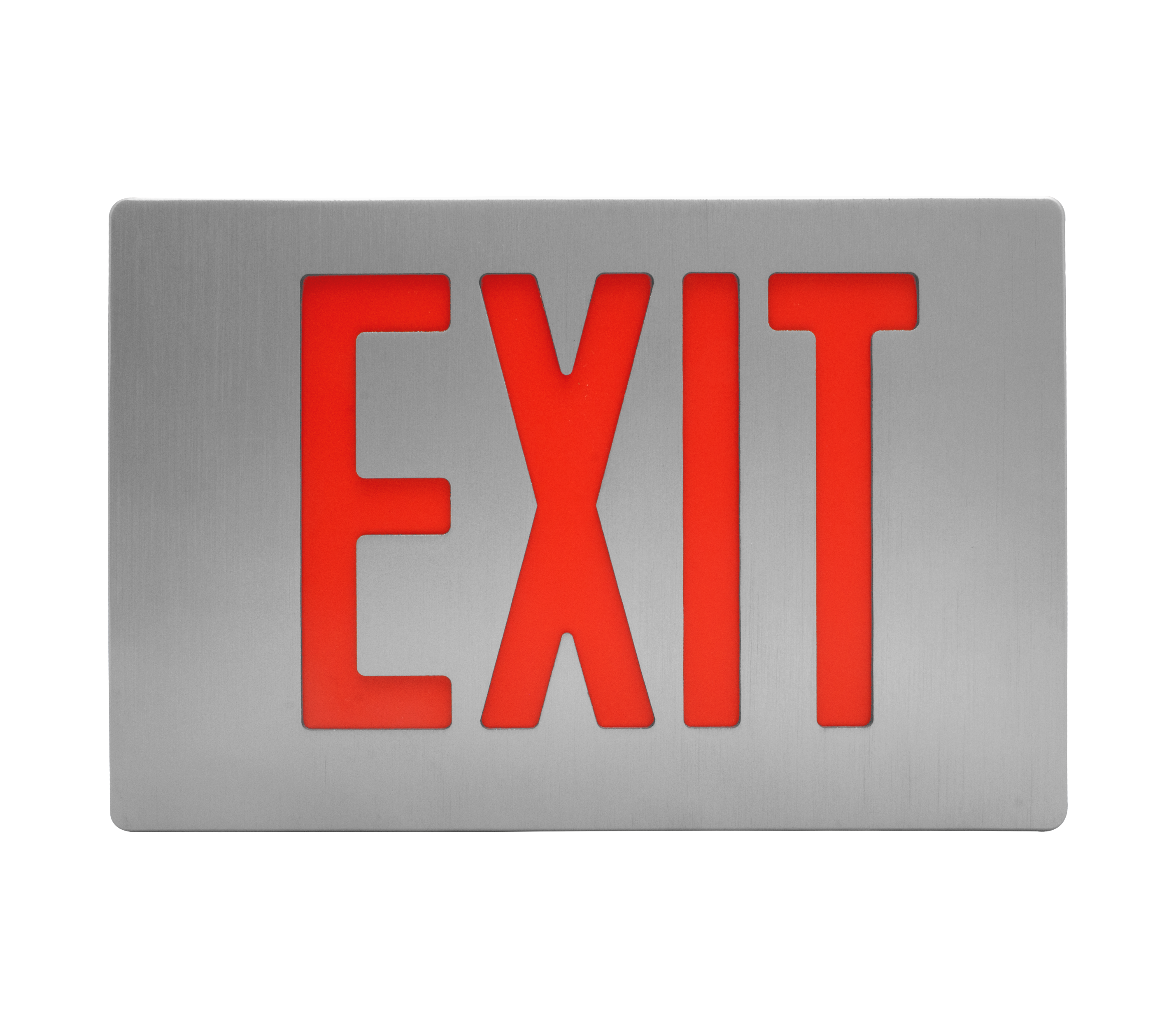

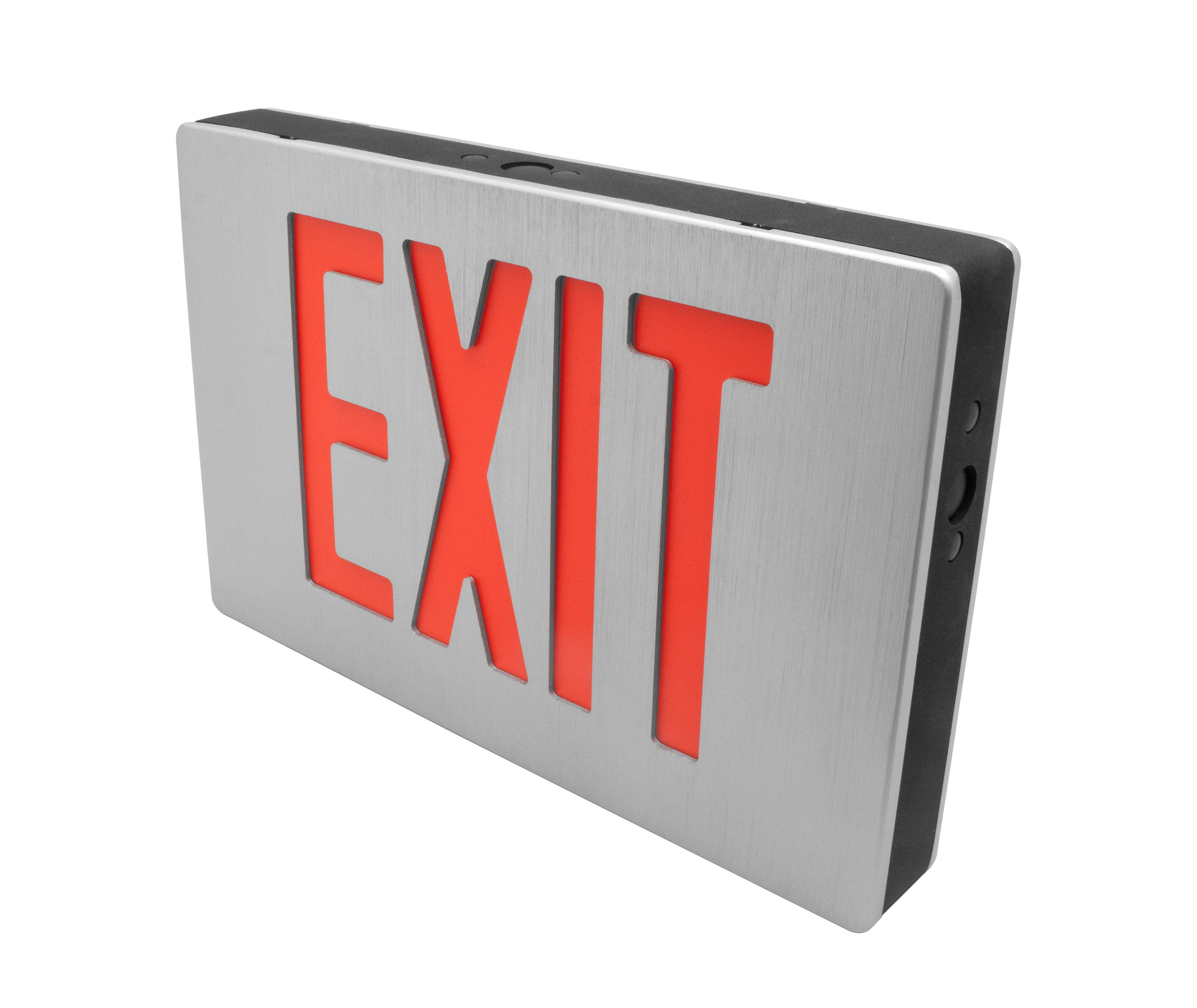

Aluminum Self-Diagnostic LED Exit Sign, Red Lettering
The EXL6 Series is a classic, robust design that offers self diagnostic testing and reporting. This UL924 compliant sign is constructed of a cast aluminum housing and faceplates. High output LEDs deliver an evenly illuminated exit sign and the maintenance-free, nickel-cadmium battery provides reliab…
The EXL6 Series is a classic, robust design that offers self diagnostic testing and reporting. This UL924 compliant sign is constructed of a cast aluminum housing and faceplates. High output LEDs deliver an evenly illuminated exit sign and the maintenance-free, nickel-cadmium battery provides reliable performance and long life. The EXL6 Series offers flexible installation for surface ceiling, wall or end mount options along with field adjustable chevrons for universal configuration based on your application’s directional needs.
- Self Diagnostic feature automatically tests and reports on exit fixture status
- Flexible surface, ceiling, wall, or end mount with adjustable chevrons
- Bright, uniform LED illumination in red or green
- 90-minute emergency operation with Ni-Cad battery
- Durable cast aluminum housing with brushed or white faceplates
- Damp rated; UL924, NFPA 70/101, OSHA compliant
Ordering information
Downloads
Specifications
-
Wattage5
Listings & certifications
- UL Certified
- UL 924 (Emergency Lighting)
- Title 20 (E)
- NFPA 70 Compliant
- NFPA 101 Compliant
- OSHA 1910.37 Compliant
- FCC Title 47 (15:B)
- Damp-Location
Features
Construction
- Cast aluminum housing and faceplates
- Single face configuration
- Test switch and charge/status indicator
Optical System
- LED light engine provides consistently bright, even EXIT legend illumination with red or green LEDs
Electrical
- 120/277VAC Dual Voltage Operation, 60Hz input
- Fully-illuminated 6” letter height with 3/4” stroke
- Operating temperature rating of 50°F to 104°F (10°C to 40°C)
- Premium grade Ni-Cad rechargeable battery
- 90-minute capacity

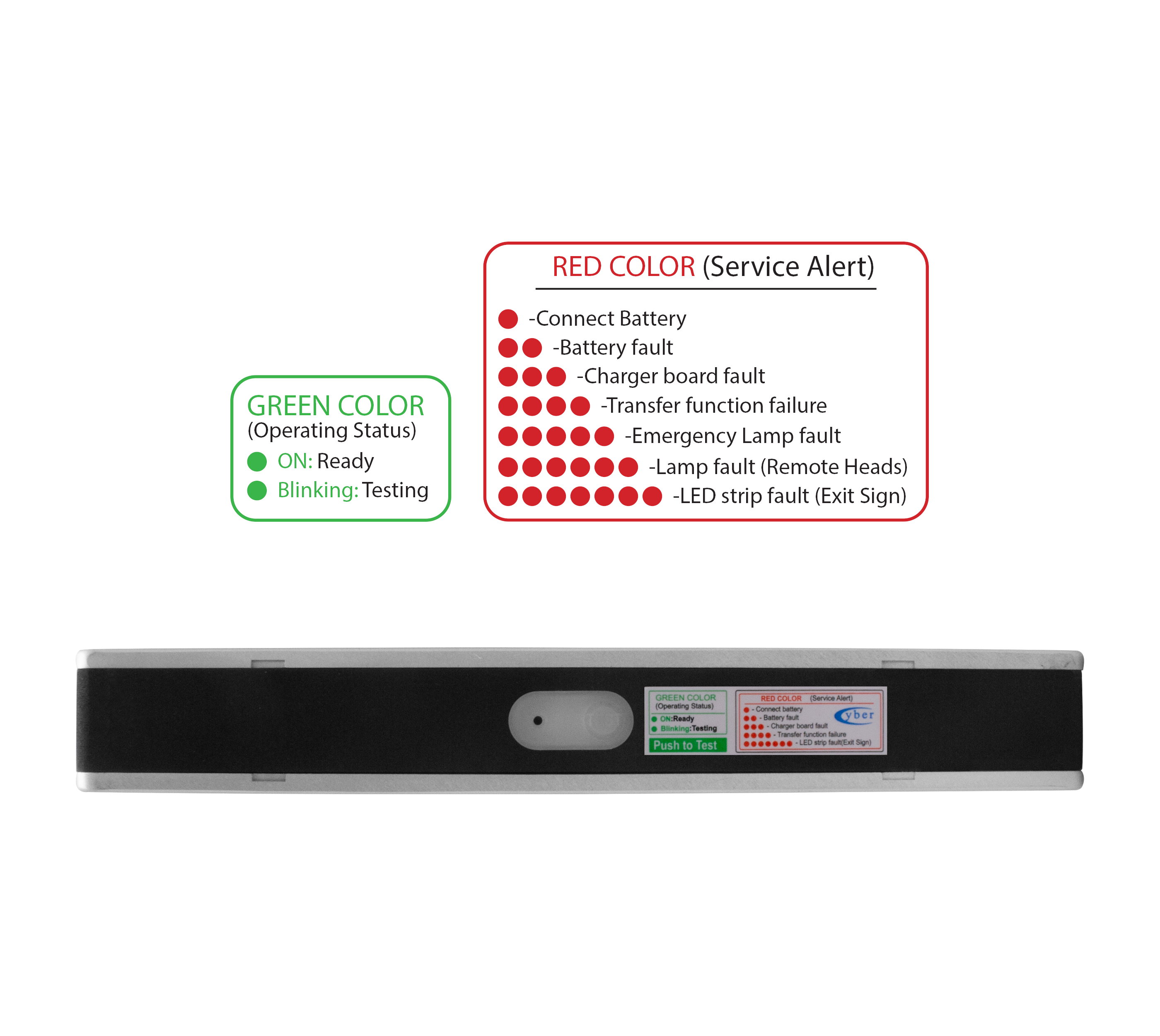

- Self-Diagnostic model automatically tests and reports on fixture status
Installations

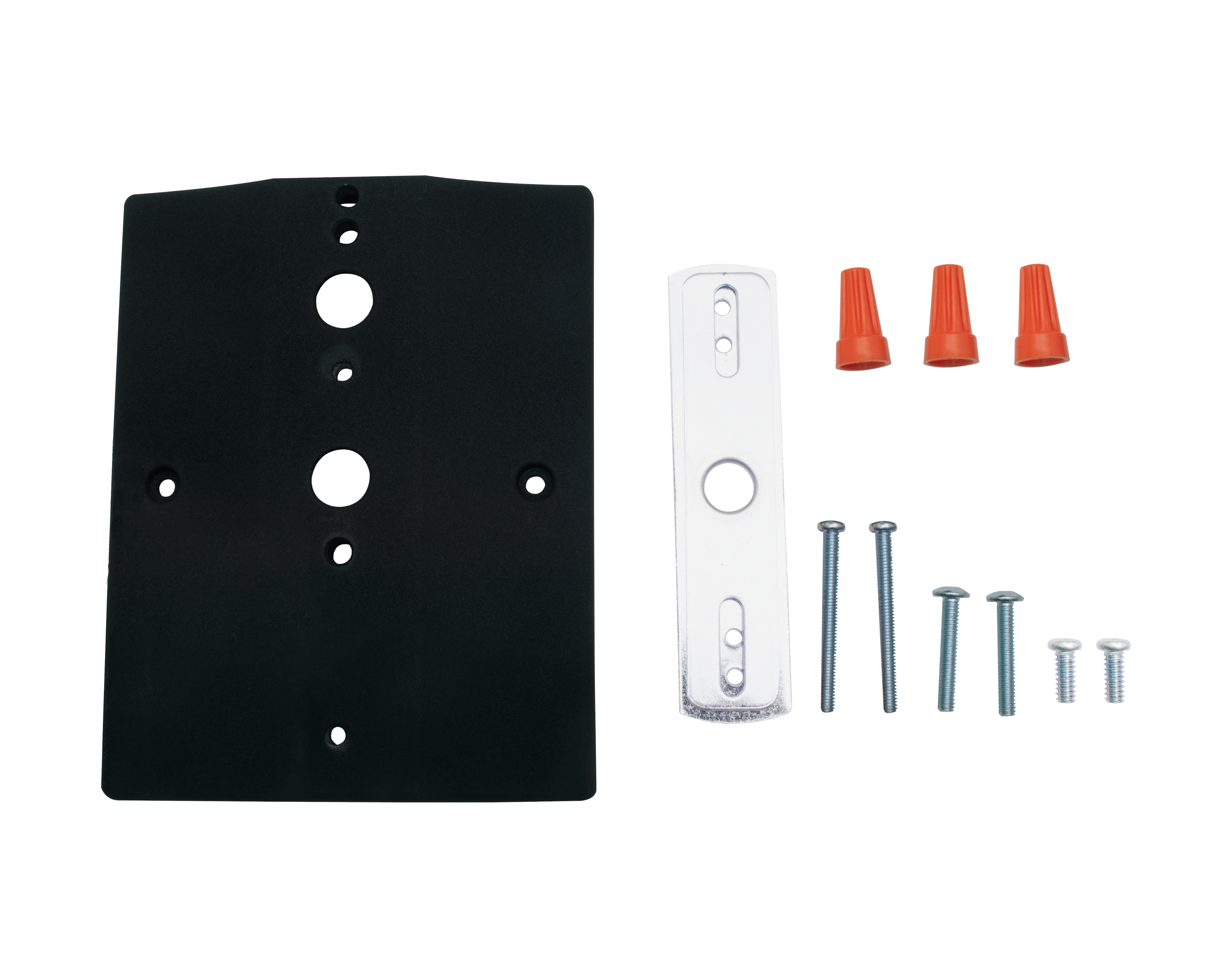

- Universal wall-mounting knockout pattern in backplate
- Side or top mount available using included canopy
- Field removable, knockout chevron directional indicators in faceplates
- For installations where power surge may be possible, NICOR recommends installing additional surge protection at the electrical distribution panel
Full Listings
- Damp Location Rated
- Listed to UL924 (Emergency Lighting)
- NFPA 101 (Life Safety Code) compliant
- NFPA 70 (National Electrical Code) compliant
- OSHA 1910.37 compliant
- Meets FCC Title 47, Part 15, Subpart B
- CA Title 20 Listed
Warranty
- 1-year limited system standard
- Warranty does not cover produt failure due to an overvoltage event (power surge)
