H12V1 Series

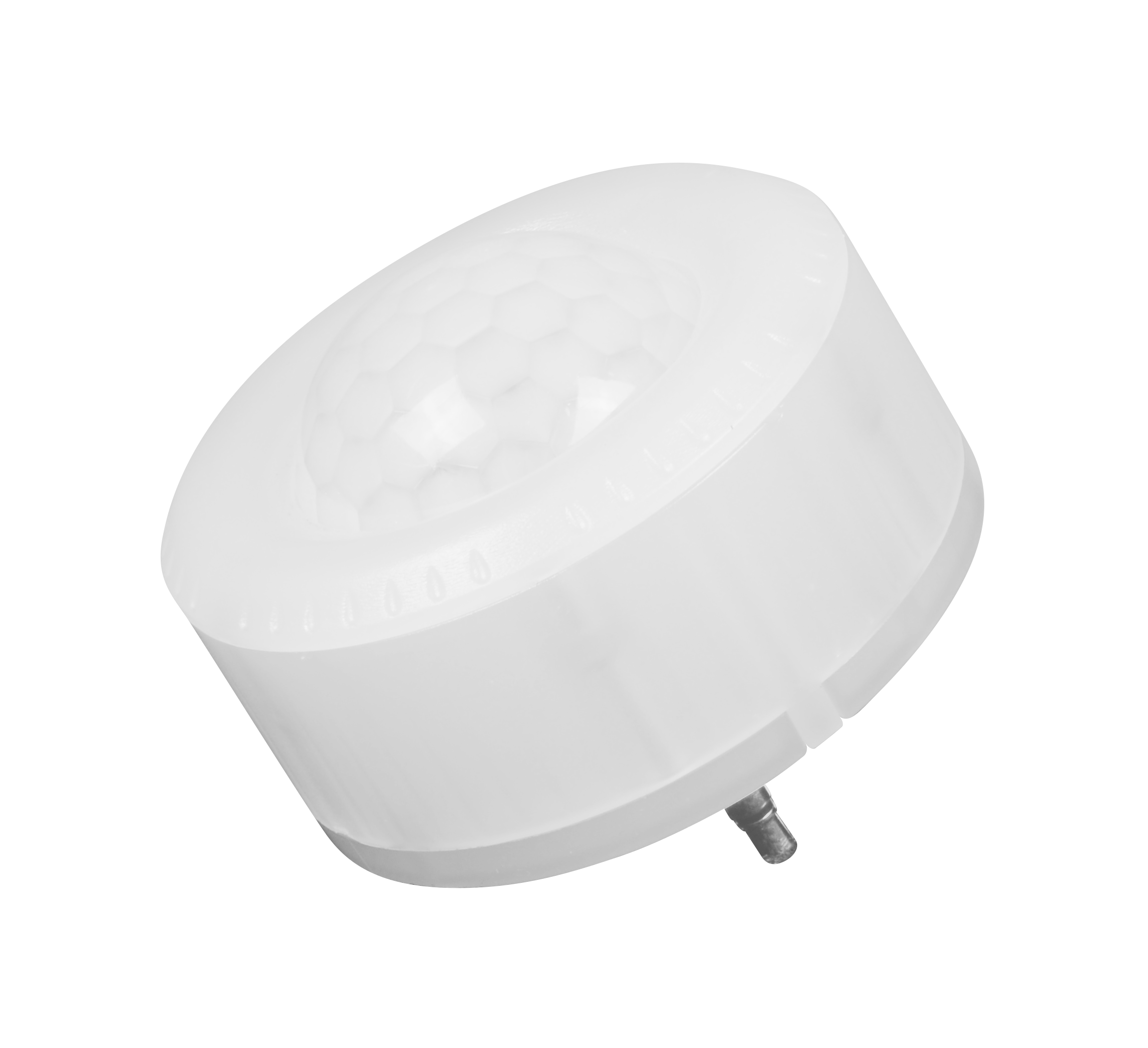

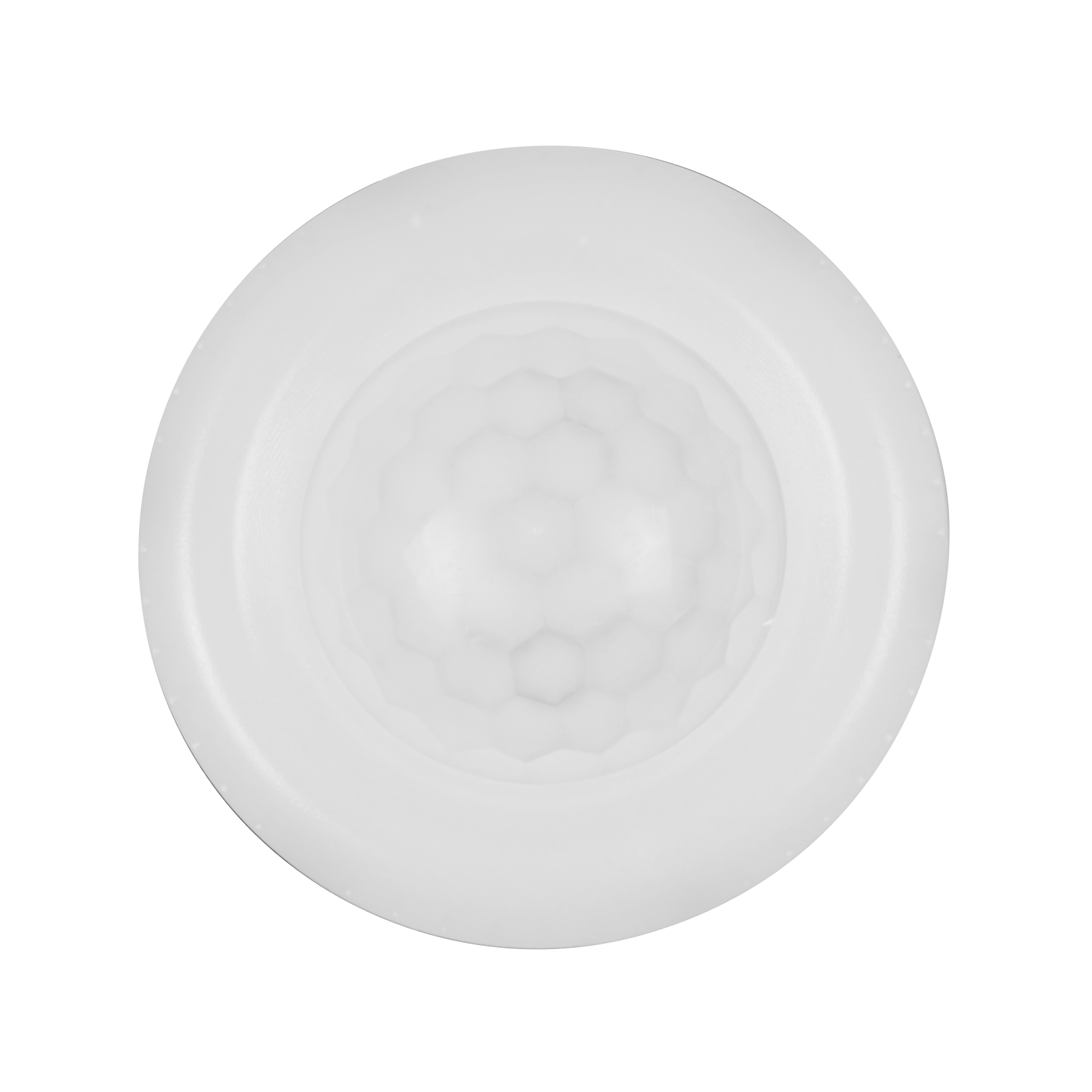

3.5mm White 12V Passive Infrared (PIR) Motion Sensor (H12V Series 1)
Product description
The H12V1 series of sensors provides highly configurable, IP65 rated motion detection using Microwave or PIR technology. Able to be mounted up to 40ft and with an integrated daylight sensor, an H12VSENSOR combined with a NICOR LED Highbay or Linear fixture is ideal for manufacturing, warehouse, stor…
The H12V1 series of sensors provides highly configurable, IP65 rated motion detection using Microwave or PIR technology. Able to be mounted up to 40ft and with an integrated daylight sensor, an H12VSENSOR combined with a NICOR LED Highbay or Linear fixture is ideal for manufacturing, warehouse, storage and other large installation spaces.
- Self-contained relay, no power pack required
- Programmable through remote control
- Highly configurable: Detection Area, Time Delay, Daylight Threshold

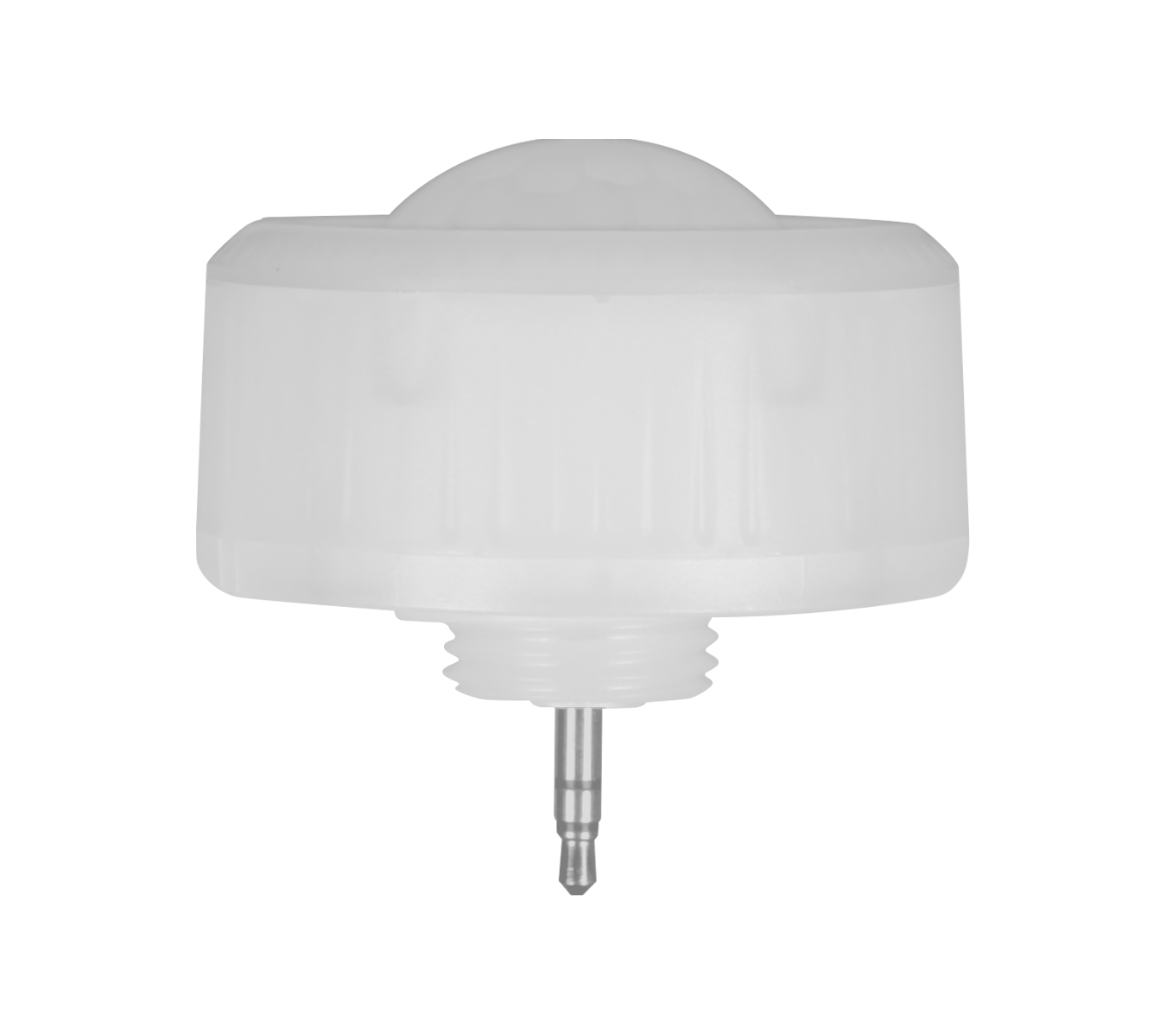

- Threaded connection to fixture socket
- No field calibration required
Ordering information
Downloads
Specifications
Listings & certifications
Listings & Certifications
- IP65 Ingress Protection
- Wet-Location
Features
Construction
- Field installed 12VDC sensor
- Infrared motion detector with built in daylight sensor
- Remote control programmable
- Highly configurable detection area, stand-by period, hold time, stand-by dimming, dimming levels, and daylight harvesting threshold
- Max mounting height: 40ft (12m)
- IP65 Rated
Warranty
- 5-year limited system warranty standard
- Note: Performance is of a representative fixture. Results may vary in the field as a result of installation environment and application.
