H12V2 Series

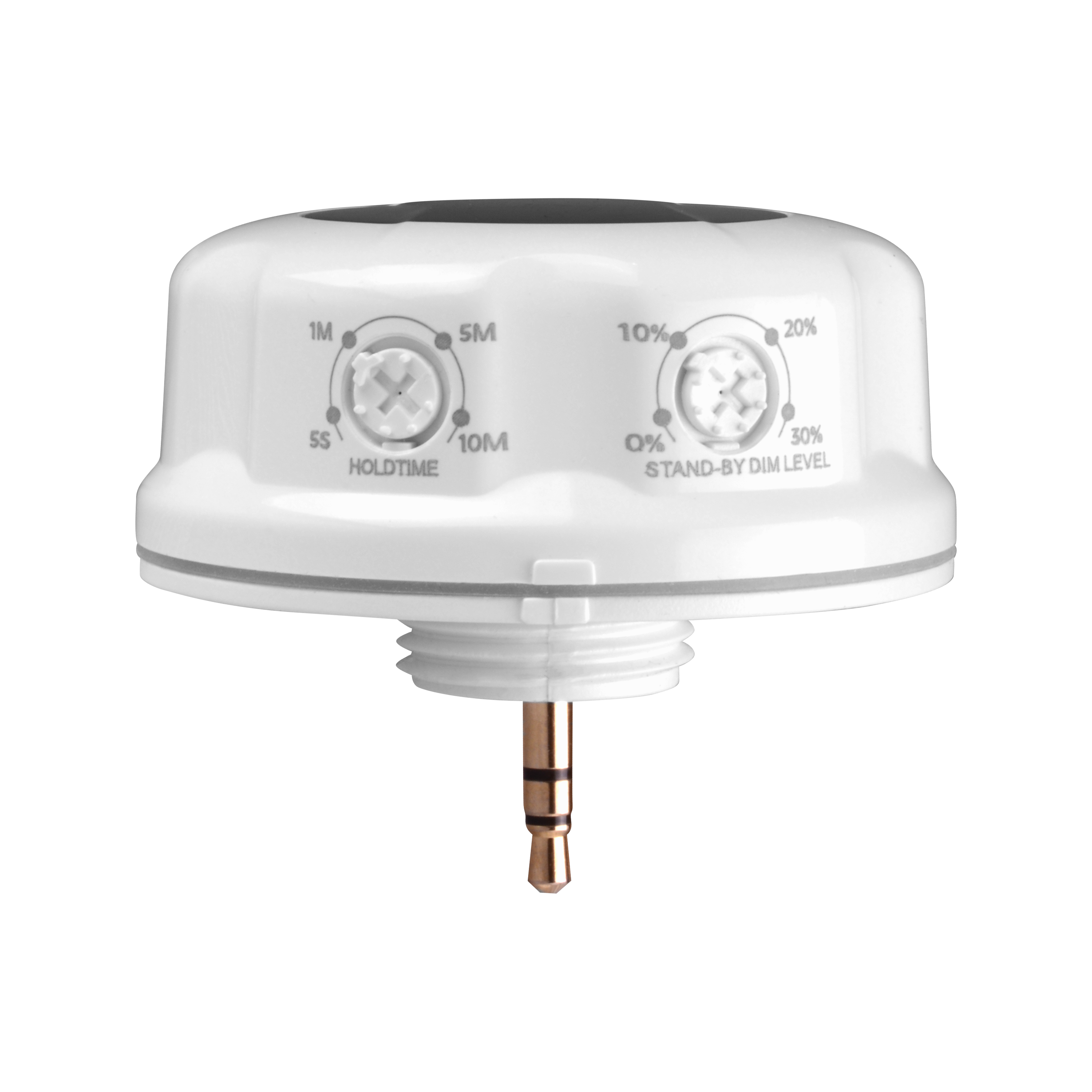

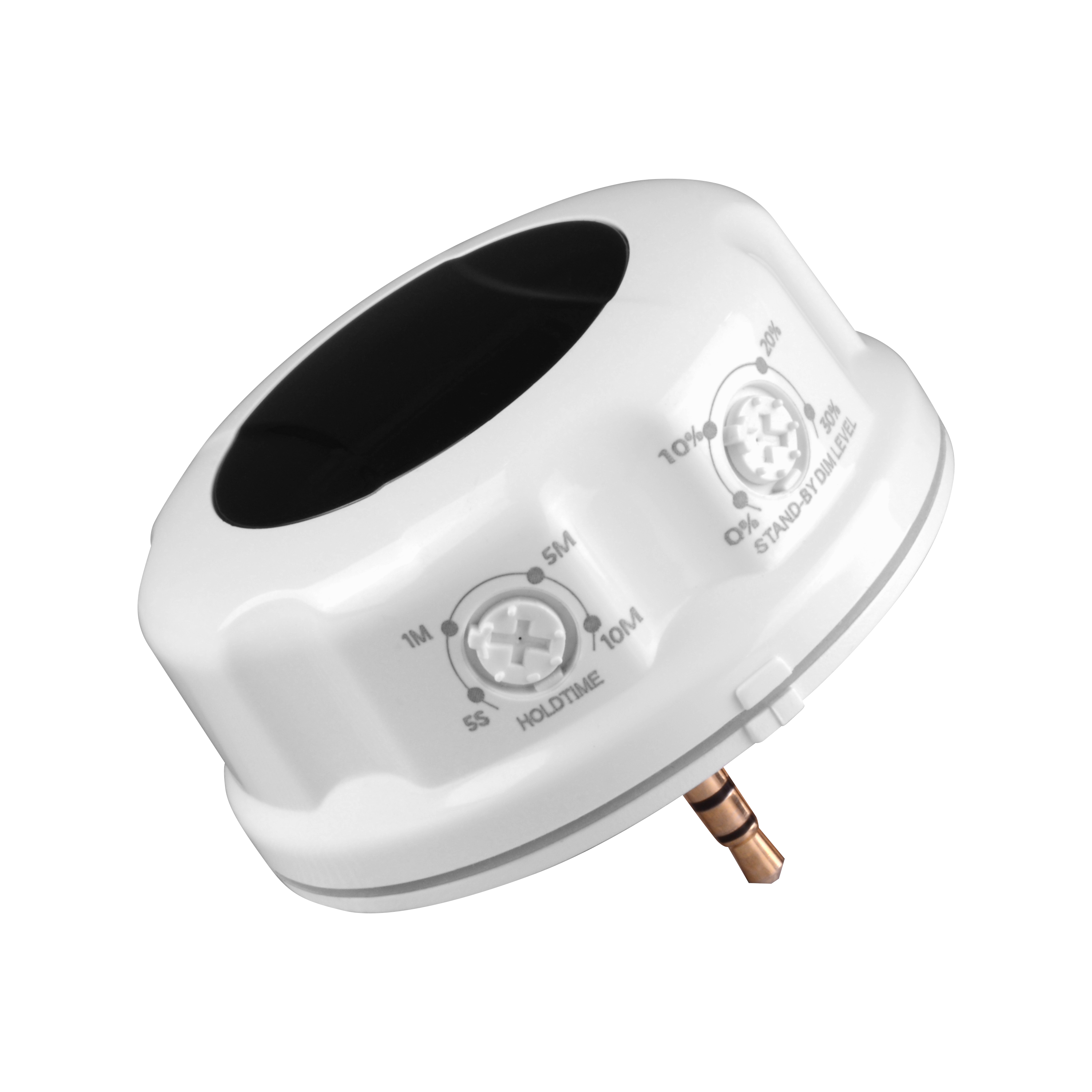

3.5mm White 12V Microwave Motion Sensor (H12V Series 2)
Product description
The H12V2 series of sensors provides highly configurable, IP65 rated motion detection using Microwave or PIR technology. Able to be mounted up to 50ft and with an integrated daylight sensor, an H12V2SENSOR combined with a NICOR LED Highbay or Linear fixture is ideal for manufacturing, warehouse, sto…
The H12V2 series of sensors provides highly configurable, IP65 rated motion detection using Microwave or PIR technology. Able to be mounted up to 50ft and with an integrated daylight sensor, an H12V2SENSOR combined with a NICOR LED Highbay or Linear fixture is ideal for manufacturing, warehouse, storage and other large installation spaces.
- All polymer, fully sealed body
- Self-contained relay, no power pack required
- Adjustable dials on sensor body
- Highly configurable: Detection Area, Time Delay, Daylight Threshold
- No field calibration required
Color Options:
Ordering information
Downloads
Specifications
Listings & certifications
Listings & Certifications
- IP65 Ingress Protection
- Wet-Location
Features
Construction
- All polymer, fully sealed body
- IP65 rated
- Built in daylight sensor
Electrical
- Self contained relay, no power pack required
- Adjustable dials on sensor body
- Programmable through H12V2REMOTE (sold separately) allows additional settings
- Highly configurable: Detection Area, Time Delay, Daylight Threshold
Installations
- Threaded connection to fixture socket
- Max mounting height : 50ft
- Operating temperature range : -22°F ~ +158°F (-30°C ~ +70 °C)
- No field calibration required
Warranty
- 5-year limited system warranty standard
- Note: Performance is of a representative fixture. Results may vary in the field as a result of installation environment and application.
