H12V2 MOTION SENSORS PIR & MW

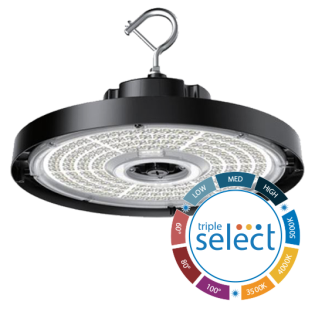

The H12V2 series of sensors provides highly configurable, IP65 rated motion detection using Microwave or PIR technology. Able to be mounted up to 50ft and with an integrated daylight sensor, an H12V2SENSOR combined with a NICOR LED Highbay or Linear fixture is ideal for manufacturing, warehouse, storage and other large installation spaces.

Categories: Tag:

Specifications

  • Self contained relay, no power pack required
  • Adjustable dials on sensor body
  • Programmable through H12V2REMOTE (sold separately) allows additional settings
  • Highly configurable: Detection Area, Time Delay, Daylight Threshold
  • Threaded connection to fixture socket
  • Max mounting height : 50ft
  • Operating temperature range : -22°F ~ +158°F (-30°C ~ +70 °C)
  • No field calibration required

Part Numbers:

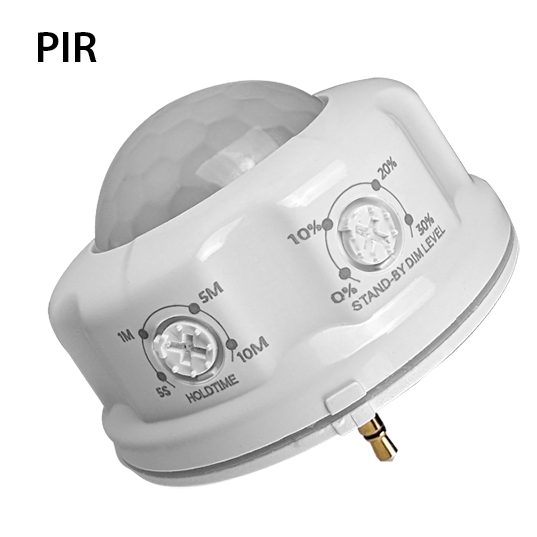

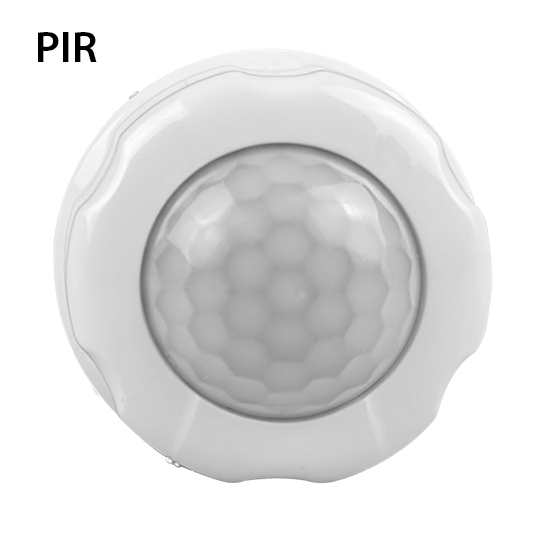

H12V2SENSORPIR - Passive Infrared Sensor
H12V2SENSORMW - Microwave Occupancy Sensor
H12VADJARM1WH - Adjustable Arm - White
H12VSOCKET - Sensor Socket

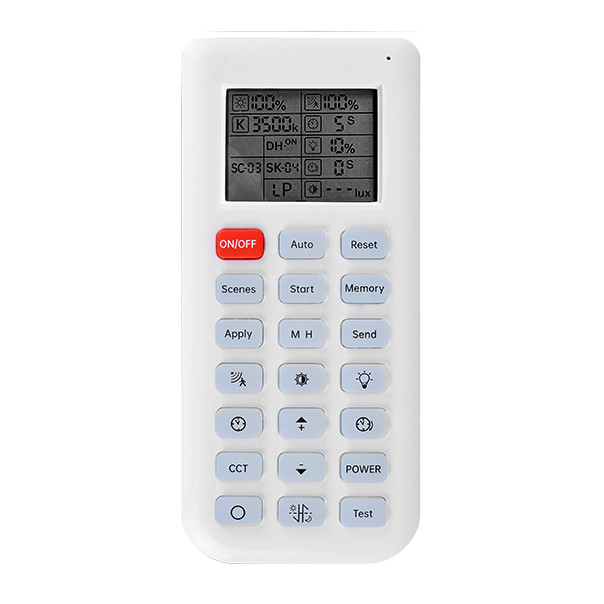

H12V2REMOTE - Remote Control

Downloads

– Spec Sheet
– PIR Installation Instructions
– MW Installation Instructions

– REMOTE Spec Sheet
– REMOTE Installation Instructions
