H12V3 Series

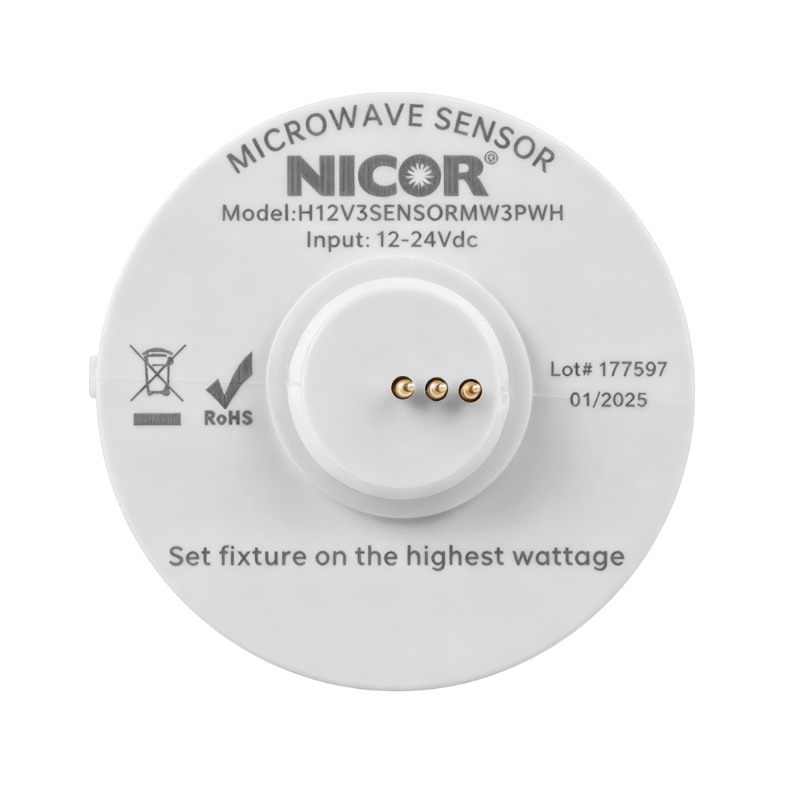

3-Pin White 12V Microwave Motion Sensor (H12V Series 3)
Product description
The H12V3 series of sensors provides highly configurable, IP65 rated motion detection using Microwave or PIR technology. Able to be mounted up to 50ft and with an integrated daylight sensor, an H12V3SENSOR combined with a NICOR LED Highbay, Outdoor or Linear fixture is ideal for manufacturing, wareh…
The H12V3 series of sensors provides highly configurable, IP65 rated motion detection using Microwave or PIR technology. Able to be mounted up to 50ft and with an integrated daylight sensor, an H12V3SENSOR combined with a NICOR LED Highbay, Outdoor or Linear fixture is ideal for manufacturing, warehouse, storage and other large installation spaces.
- Highly configurable motion detection using Microwave or PIR technology
- Available in 3.5mm jack or 3-Pin adapters for broad compatibility

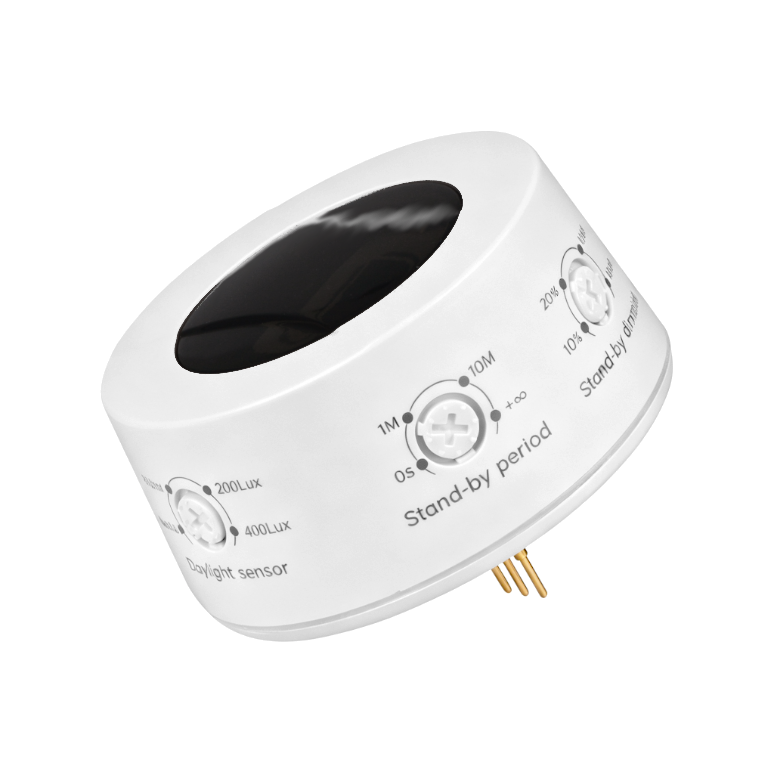

- Easily adjust detection area, time delay, and daylight threshold

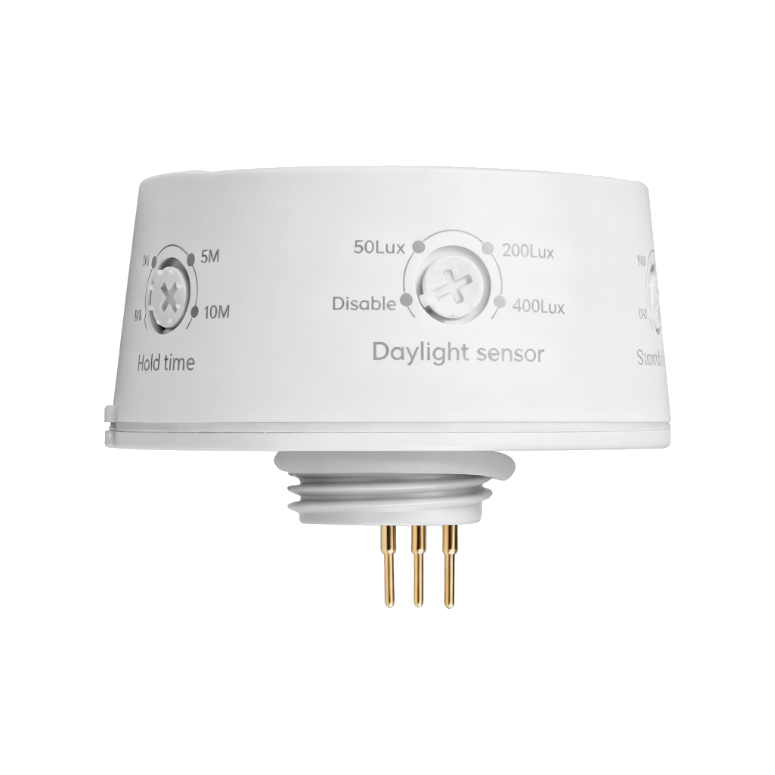

- Integrated daylight sensor with adjustable dials
- Self contained relay, no power pack required
Color Options:
Ordering information
Downloads
Specifications
Listings & certifications
Listings & Certifications
- IP65 Ingress Protection
- RoHS Compliant
- Wet-Location
Other Certifications
- Environmental Requirements in accordance with CE RoHS
Features
Construction
- All polymer, fully sealed body
- IP65 rated
- Built in daylight sensor
Electrical
- Self contained relay, no power pack required
- Adjustable dials on sensor body
- Programmable through H12V2REMOTE (sold separately) allows additional settings
- Highly configurable: Detection Area, Time Delay, Daylight Threshold
Installations
- Threaded connection to fixture socket
- Max mounting height : 50ft
- Operating temperature range : -18°F to 140°F (-20°C to 60°C)
- No field calibration required
Warranty
- 5-year limited system warranty standard
- Note: Performance is of a representative fixture. Results may vary in the field as a result of installation environment and application
