H12V3 MOTION SENSORS PIR & MW

The H12V3 series of sensors provides highly configurable, IP65 rated motion detection using Microwave or PIR technology. Able to be mounted up to 50ft and with an integrated daylight sensor, an H12V3SENSOR combined with a NICOR LED Highbay, Outdoor or Linear fixture is ideal for manufacturing, warehouse, storage and other large installation spaces.

Categories: Tag:

Specifications

  • IP65-rated motion sensor with PIR or Microwave detection technology
  • Integrated daylight sensor for energy-efficient daylight harvesting
  • All-polymer, fully sealed housing for durability in industrial and outdoor environments
  • Self-contained relay design—no external power pack required
  • Adjustable detection area, time delay, and daylight threshold settings
  • Programmable via optional H12V2REMOTE for expanded configuration options
  • Mounting height up to 50 ft, ideal for warehouses, manufacturing, and large spaces
  • Wide operating temperature range: -18°F to 140°F (-20°C to 60°C)
  • Simple threaded fixture-socket installation with no field calibration required
  • Backed by a 5-year limited system warranty

Part Numbers:

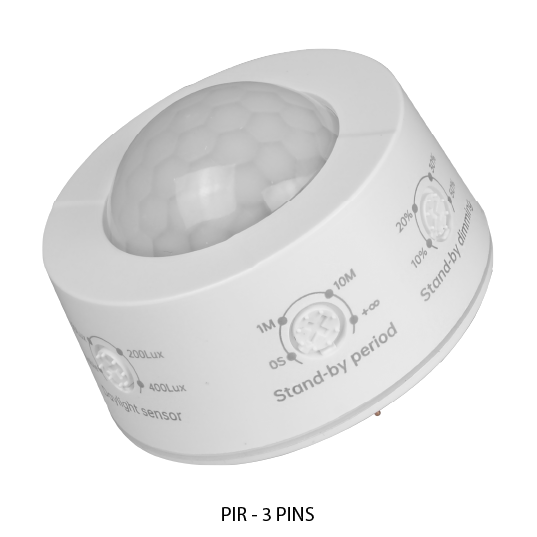

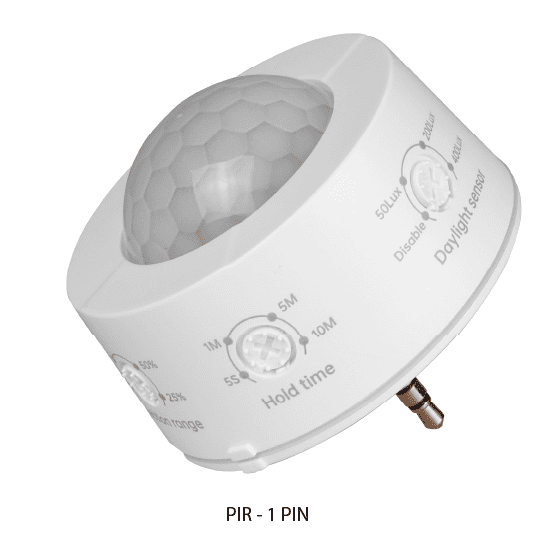

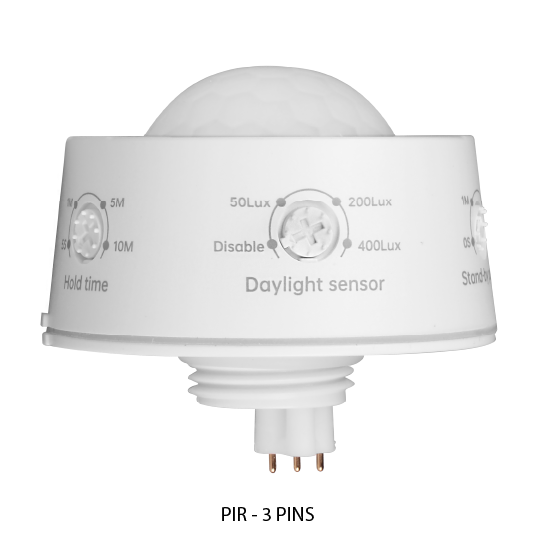

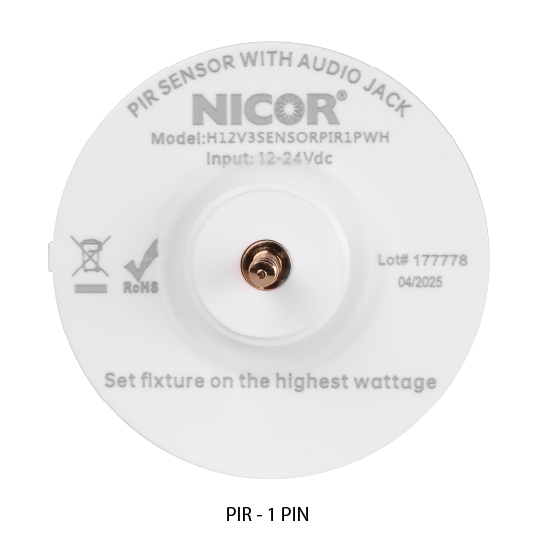

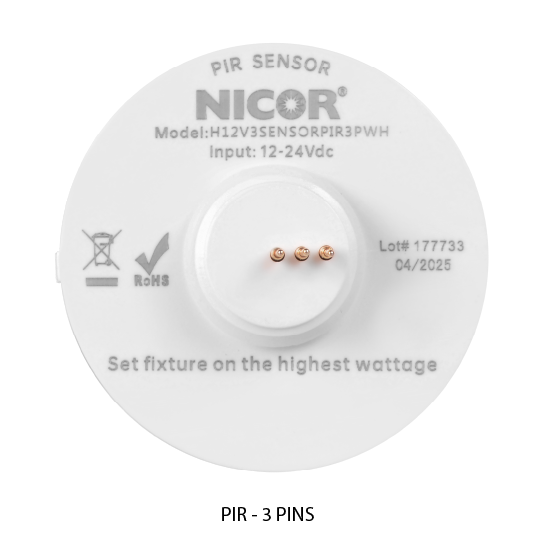

H12V3SENSORPIR#PXX - Passive Infrared Sensor - 1 or 3 Pins - White or Brown-Gray

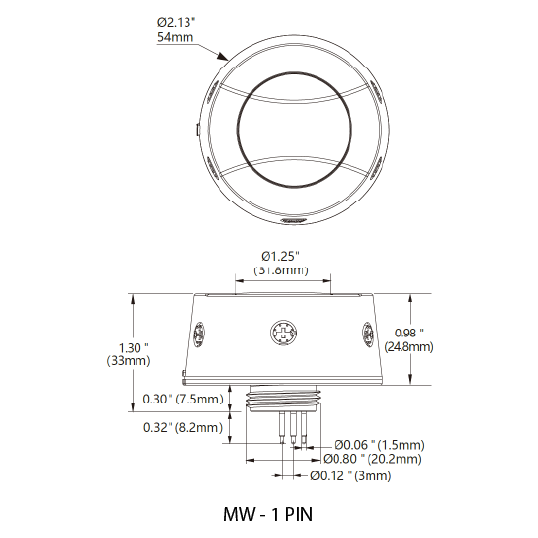

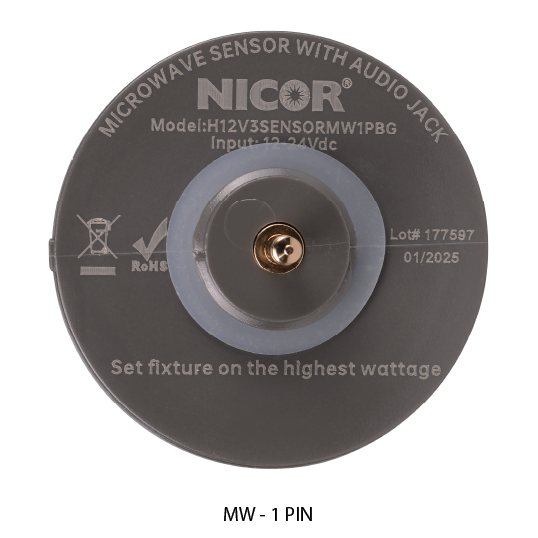

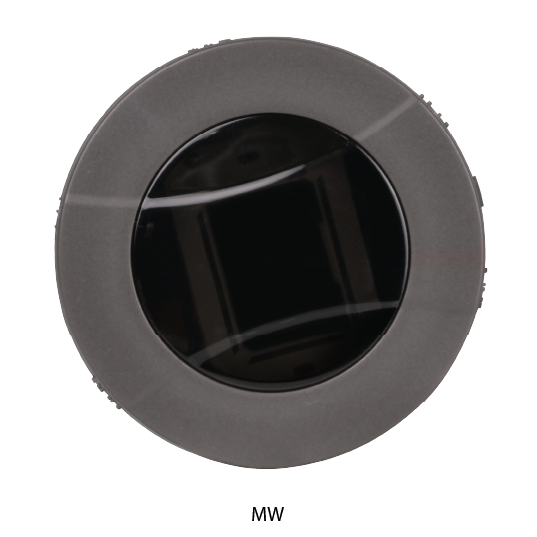

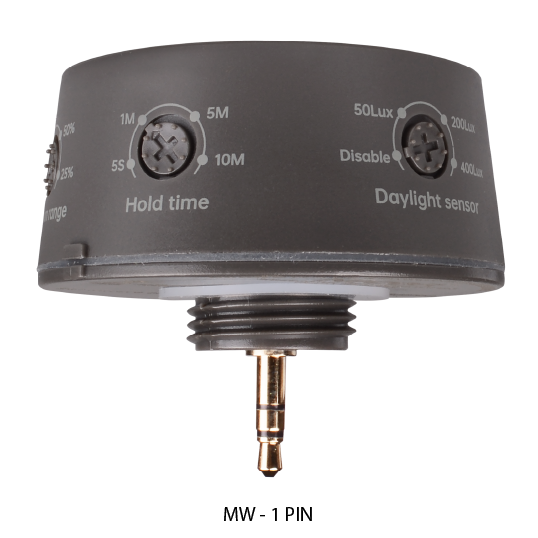

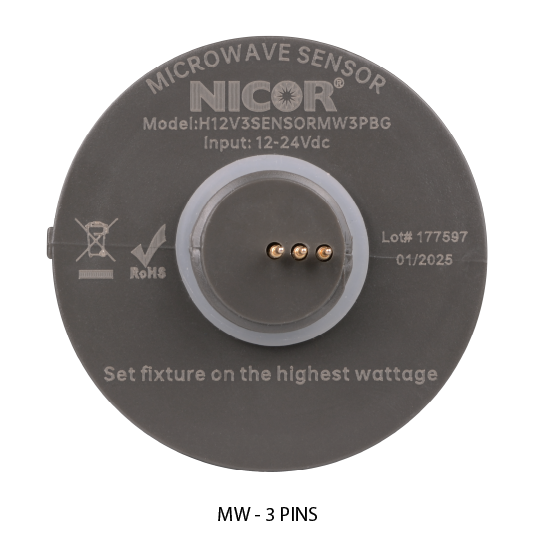

H12V3SENSORMW#PXX - Microwave Occupancy Sensor - 1 or 3 Pins - White or Brown-Gray
H12V3ADJARM1WH - With Adjustable Arm - White
H12V2SOCKET - Sensor Socket

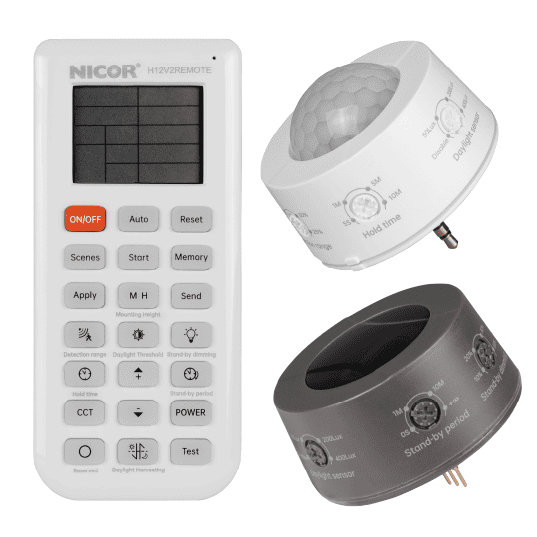

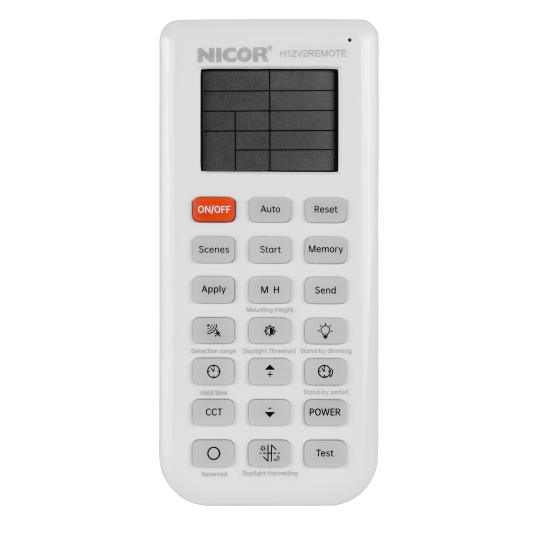

H12V2REMOTE - Remote Control

Downloads

– Spec Sheet
– PIR 1-PIN Installation Instructions
– MW 1-PIN Installation Instructions
– MW 3-PIN Installation Instructions

– REMOTE Spec Sheet
– REMOTE Installation Instructions
