LED CIRCULAR HIGH BAY

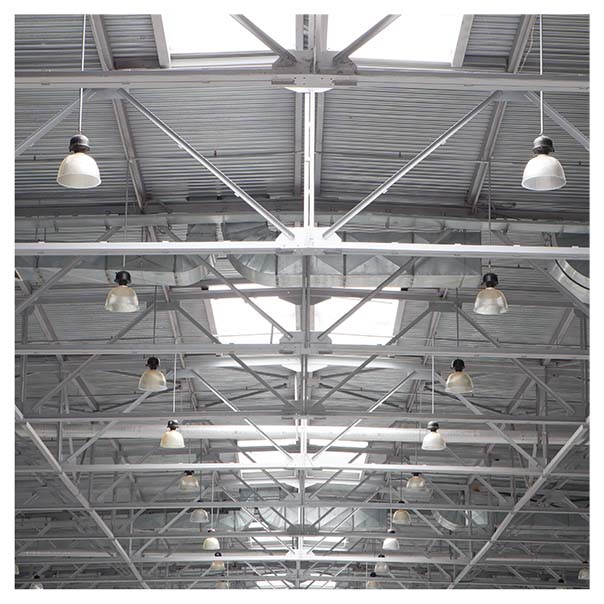

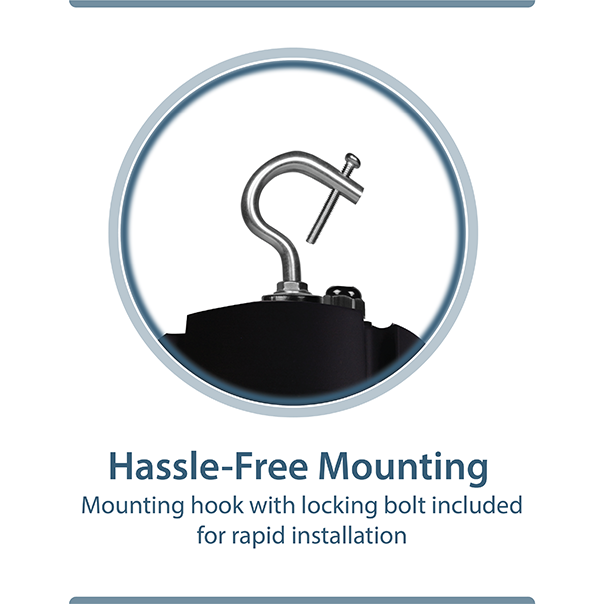

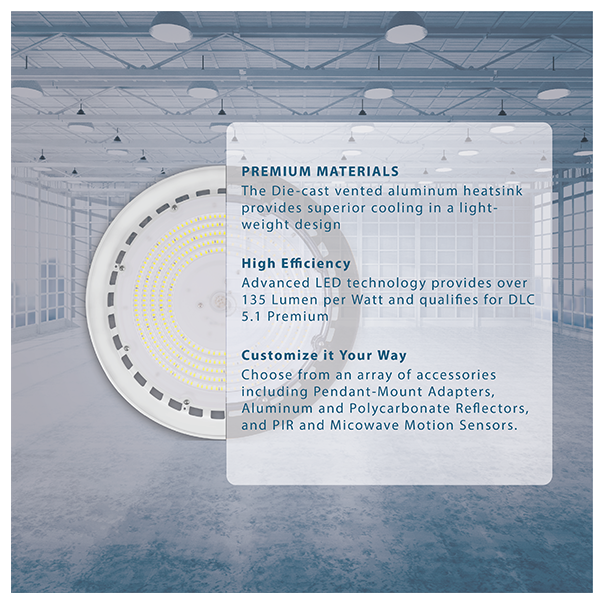

The HBC4 LED Circular Low Bay/High Bay is a high-performance fixture that produces an output greater than 135 lumens per watt, includes an integrated socket for a field-install motion sensor, 90º optic, and excellent color rendering at >80CRI. The die cast aluminum heatsink design allows for a lightweight unit and with the multiple mounting options and accessories, the fixture can address a variety of applications. With consistent light distribution, this fixture is perfect for environments such as grocery stores, gymnasiums, big box retail, and warehouse spaces.

* With wireguard in place

Specifications

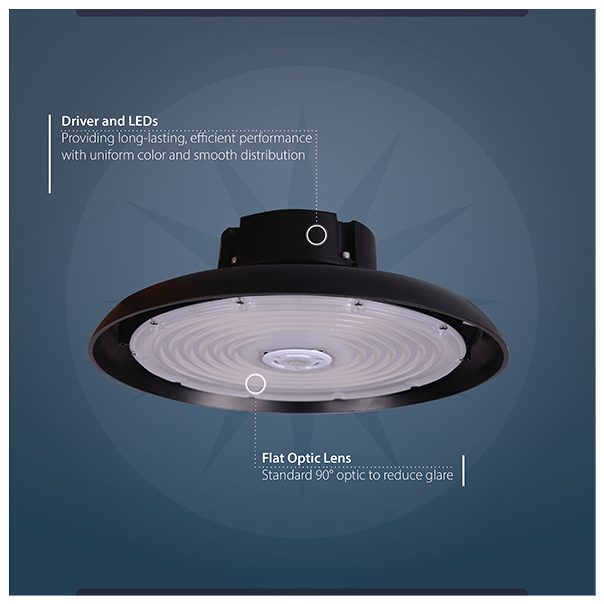

  • High efficiency LEDs with 90° polycarbonate optic
  • 90° polycarbonate reflector available
  • Polycarbonate glare shields available
  • 90° aluminum reflector available
  • Utilizes advanced LED technology and available in 4000K and 5000K
  • Standard 80 CRI to improve safety and color definition in public places
  • Input voltage of 120-277VAC
  • Power factor: >0.9
  • THD < 20%
  • Luminaire surge protection level: designed to withstand up to 6kV ring wave and 6kV/3kA combination wave per ANSI C82.77-5-2017 requirements for high bay luminaires
  • 6ft power cord and 3ft control (0-10 dimming & 12VDC output) cord standard
  • Operating temperature range: -40° to 122°F (-40° to 50°C), -22° to 122°F (-30° to 50°C) with sensor installed
  • NLC (Network Lighting Controls)
    • Bluetooth Low Energy (BLE) mesh network providing Luminaire Level Lighting Control
    • Field installable BLE PIR/Daylight sensor available. Requires HBCSOCKETADAPT1
    • Configurable with the NICOR NLC app available on iOS and Android devices
    • Provides full dimming control, scheduling, LLLC with occupancy and daylight harvesting functions

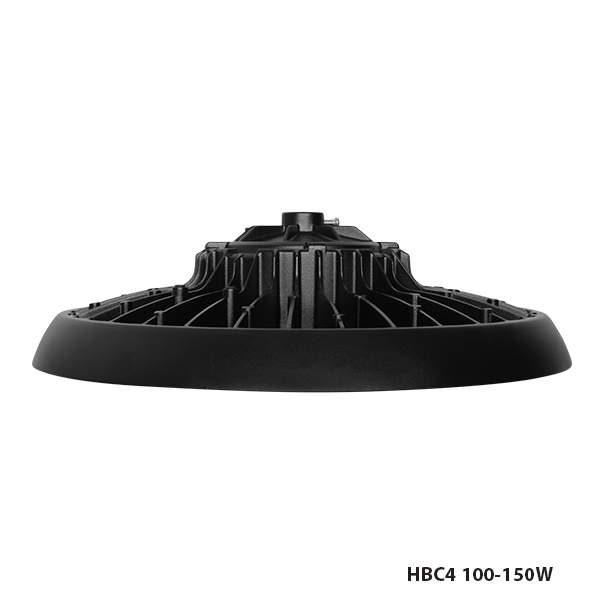

HBC4 100W
4000K
Neutral
5000K
Cool

14,945
Lumens

15,157
Lumens

102
Input Watts

102
Input Watts

147
lm/W

149
lm/W

82
CRI

82
CRI

IES Download

IES Download

Part Numbers:

 4000K:
5000K:
HBC4100U408
HBC4100U508
HBC4 150W
4000K
Neutral
5000K
Cool

21,549
Lumens

21,851
Lumens

152
Input Watts

152
Input Watts

142
lm/W

144
lm/W

84
CRI

84
CRI

IES Download

IES Download

Part Numbers:

 4000K:
5000K:
HBC4150U408
HBC4150U508
HBC4 200W
4000K
Neutral
5000K
Cool

27,998
Lumens

28,396
Lumens

200
Input Watts

200
Input Watts

140
lm/W

142
lm/W

84
CRI

84
CRI

IES Download

IES Download

Part Numbers:

 4000K:
5000K:
HBC4200U408
HBC4200U508
HBC4 240W
4000K
Neutral
5000K
Cool

34,446
Lumens

34,935
Lumens

241
Input Watts

241
Input Watts

143
lm/W

145
lm/W

84
CRI

84
CRI

IES Download

IES Download

Part Numbers:

 4000K:
5000K:
HBC4240U408
HBC4240U508
HBC4 300W
4000K
Neutral
5000K
Cool

40,557
Lumens

41,133
Lumens

297
Input Watts

297
Input Watts

137
lm/W

139
lm/W

84
CRI

84
CRI

IES Download

IES Download

Part Numbers:

 4000K:
5000K:
HBC4300U408
HBC4300U508

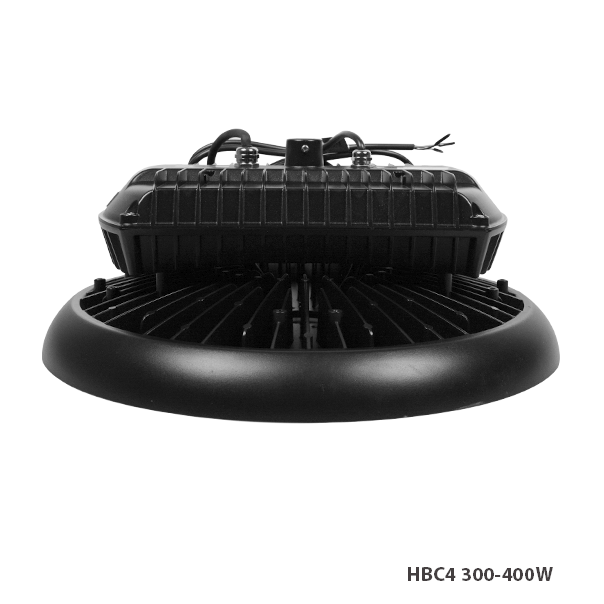

HBC4 400W

4000K
Neutral
5000K
Cool

53,747
Lumens

54,510
Lumens

392
Input Watts

392
Input Watts

137
lm/W

139
lm/W

82
CRI

82
CRI

IES Download

IES Download

Part Numbers:

 4000K:
5000K:
HBC4400U408
HBC4400U508
