HBC5-SENSOR Series
HBC5 Series Motion Sensor
Product description

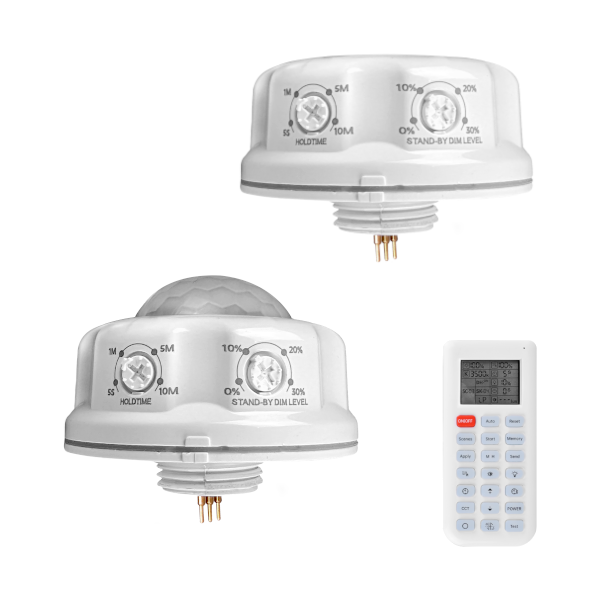

The HBC5 Sensor series provides highly configurable, IP65 rated motion detection using Microwave or PIR technology. Able to be mounted up to 50ft and with an integrated daylight sensor, the HBC5SENSOR combined with the HBC5 High-bay is ideal for manufacturing, warehouse, storage and other large inst…
The HBC5 Sensor series provides highly configurable, IP65 rated motion detection using Microwave or PIR technology. Able to be mounted up to 50ft and with an integrated daylight sensor, the HBC5SENSOR combined with the HBC5 High-bay is ideal for manufacturing, warehouse, storage and other large installation spaces.
- Available with PIR or Microwave sensing technology for occupancy-based lighting control
- Integrated daylight sensor enables daylight harvesting and lux on/off functionality
- Mounts up to 50Ft high for warehouse, manufacturing, and large open-area applications
- Highly configurable detection area, hold time, daylight threshold, and standby dimming levels
- Compatible with optional H12VREMOTE programming remote
Color Options:
Ordering information
Downloads
Specifications
Listings & certifications
Listings & Certifications
- IP65 Ingress Protection
- Wet-Location
Features
Construction
- All Polymer, fully sealed body
- IP65 rated
- Built-in daylight sensor
Electrical
- Self contained relay, no power pack required
- Adjustable dials on sensor body
- Programmable through H12VREMOTE (sold separately) allows additional settings
- Highly configurable: Detection Area, Time Delay, Daylight Threshold
Installations
- Threaded connection to fixture socket
- Max mounting height: 50ft
- Operating temperature range : -22°F ~ +158°F (-30°C ~ +70 °C)
- No field calibration required
Warranty
- 5-year limited system warranty standard
- Note: Performance is of a representative fixture. Results may vary in the field as a result of installation environment and application.
