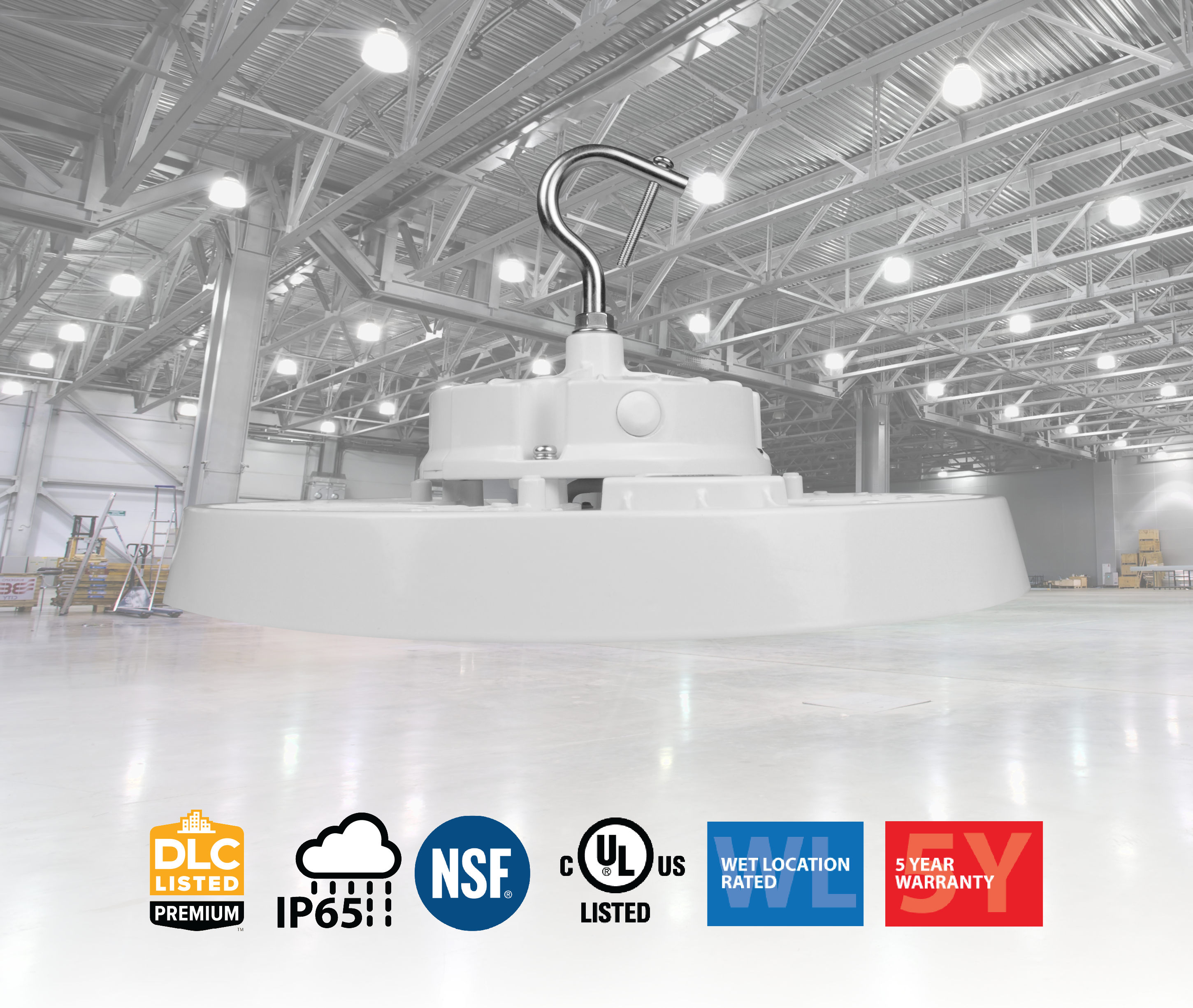

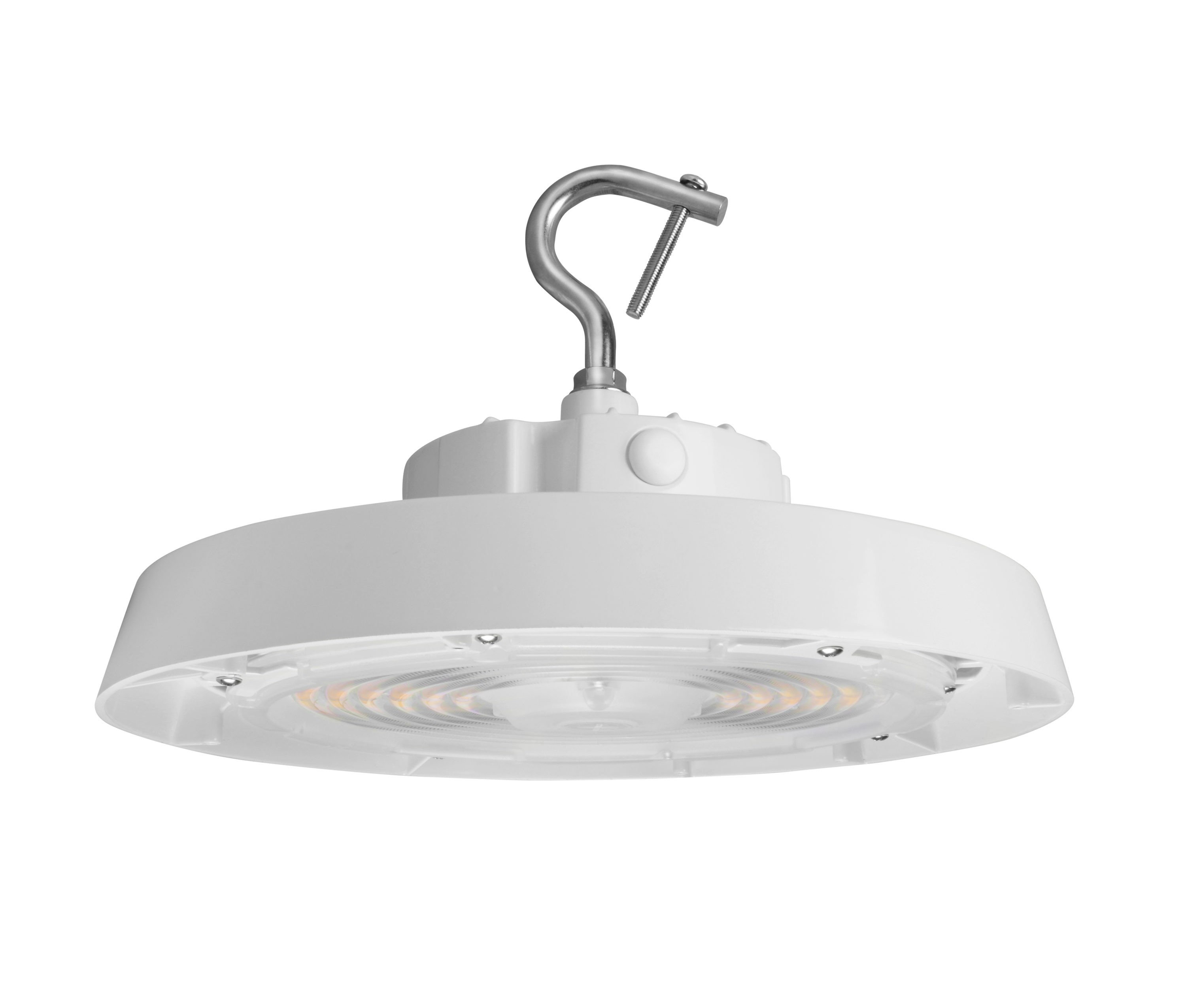

HBC5 150W White Selectable LED UFO High Bay
The HBC5 LED Circular Low-Bay/High-Bay is a leading high-performance lighting solution with Selectable wattage, Selectable color temperature, and wireless control technology. With a sleek and compact form, it offers improved energy efficiency with low-voltage accessory features. The die-cast aluminu…
The HBC5 LED Circular Low-Bay/High-Bay is a leading high-performance lighting solution with Selectable wattage, Selectable color temperature, and wireless control technology. With a sleek and compact form, it offers improved energy efficiency with low-voltage accessory features. The die-cast aluminum housing with integrated heatsink is designed with multiple mounting points for added options and accessories. The HBC5 produces an impressive light output exceeding 130 lumens per watt and excellent color rendering for true clarity. The impact-resistant polycarbonate lens provides consistent light dispersion, while optional reflectors help reduce glare and provide specific light distribution. The HBC5 operates at 120-277V (or 277-480VAC) with 0-10V dimming and a 12V accessory wire for standard or smart (NLC) sensors. Add a 40W emergency backup for added safety and security. The HBC5 is the ideal fixture for warehouses, retail stores, gymnasiums, and other large indoor spaces.

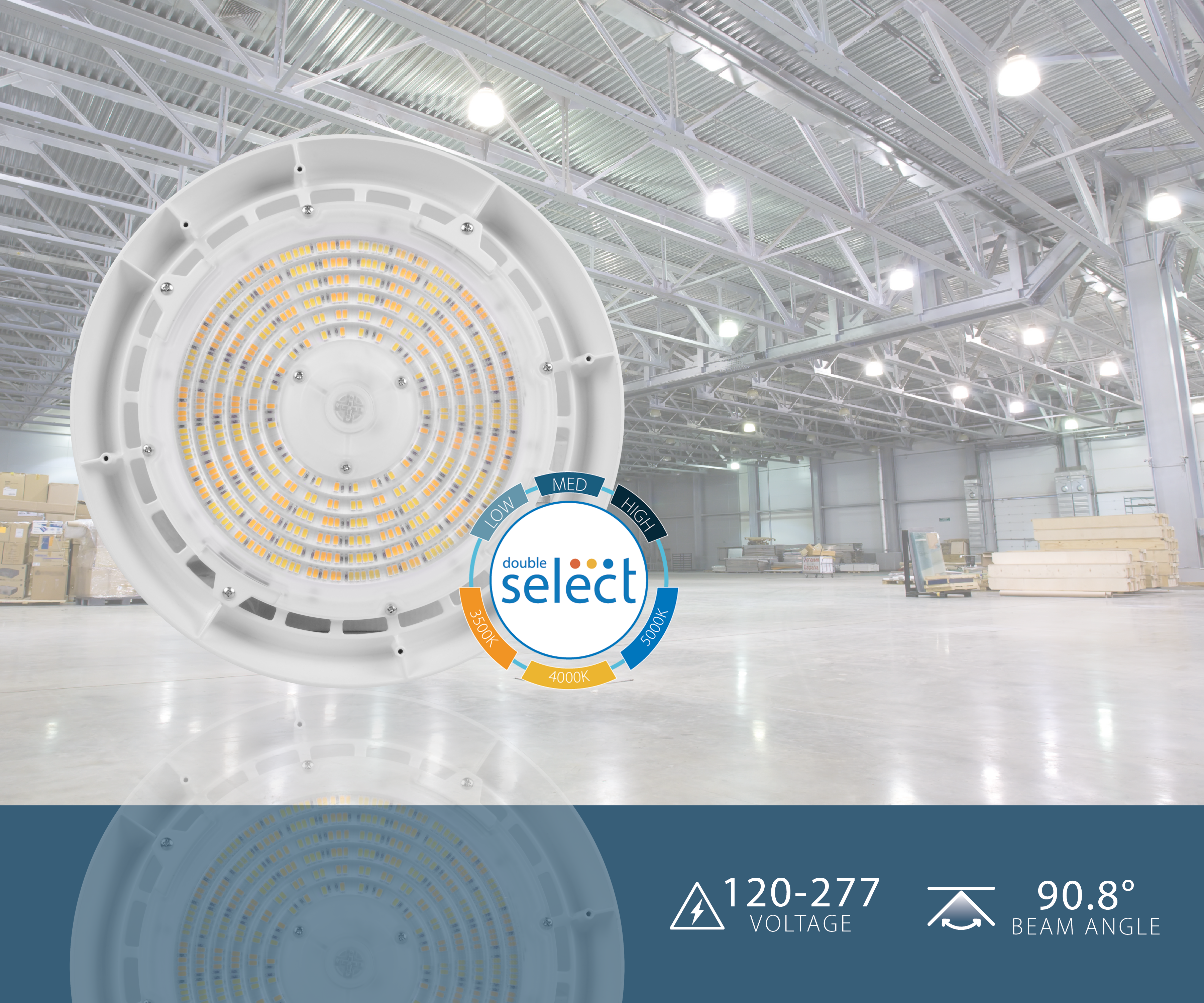

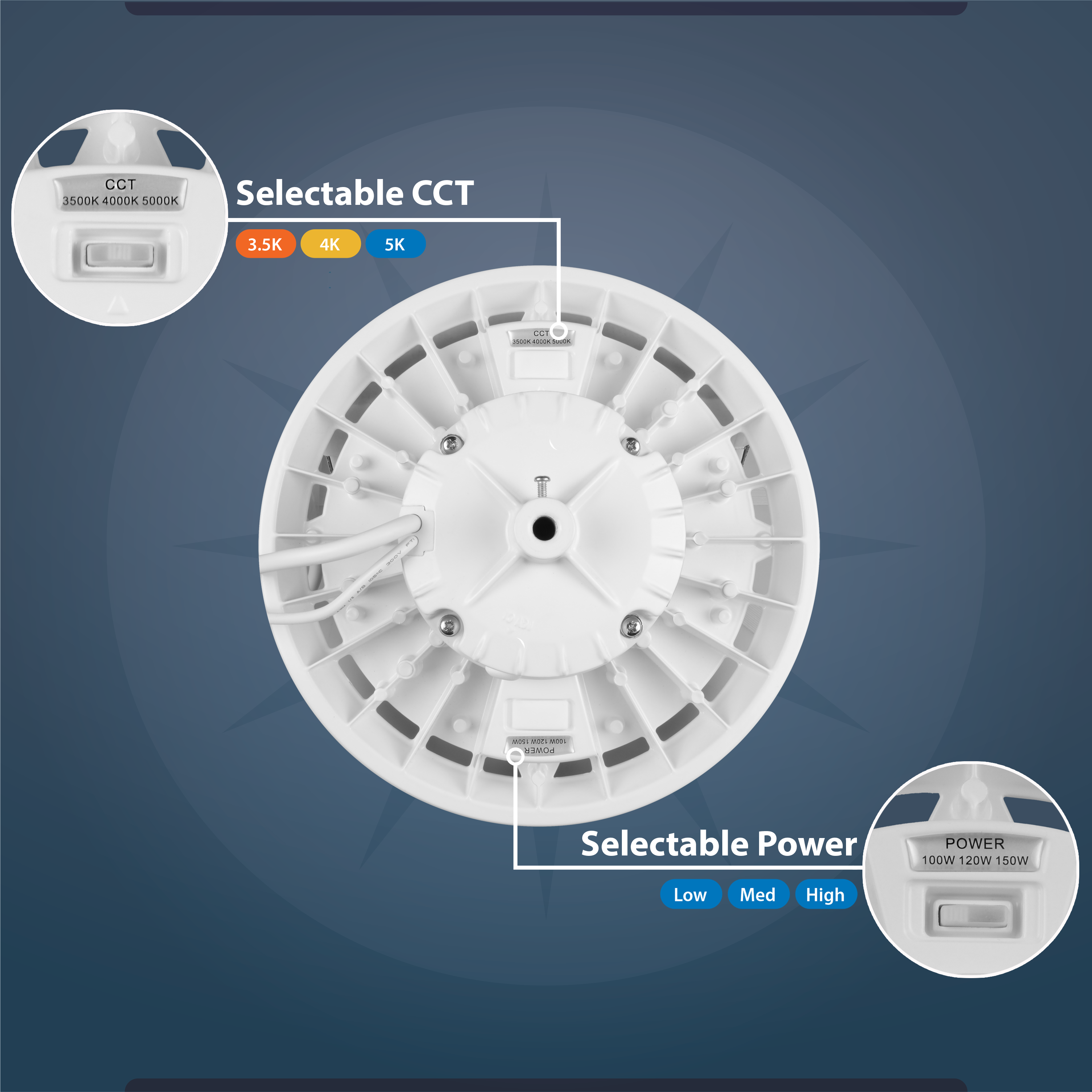

- Three selectable color temperatures (3500K/4000K/5000K)
- Three selectable wattage settings (Low/Med/High)
- 130 lm/W, 80 CRI high-efficiency LEDs for vivid illumination
- Die-cast aluminum housing with vented heatsink, 6kV surge protection
- Hook, yoke, or pendant mount; ultra-slim for easy install
- NLC-compatible with BLE, occupancy, and daylight controls
Ordering information
Downloads
Specifications
-
Lifespan>54,000 -
Lumens13396 - 21708 lm
-
Wattage100, 120, 150
Listings & certifications
- UL Certified
- DLC 5.1 Premium
- NSF/ANSI 2 Food Equipment Listed
- IP65 Ingress Protection
- RoHS Compliant
- FCC Class B
- Wet-Location (UL 1598)
- NSF/ANSI 2 - Food Equipment listed (for 150W and 240W models only)
- LM-79 and LM-80 testing performed in accordance with IESNA standards
- Meets FCC Part 15, Subpart B, Class A standards for conducted and radiated emissions
Features
Construction

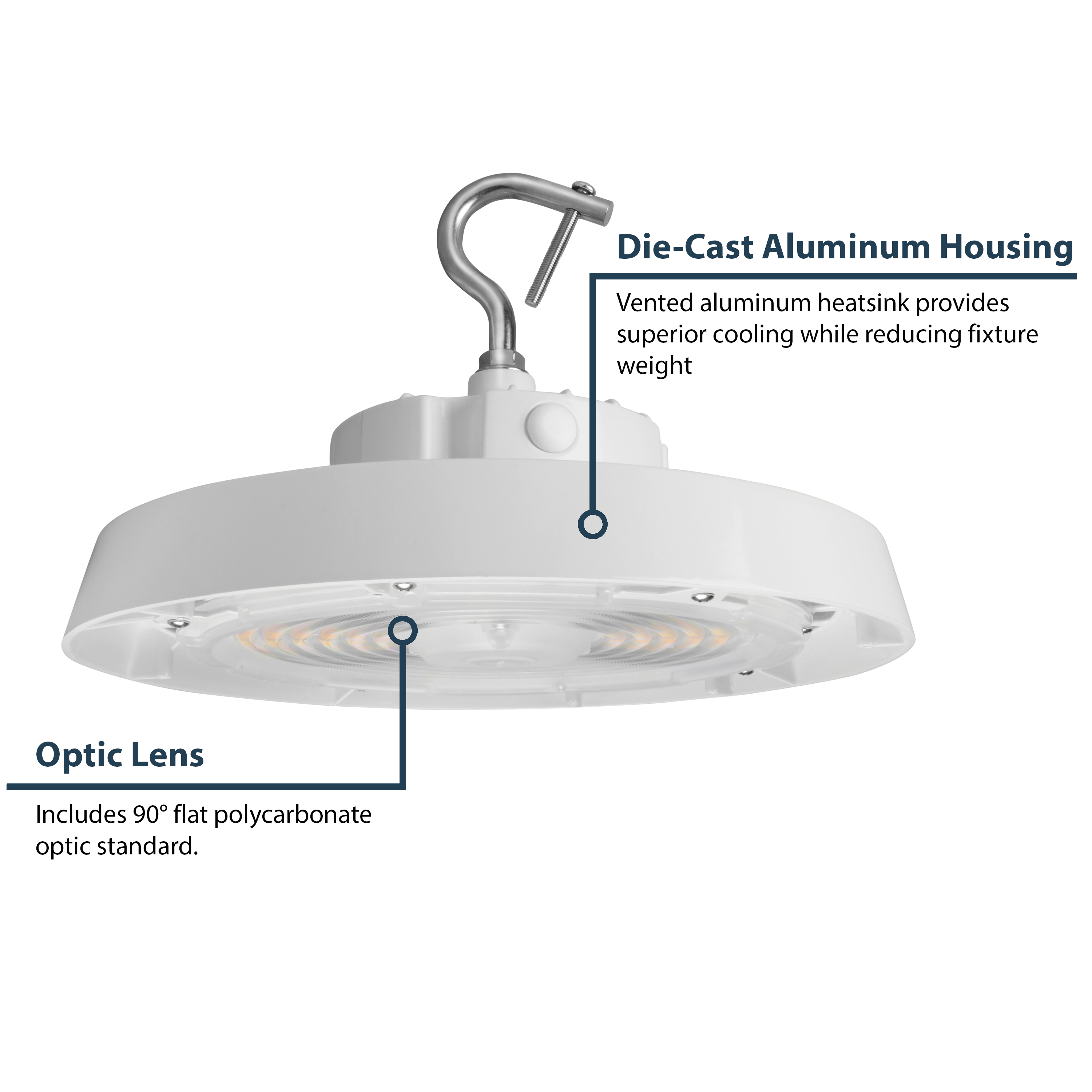

- Ultra-slim construction with off-board driver for improved thermal management
- Vented aluminum heatsink provides superior cooling while reducing fixture weight
- Polyester powder coat
Optical System
- High efficiency LEDs with 90° polycarbonate optic
- Wide optic available
- 90° polycarbonate reflector available
- Polycarbonate glare shields available
- 90° aluminum reflector available
- Selectable CCT of 3500K/4000K/5000K
- Standard 80 CRI to improve safety and color definition in public places
Electrical
- Input voltage of 120-277VAC, 277-480VAC optional
- Selectable wattage of 100/120/150W, 200/220/240W or 240/270/300W
- Power factor: >0.9, THD < 20%
- Luminaire surge protection level: designed to withstand up to 6kV ring wave and 6kV/3kA combination wave per ANSI C82.77-5-2017 requirements for high bay luminaires
- 6ft power cord and 3ft control (0-10 dimming & 12VDC output) cord standard
- Operating temperature range: -40° to 122°F (-40° to 50°C), -22° to 122°F (-30° to 50°C) with sensor installed, 32° to 122°F (0° to 50°C) with EM pack installed

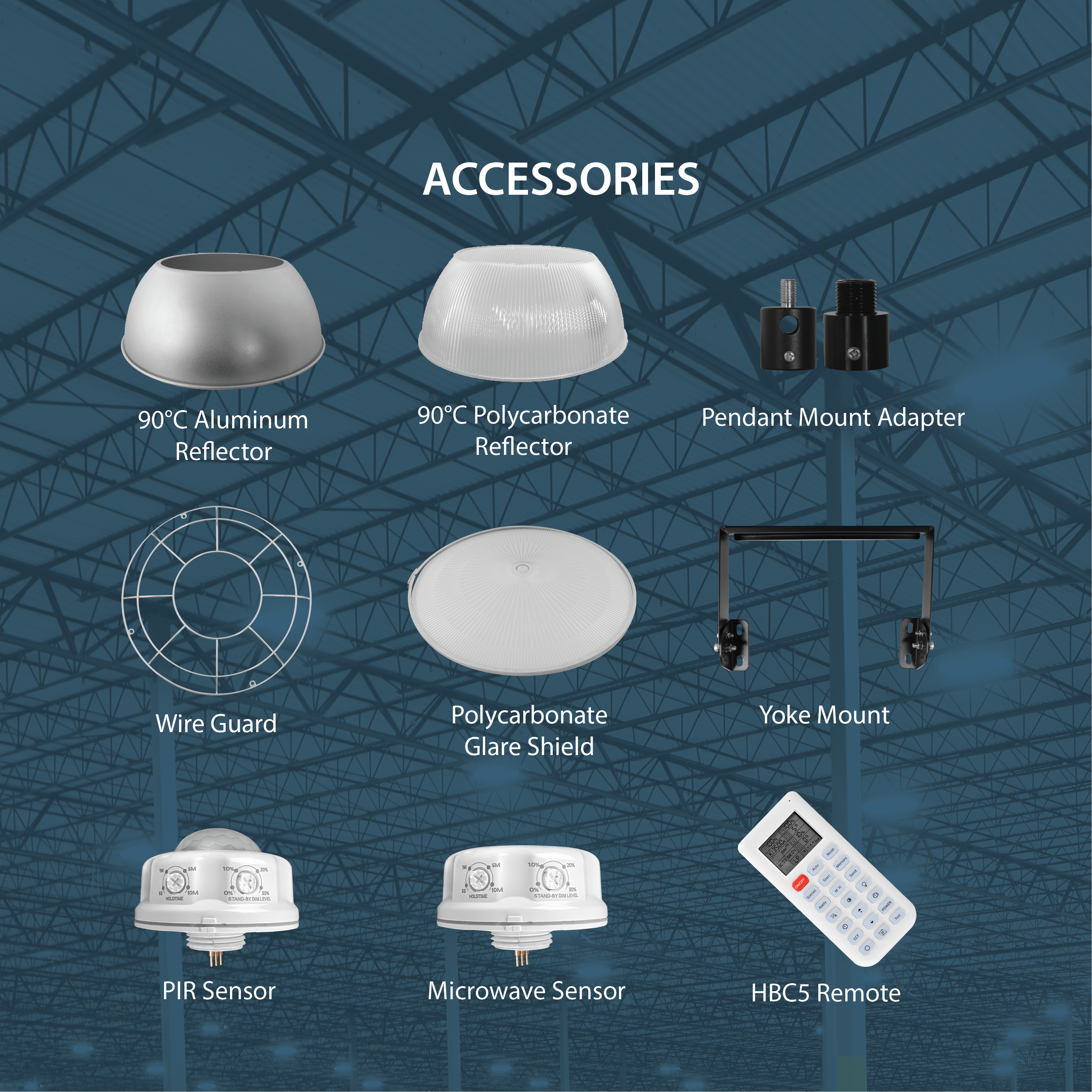

Installations

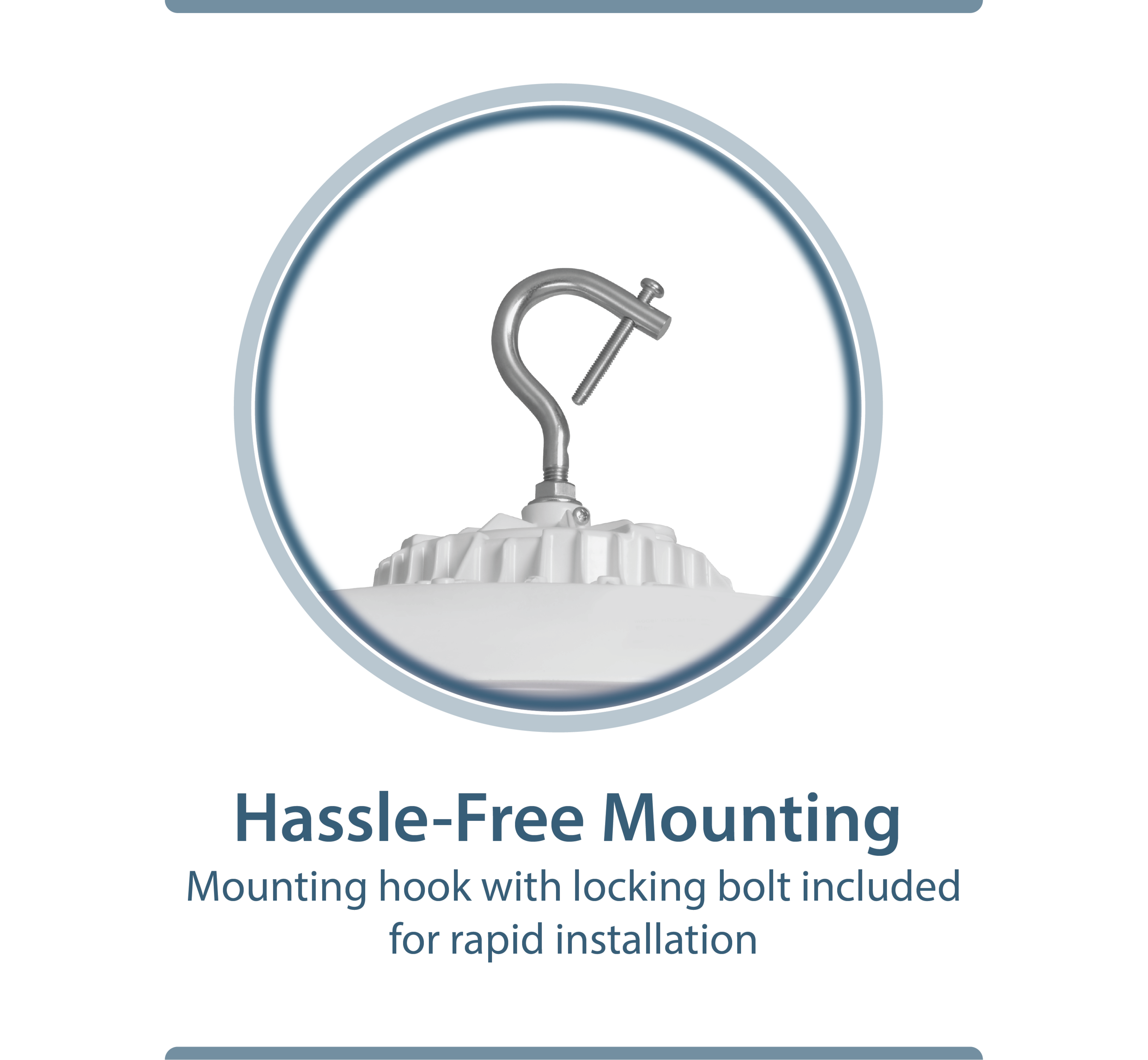

- Includes hook with locking bolt (M10 thread) for simple, secure mounting
- 3/4” NPT pendant adapter available
- Yoke accessory available
- Wire guard at lens location available
- For installations where power surge may be possible, NICOR recommends installing additional surge protection at the fixture or electrical distribution panel
Full Listings
- cULus 1598 Listed for wet locations
- DLC 5.1 Premium listed
- NSF/ANSI 2 - Food Equipment listed (for 150W and 240W models only)
- IP65 rated
- RoHS compliant
- Meets FCC Part 15, Subpart B, Class A standards for conducted and radiated emissions
- TM-21 Reported L70(9k) life >54,000 hours
- LM-79, LM-80 testing performed in accordance with IESNA standards
Warranty
- 5-year limited system warranty standard
- Warranty does not cover product failure due to an overvoltage event (power surge)
