SELECTABLE LED LOW BAY/HIGH BAY

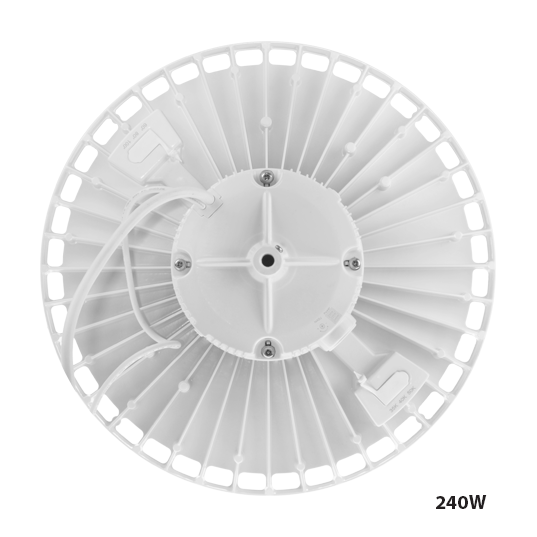

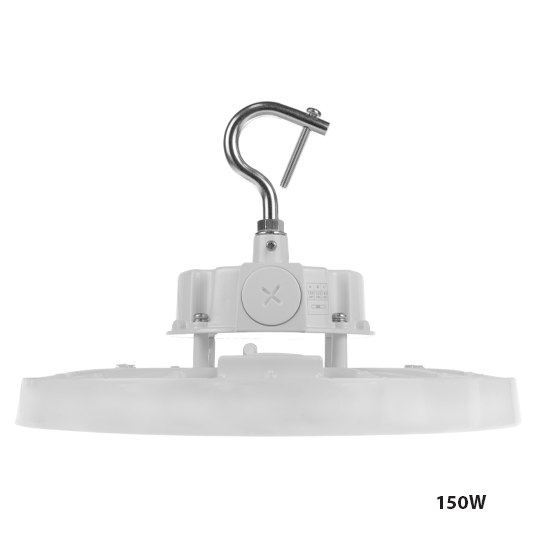

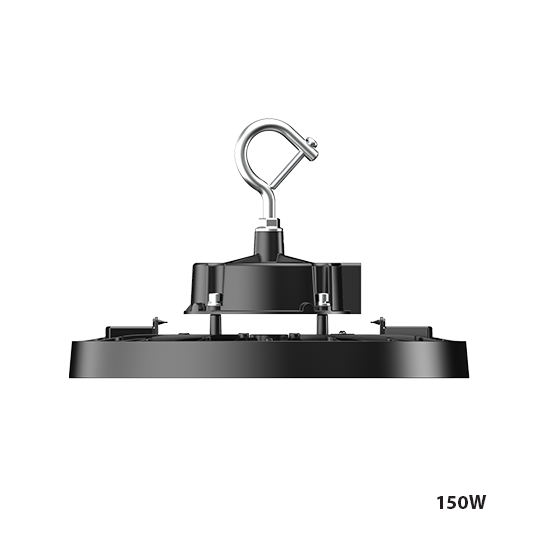

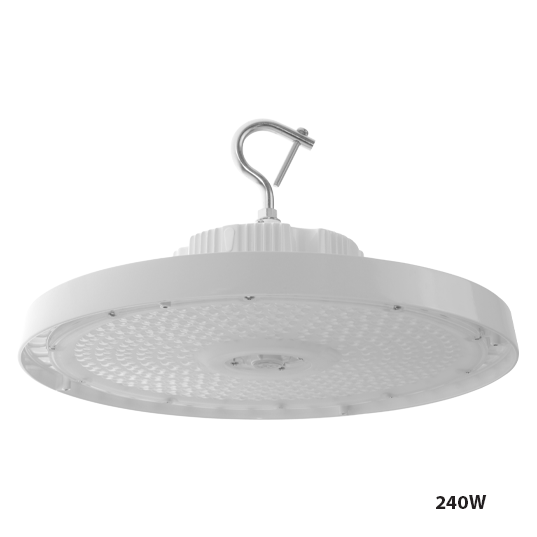

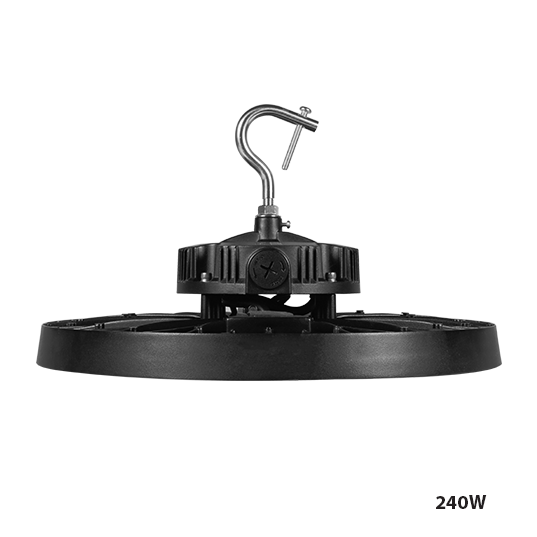

The HBC6 LED Circular Low Bay/High Bay is a leading high-performance lighting solution with selectable wattage, selectable color temperature, selectable beam angle, and wireless control technology. With a sleek and compact form, it offers improved energy efficiency with low-voltage accessory features. The die-cast aluminum housing with integrated heatsink is designed with multiple mounting points for added options and accessories. The HBC6 produces an impressive light output exceeding 135 lumens per watt and excellent color rendering for true clarity. The impact-resistant polycarbonate lens provides consistent light dispersion, while optional reflectors help reduce glare and provide specific light distribution. The HBC6 operates at 120-277V with 0-10V dimming and a 12V accessory wire for standard or smart (NLC) sensors. Add a 40W emergency backup for added safety and security. The HBC6 is the ideal fixture for warehouses, retail stores, gymnasiums, and other large indoor spaces.



Specifications

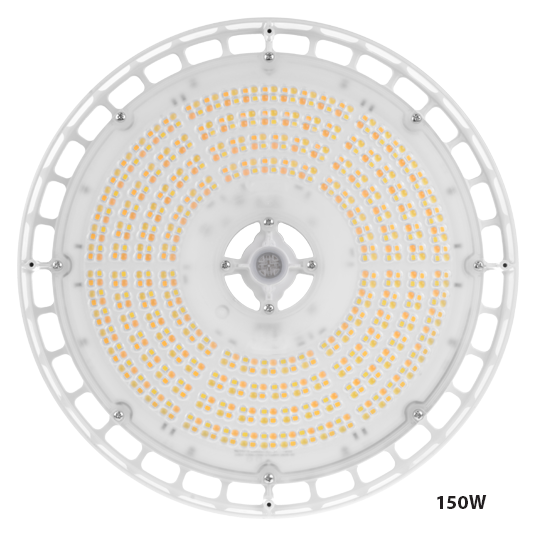

  • High efficiency LEDs with 90° polycarbonate optic
  • 90° polycarbonate reflector available
  • Polycarbonate glare shields available
  • 90° aluminum reflector available

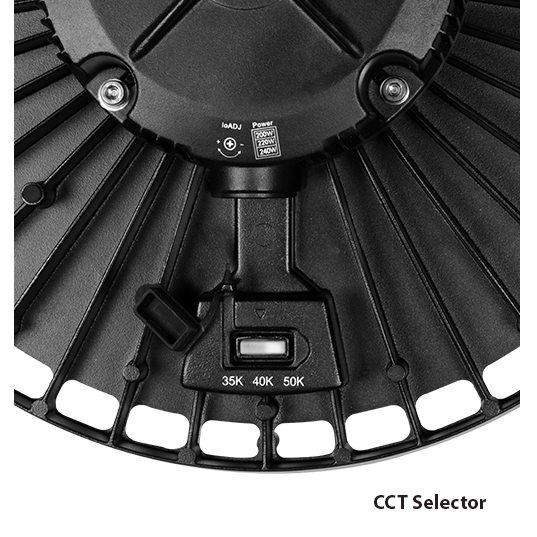

  • Selectable CCT of 3500K/4000K/5000K
  • Selectable beam angle of 60°/80°/100°
  • Standard 80 CRI to improve safety and color definition in public places
  • Input voltage of 120-277VAC
  • Selectable wattage of 100/120/150W or 200/220/240W
  • Power factor: ≥ 0.9, THD ≤20%
  • Luminaire surge protection level: designed to withstand up to 6kV ring wave and 6kV/3kA combination wave per ANSI C82.77-5-2017 requirements for high bay luminaires
  • 6ft power cord and 3ft accessory (0-10VDC dimming & 12VDC output) cord standard
  • Operating temperature range: -40° to 122°F (-40° to 50°C), -22° to 122°F (-30° to 50°C) with sensor installed, 32° to 122°F (0° to 50°C) with EM pack installed
HBC6 150W - 60° Beam Angle
3500K
Warm Neutral
4000K
Neutral
5000K
Cool

13,366/16,039/20,049
Lumens

13,997/16,796/20,995
Lumens

13,419/16,102/20,128
Lumens

100/120/150
Input Watts

100/120/150
Input Watts

100/120/150
Input Watts

135
lm/W

149
lm/W

138
lm/W

83
CRI

83
CRI

83
CRI

Part Number:

 All:HBC6150SUS8
HBC6 240W - 60° Beam Angle
3500K
Warm Neutral
4000K
Neutral
5000K
Cool

28,225/31,048/32,616
Lumens

30,256/33,281/34,962
Lumens

29,135/32,049/33,667
Lumens

200/220/240
Input Watts

200/220/240
Input Watts

200/220/240
Input Watts

140/140/135
lm/W

194/214/233
lm/W

201/221/241
lm/W

83
CRI

83
CRI

83
CRI

Part Number:

 All:HBC6240SUS8
HBC6 150W - 60° Beam Angle
3500K
Warm Neutral
4000K
Neutral
5000K
Cool

13,366/16,039/20,049
Lumens

 13,997/16,796/20,995
Lumens

 13,419/16,102/20,128
Lumens

100/120/150
Input Watts

100/120/150
Input Watts

100/120/150
Input Watts

135
lm/W

149
lm/W

138
lm/W

83
CRI

83
CRI

83
CRI

Part Number:

 All:HBC6150SUS8



HBC6 240W - 60° Beam Angle
3500K
Warm Neutral
4000K
Neutral
5000K
Cool

28,225/31,048/32,616
Lumens

 30,256/33,281/34,962
Lumens

 29,135/32,049/33,667
Lumens

200/220/240
Input Watts

200/220/240
Input Watts

200/220/240
Input Watts

140/140/135
lm/W

194/214/233
lm/W

201/221/241
lm/W

83
CRI

83
CRI

83
CRI

Part Number:

 All:HBC6240SUS8
