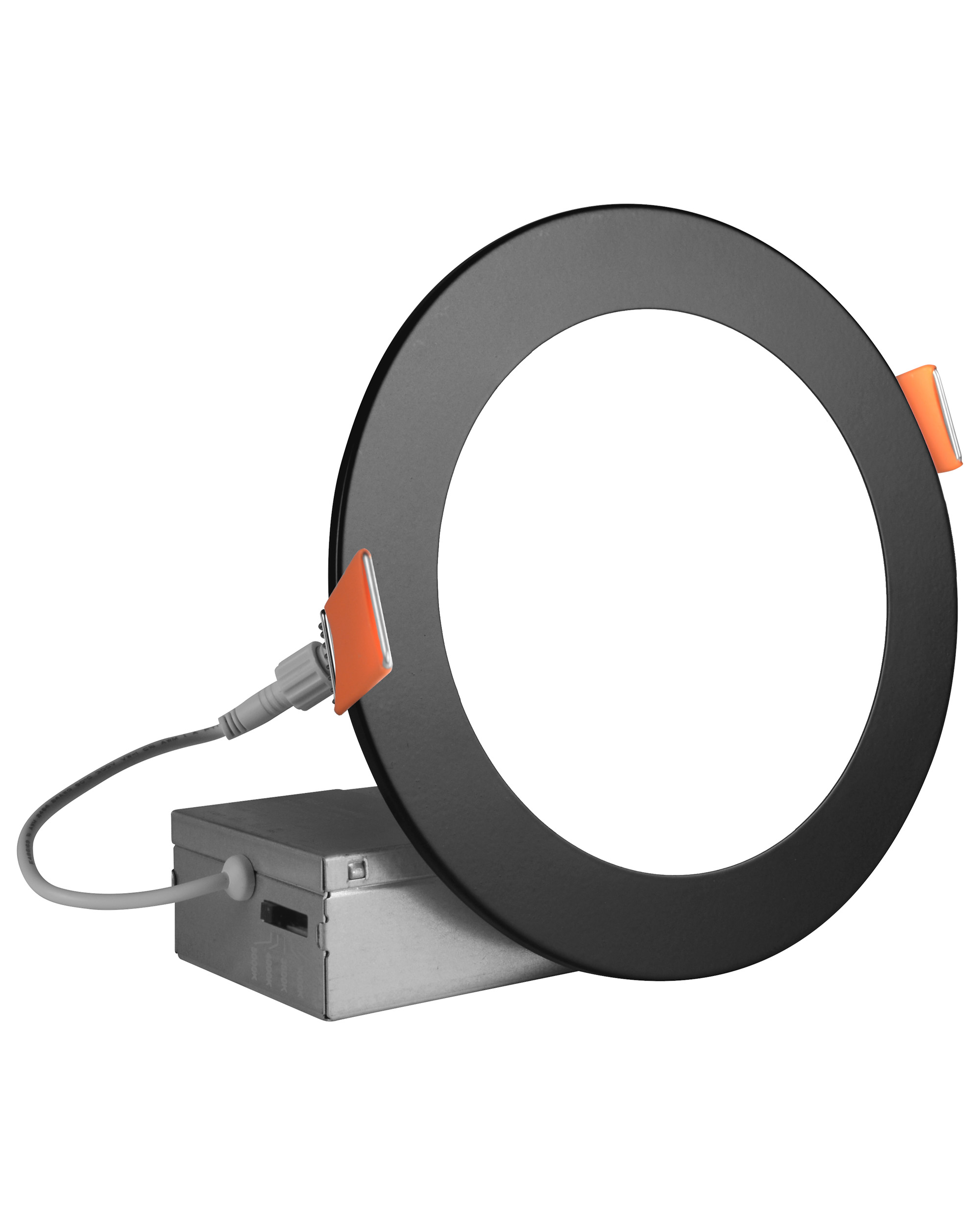

6-inch Black Recessed Selectable LED Wafer (12-Pack)
The IXE 6-inch Canless LED Downlight presents a clean and attractive low-profile design that’s incredibly easy to install. The IXE features Selectable color temperatures at 2700K, 3000K, 3500K, 4000K, and 5000K for true customized lighting in any room. The edge-lit technology provides consistent lig…
The IXE 6-inch Canless LED Downlight presents a clean and attractive low-profile design
that’s incredibly easy to install. The IXE features Selectable color temperatures at 2700K,
3000K, 3500K, 4000K, and 5000K for true customized lighting in any room. The edge-lit

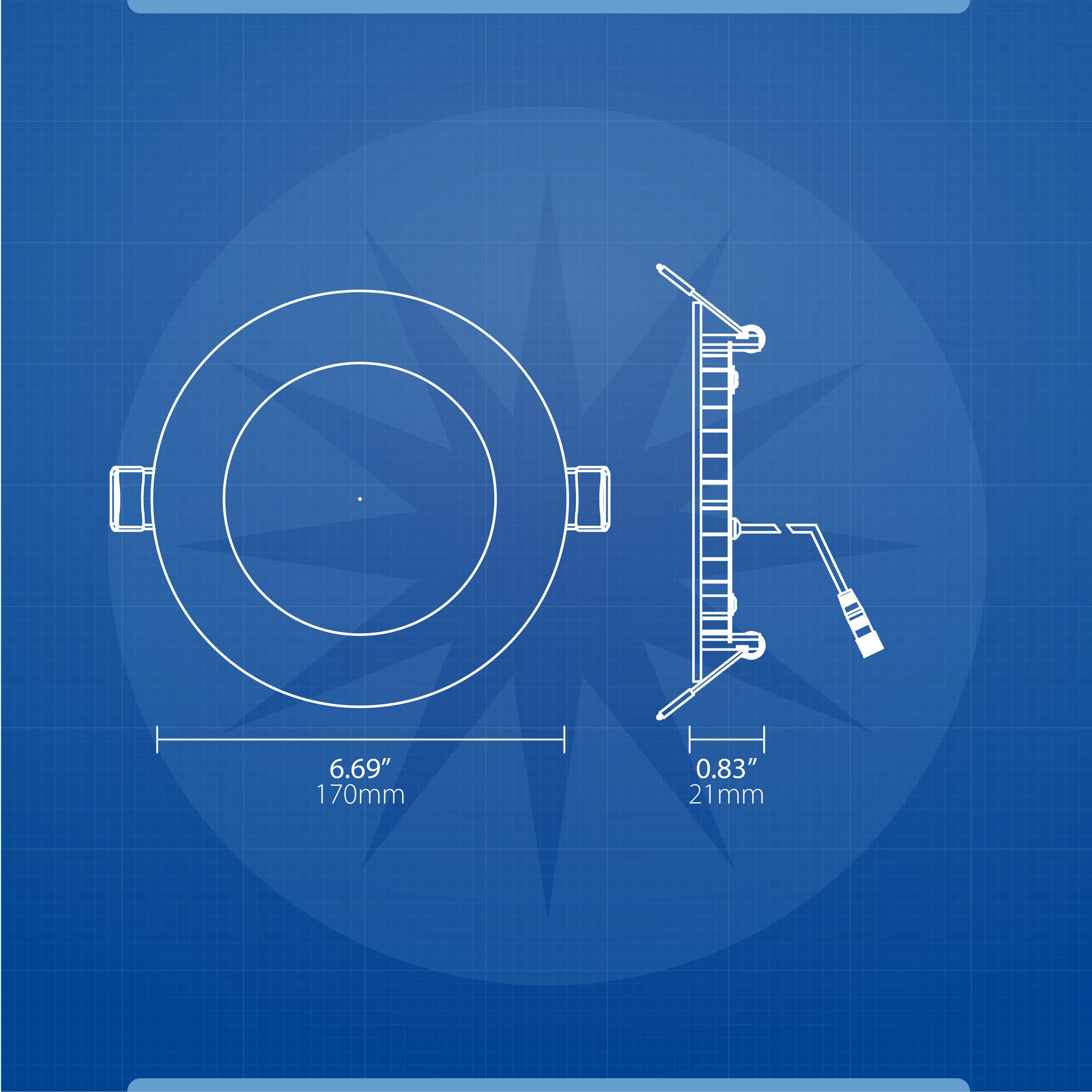

technology provides consistent lighting with an extremely thin fixture depth at just 0.38”.

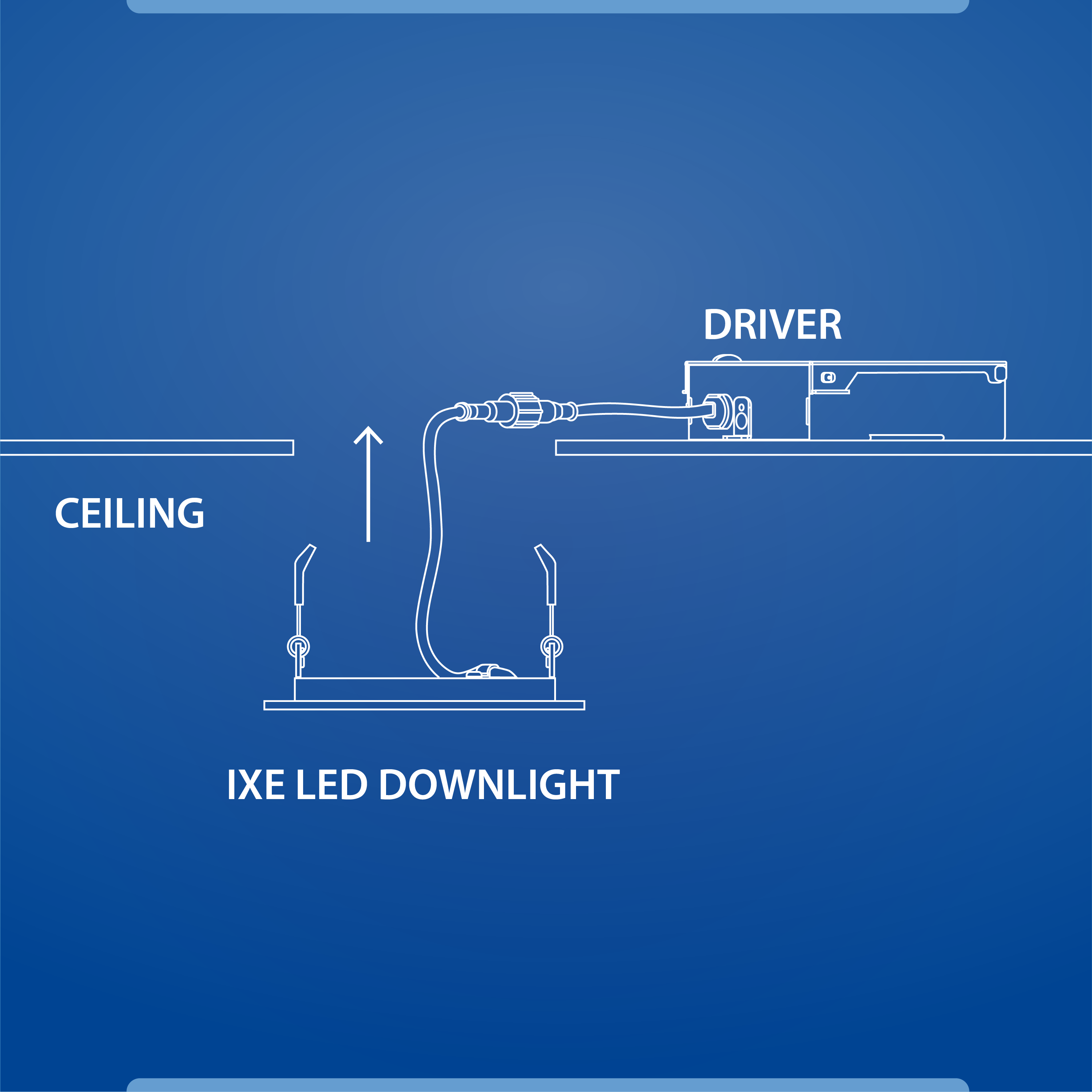

The separate, off-board driver/junction box and spring-loaded retention tabs allow faster
and easier installation eliminating the need for a recessed housing. A plenum-rated cable links the downlight to the remote driver, keeping heat away from vital components for an increased product lifespan. The IXE is Insulation Contact rated (IC-rated), Airtight, Wet-Location rated, and protected by NICOR’s 5-Year Limited Warranty. Available in 12-packs, delivered ready to install and use right out of the box. No other parts or components required.
- Cast-aluminum housing helps direct heat away from electrical components
- Edge-lit technology provides consistent lighting with an extremely thin fixture depth
- Adjustable, spring-loaded retention tabs help keep the product secured in place
- Features an off-board driver/junction box to minimize installation height while maximizing the life of the fixture through optimal heat management
- Polystyrene diffuser helps reduce glare without sacrificing lumen output
Downloads

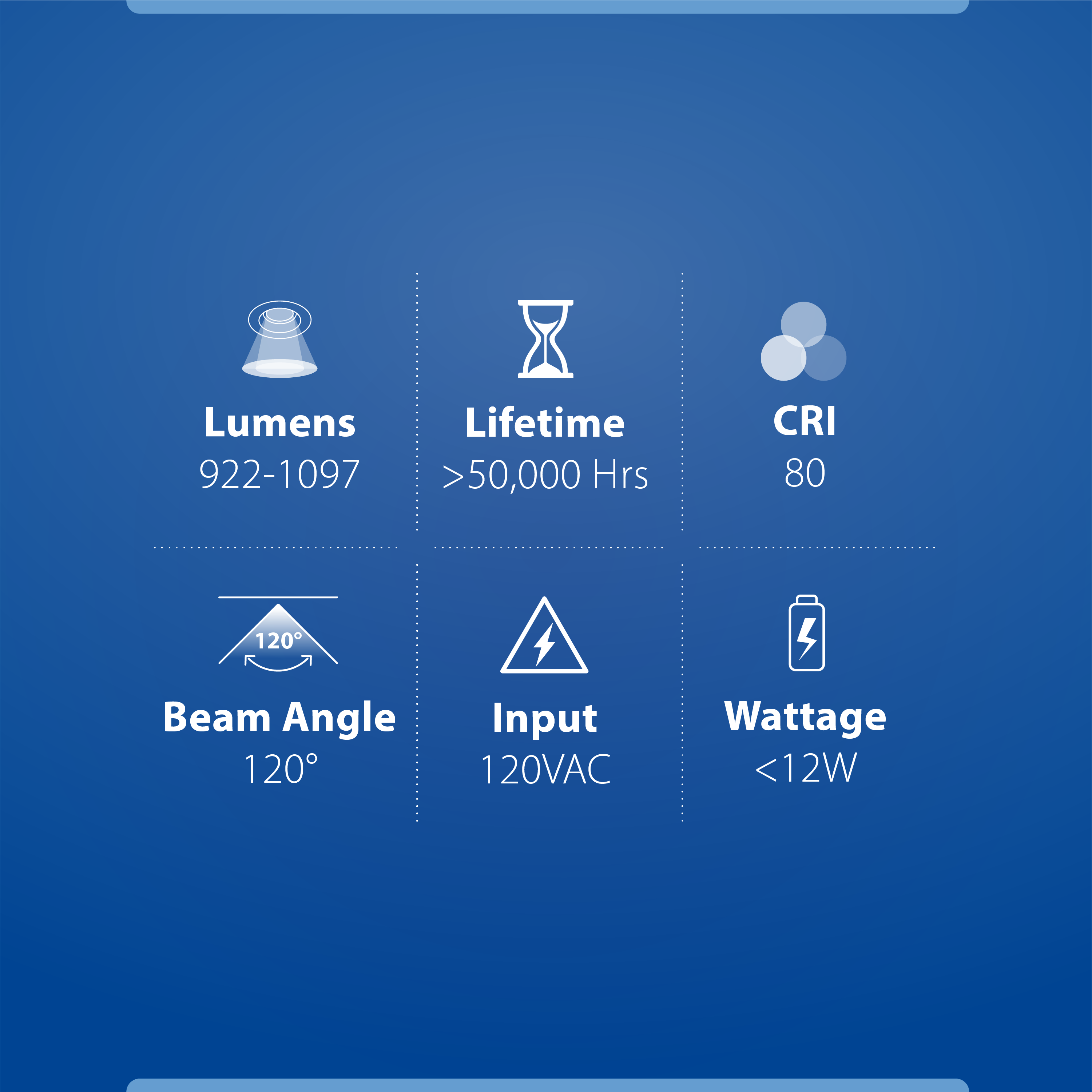

Specifications
-
Lifespan>50,000 -
Lumens922 - 1097 lm
-
Wattage11.4 - 11.8 W
Listings & certifications
- cETLus Intertek Listed
- IC-Rated
- Airtight (ASTM E283)
- FCC Class B
- Wet-Location (ETL 1598)
- LM-79 and LM-80 testing performed in accordance with IESNA standards
- Meets FCC Part 15, Subpart B, Class B standards for conducted and radiated emissions
Features
Construction
- Cast-aluminum housing helps direct heat away from electrical components
- Edge-lit technology provides consistent lighting with an extremely thin fixture depth
- Adjustable, spring-loaded retention tabs help keep the product secured in place
- Features an off-board driver/junction box to minimize installation height while maximizing the life of the fixture through optimal heat management
Optical System
- Polystyrene diffuser helps reduce glare without sacrificing lumen output
- Precision-engineered optical stack creates consistent light distribution and
- Beam angle: 120°
- Features high-performance LEDs with 80 CRI for true color definition
- 5 Selectable color temperatures (2700K, 3000K, 3500K, 4000K, and 5000K)
Electrical
- Input voltage of 120VAC (60Hz)
- Power factor: >0.9
- CCT selector switch located on driver/junction box
- Dimmable to 10% with compatible TRIAC dimmers (see spec-sheet for recommended dimmers)
- Operating temperature range: -4°F to 113°F (-20°C to 45°C)
Installations
- Canless design eliminates the need for recessed housing
- Spring-loaded retention tabs secure the fixture in ceilings up to 1” thick

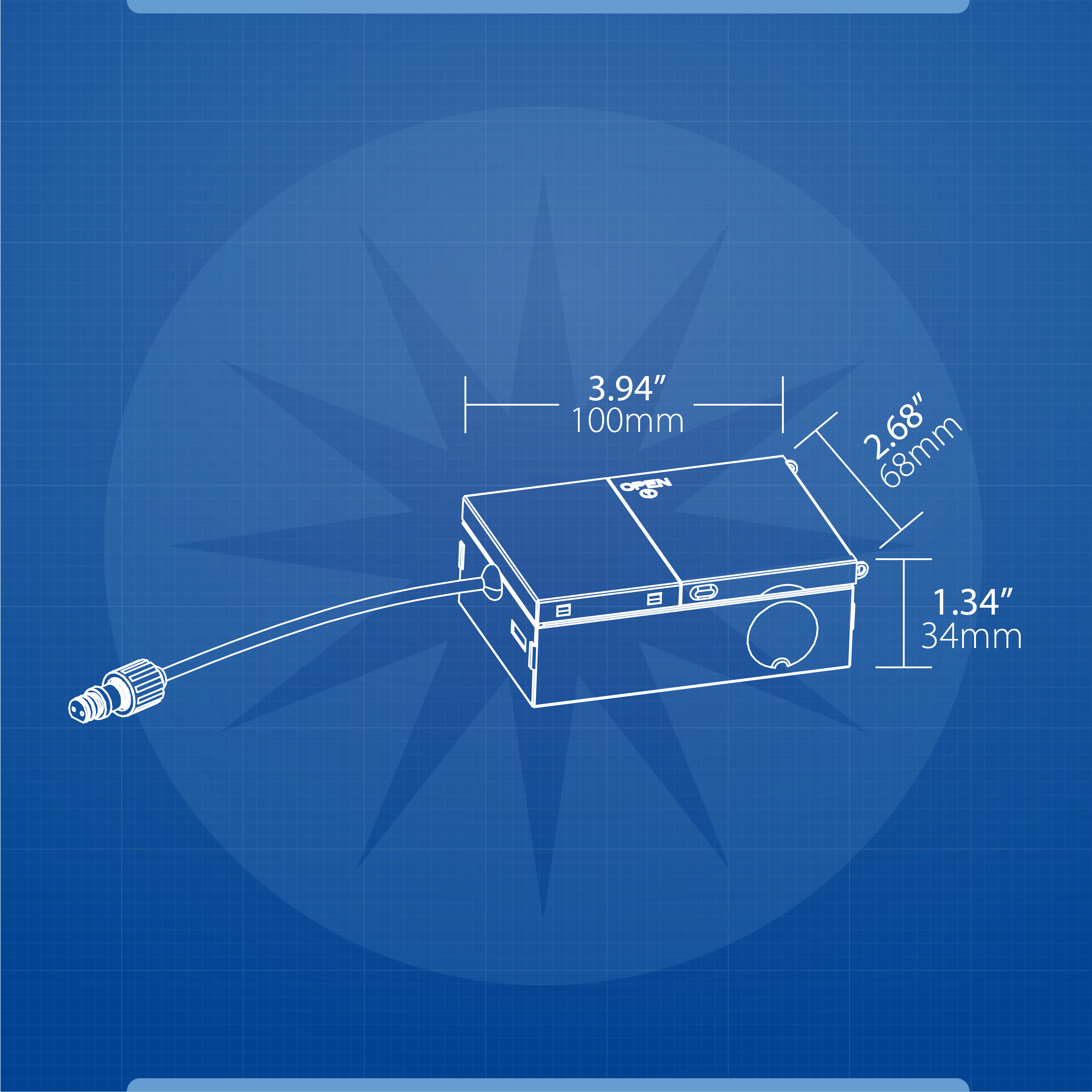

- Off-board driver/junction box includes three 1/2” knockouts
- Three 4-port push-in connectors provided for easy wiring
- 6.30” diameter cut-out template included
- Accessory metal rough-in template and frames available
- Accessory extension power cables (2FT & 10FT) available
- For installations where power surge may be possible, NICOR recommends installing additional surge protection at the electrical distribution panel
Full Listings
- ETL Intertek Listed
- Wet-location rated, suitable for areas with high moisture/humidity
- Certified for direct contact with insulation (IC-Rated)
- Meets ASTM E283 AirTight requirements
- Meets FCC Part 15, Subpart B, Class B standards for conducted and radiated emissions
- LED lumen maintenance: L70(9k)>50,000 hours
- LM-79, LM-80 testing performed in accordance with IESNA standards
Warranty
- 5-year limited system warranty standard
- Warranty does not cover product failure due to an overvoltage event (power surge)
