MULTIFRAME-346 Series
Multi-Diameter Recessed Mounting Frame
Product description

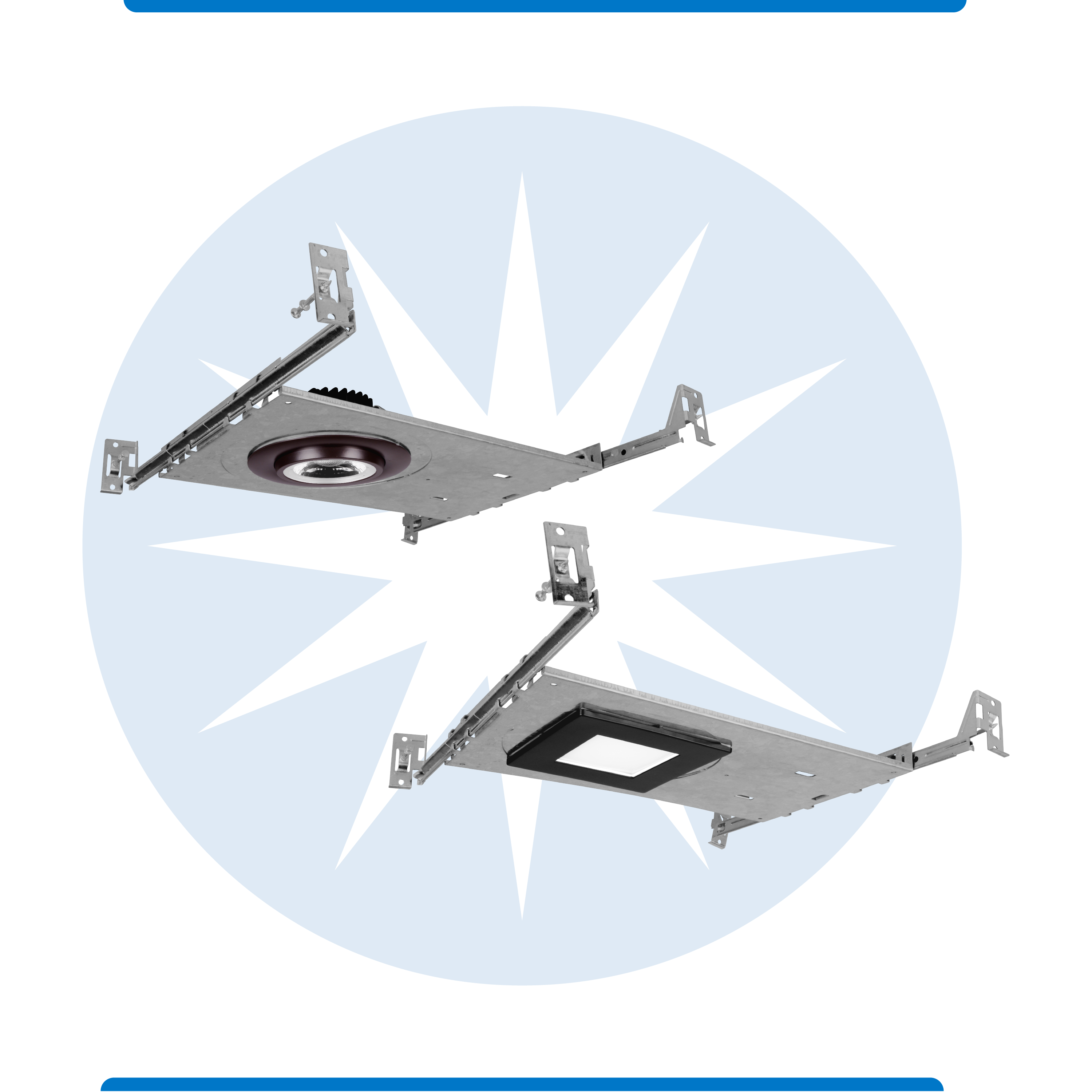

The Multiframe can be used with many of NICOR’s 3”, 4” and 6” LED downlights with remote drivers. Providing a mounting location as well as a wiring location indicator, the Multiframe can simplify the installation of downlights that don’t require a housing.

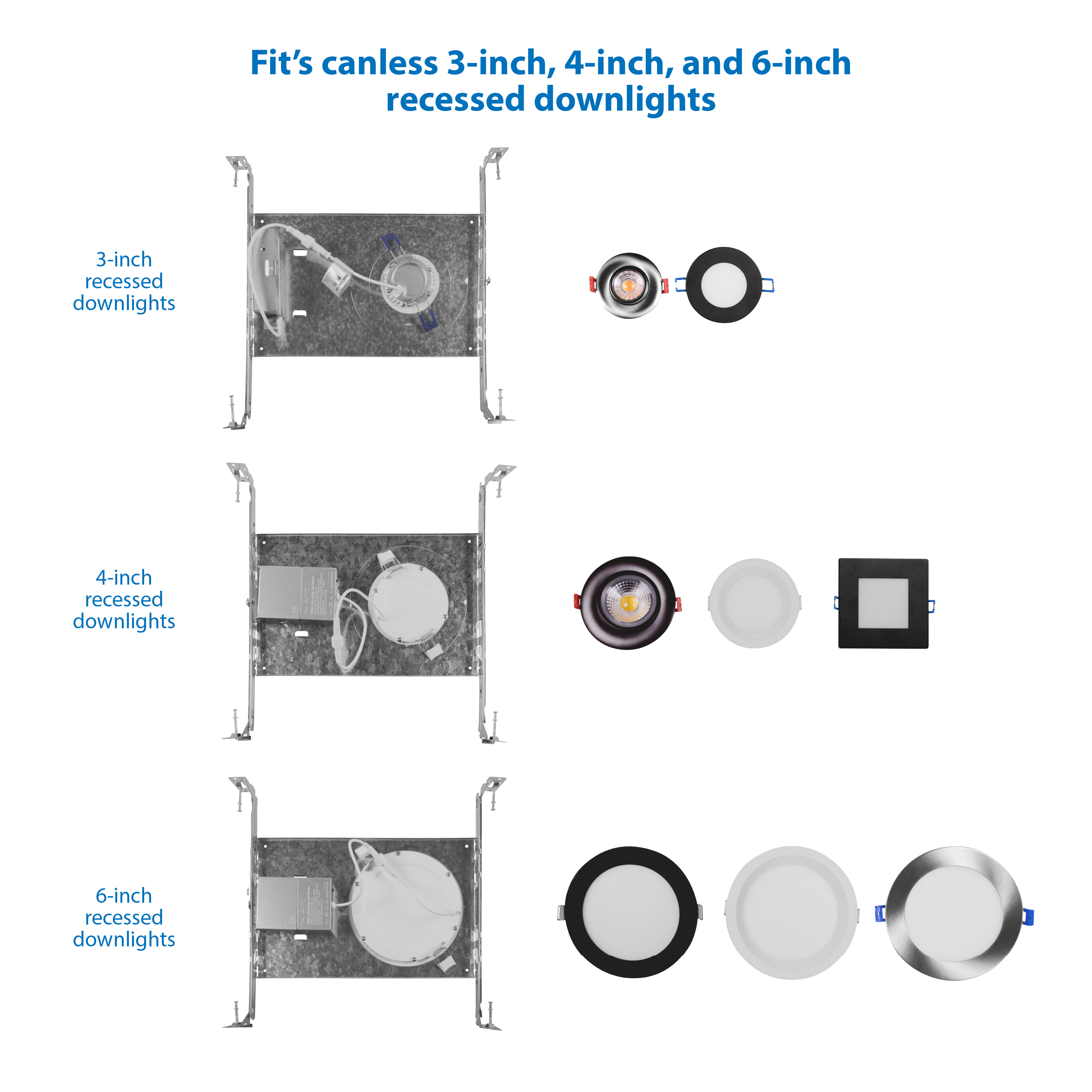

- Compatible with NICOR 3”, 4”, and 6” LED downlights with remote drivers
- Provides mounting location and wiring indicator for easy installation
- Durable single-piece 22ga steel plaster frame

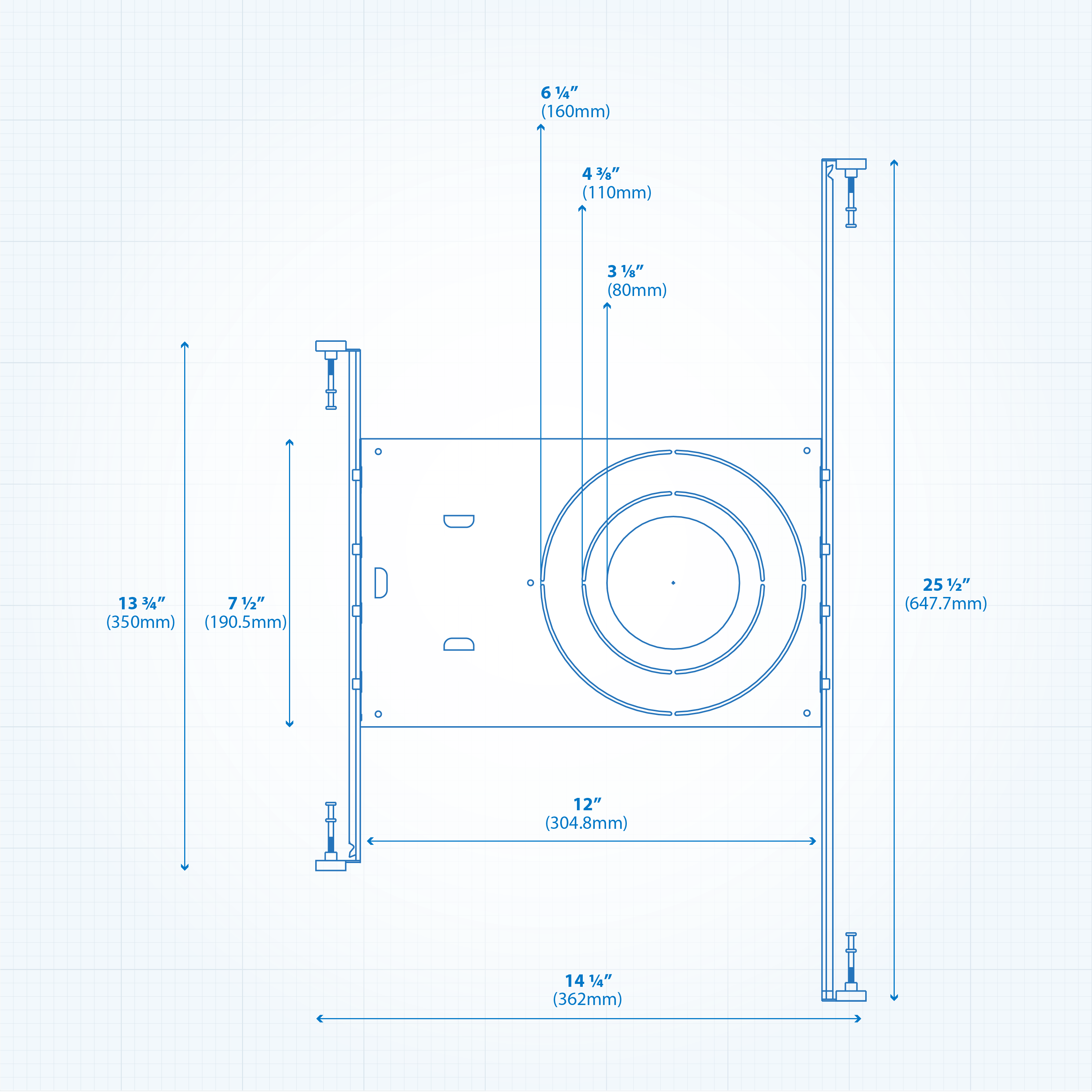

- Two adjustable pre-scored hanger bars (13.75”–25.5”) with captive nails
- Hanger bars lock with set screws; T-Bar notch for suspended ceilings
- Includes double-sided tape for driver; 1-year warranty
Color Options:
Ordering information
Downloads
Specifications
Features
Construction

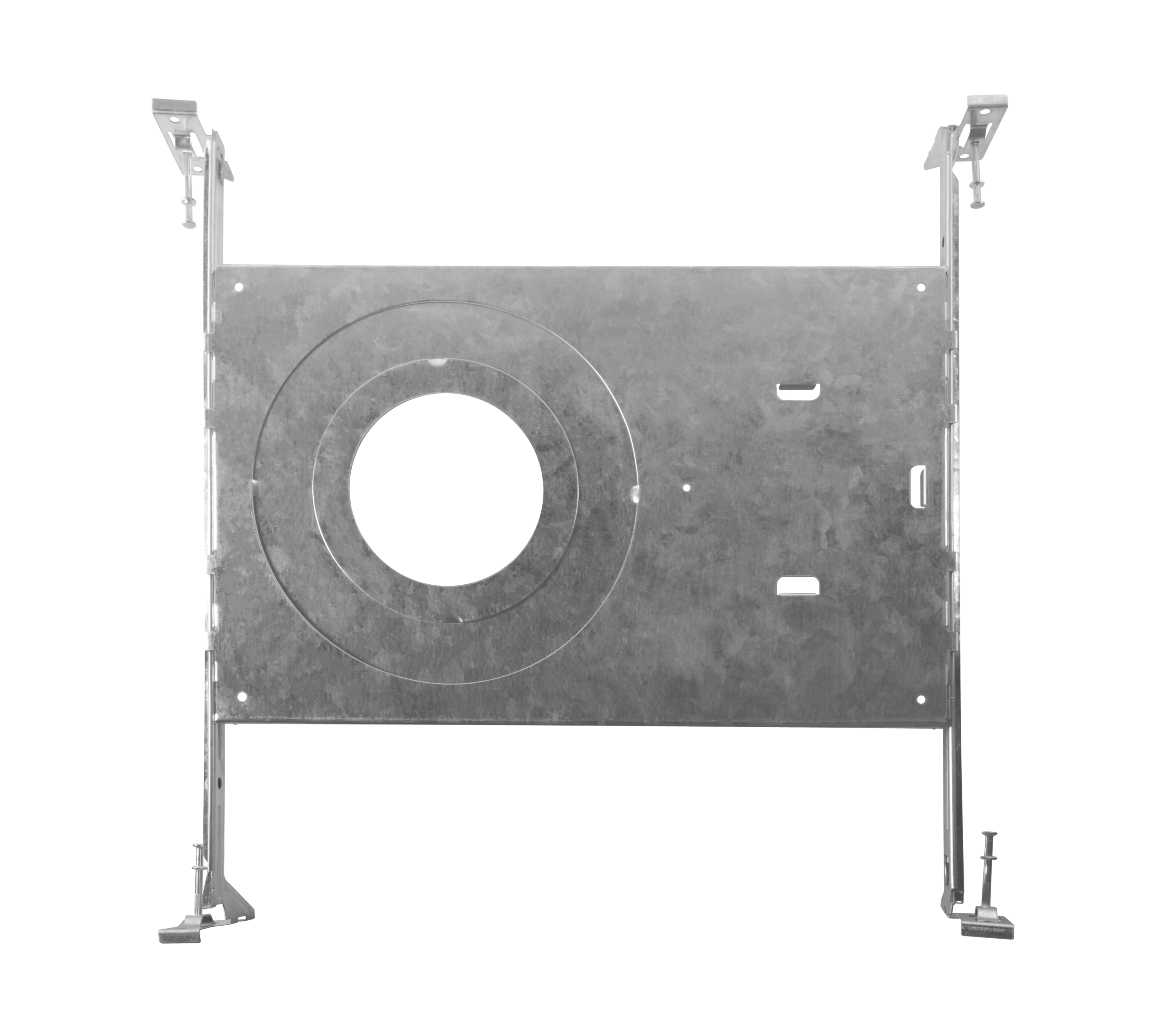

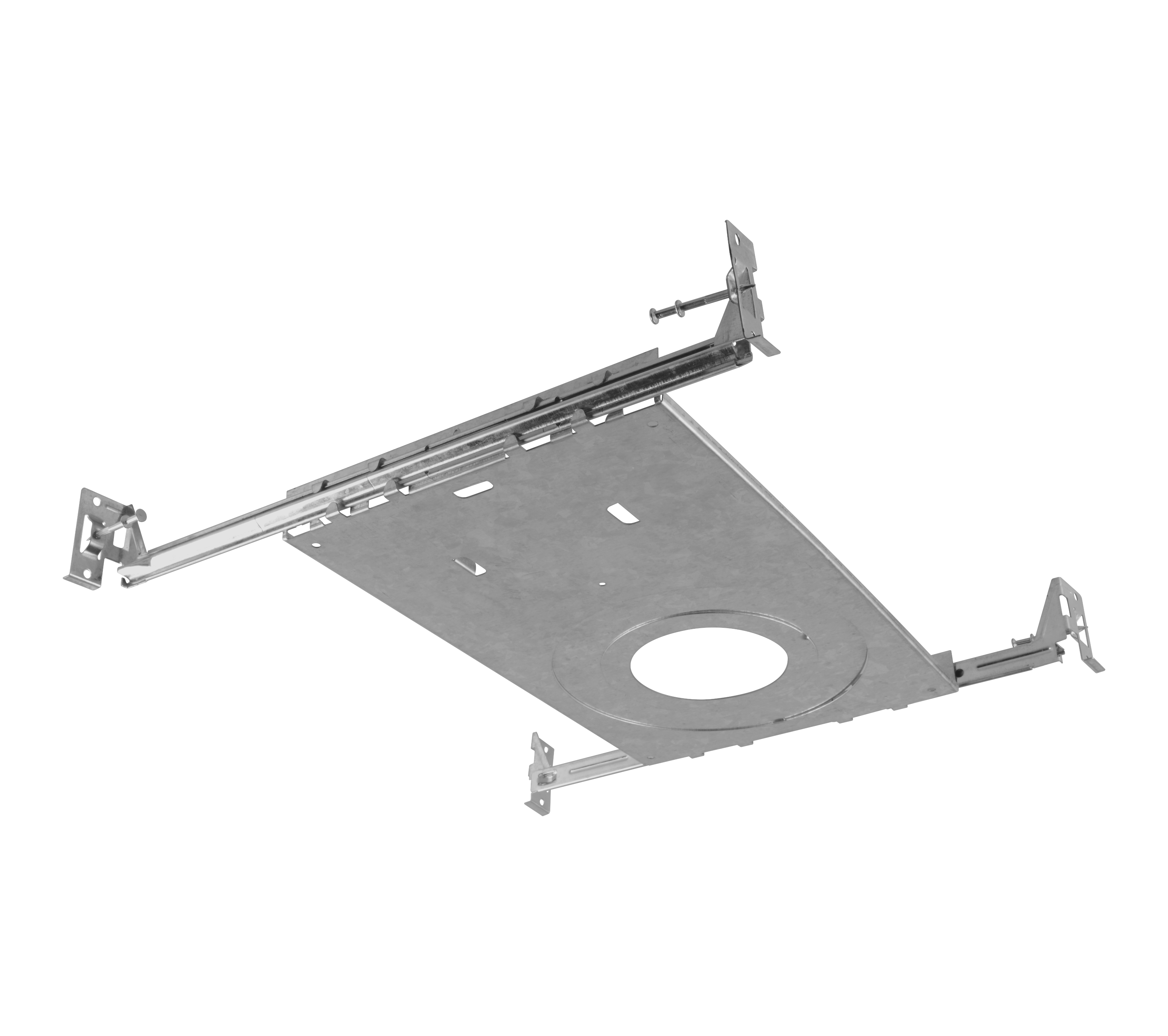

- Single piece stamped 22ga steel frame
- Integrated hanger bar attachment features
Installations

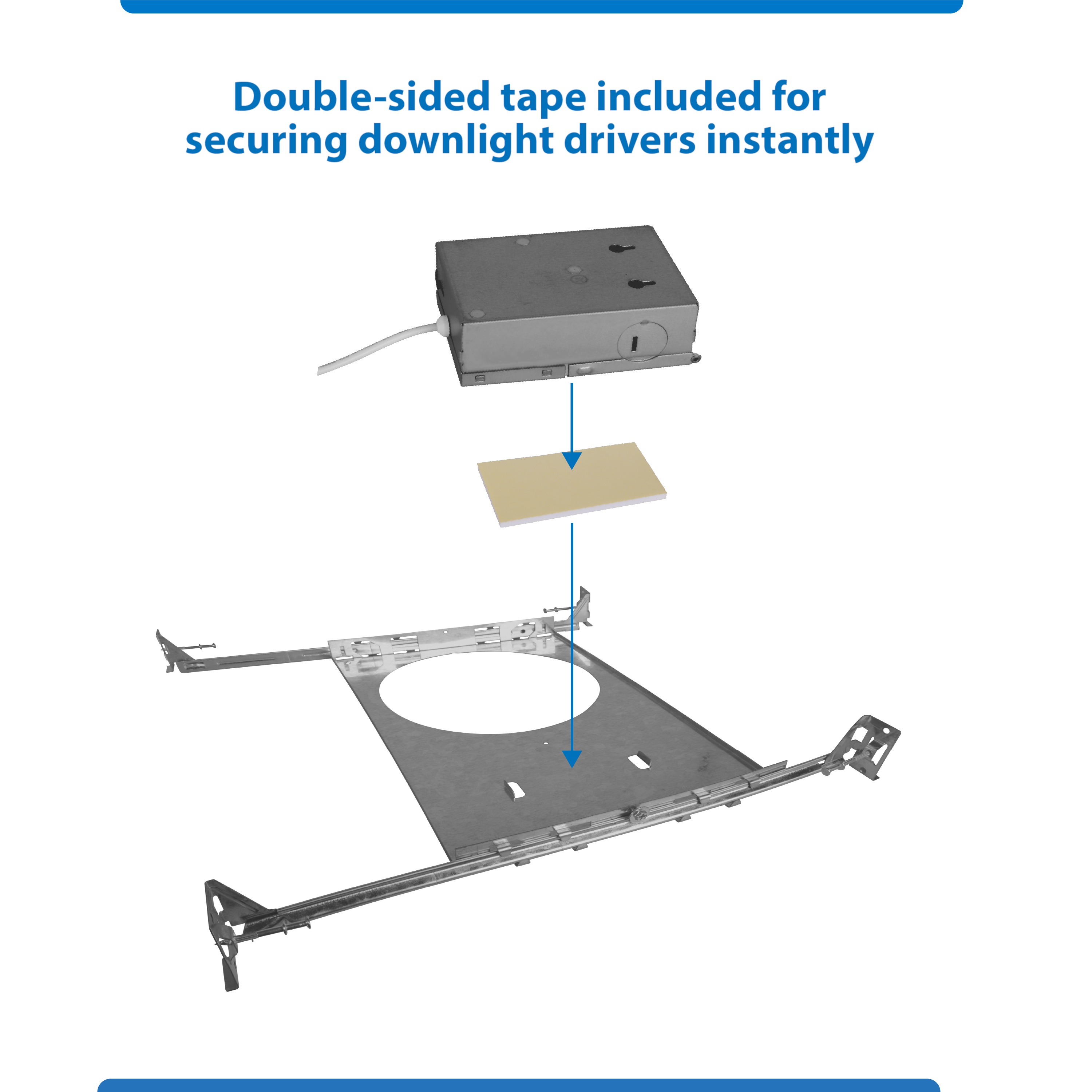

- Double-sided tape for fixture driver mounting is included

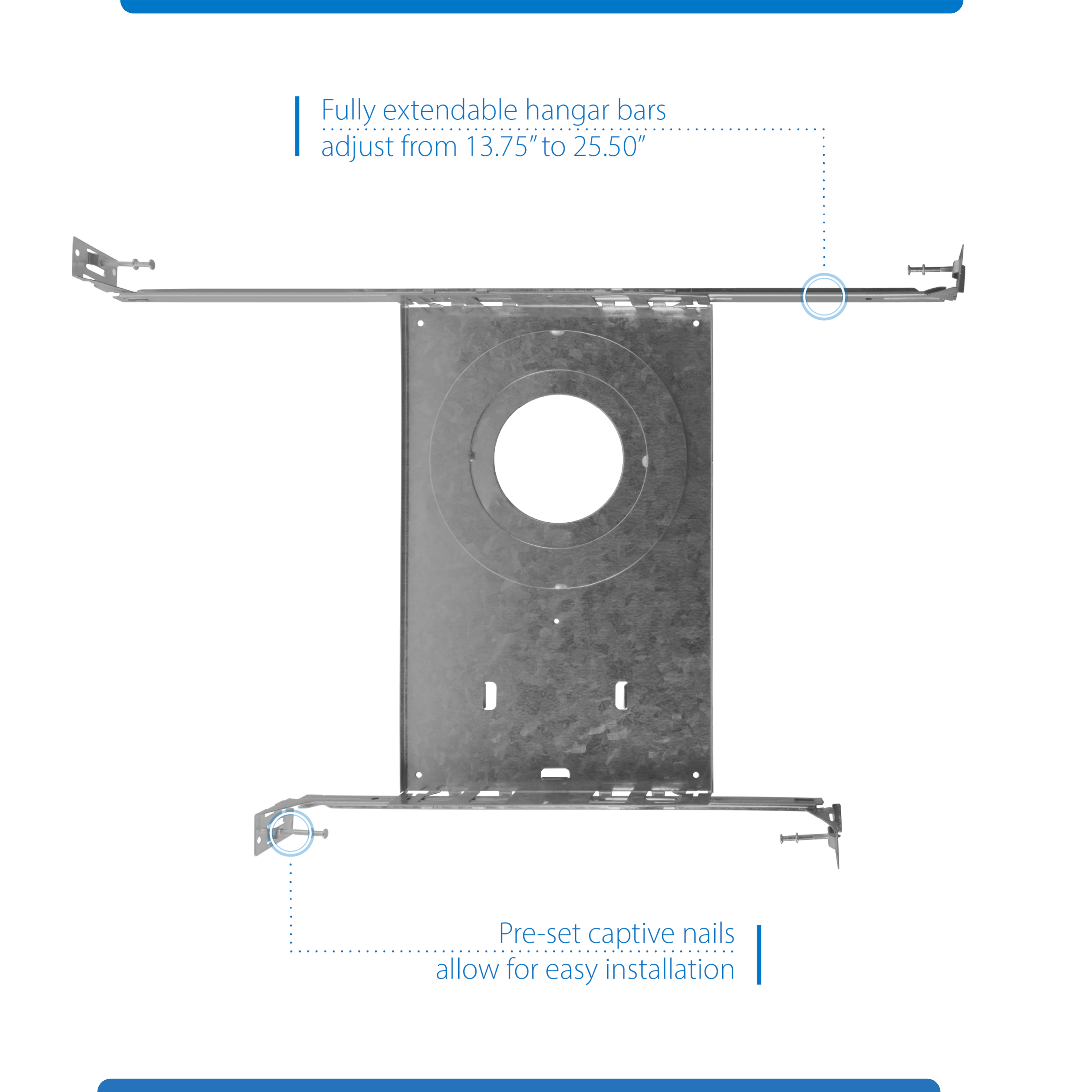

- Two fully adjustable, pre-scored hangar bars (13.75” - 25.5”) with captive nails included on frame
- Bars can be locked into place after adjustment with preinstalled set screw

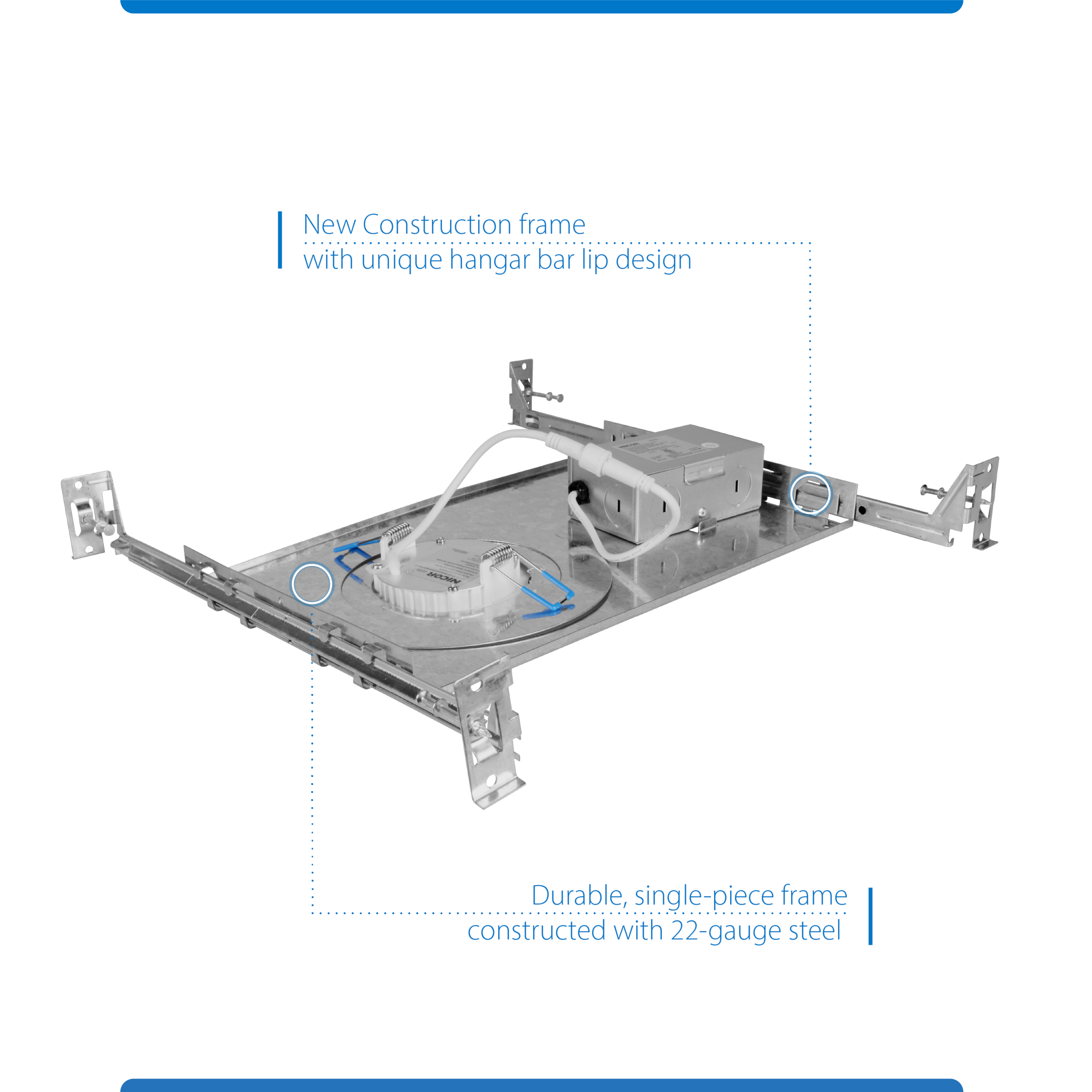

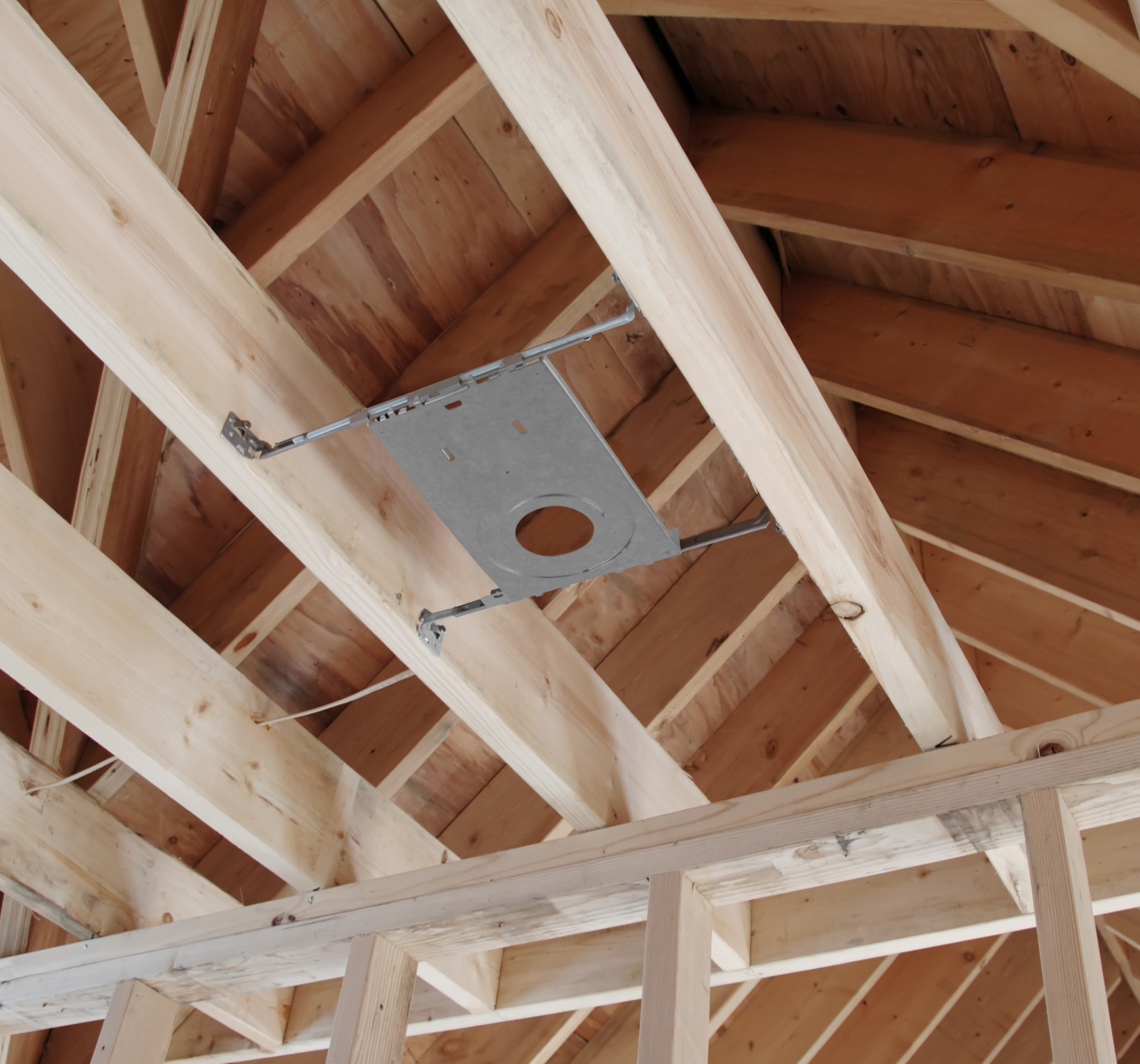

- Unique hanger bar lip design helps align frame to bottom of joist and T-Bar notch allow for installation into suspended ceilings
Warranty
- 1-year warranty standard
