ROUGHIN-FRAME Series

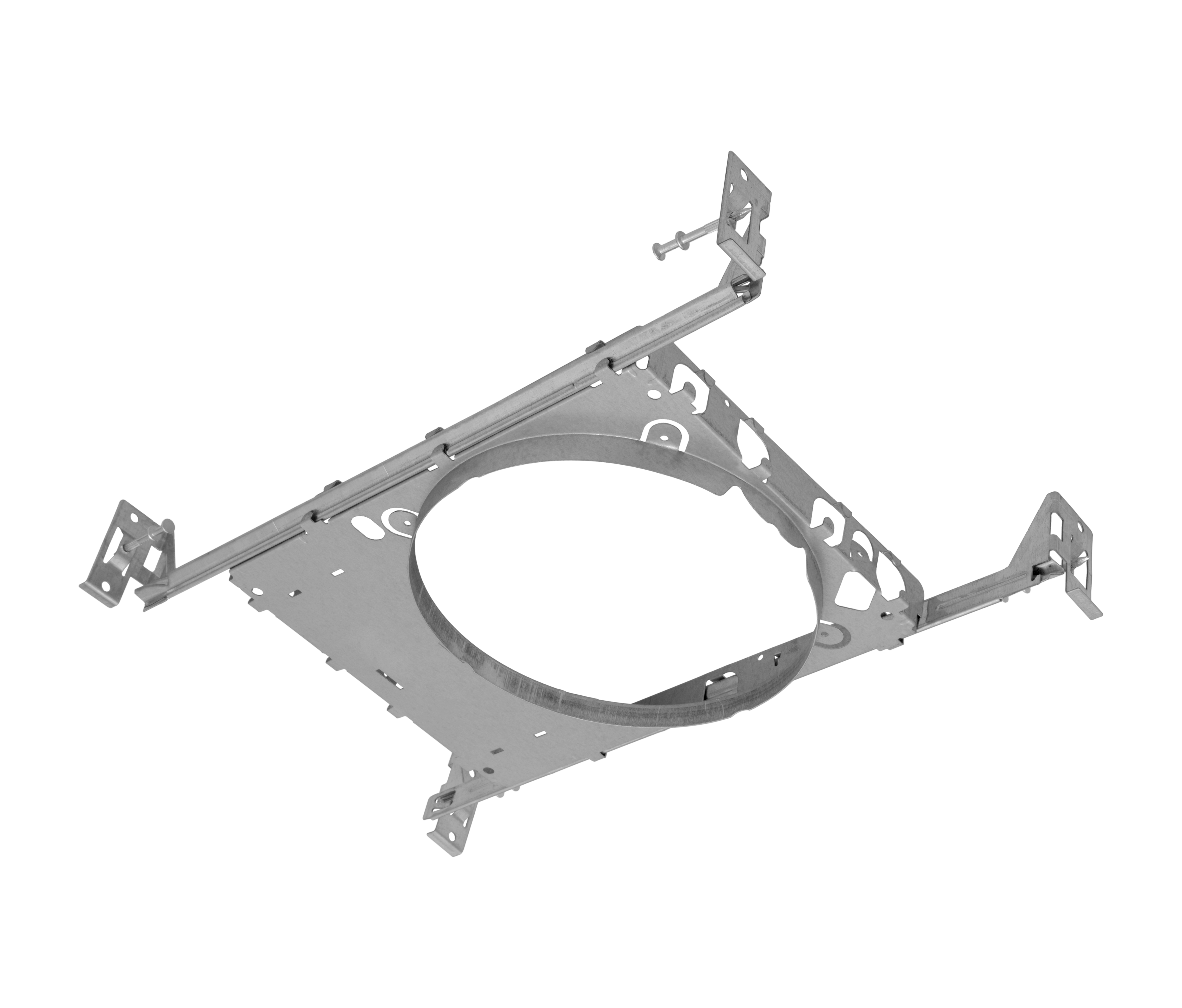

6-inch Round Rough-in Mounting Frame
Product description
The DLE6-ROUGHIN-FRAME is designed to aid in installation of the DLE6 Downlight by providing a clear location for wire pull and to act as a cutting template after ceiling finish. It is suitable for use in residential and commercial applications.
- Heavy-gauge NICOR captive hanger bars can be extended to 24” and locked in place
- Unique hanger bar lip design helps align frame to joist
- Four double-headed captive nails provide for ease of installation
- Bars can be repositioned 90° on plaster frame by repositioning hanger bar brackets
- Bars fit onto T-bar spine for quick alignment and can be permanently secured
Color Options:
Ordering information
Downloads
Specifications
Features
Construction
- Galvanized steel frame
- Heavy-gauge NICOR captive hanger bars provide greater stability, allowing housing to be positioned at any point within a 24” joist span, then locked in place with set screws
- Unique hanger bar lip design helps align frame to joist
- Four double-headed captive nails provide for ease of installation
- Bars can be repositioned 90° on plaster frame by repositioning hanger bar brackets
- Bars fit onto T-bar spine for quick alignment and can be permanently secured
- Score lines allow bars to be shortened without tools to accommodate a 12” joist span
