LSA Series Architectural LED Direct/Indirect Linear
The NICOR LSA is a sleek, high-performance lighting solution designed to elevate modern commercial and architectural spaces. Engineered for both individual fixtures and continuous-run configurations, the LSA delivers an exceptional 160+ lumens per watt while maintaining an elegant, minimalist form f…
The NICOR LSA is a sleek, high-performance lighting solution designed to elevate modern commercial and architectural spaces. Engineered for both individual fixtures and continuous-run configurations, the LSA delivers an exceptional 160+ lumens per watt while maintaining an elegant, minimalist form factor. Offered in multiple lengths, controls options, lumen outputs and color options, the LSA can be tailored to meet the exact specifications needed. With 90% direct and 10% indirect illumination, the LSA provides balanced, visually comfortable lighting ideal for offices, corridors, educational, and retail environments.
- Architectural direct/indirect linear fixture delivers over 160Lm/W for high-performance commercial lighting
- Balanced 90% direct / 10% indirect light distribution provides comfortable, low-glare illumination
- Available in 4Ft, 6Ft, and 8Ft lengths with multiple lumen packages, CCTs, CRIs, and finish options
- Supports surface, pendant, cable, and continuous-run mounting configurations for design flexibility
- Compatible with 0–10V or DALI controls, PIR/microwave sensors, and emergency battery backup options
Color Options:
Ordering information
Accessories
- LSALSELSQ1PENDANT
- LSALSELSQ1PENDANTPF
- LSA-1-CR-CLIP
- LSA-1-ENDCAPKIT
- LSA-1-CABLE
- LSA-1-CABLE-PF
- LSA-1-SURFACE-PF
Downloads
Specifications
-
Lifespan>54,000
Listings & certifications
- UL Certified
- UL EPD Certified
- UL 8750 (LED Safety)
- FCC Class A
- RoHS Compliant
- Damp-Location (UL 1598)
- USGBC LEED v4/v4.1
- Meets v4 Indoor Environmental Quality (IEQ) Option 1 : Lighting Control requirements
- Meets v4.1 IEQ Option 2 : CRI =>90 CRI requirement
- Meets v4/v4.1 Material Requirements (MR) Environmental Product Delcaration (EPD) Product Specific Type III requirements
- EPD (Environmental Product Declaration)
- UL Environmental Product Declaration Certified per ISO 14025:2006 and ISO 21930:2017
- LM-79 and LM-80 testing performed in accordance with IESNA standards
Features
Construction
- Extruded aluminum housing for superior thermal management
- Solid endcaps standard, End wiring endcaps available

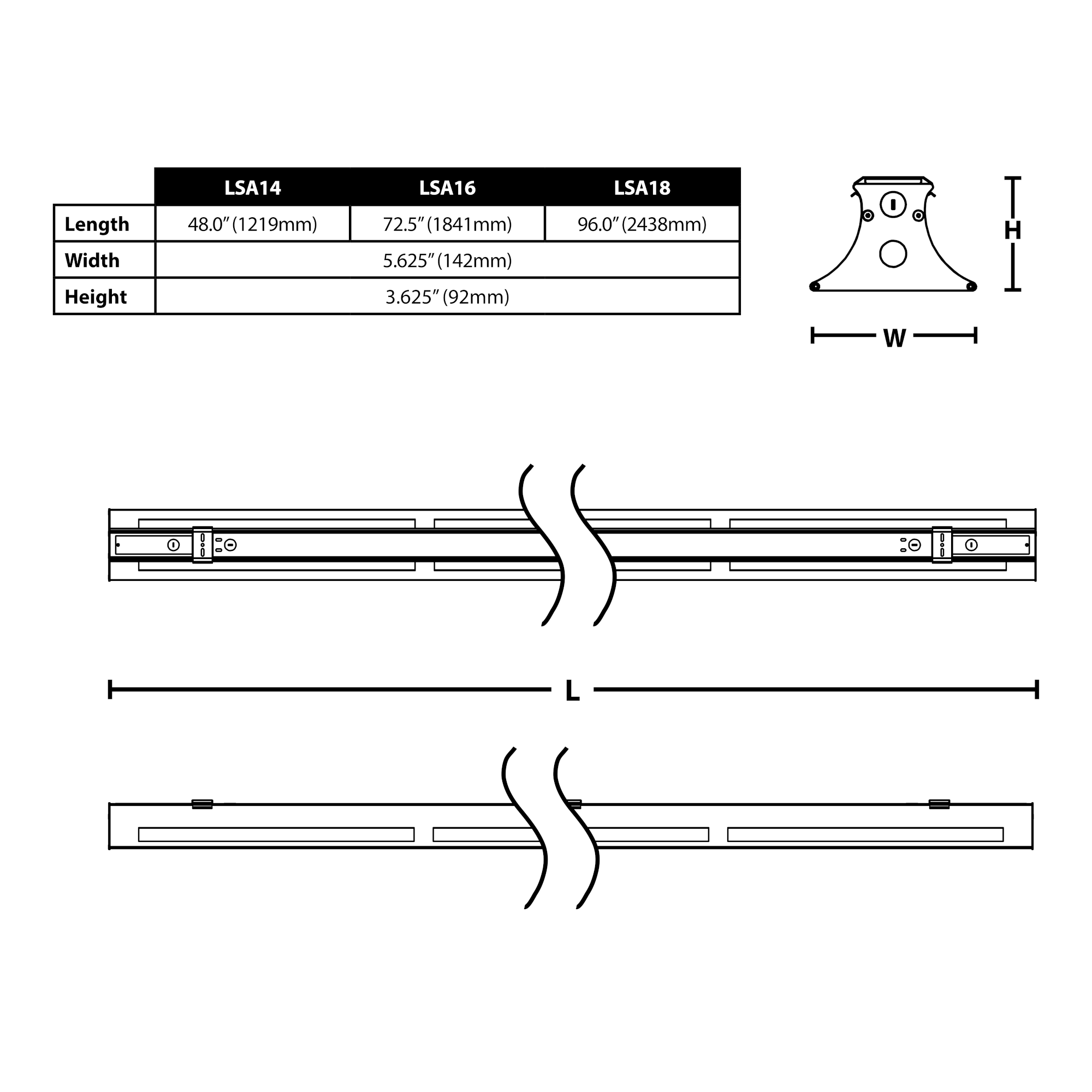

- 4 foot, 6 foot and 8 foot lengths
- White powder coat finish standard
- Available in White, Silver, Black or Custom finish options
Optical System
- Highly reflective optical chamber and diffused polycarbonate lens provides wide light distribution
- Multiple window side light with single piece diffuser for indirect distribution
- Fixture design provides 90% direct / 10% indirect light output
- 80CRI and 90CRI options available
Electrical
- Input voltage of 120-277VAC
- Power factor > 0.9
- THD < 10%
- Optional emergency battery backup
- For installations where higher power surge may be possible, NICOR recommends installing additional surge protection at the electrical distribution panels
- Operating Temperature of 32° to 122°F (0°C to 50°C)
Installations
- Wiring input options of top or end access

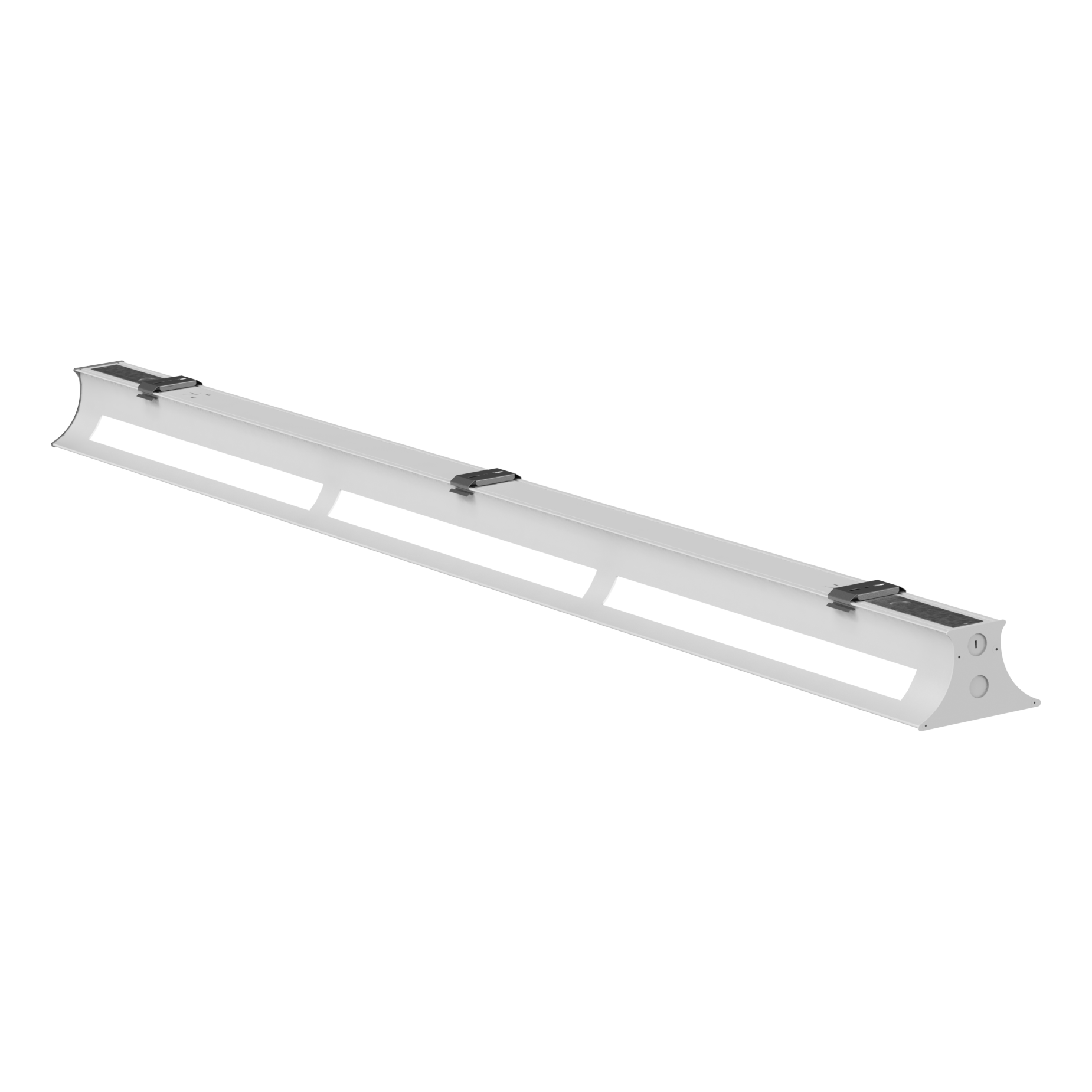

- Snap-in clips provided for quick surface mount installation
- Optional Pendant Mount kit available
- Optional Aircraft Cable Mount kit available
Full Listings
- cULus1598 Listed for damp locations
- cULus 8750 Listed LEDs
- RoHS Compliant
- Meets FCC Part 15, Subpart B, Class A standards for conducted and radiated emissions
- TM-21 Reported L70(9K) life >54,000 hours, L90(9K) life = 53,650 hours
- LM-79, LM-80 testing performed in accordance with IESNA standards
- USGBC LEED v4/v4.1
- Meets v4 Indoor Environmental Quality (IEQ) Option 1 : Lighting Control requirements
- Meets v4.1 IEQ Option 2 : CRI =>90 CRI requirement
- Meets v4/v4.1 Material Requirements (MR) Environmental Product Delcaration (EPD) Product Specific Type III requirements
- EPD (Environmental Product Declaration)
- UL Environmental Product Declaration Certified per ISO 14025:2006 and ISO 21930:2017
Warranty
- 5-year limited system warranty standard
- Warranty does not cover product failure due to an overvoltage event (power surge)
