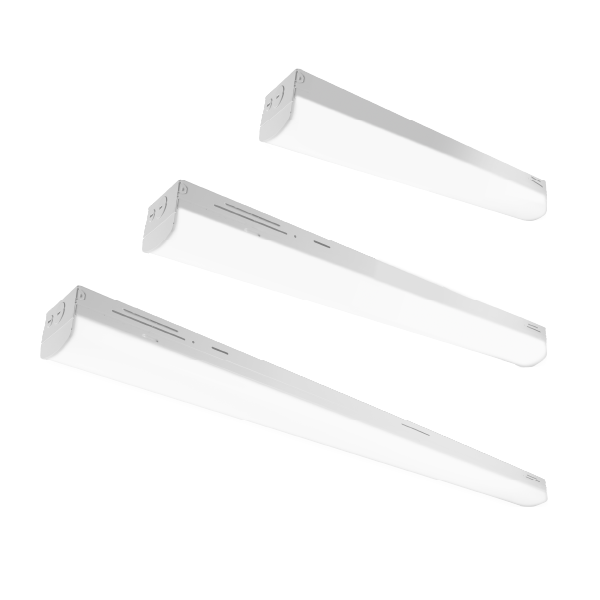

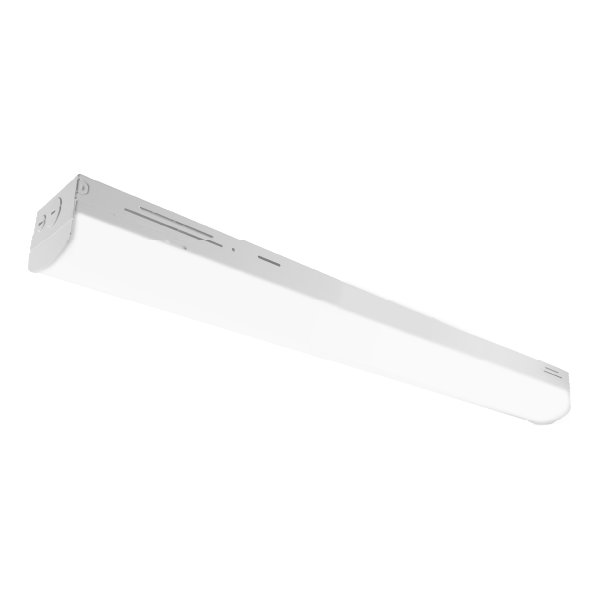

Selectable LED Linear Strip
The LSL LED Linear Strip offers selectable light output and CCT, delivering optimal performance and long life in a slim design ideal for general ambient lighting in retail, warehouse, residential utility, and light commercial or industrial applications. This versatile fixture is easy to surface moun…
The LSL LED Linear Strip offers selectable light output and CCT, delivering optimal performance and long life in a slim design ideal for general ambient lighting in retail, warehouse, residential utility, and light commercial or industrial applications. This versatile fixture is easy to surface mount on both ceilings and walls and can accommodate end-toend runs. The LSL features a toolless access lens module that is easily removed from the back channel for simple installation. The lens features a semi-circular, milky-white lens that offers a more polished aesthetic while eliminating hotspots, and is an economical, energy efficient lighting alternative to single- lamp fluorescent strips and some wraparound fixtures. For even greater energy savings, optional controls, including factory-installed microwave occupancy sensors are available.
- Three selectable color temperatures(3000K/4000K/5000K)
- Three selectable wattage settings (Low/Med/High)
- Uniform, glare-free illumination with semi-circular milky-white diffuser
- Durable 20-gauge steel housing with long 150,000-hour rated life
- Easy surface, wall, or pendant mount with toolless access lens module
- Cover plates provided for 4/O box surface installation
- 0–10V dimming and optional microwave occupancy sensor
Color Options:
Ordering information
Downloads
Specifications
-
Lifespan>150,000
Listings & certifications
- UL Certified
- DLC 5.1 Standard
- RoHS Compliant
- FCC Class A
- Damp-Location (UL 1598)
- Testing performed in accordance with IESNA standards
Features
Construction
- Durable 20 gauge steel construction
- Smooth formed sides for safe handling
- Lens and LED’s are in one module that is easily removed without tools
- Similar form factor to single-lamp fluorescent strip
Optical System
- Semi-circular, milky-white diffuser
- Lens module retention method securely holds it in ceiling, wall, or pendant mount
- Selectable CCT of 3500K/4000K/5000K
- Standard 80 CRI, 90 CRI option available on 4’ model
Electrical
- Input voltage of 120-277VAC
- Selectable Wattage of: 2’ (25/20/15W), 4’ (45/38/34W), 8’ (90/75/65W)
- Power factor > 0.9, THD < 20%
- Through wiring capable for end-to-end runs
- Operating temperature rating of -4°F to 122°F (-20°C to 50°C)
Installations
- Easy surface mount installation on ceilings or walls
- Safety strap-retained LED array allows single person installation
- Multiple knockouts provided for wiring from back or ends
- Features provided for surface, cable, hook and chain, or pendant mount
- Cover plates provided for 4/O box surface installation
- Internal switches allow for easy wattage and CCT selection
- For installations where power surge may be possible, NICOR recommends installing additional surge protection at the fixture or electrical distribution panel
Full Listings
- cULus 1598 Listed for damp locations
- DLC 5.1 standard compliant
- RoHS compliant
- Meets FCC Part 15, Subpart B, Class A standards for conducted and radiated emissions
- TM-21 Reported L70(9k) life >54,000 hours L70 life >150,000 hours
- LM-79, LM-80 testing performed in accordance with IESNA standards TM-21 Reported
Warranty
- 5-year limited system warranty standard
- Warranty does not cover product failure due to an overvoltage event (power surge)
