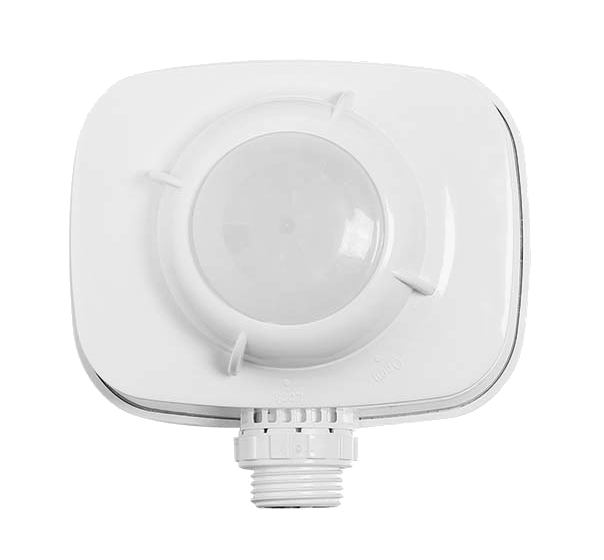

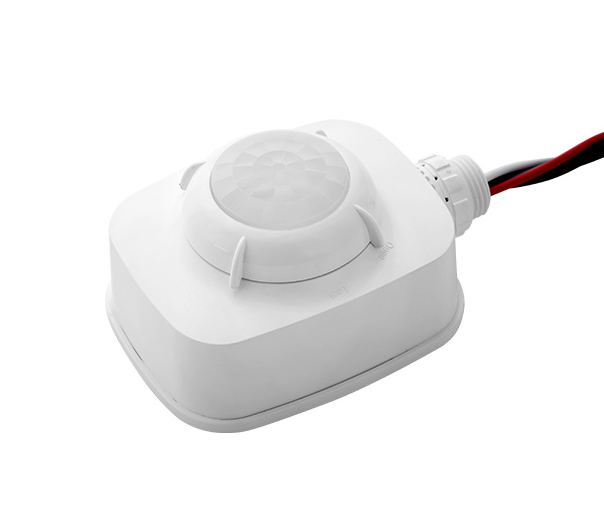

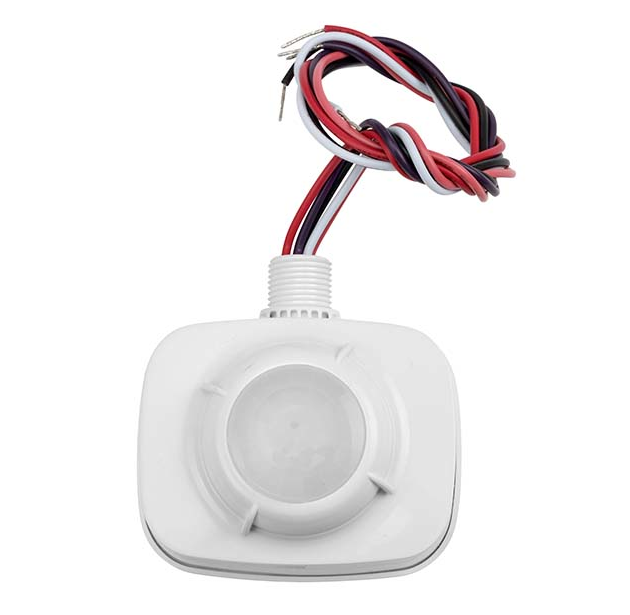

NLC Wireless End-Mount PIR/Daylight Sensor with Wide Lens
The NLCSPEW1WH-LHW is our line-voltage Bluetooth wireless PIR/Daylight sensor designed exclusively for the NICOR NLC System making it perfect for your Luminaire Level Lighting Controls (LLLCs) needs. Constructed from the highest-rated fire retardant material, this sensor ensures easy installation an…
The NLCSPEW1WH-LHW is our line-voltage Bluetooth wireless PIR/Daylight sensor designed exclusively for the NICOR NLC System making it perfect for your Luminaire Level Lighting Controls (LLLCs) needs. Constructed from the highest-rated fire retardant material, this sensor ensures easy installation and operation, which is particularly ideal for retrofit applications. For optimal performance, ensure your retrofit fixtures are 0-10V compatible. Offering 360° coverage at heights from 20ft to 40ft with the standard -LHW lens (high bay, wide pattern). With long-term flexibility, better occupant experience, and cost efficiency compared to non-controlled fixtures, making it ideal for warehouses, garages, gymnasiums, and other industrial spaces. Setup and commissioning requires the NICOR NLC mobile app (iOS and Android).
- Line-voltage Bluetooth PIR/daylight sensor designed for retrofit Luminaire Level Lighting Controls (LLLCs)
- Supports 120–277VAC operation with 10A max load and 0–10V dimming control
- Provides 360° occupancy coverage for mounting heights from 20Ft to 40Ft
- Bluetooth Low Energy (BLE) 5.0 mesh networking with up to 200Ft wireless range

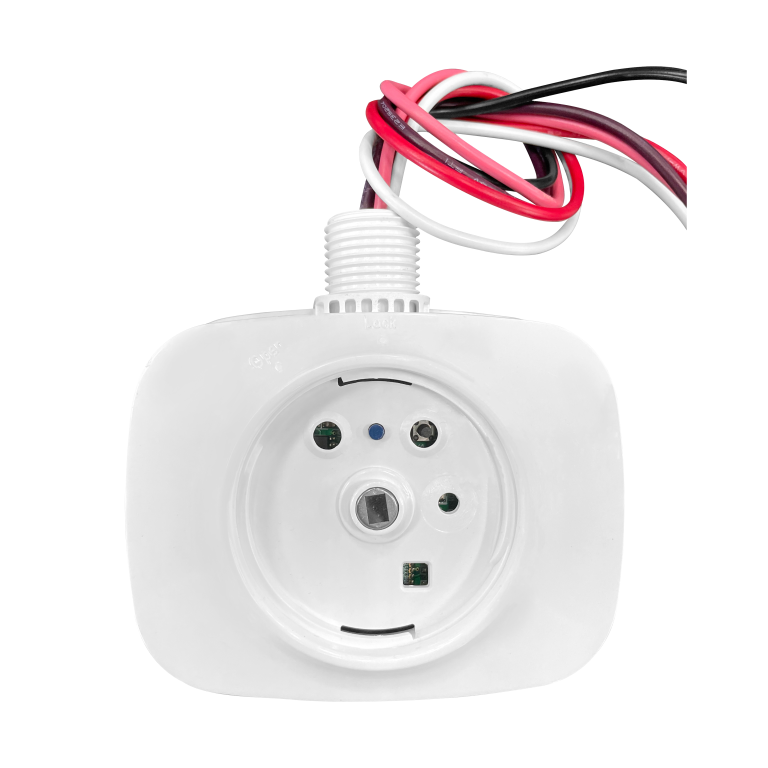

- Interchangeable lens options available with 77°, 90°, and 103° beam angles
Color Options:
Ordering information
Downloads
Specifications
-
Wattage1.5
Listings & certifications
- cULus Listed
- UL 8750 (LED Safety)
- UL 94 5VA (Flame Resistance)
- UL 1376 Verified (Gold)
- NLC LLLC Listed
- RoHS Compliant
- IP66 Ingress Protection
- Wet-Location
Features
Construction
- Made of fire retardant plastic (UL 94-5VA)
- Built-in analog PIR sensor
- IP66 Ingress Protection
Electrical
- Input voltage of 120-277VAC 50/60Hz
- Maximum load of 10A, 1200W Max for LED driver only
- Operating temperature rating of -22°F to 131°F (-30°C to 55°C)
Installations
- Interchageable lenses available in 90°, 77°, and 103° beam distribution
- Ideal for retrofit application with existing 0-10V fixtures ranging from 20 to 40 feet in height
- Must only be used for dim-to-off or 0-10V fixture; do not use a control/bluetooth relay
Full Listings
- UL1376 Cyber Security Certification
- cULus Listed LED Controller
- DLC NLC5 Listed
- UL 8750
- RoHs Compliant
Warranty
- 5-year limited system warranty standard
- Warranty does not cover product failure due to an overvoltage event (power surge)
