HIGH VOLTAGE STEP-DOWN TRANSFORMER

The NICOR NST is a UL Listed high voltage step-down transformer for field installation that allows the use of “universal voltage” (120-208VAC) fixtures in locations where high voltage (277VAC-480VAC) is present. Maximum allowable fixture wattage is 350W (with 480VAC input).



Category: Tags:

Specifications

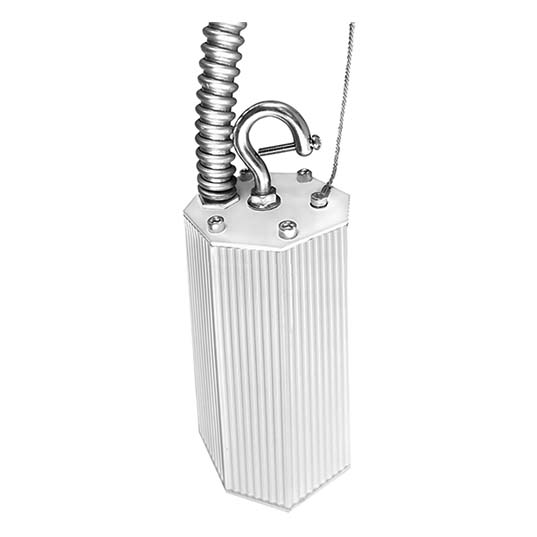

  • Aluminum housing with white powder coat finish
  • Two hanging hooks, with safety cross bolt, included
  • Safety wire with carabiner included
  • Single FMC to attach to 1/2”KO on a junction box
  • Input range of 277-480VAC
  • Output range of 120-208VAC
  • Surge protection to 500V
  • Max load of 375W



Part Numbers:

NST1375HVWH - Transformer
NST1375HVWHIP - Transformer (IP65 rated with weathertight conduit)
NSTIP65CONDUIT - IP65 rated weathertight Conduit

Downloads

– Spec Sheet
– Installation Instructions
