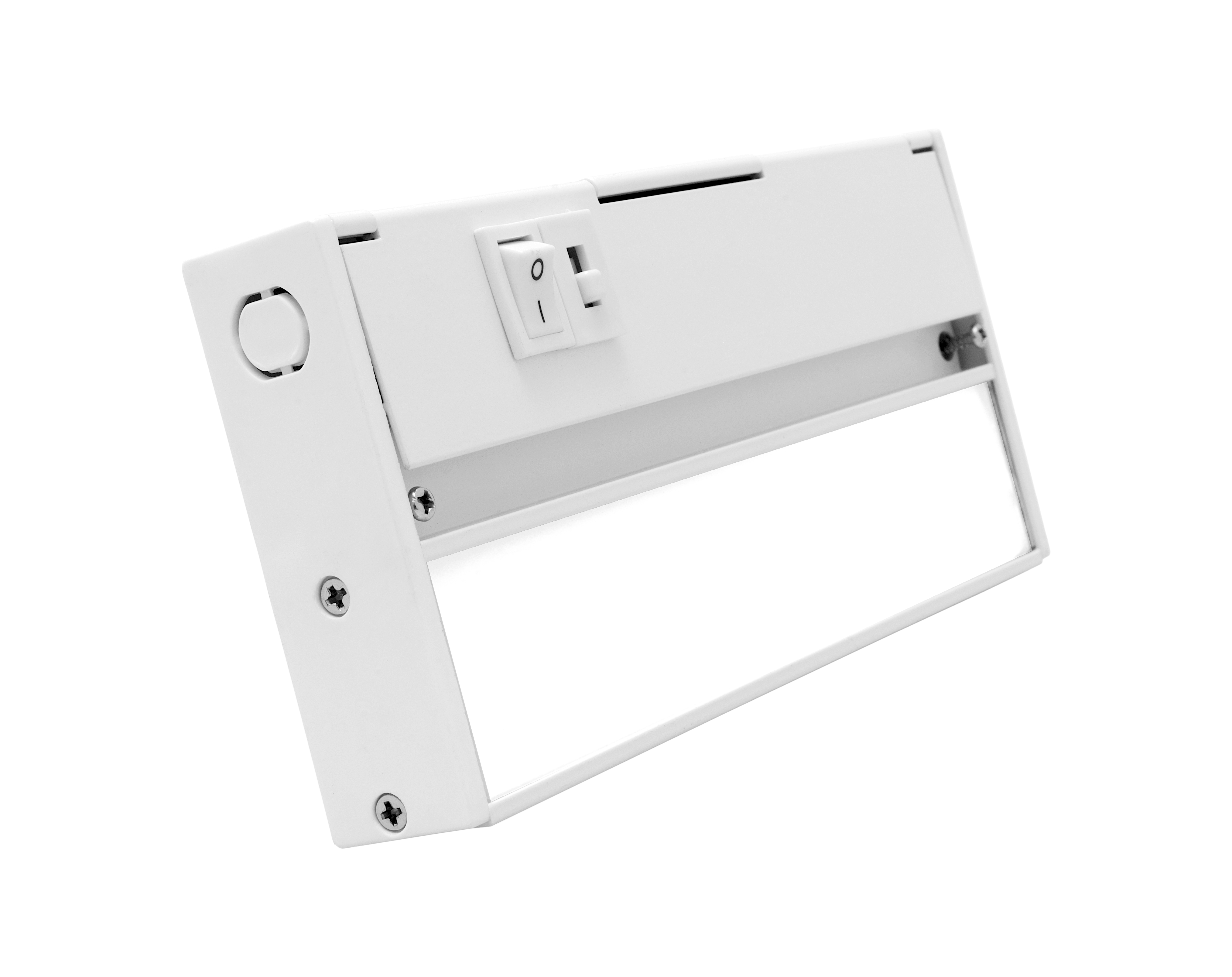

NUC-5 Series 8-inch White Selectable LED Under Cabinet Light
NICOR LED under cabinet lighting is an attractive upgrade that can quickly increase the value and functionality of your workspace. The NUC5 now offers a CCT Selectable design which allows for easy adjustment to 2700K, 3000K, or 4000K. The NUC5 presents a clean, professional look allowing you to use …
NICOR LED under cabinet lighting is an attractive upgrade that can quickly increase the value and functionality of your workspace. The NUC5 now offers a CCT Selectable design which allows for easy adjustment to 2700K, 3000K, or 4000K. The NUC5 presents a clean, professional look allowing you to use an existing wall switch or dimmer to easily control your lights. Offering uniform illumination, warm color and low operating temperatures, this under cabinet light can be used in residential, retail, and commercial applications. Whether in a kitchen, under a shelf or in a defined workspace, these 1-inch low profile fixtures are perfect for task or accent lighting and illuminating products, apparel or collectibles.
- Available in: Black, Nickel, White, and Oil-Rubbed Bronze
- Available in 5 lengths (8", 12.5", 21.5", 30", and 40")

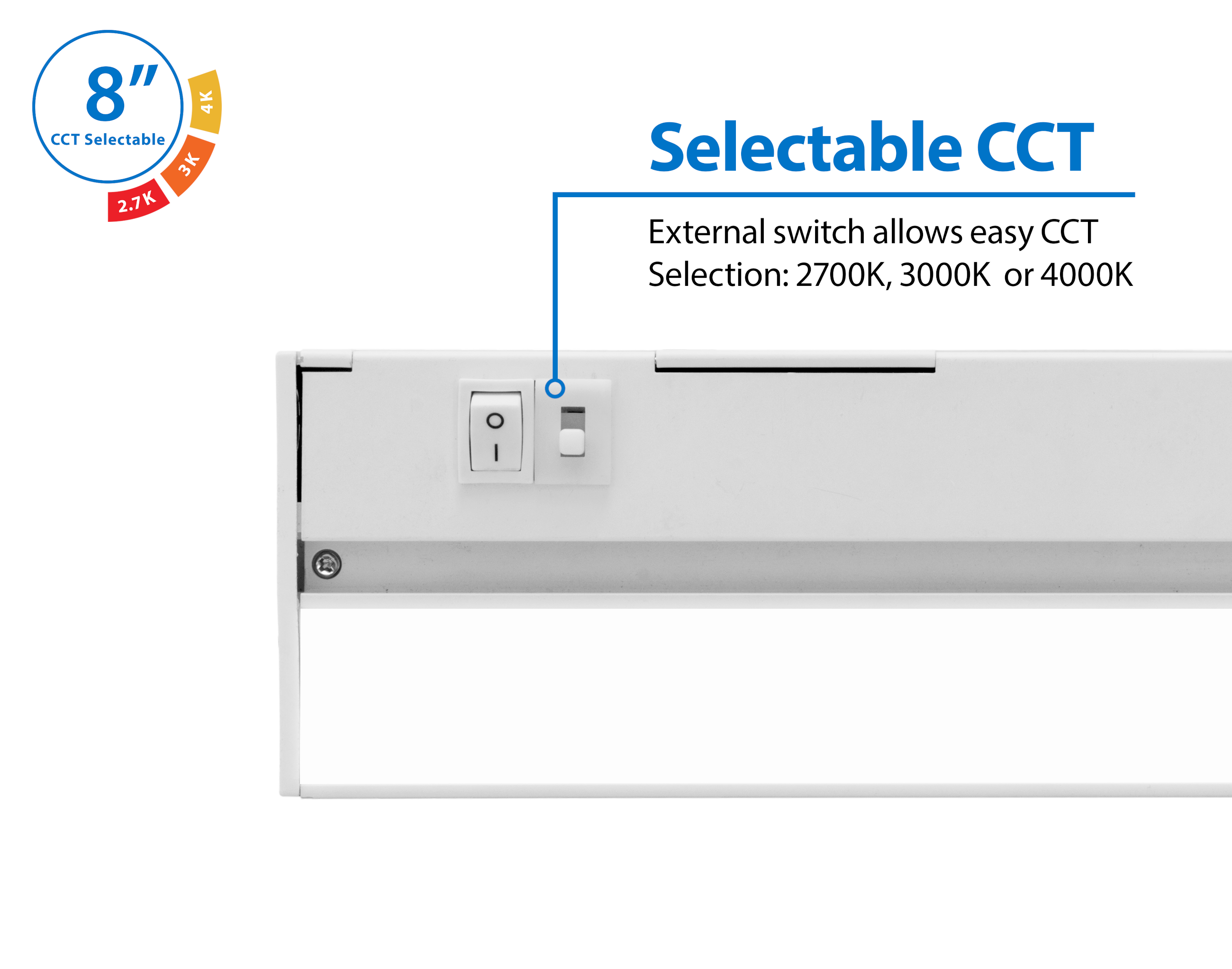

- Three Selectable CCT Options: 2700K/3000K/4000K
- Extruded aluminum housing for durability and ample heatsinking
- Dimmable to 5% with most TRIAC/ELV standard dimmers
Color Options:
Ordering information
Downloads
Specifications
-
Lifespan>50,000 -
Lumens247 - 289 lm
-
Wattage3.36
Listings & certifications
- cULus Listed
- Title 24
- JA8
- FCC Class B
- Damp-Location
- Testing performed in accordance with IESNA standards
Features
Construction

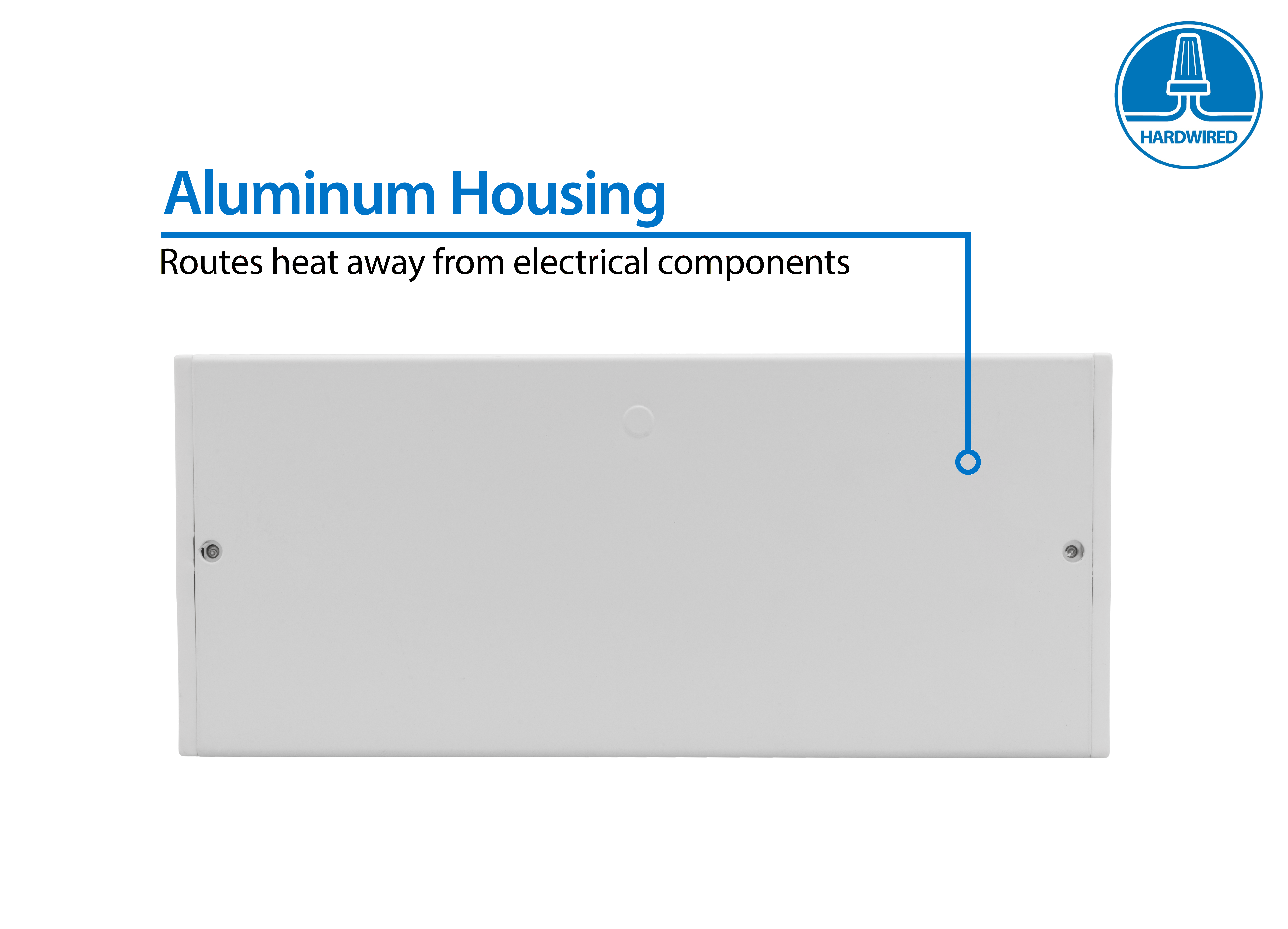

- Extruded aluminum housing for durability and ample heatsinking

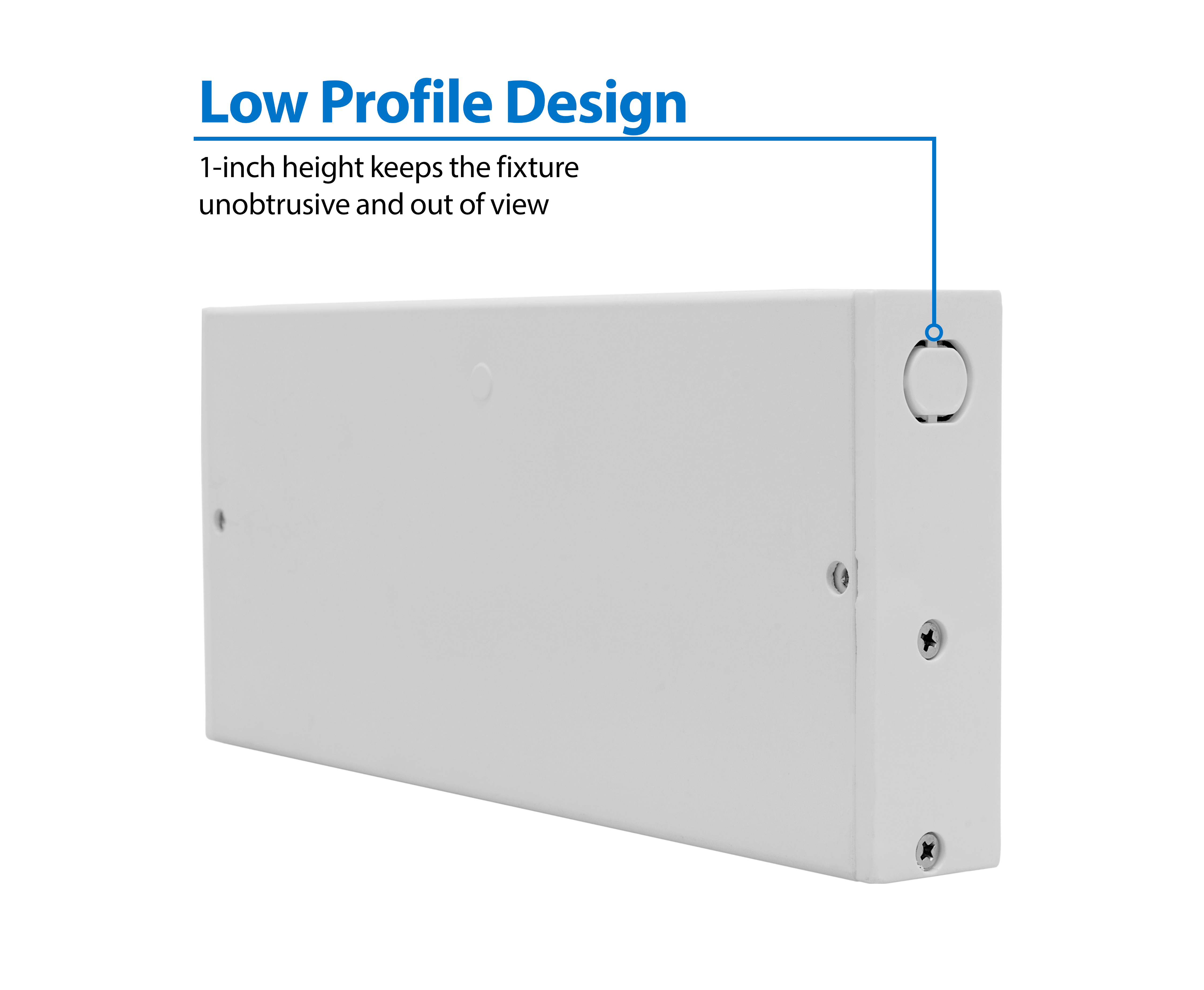

- Low 1-inch profile keeps the fixture unobtrusive and out of view
- No UV or forward-projected heat
- UL Listed for damp locations
- Available in: Black, Nickel, White, and Oil-Rubbed Bronze
Optical System

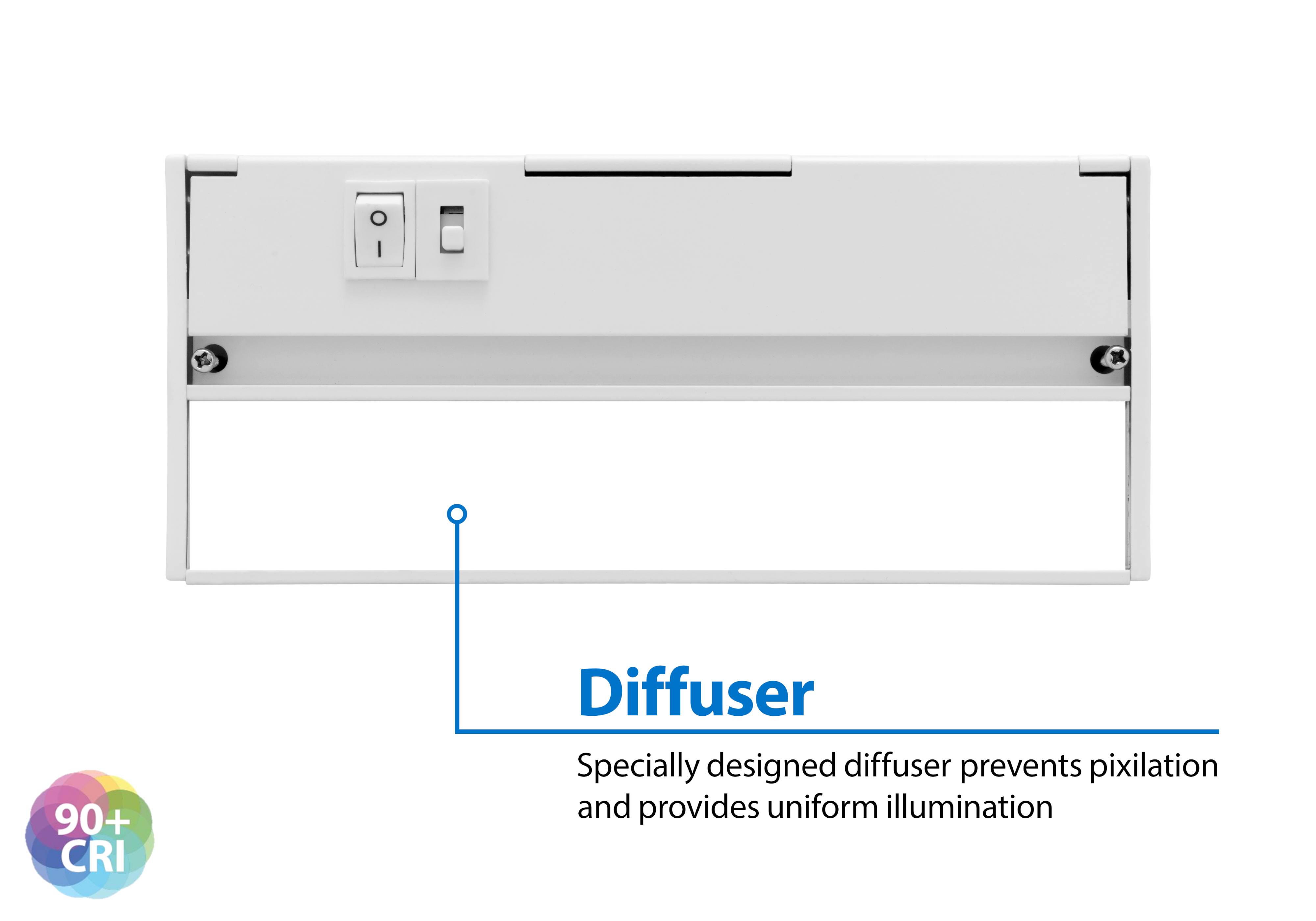

- Uniform lighting with specially designed glass diffuser to prevent pixilation and “hot spots” on counter tops
Electrical
- Greater than 92 CRI with R9 greater than 50
- Dimmable with most TRIAC dimmers
- Custom low-profile driver engineered for optimal dimming across all sizes
- Operating temperature rating of 0°F to 120°F (-18°C – 49°C)
- 120VAC Input
- L70 rated for greater than >50,000 hours
- TM-21 Projected L70(6k) life >100,000 hours
- LM-79, LM-80 testing performed in accordance with IESNA standards
Installations
- Easy surface mount installation
- Pre-installed captive screws allow for quick mounting
- Positive latch door for easy access and installation
- Versatile knockout selection allows for multidirectional wiring
Full Listings
- UL Listed
- CUL Listed
- Title 24
- JA8
- FCC Class B
- Damp-Location
Warranty
- 5-year limited system warranty standard
