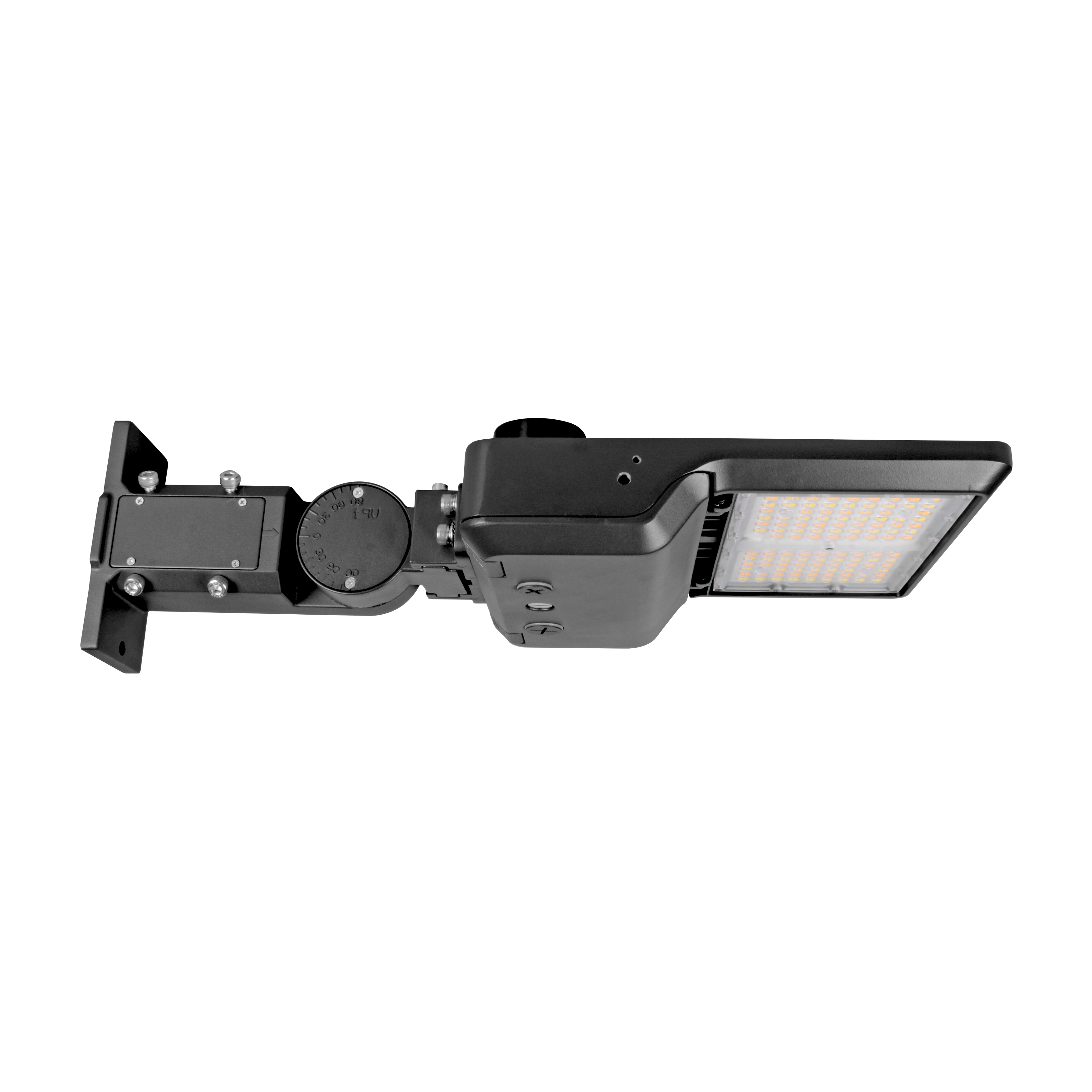

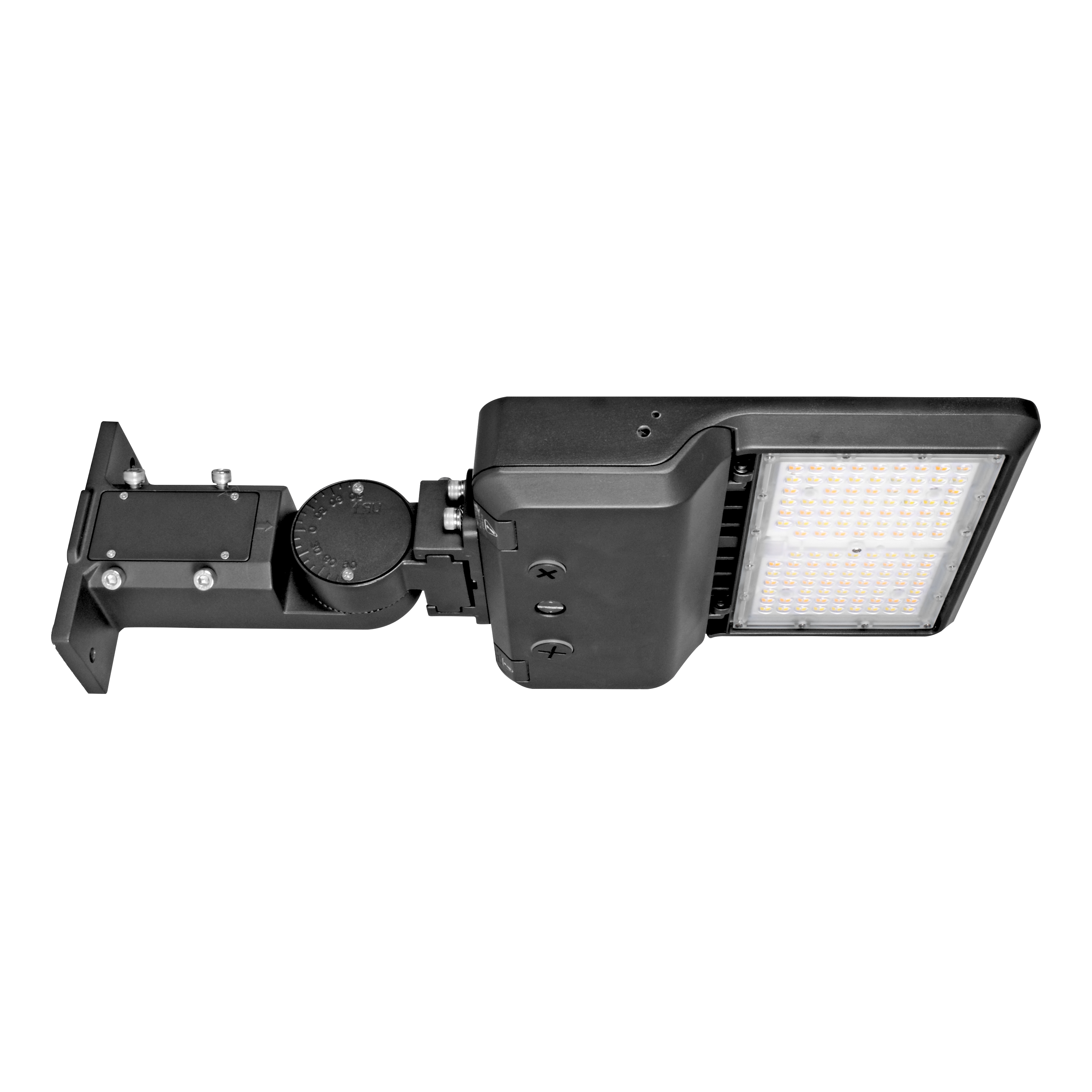

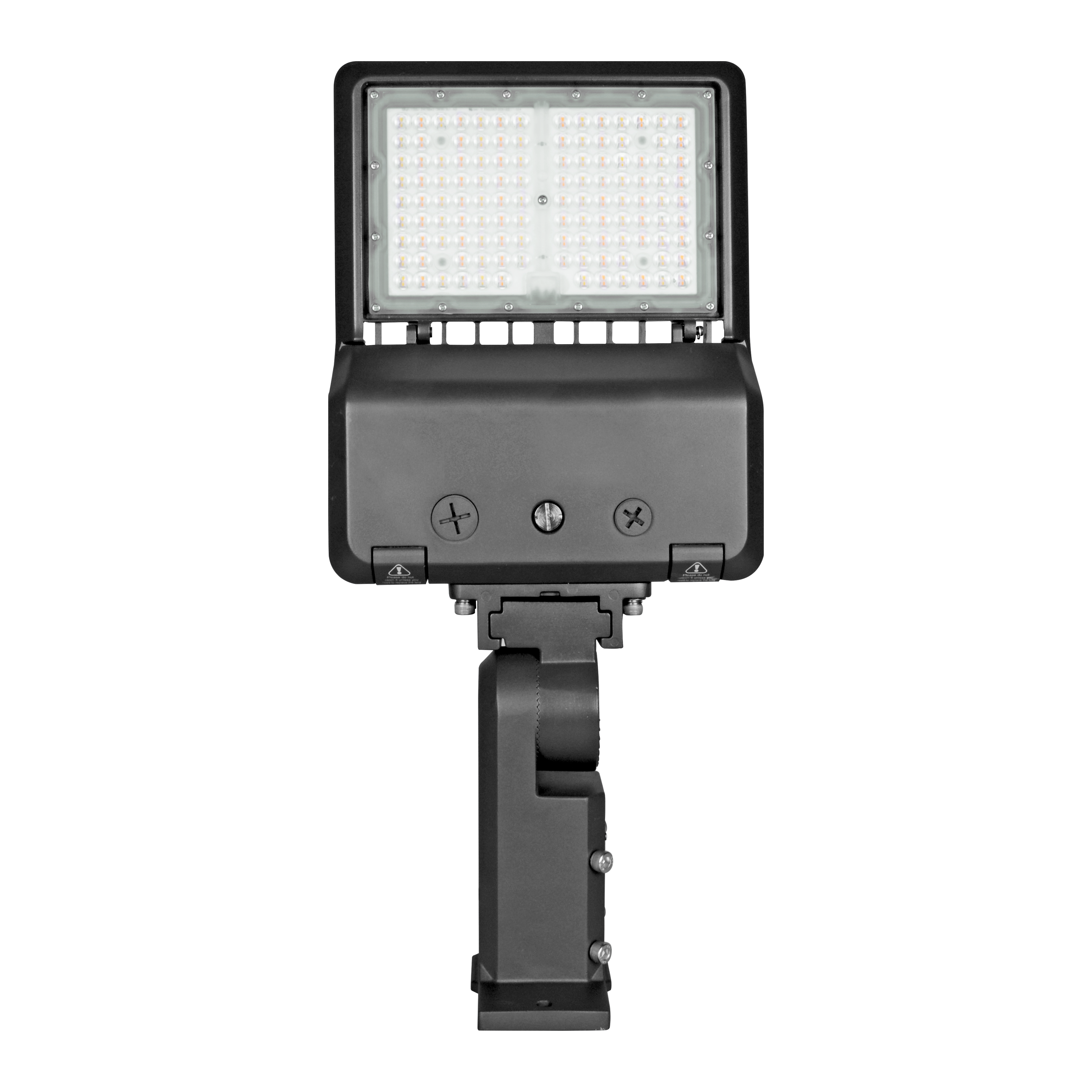

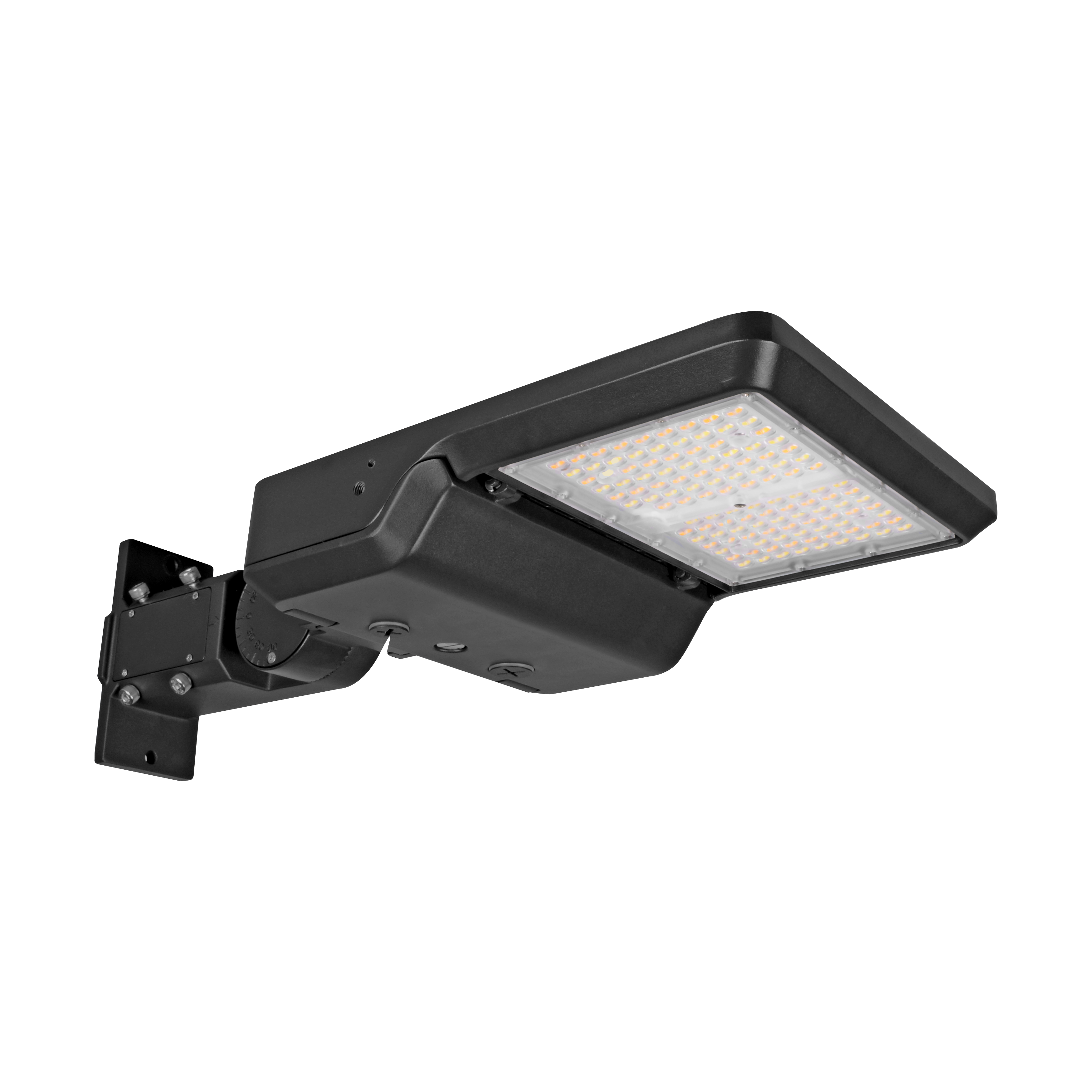

OAL5 80W Black Selectable LED Area Light, Type V (277-480VAC)
The OAL5 LED Area Light delivers high efficiency with maximum energy savings and advanced controls to suit a variety of applications. Its robust, low-profile housing is comprised of die-cast aluminum and includes an adjustable, multi-function mounting arm (pole+slipfitter) for simpler, quicker insta…
The OAL5 LED Area Light delivers high efficiency with maximum energy savings and advanced controls to suit a variety of applications. Its robust, low-profile housing is comprised of die-cast aluminum and includes an adjustable, multi-function mounting arm (pole+slipfitter) for simpler, quicker installation. The OAL5 is a versatile fixture offering 50/60/80W selectability with 3/4/5K CCT and distribution options of Type II, III, IV and V. It is ideal for lower mounting heights in parking lots, recreational or public venues, walkways, campuses, and other commercial environments.

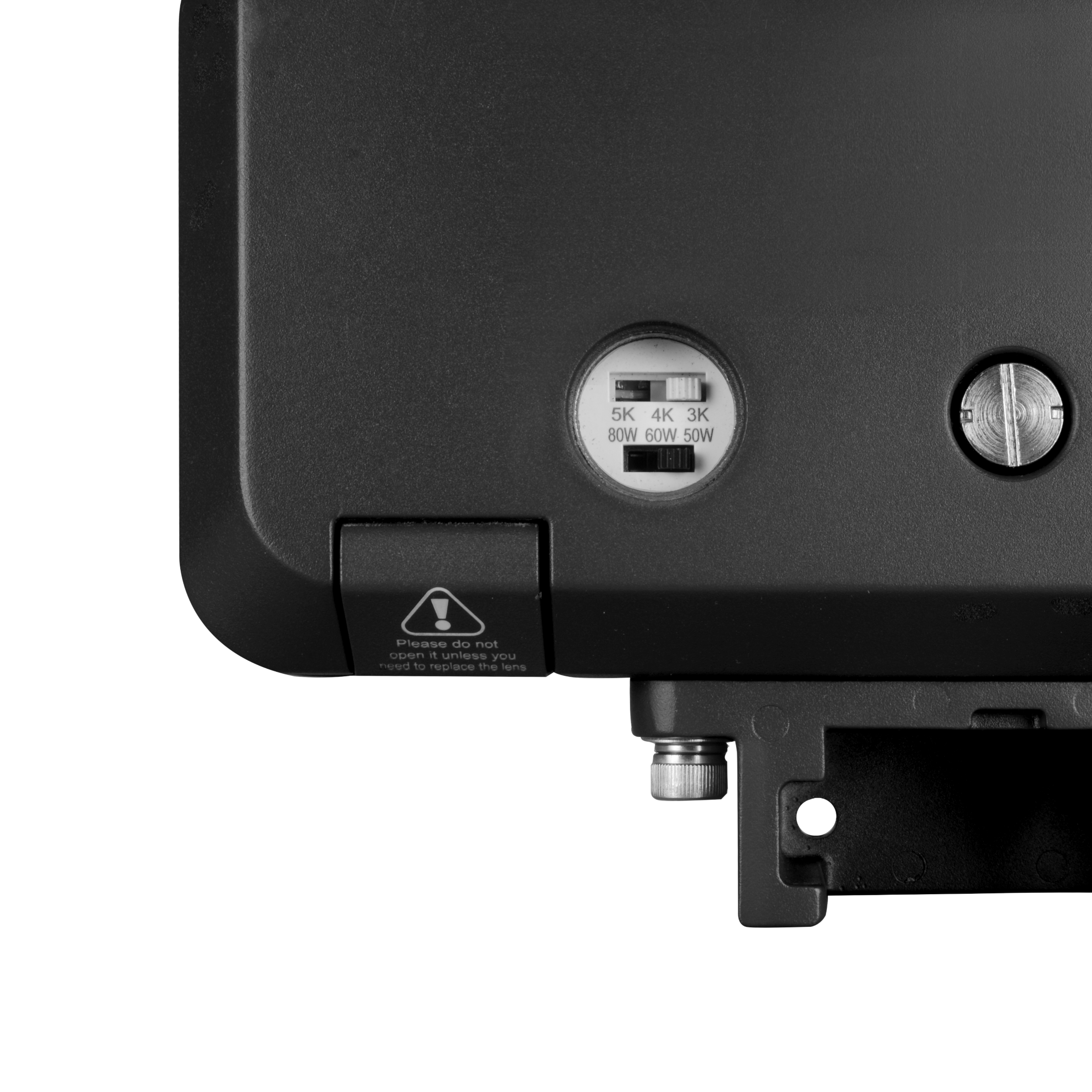

- Three selectable color temperature settings (3000K/4000K/5000K)
- Three selectable wattage settings (Low/Med/High)
- High efficiency with multiple distribution options (Type II, III, IV, or V)
- Durable, low-profile die-cast aluminum housing
- Quick installation with an adjustable multi-mount arm
- Field-swappable lenses for easy on-site adjustments
- IP65 rated with surge protection and smart control options
Color Options:
Ordering information
Downloads
Specifications
-
Lumens6882 - 12052 lm -
Wattage50, 60, 80
Listings & certifications
- UL Certified
- DLC 5.1 Premium
- IP65 Ingress Protection
- RoHS Compliant
- FCC Class A
- Wet-Location (UL 1598)
- Vibration rated to 3G per ANSI/IEEE C136.31-2010
- Testing performed in accordance with IESNA standards
Features
Construction
- Heavy duty die-cast construction with single piece housing
- Low profile 3” design provides low wind resistance
- UV stabilized powder coat finish
- Stainless steel hardware and electrical SJ cord connection
Optical System
- Impact resistant polycarbonate lens
- Type II, III, IV or V distribution available
- Selectable CCT of 3000/4000/5000K
- Standard 80 CRI to improve safety and color definition in public places
- BUG rating of B3-U0-G3 (Type II, III, IV) B3-U0-G1 (Type V)
Electrical
- Wattage selectable 50/60/80W
- Input voltage of 120-277VAC or 277-480VAC
- Surge protection 10kV (20kV on HV models) provides single phase protection for line/ neutral, line/ground and neutral/ground in accordance with IEEE C62.41 2002 C High category
- Operating temperature rating of -40°F to 122°F (-40°C to 50°C)
Installations

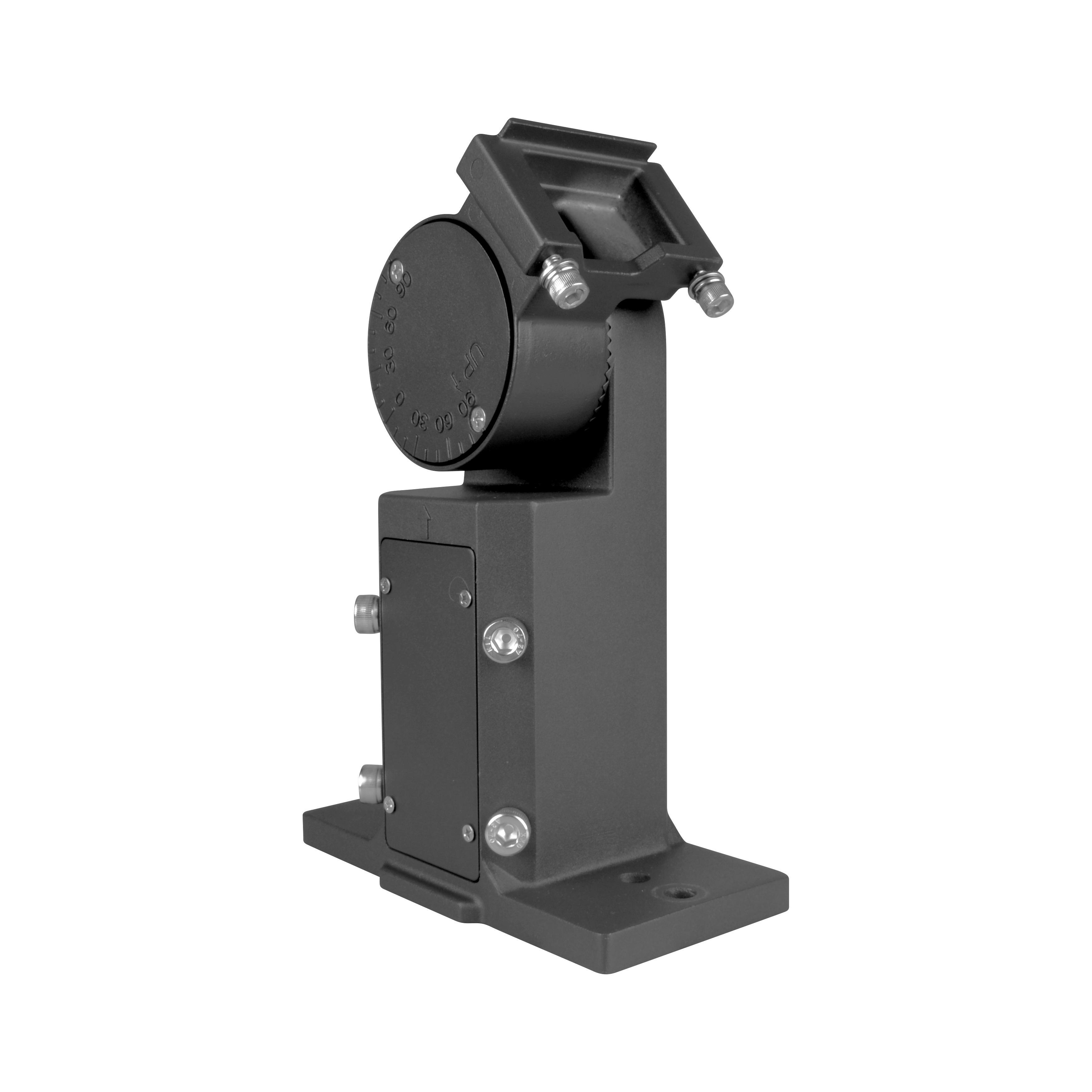

- Adjustable, multi-function mounting arm (pole+slipfitter) ships with fixture standard
- Fixture mounts to arms via unique dove tail system for easy installation
- Mounting arms available for a variety of installations.

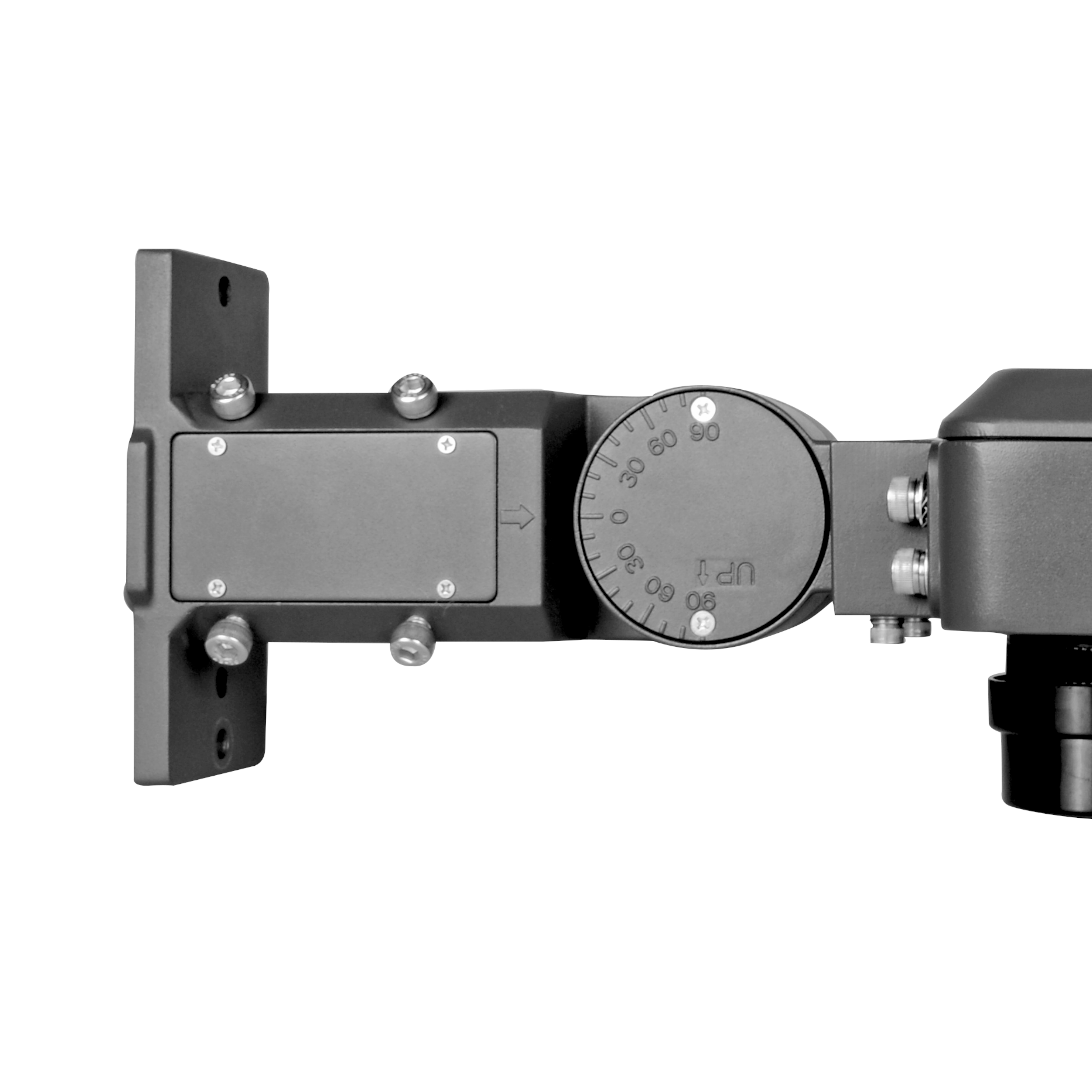

- Adjustable Pole Mount Arm provides -30°/+30° of adjustability and mounts to round or square poles
- Slipfitter Mount Adaptor installs directly to a nominal 2 3/8” tenon
- Straight Mount Arm mounts to a round or square pole
- Trunnion Mounting Arm easily mounts to a variety of surfaces
- Wall Mount Box allows for wall mounting in tandem with the Straight Arm or Pole Mount Arm
- All mounting arms are die-cast aluminum and available in Bronze
- EPA: Frontal - 0.259ft2, Side - 0.320ft2
- EPA with arms will vary. Consult NICOR for additional information
Full Listings
- cULus1598 Listed for Wet locations
- RoHS Compliant
- IP65 Rated
- DLC 5.1 Premium Listed
- Vibration rated to 3G per ANSI/IEEE C136.31-2010
- Meets FCC Part 15, Subpart B, Class A standards for conducted and radiated emissions
- TM-21 Reported L90(9k) life >50,000 hours
- LM-79, LM-80 testing performed in accordance with IESNA standards
Warranty
- 5-year limited system warranty standard
- Warranty does not cover product failure due to an overvoltage event (power surge)
