LED WALLPACK

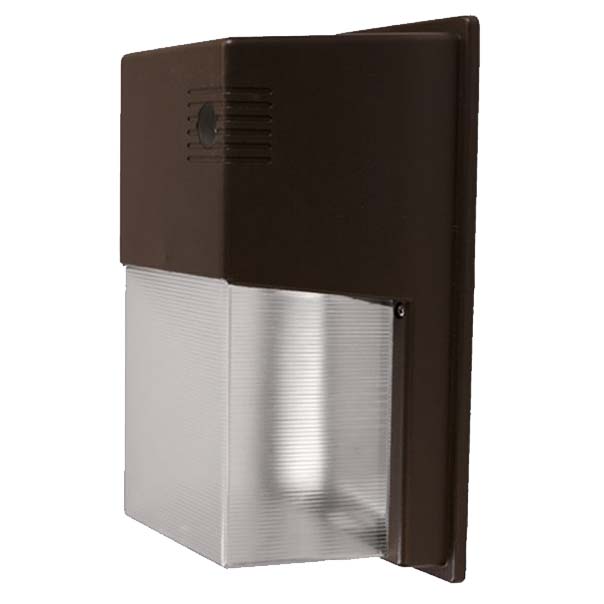

The OWR3 LED Wallpack combines a simple rectangular style with top performance and efficiency. The Obelus features a single-piece, die-cast aluminum housing with a ribbed, UV- and fire-resistant lens for even light distribution. It installs easily into a 4/O J-Box and has a standard photocell. The OWR3 is recommended for perimeter lighting as well as building entrances, garages, tunnels, other commercial spaces where general purpose lighting is desired.



Specifications

  • High light transmittance polycarbonate
  • Clear ribbed lens for even light distribution
  • Utilizes advanced LED technology with CCT of 5000K
  • 70 CRI
  • Thermally-protected, high-efficiency driver
  • Input voltage of 120-277VAC
  • Operating temperature rating of -4°F to 104°F (-20°C to 40°C)
  • Photocell standard
30 Watt - 5000K
5000K
Cool

3643
Lumens

29.7
Input Watts

122.7
lm/W

73
CRI

IES Download

Part Number:

 5000K:OWR3030MV50BZ
30 Watt - 5000K
5000K
Cool

3643
Lumens

29.7
Input Watts

122.7
lm/W

73
CRI

IES Download

Part Number:

 5000K:OWR3030MV50BZ
