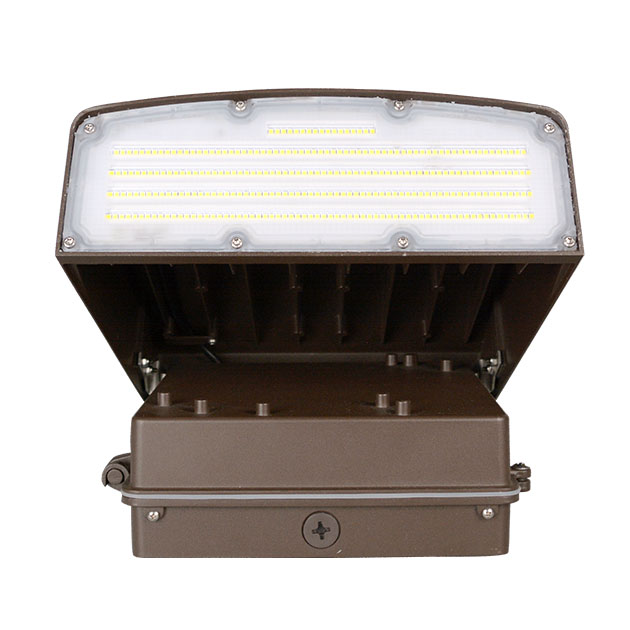

5K & SELECTABLE LED ADJUSTABLE SCONCE

The Octans LED Adjustable Sconce features next-generation design with Single CCT and Selectable CCT models. With efficiencies up to 140 lumens per watt, the Octans provides optimal light in a compact, adjustable design. Using a separable hinged backplate, the Octans is easy to install on walls or directly to a J-Box, and is adjustable from 0 to 90-degrees. On Select models, an internal switch offers the ability to adjust the CCT to 3000, 4000, 5000, or 5700K. It is an economical and efficient replacement for a traditional wall pack and is ideal for accent or general purpose exterior lighting.

Specifications

  • Clear injection-molded acrylic creates uniform light distribution while maximizing lumen output
  • Utilizes advanced LED technology with CCT of 5000K or CCT Selectable (3000, 4000, 5000, 5700K)
  • 70 CRI to improve safety and color definition in public places
  • Thermally-protected, high-efficiency driver
  • Operating temperature rating of -4° to 104°F (-40°C to 40°C)
  • Input voltage of 120-277VAC
  • Available in 50 & 120 watt
  • Photocell optional
  • Driver delivers full-range dimming from 0 - 10VDC
50 Watt - 5000K
5000K
Cool

6191
Lumens

45.7
Input Watts

135.5
lm/W

73
CRI

IES Download

Part Number:

 5000K:OSA3050MV50
50 Watt - Select
3000K
Warm White
4000K
Neutral
5000K
Cool
5700K
Cool Blue

6072
Lumens

6982
Lumens

6925
Lumens

6449
Lumens

50.1
Input Watts

50.4
Input Watts

51.1
Input Watts

51.2
Input Watts

121.3
lm/W

138.5
lm/W

135.5
lm/W

125.9
lm/W

75
CRI

75
CRI

75
CRI

75
CRI

IES Download

IES Download

IES Download

IES Download

Part Number:

 Select:OSA3050MVS
120 Watt - Select
3000K
Warm White
4000K
Neutral
5000K
Cool
5700K
Cool Blue

15740
Lumens

17239
Lumens

17021
Lumens

16105
Lumens

124.9
Input Watts

123.6
Input Watts

122.9
Input Watts

122.9
Input Watts

126.1
lm/W

139.5
lm/W

138.6
lm/W

131.0
lm/W

75
CRI

75
CRI

75
CRI

75
CRI

IES Download

IES Download

IES Download

IES Download

Part Number:

 Select:OSA3120MVS
