ODL4 Series

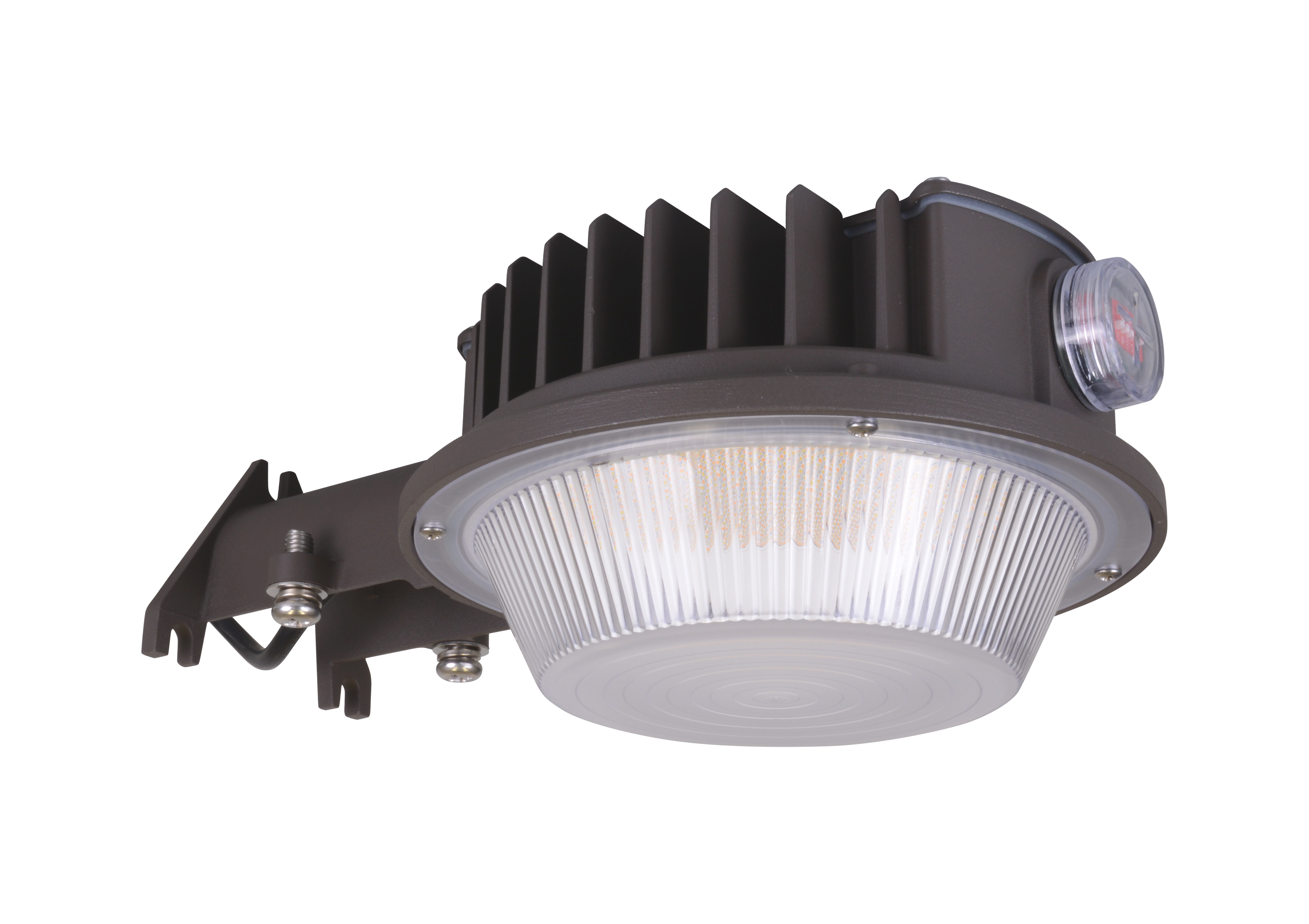

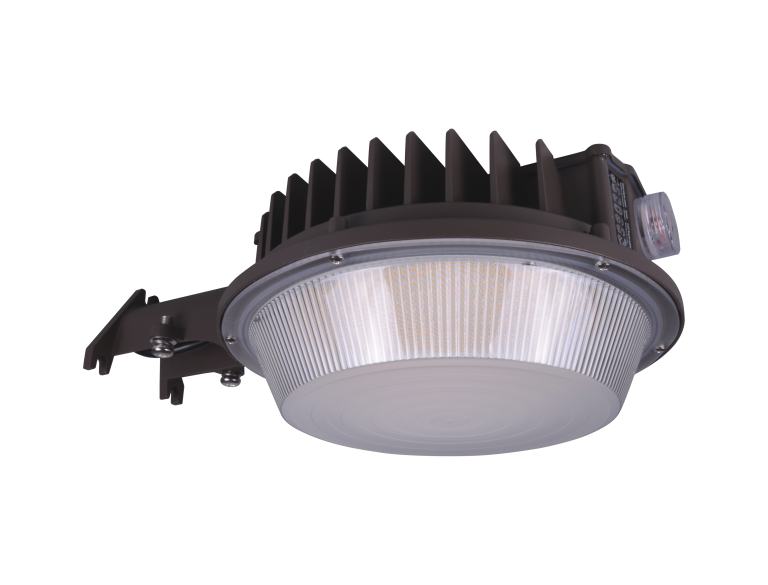

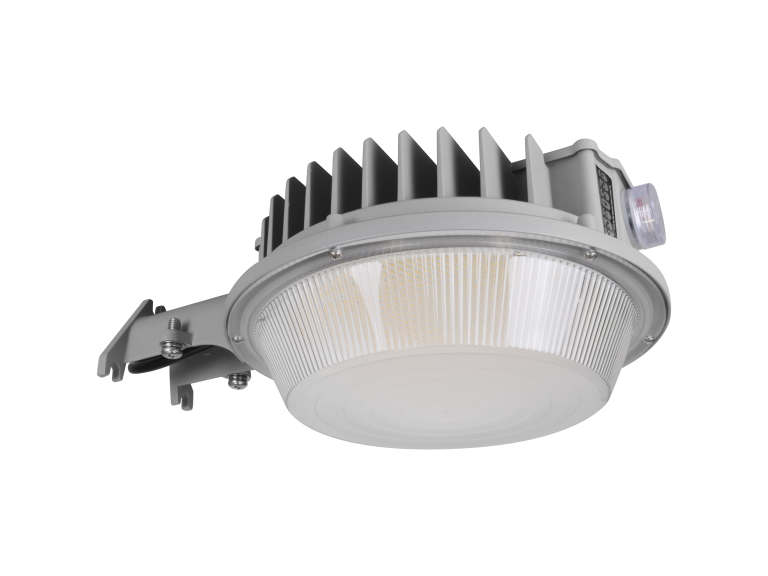

ODL4 Gray 60W Selectable LED Barn Light
Product description
The ODL4 LED Dusk to Dawn utilizes next-generation design in a selectable wattage and CCT model. The ODL provides a light output suitable for general purpose security and area lighting. The ODL4 offers two models with selectabe wattages (120W/96W/72W), (60W/48W/36W) and selectable CCT (3000K/4000K/5…
The ODL4 LED Dusk to Dawn utilizes next-generation design in a selectable wattage and CCT model. The ODL provides a light output suitable for general purpose security and area lighting. The ODL4 offers two models with selectabe wattages (120W/96W/72W), (60W/48W/36W) and selectable CCT (3000K/4000K/5000K). The ODL is an economical and efficient lighting solution that includes a photocell and easily installs directly to a wall or on a pole.
- Three selectable color temperatures (3000K/4000K/5000K)
- Three selectable wattage settings (Low/Med/High)
- Uniform 80+ CRI light with reliable dusk-to-dawn operation
- Die-cast aluminum housing with stainless steel hardware
- Easy wall or pole installation; optional pole mount arm
- Integral photocell for automatic on/off control
Color Options:
Ordering information
Downloads
Specifications
-
Lifespan>54,000 -
Wattage36 - 60 W
Listings & certifications
Listings & Certifications
- UL Certified
- DLC 5.1 Premium
- IP65 Ingress Protection
- FCC Class B
- Wet-Location (UL 1598)
Other Certifications
- Testing performed in accordance with IESNA standards
Features
Construction
- Die-cast aluminum housing
- Stainless steel hardware
- Fine-textured, UV-stabilized powder coat gray or bronze finish
Optical System
- Enclosed polycarbonate prismatic diffuser
- Uses an external selectable switch for CCT selection of 3000/4000/5000K
- CRI 80+
Electrical
- Input voltage of 120-277VAC
- Selectable wattages with 60W and 120W maximum
- Power factor: >0.9
- THD < 20%
- Operating temperature rating of -40°F to 104°F (-40°C to 40°C)
- 4KV surge protection
- 0-10V dimming
- Integral photocell is standard
Installations
- Easy installation on wall or pole (pole mount arm available as accessory)
- For installations where power surge may be possible, NICOR recommends installing additional surge protection at the electrical distribution panel
Full Listings
- LM-79, LM-80 testing performed in accordance with IESNA standards
- UL and CUL Listed for wet locations, IP65 rated
- Meets FCC Part 15, Subpart A, Class B standards for conducted and radiated emissions
- TM-21 Reported L70 life >54,000 hours
- DLC Standard listed
Warranty
- 5-year limited system warranty standard
- Warranty does not cover product failure due to an overvoltage event (power surge)
