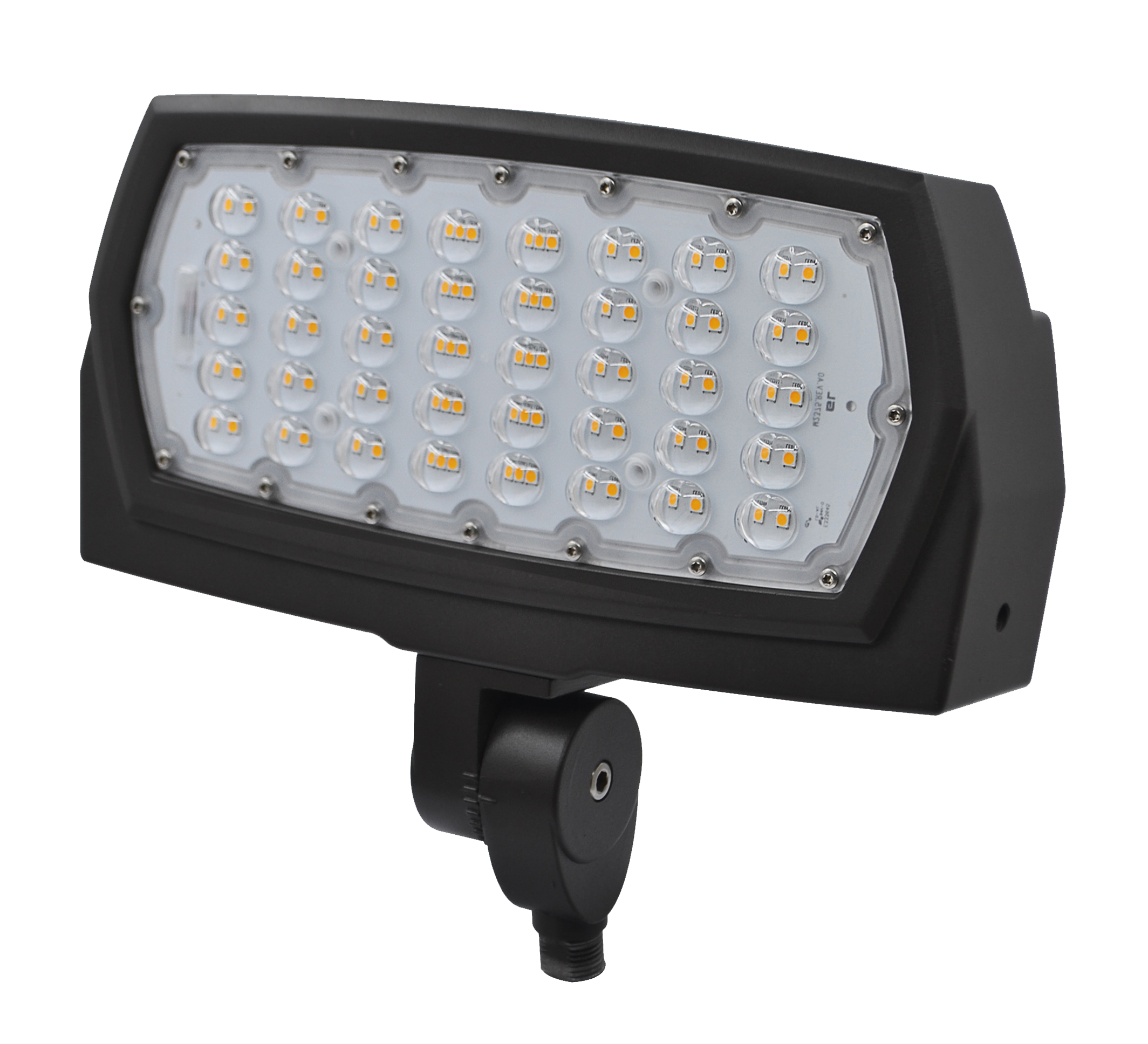

OFL Series 75W Bronze 5000K LED Outdoor Flood Light
The Ara LED Flood Light offers high performance and clean, uniform light distribution in a compact design. The Ara is available in four wattages and features a long-lasting driver with a highly efficient LED engine for precise optical control. The included knuckle mount has a range of 0 to 90-degree…
The Ara LED Flood Light offers high performance and clean, uniform light distribution in a compact design. The Ara is available in four wattages and features a long-lasting driver with a highly efficient LED engine for precise optical control. The included knuckle mount has a range of 0 to 90-degrees, making it easy to enhance the aesthetics of any exterior environment, including landscapes, display signage, building facades, common areas, pathways, and other open spaces where illumination or accent lighting are required.
- Die-cast aluminum housing routes heat away from electrical components
- Clear injection molded acrylic creates uniform light distribution
- Thermally protected, high-efficiency driver
- Fine-textured, UV-stabilized powder coat bronze finish
- For installations where power surge may be possible, NICOR recommends installing additional surge protection at the electrical distribution panel
Color Options:
Ordering information
Downloads
Specifications
-
Lifespan>54,000 -
Lumens8579
-
Wattage69.8
Listings & certifications
- cULus Listed
- IP65 Ingress Protection
- FCC Class B
- Wet-Location
- LM-79 and LM-80 testing performed in accordance with IESNA standards
Features
Construction
- Die-cast aluminum housing routes heat away from electrical components
- Stainless steel hardware
- Fine-textured, UV-stabilized powder coat bronze finish
Optical System
- Clear injection molded acrylic creates uniform light distribution
- NEMA 6Hx7V
- CRI 80+
- Utilizes advanced LED technology with CCT of 4000K and 5000K
Electrical
- Thermally protected, high-efficiency driver
- Operating temperature rating of -40° to 120°F (-40°C to 48°C)
- Input voltage of 120-277VAC
- Available in 15, 50, 75, and 90 watt
- Power Factor = 0.989
- THD = <20%
Installations
- Easy installation with a knuckle mount
- • 1/2” threaded connector
- • Range of 0° to 90°
- For installations where power surge may be possible, NICOR recommends installing additional surge protection at the electrical distribution pane
Full Listings
- LM-79, LM-80 testing performed in accordance with IESNA standards.
- UL and CUL Listed for wet locations
- Meets FCC Part 15, Subpart B, Class A standards for conducted and radiated emissions
- TM-21 Reported L70(9k) life >54,000 hours
- TM-21 Projected L70(9k) life =75,000 hours
Warranty
- 5-year limited system warranty standard
- Warranty does not cover product failure due to an overvoltage event (power surge.)
