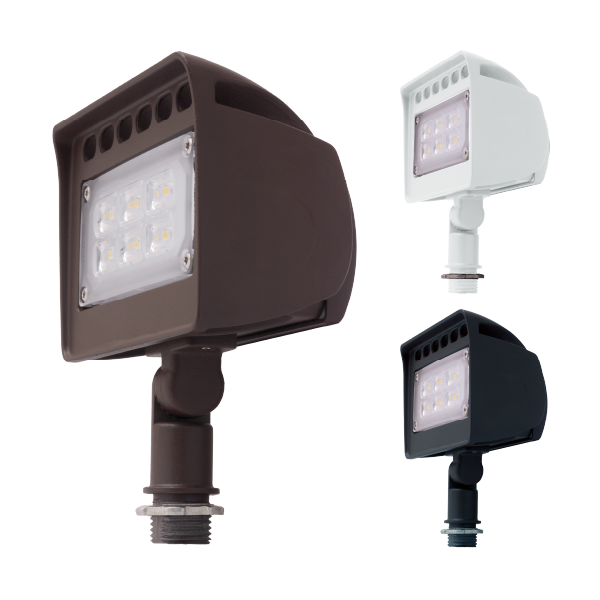

OFLv2 Series LED Flood Light
The OFL(v2) LED Flood Light offers high performance and clean, uniform light distribution in a compact design. The OFL is available in four wattages and features a long-lasting driver with a highly efficient LED engine for precise optical control. The included knuckle mount has a range of 0 to 90-de…
The OFL(v2) LED Flood Light offers high performance and clean, uniform light distribution in a compact design. The OFL is available in four wattages and features a long-lasting driver with a highly efficient LED engine for precise optical control. The included knuckle mount has a range of 0 to 90-degrees, making it easy to enhance the aesthetics of any exterior environment, including landscapes, display signage, building facades, common areas, pathways, and other open spaces where illumination or accent lighting are required.
- High-performance adjustable LED flood light
- Die-cast aluminum with impact-resistant polycarbonate lens
- Available in 12W, 30W, and 50W models (120-277VAC)
- Choose between Knuckle or Yoke Mount
Color Options:
Ordering information
Downloads
Specifications
-
Lifespan>50,000
Listings & certifications
- cULus Listed
- IP65 Ingress Protection
- RoHS Compliant
- FCC Class A
- Wet-Location (UL 1598)
- LM-79 and LM-80 testing performed in accordance with IESNA standards
- Meets FCC Part 15, Subpart B, Class A standards for conducted and radiated emissions
Features
Construction
- Die-cast aluminum housing routes heat away from electrical components
- Stainless steel hardware
- Fine-textured, UV-stabilized powder coat bronze finish
Optical System
- Impact-resistant polycarbonate lens creates uniform light distribution
- NEMA 7H x 7V distribution
- Utilizes advanced LED technology and available in 3000K (on select models), 4000K and 5000K
- Standard 80 CRI to improve safety and color definition
Electrical
- Input voltage of 120-277VAC
- Power factor: >0.9
- THD < 20%
- Operating temperature range: -40° to 122°F (-40° to 50°C)
Installations
- Knuckle: 1/2” threaded connector with locking nut
- Knuckle: Adjustment range of 0° to ±90°
- Yoke: Configured for a viariety of mounting patterns
- Yoke: Not available on 12W fixture
- For installations where power surge may be possible, NICOR recommends installing additional surge protection at the electrical distribution panel
Full Listings
- LM-79, LM-80 testing performed in accordance with IESNA standards
- UL/cUL1598 Listed for wet locations
- IP65 Rated
- RoHS Compliant
- Meets FCC Part 15, Subpart B, Class A standards for conducted and radiated emissions
- TM-21 Reported L70(9k) life >50,000 hours
Warranty
- 5-year limited system warranty standard
- Warranty does not cover product failure due to an overvoltage event (power surge)
