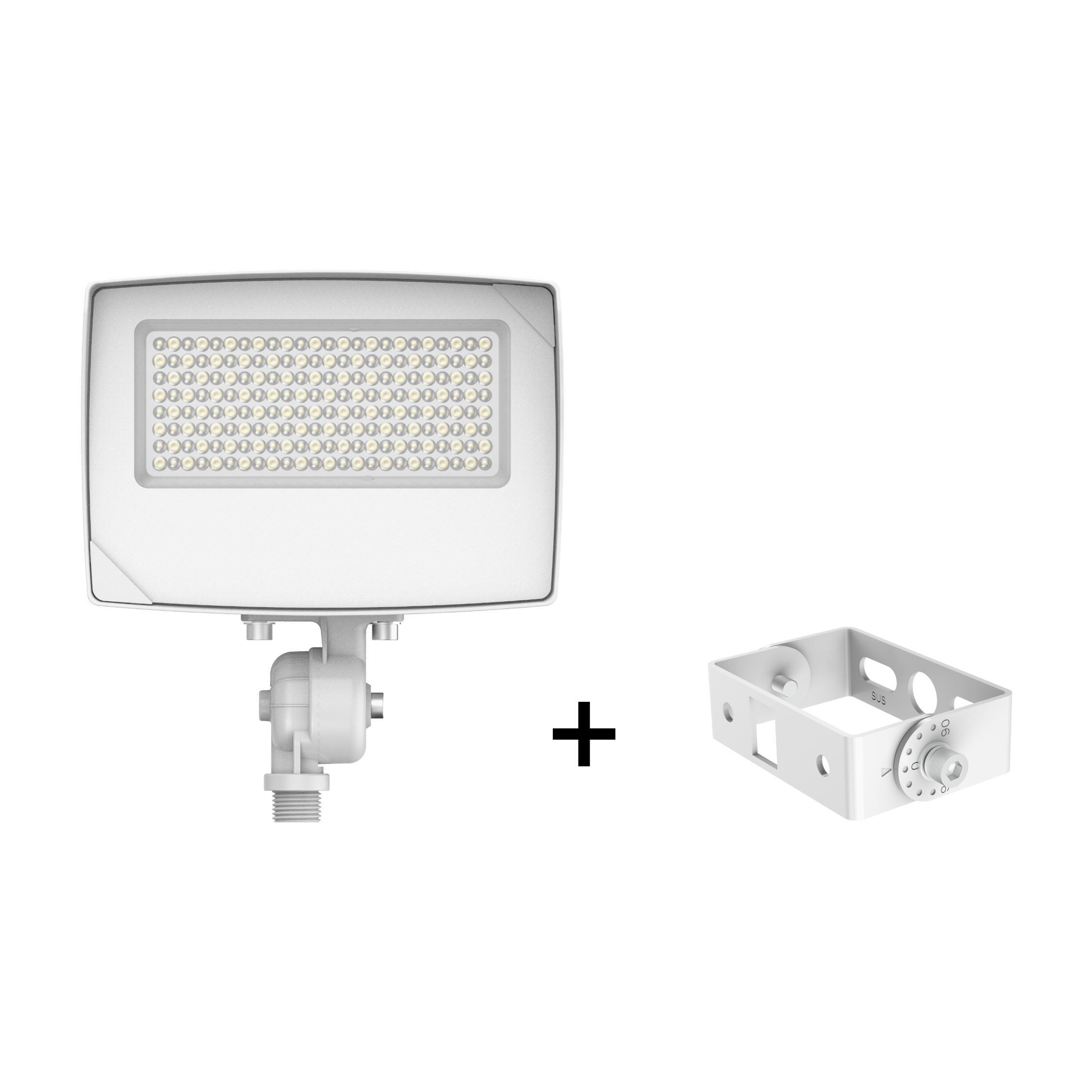

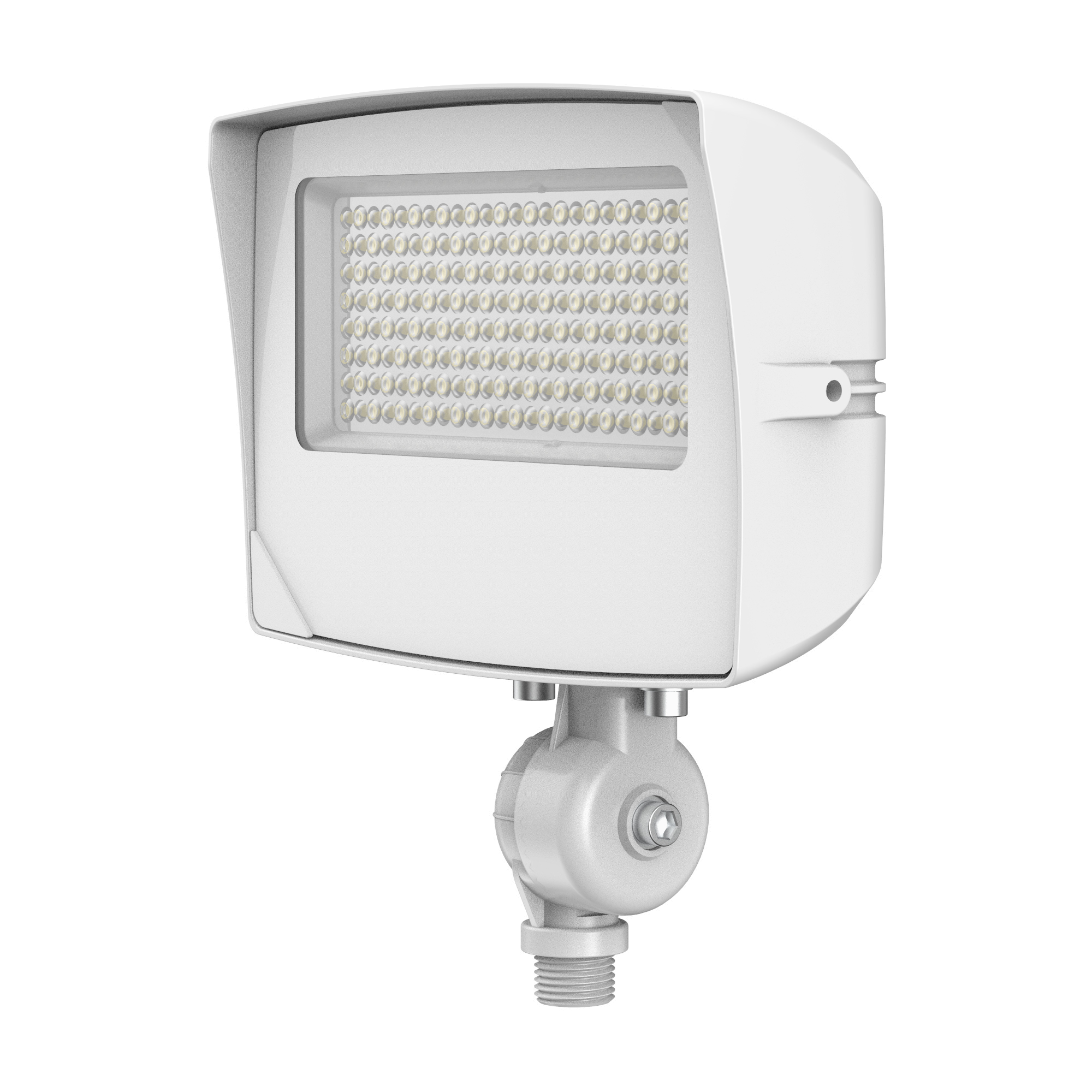

35W White Selectable LED Round-Back Flood Light with Knuckle/Trunnion Mounts
Introducing the upgraded OFL4 Flood Light, a pinnacle of high-performance illumination that redefines outdoor lighting. With a traditional, deep form, it offers high efficiency with a versatile offering in one body. It’s constructed using the latest in LED technology, providing selectable wattage, c…
Introducing the upgraded OFL4 Flood Light, a pinnacle of high-performance illumination that redefines outdoor lighting. With a traditional, deep form, it offers high efficiency with a versatile offering in one body. It’s constructed using the latest in LED technology, providing selectable wattage, color temperature, and beam throw options via an integrated switch. The OFL4 features a die-cast aluminum housing with a UV-stabilized powder-coat finish, and stainless-steel hardware for protection against the elements, ensuring long-lasting durability. The impact-resistant polycarbonate lens provides further protection while maintaining uniform light dispersion, enhanced by three options of beam distribution pattern and a high CRI value for vivid clarity. The OFL4 includes a pre-installed knuckle or slipfitter arm (150W and 320W fixtures will have the slipfitter) and a trunnion mount to suit your installation preference. Effortlessly improve landscapes, signage, facades, pathways, and open spaces with the OFL4, where superior lighting and versatility converge.
- Available in 5 different models (33W, 60W, 80W, 150W, and 320W) to suit a wide reange of applications
- Three selectable color temperatures (3000K/4000K/5000K)
- Three selectable wattage settings (Low/Med/High)
- Three selectable beam throws for different applications (5H5V / 6H6V / 7H6V)
- Durable die-cast aluminum housing with UV-stable finish
- Impact-resistant lens with uniform light distribution and >80 CRI
- Multiple mounting options: knuckle, slipfitter, trunnion, and U-bracket
- IP65 rated, DLC Premium, long-life LED system with surge protection
Color Options:
Ordering information
Downloads
Specifications
-
Lifespan>43,800 -
Lumens2128 - 5279 lm
-
Wattage15, 25, 35
Listings & certifications
- UL Certified
- DLC 5.1 Premium
- RoHS Compliant
- IP65 Ingress Protection
- FCC Class A
- Wet-Location (UL 1598)
- Testing performed in accordance with IESNA standards
Features
Construction
- Die-cast aluminum housing dissipates heat away from electrical components
- Stainless steel hardware
- Fine-textured, UV-stabilized powder coat finish
Optical System
- Impact-resistant polycarbonate lens creates a uniform light distribution
- Selectable NEMA distribution patterns: 5H5V, 6H6V, 7H6V
- >80 CRI
Electrical
- Three color temperature and wattage options; selector switches located on the backside of the fixture
- Input voltage of 120-277VAC, 50/60Hz
- Power factor: ≥0.9
- THD ≤ 20%
- 6kV driver surge protection
- 0-10V dimming standard
- Operating temperature range: -40°F to 122°F (-40°C to 50°C)
- Photocell is a standard feature (can be disabled in field)
Installations
- Knuckle: pre-installed on 35W, 60W, and 80W fixtures
- Knuckle: 1/2” threaded connector with locking nut
- Knuckle: Adjustment range of 0° to ±90°
- Slipfitter pre-installed on 150W and 320W fixtures
- Trunnion: included with all fixtures
- Trunnion: Adjustment range of 0° to 180°
- U-bracket mount available
- For installations where power surge may be possible, NICOR recommends installing additional surge protection at the electrical distribution panel
Full Listings
- UL Listed for wet locations
- Meets DLC Premium 5.1 requirements
- IP65 rated
- RoHS Compliant: Free from harmful and hazardous materials
- Meets FCC Part 15, Subpart B, Class A standards for conducted and radiated emissions
- TM-21 Reported L70 life >43,800 hours
- LM-79, LM-80 testing performed in accordance with IESNA standards
Warranty
- 5-year limited system warranty standard
- Warranty does not cover product failure due to an overvoltage event (power surge)
